All Electric Pallet Stacker
DGXZ-15
The DGXZ-15 standing driving electric stacker forklift is designed for warehouse pallet handling, cargo stacking and daily material transfer. With 1500kg rated load capacity, electric driving, stable lifting performance and lift height options of 2000mm, 2500mm and 3000mm, it provides an efficient solution for warehouses, workshops and logistics operations.
01

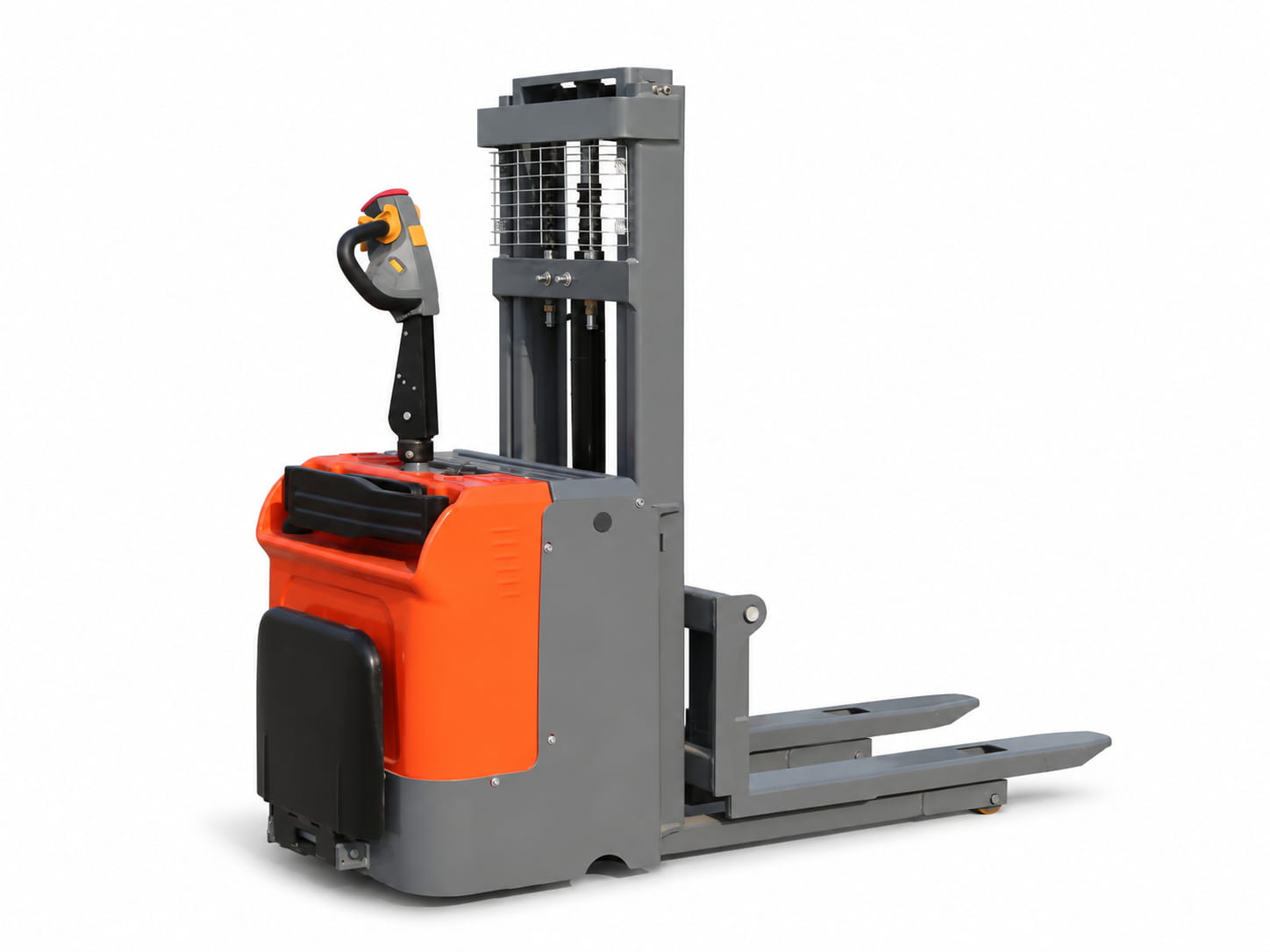

DGXZ-15 ELECTRIC STACKER FORKLIFT
Standing Driving Electric Stacker For Warehouse Handling
The DGXZ-15 standing driving electric stacker is designed for efficient pallet transport, warehouse stacking and daily material handling. With 1500kg rated load capacity, electric driving and stable lifting performance, it helps reduce manual labor and improve handling efficiency.1500kg rated load capacity
Standing driving operation for easier transfer
Suitable for warehouse pallet handling and stacking
02
STABLE LIFTING PERFORMANCE
Stable Lifting, Easier Pallet Stacking
The reinforced mast structure provides smooth and stable lifting performance for warehouse racking operations. It is suitable for stacking palletized goods, loading shelves and moving cargo between storage areas.Lift height options: 2000 / 2500 / 3000mm
Reinforced mast structure for stable lifting
Ideal for pallet racking and cargo stacking
03

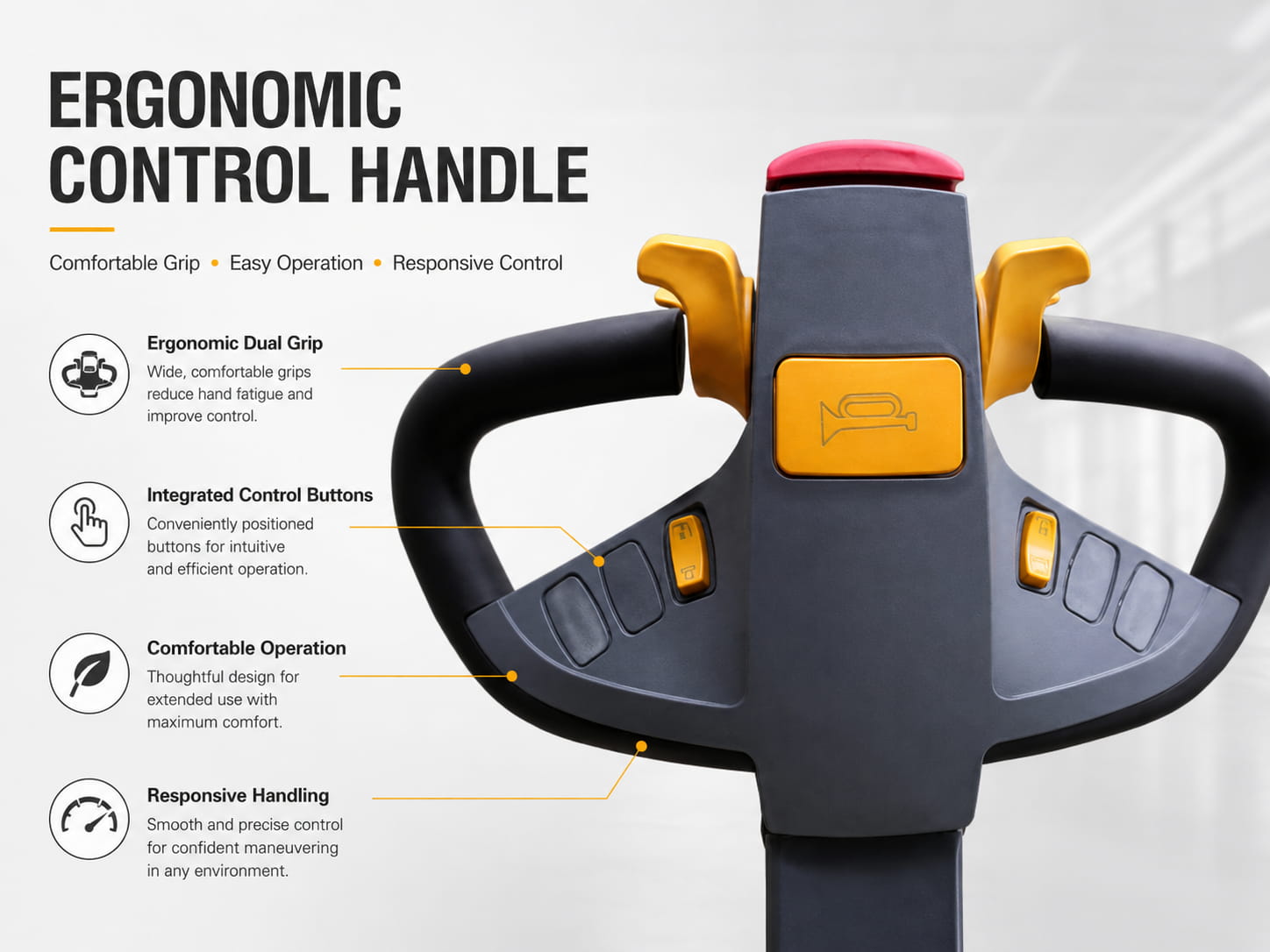

ERGONOMIC CONTROL HANDLE
Comfortable Grip, Responsive Control
The ergonomic control handle integrates travel, lifting and lowering functions. The dual-grip design makes operation easier, while the responsive control layout helps operators handle pallets more smoothly in narrow warehouse aisles.Integrated forward, reverse and lifting controls
Comfortable dual-grip handle design
Responsive operation for daily warehouse work
04

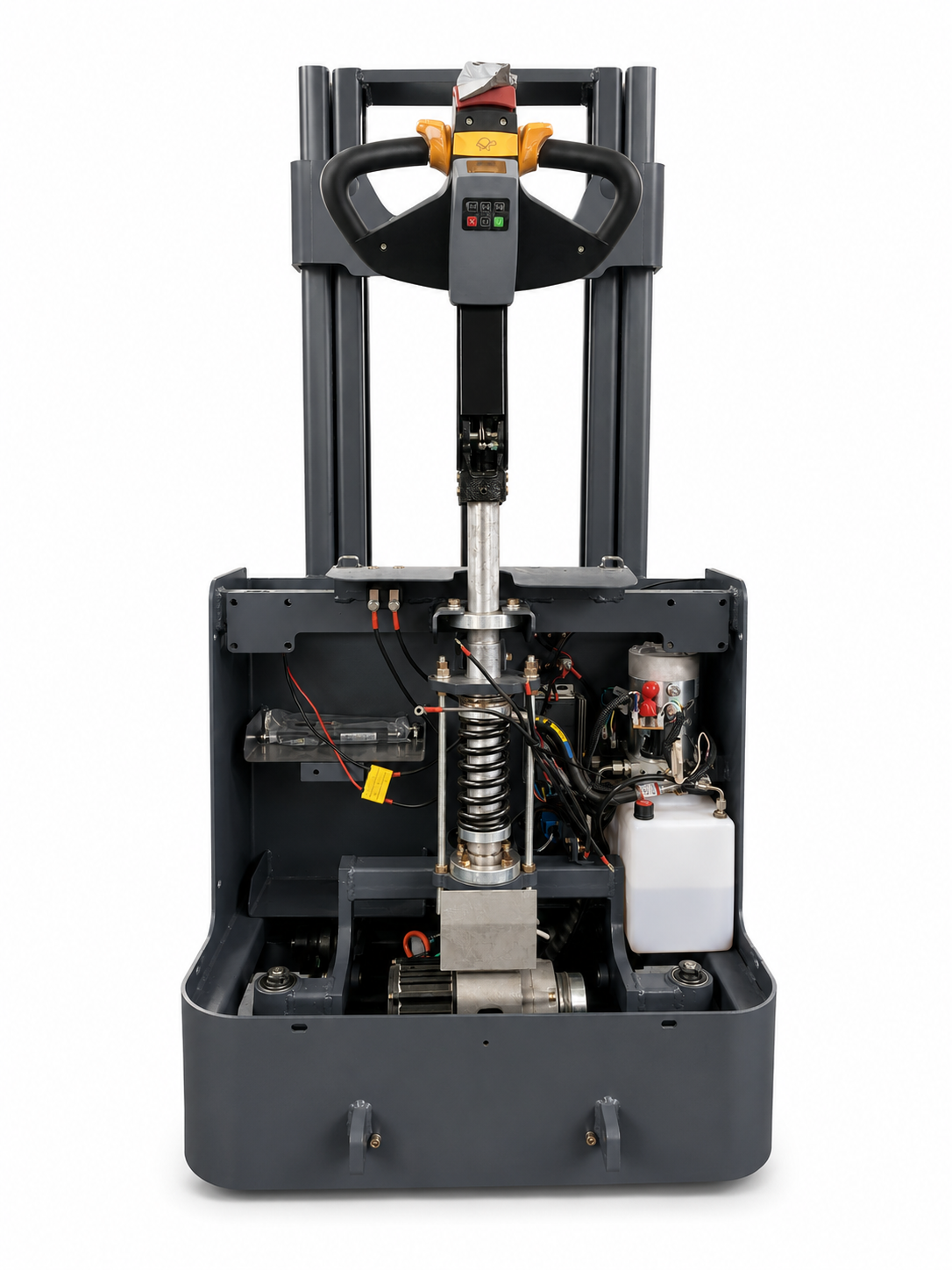

EASY MAINTENANCE DESIGN
Clear Internal Layout For Easy Inspection
The open body structure makes inspection and maintenance more convenient. Key components such as the hydraulic unit, controller, wiring and drive system are clearly arranged, helping reduce maintenance time and improve daily reliability.Clear hydraulic and electric component layout
Easy access for inspection and maintenance
Practical structure for long-term daily use
05
OPERATOR-FRIENDLY HANDLING
Easy Control For Daily Warehouse Operation
Electric driving helps reduce pushing effort, while stable lifting makes pallet stacking safer and smoother. The DGXZ-15 is suitable for warehouse transfer, pallet stacking, production line feeding and logistics material handling.Electric driving for labor-saving handling
Flexible operation in warehouse aisles
Suitable for pallet transfer and racking operation
TECHNICAL SPECIFICATIONS
DGXZ-15 Standing Driving Electric Stacker Parameters
Main technical data for DGXZ-15 electric stacker forklift. Suitable for warehouse stacking, pallet transport and cargo handling.| Category | Item | Unit | DGXZ-15 |
|---|---|---|---|
| Feature | |||
| Feature | Origin | - | China |
| Feature | Model | - | DGXZ-15 |
| Feature | Power Type | - | Battery |
| Feature | Operation Type | - | Standing Driving |
| Feature | Load Capacity | kg | 1500 |
| Feature | Load Center | mm | 500 |
| Feature | Lift Height | mm | 2000 / 2500 / 3000 |
| Feature | Wheelbase | mm | 1260 |
| Dimension | |||
| Dimension | Overall Dimension L×W | mm | 1850×800 |
| Dimension | Mast Height | mm | 1580 / 1880 / 2180 |
| Dimension | Fork Dimension | mm | 1100×155×60 |
| Dimension | Fork Width Min. / Max. | mm | 550 / 685 |
| Dimension | Min. Ground Clearance | mm | 75 |
| Dimension | Turning Radius | mm | 1550 |
| Dimension | Channel Width With 1000×1200mm Tray | mm | 1600 |
| Weight | |||
| Weight | Self Weight With Battery | kg | 620 / 650 / 680 |
| Weight | Battery Weight | kg | 32 |
| Wheel | |||
| Wheel | Wheel Type | - | Solid PU |
| Wheel | Driving Wheel Size | mm | 210×70 |
| Wheel | Auxiliary Wheel Size | mm | 110×55 |
| Wheel | Loading Wheel Size | mm | 80×70 |
| Wheel | Tread, Front | mm | 530 |
| Drive & Control | |||
| Drive & Control | Driving Motor | kW | 0.8 |
| Drive & Control | Lifting Motor | kW | 2.2 |
| Drive & Control | Battery Dimension | mm | 271×174×213 |
| Drive & Control | Battery Voltage / Capacity | V/Ah | 24 / 100 |
| Drive & Control | Controller | - | DC |
| Drive & Control | Working Pressure | MPa | 12 |
| Performance | |||
| Performance | Driving Speed | km/h | 4 / 4.5 |
| Performance | Lifting Speed | mm/s | 45 / 55 |
| Performance | Lowering Speed | mm/s | 40 / 55 |
| Performance | Max. Climbing Ability | % | 3 |
| Performance | Service Braking | - | Electromagnetic Induction |
| Performance | Parking Braking | - | Electromagnetic Induction |
| Other | |||
| Other | Driving Type | - | Electric |
| Other | Steering Type | - | Manual |
| Other | Noise Level | dB | 68 |
| Other | Waterproof Grade | - | IP54 |
