All Electric Pallet Stacker
DGX-15
The DGX15 Series Walkie Electric Stacker is designed for warehouse pallet handling, cargo stacking and daily material transfer. With 1500kg rated load capacity, electric travel, electric lifting and lift height options from 2000mm to 3500mm, it provides an efficient solution for warehouses, workshops, logistics centers and production line operations.
01

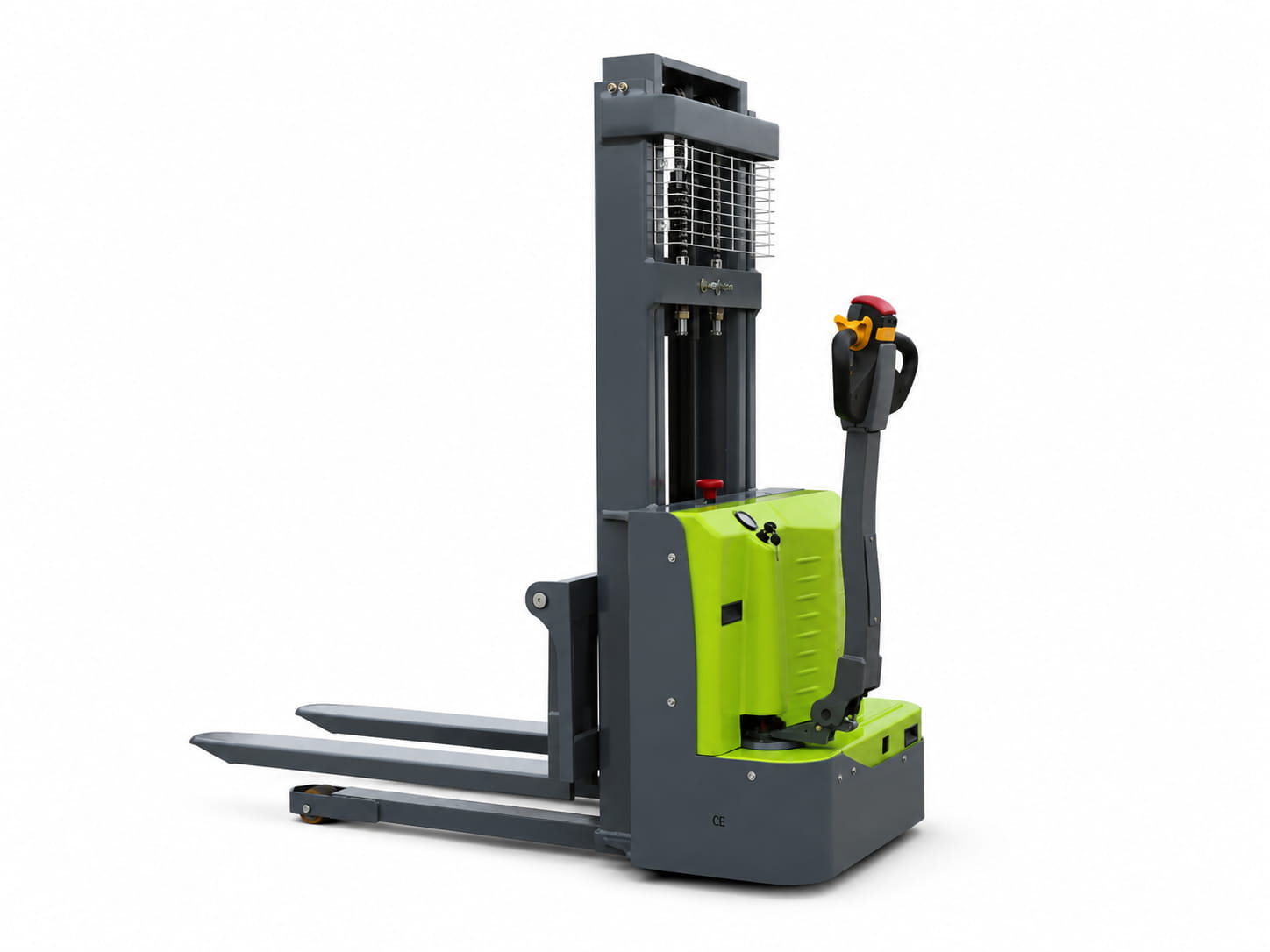

DGX15 WALKIE ELECTRIC STACKER
Compact Electric Stacker For Warehouse Handling
The DGX15 walkie electric stacker is designed for pallet transport, warehouse stacking and daily material handling. With electric travel, electric lifting and a compact body structure, it helps improve handling efficiency in warehouses, workshops and logistics centers.1500kg rated load capacity
Walking operation type for flexible control
Suitable for pallet handling and warehouse stacking
02

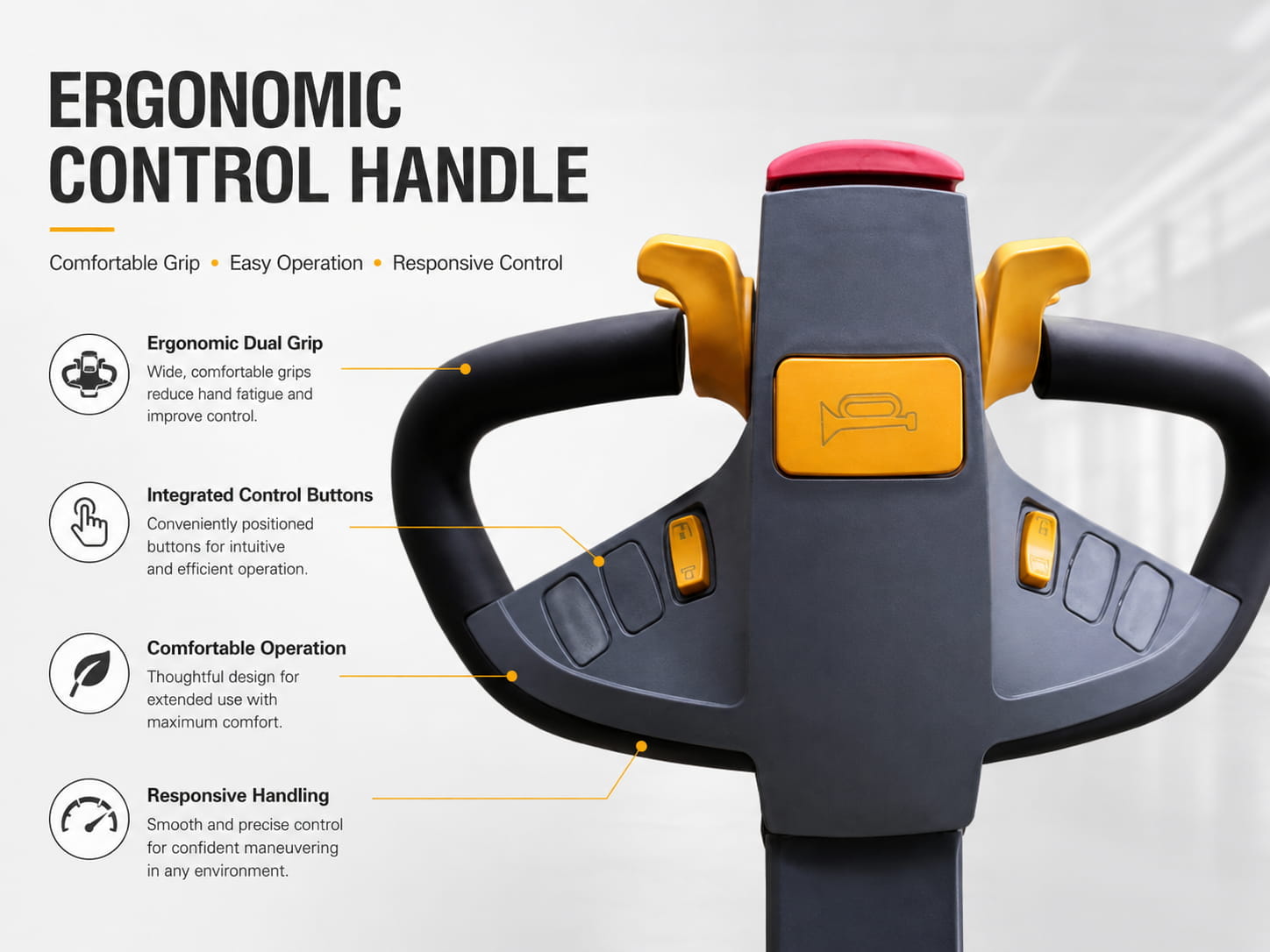

ERGONOMIC CONTROL HANDLE
Comfortable Grip, Easy Operation
The ergonomic control handle integrates forward, reverse, lifting and lowering functions. The comfortable dual-grip design allows operators to control the stacker easily and accurately during frequent warehouse operations.Comfortable ergonomic handle design
Integrated travel and lifting controls
Responsive operation for narrow aisle use
03

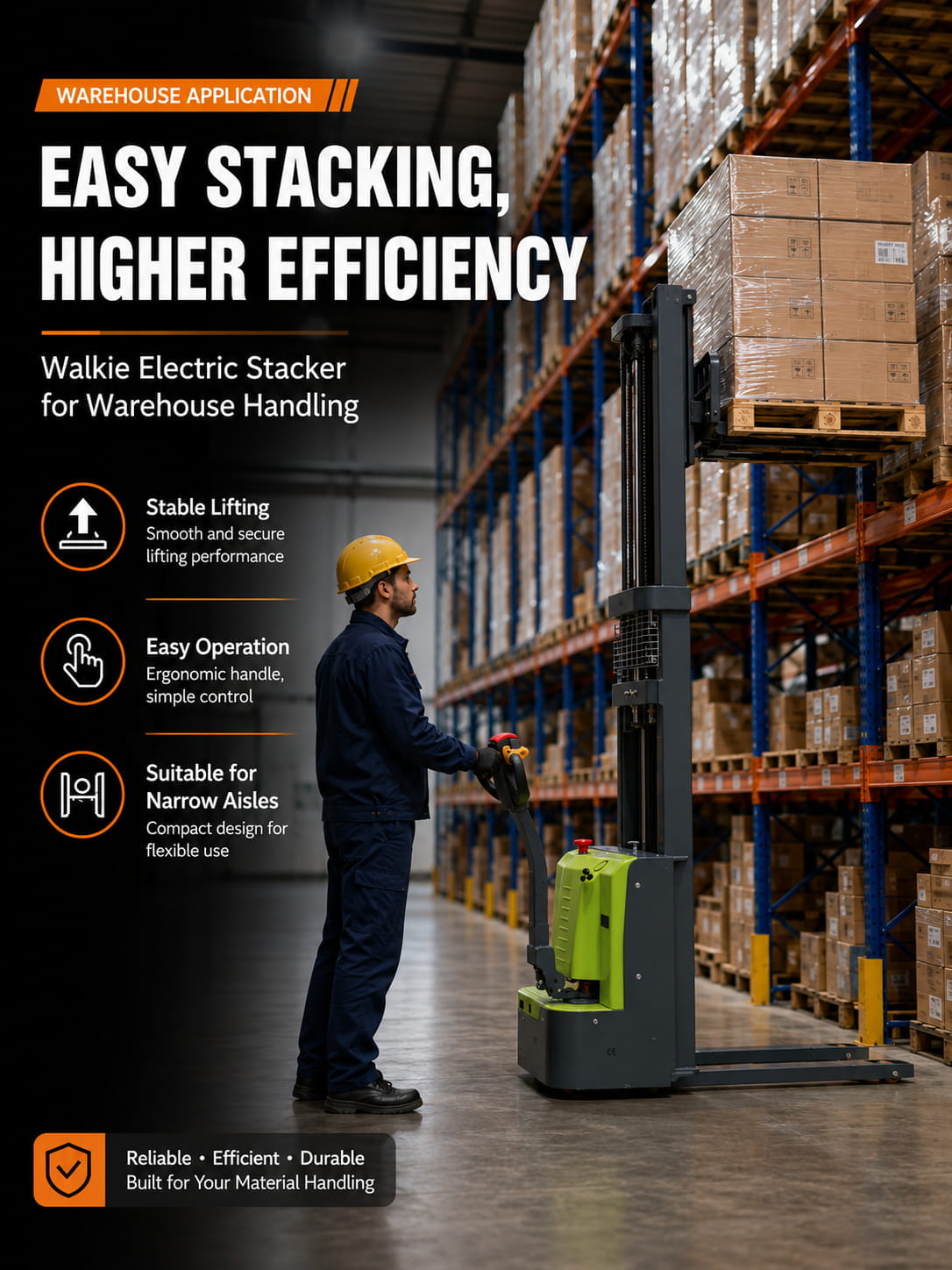

WAREHOUSE APPLICATION
Easy Stacking, Higher Efficiency
This electric stacker is suitable for warehouse pallet racking, cargo stacking and material transfer. It helps reduce manual labor intensity and improves daily storage efficiency for palletized goods.Ideal for warehouse racking operation
Stable lifting for pallet stacking
Compact design for flexible aisle movement
04

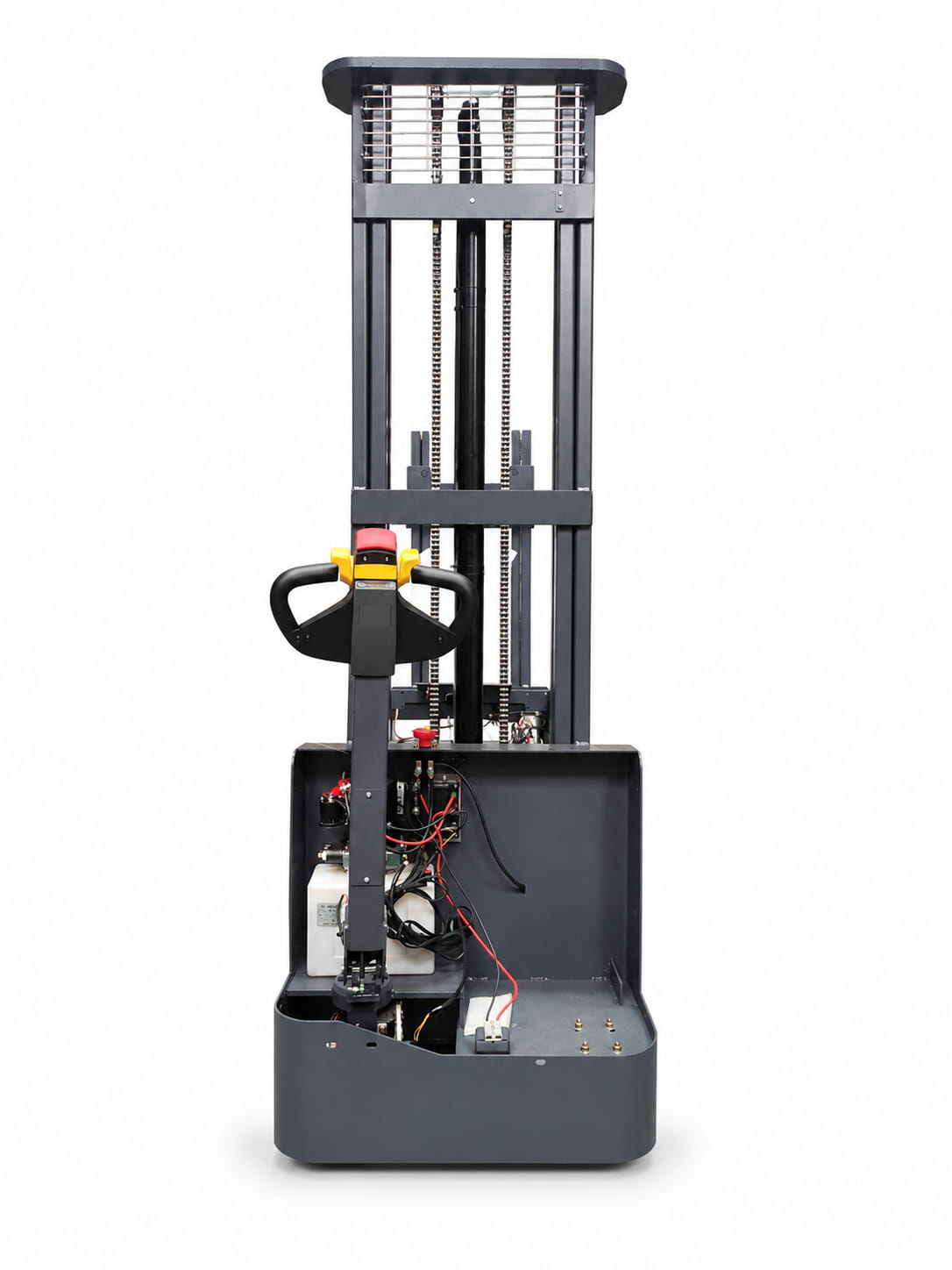

EASY MAINTENANCE DESIGN
Clear Internal Layout For Easy Inspection
The open internal structure makes inspection and maintenance more convenient. Key components such as hydraulic unit, wiring, controller and drive system are arranged clearly for daily maintenance and long-term use.Clear hydraulic and electric component layout
Easy access for inspection and maintenance
Designed for long-term warehouse operation
05

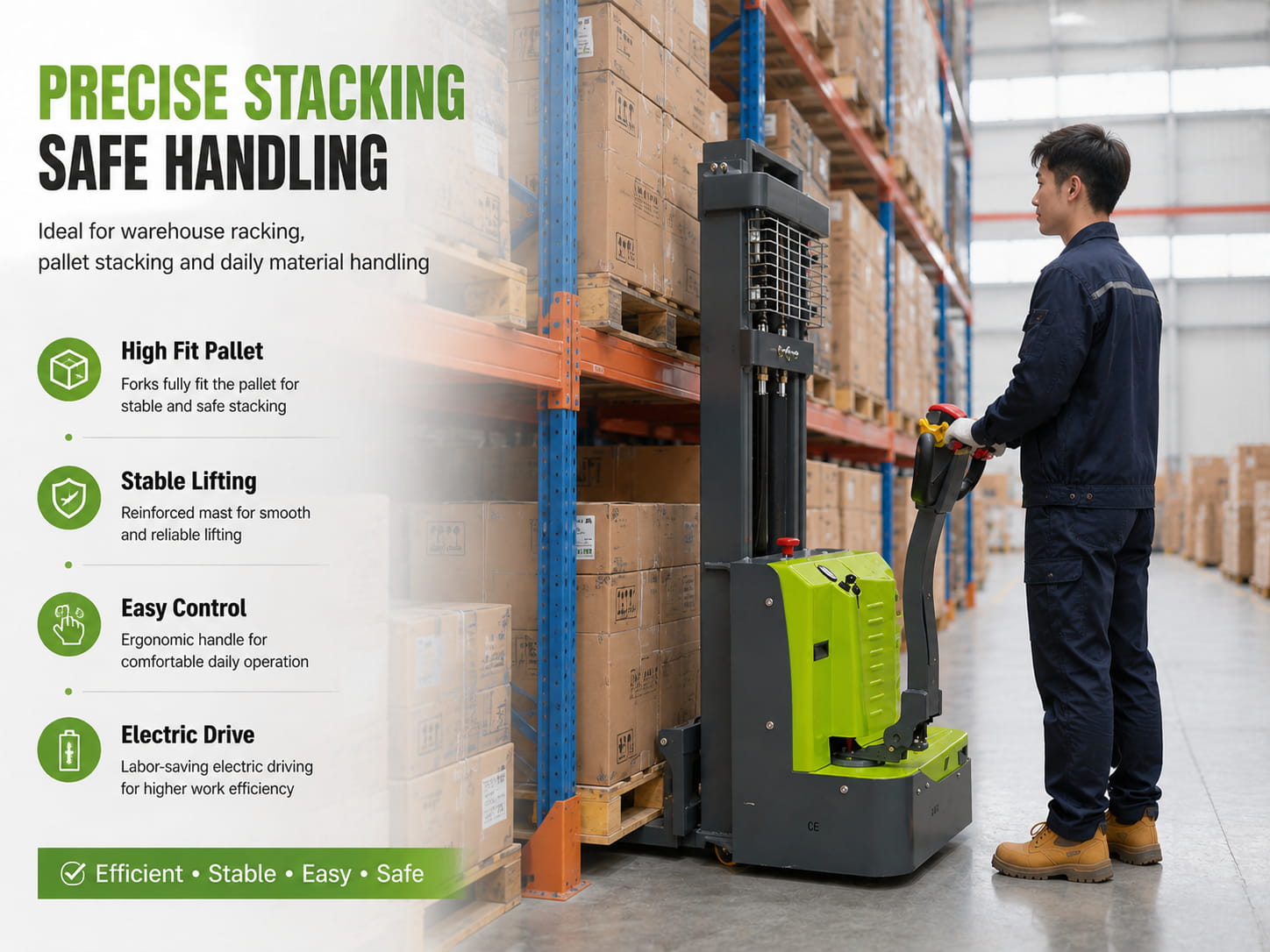

PRECISE STACKING
Safe Handling For Daily Material Transfer
The DGX15 stacker provides smooth lifting, stable pallet support and easy control for daily warehouse use. It is suitable for pallet transfer, shelf loading, production line feeding and logistics handling.Stable lifting for safer stacking
Electric drive for labor-saving movement
Suitable for warehouses, workshops and logistics centers
TECHNICAL SPECIFICATIONS
DGX15 Series Walkie Electric Stacker Parameters
Main technical data for DGX15-20, DGX15-25, DGX15-30 and DGX15-35 electric stacker forklifts.| Category | Item | Unit | DGX15-20 | DGX15-25 | DGX15-30 | DGX15-35 |
|---|---|---|---|---|---|---|
| Feature | ||||||
| Feature | Origin | - | China | China | China | China |
| Feature | Model | - | DGX15-20 | DGX15-25 | DGX15-30 | DGX15-35 |
| Feature | Power Type | - | Battery | Battery | Battery | Battery |
| Feature | Operation Type | - | Walking | Walking | Walking | Walking |
| Feature | Load Capacity | kg | 1500 | 1500 | 1500 | 1500 |
| Feature | Load Center | mm | 400 | 400 | 400 | 400 |
| Feature | Lift Height | mm | 2000 | 2500 | 3000 | 3500 |
| Dimension | ||||||
| Dimension | Overall Dimension L×W | mm | 1730×800 | 1730×800 | 1730×800 | 1730×800 |
| Dimension | Mast Height Lowered / Raised | mm | 1580×2550 | 1880×3250 | 2180×3750 | 2350×4250 |
| Dimension | Fork Dimension | mm | 1120×160×60 | 1120×160×60 | 1120×160×60 | 1120×160×60 |
| Dimension | Fork Width Min. / Max. | mm | 550 / 685 | 550 / 685 | 550 / 685 | 550 / 685 |
| Dimension | Turning Radius | mm | 1410 | 1410 | 1410 | 1410 |
| Weight | ||||||
| Weight | Self Weight With Battery | kg | 560 | 580 | 600 | 620 |
| Weight | Battery Weight | kg | 32 | 32 | 32 | 32 |
| Wheel | ||||||
| Wheel | Wheel Type | - | Solid PU | Solid PU | Solid PU | Solid PU |
| Wheel | Driving Wheel Size | mm | 210×70 | 210×70 | 210×70 | 210×70 |
| Wheel | Auxiliary Wheel Size | mm | 110×55 | 110×55 | 110×55 | 110×55 |
| Wheel | Loading Wheel Size | mm | 80×70 | 80×70 | 80×70 | 80×70 |
| Drive & Control | ||||||
| Drive & Control | Driving Motor | kW | 0.8 | 0.8 | 0.8 | 0.8 |
| Drive & Control | Lifting Motor | kW | 2.2 | 2.2 | 2.2 | 2.2 |
| Drive & Control | Battery Voltage / Capacity | V/Ah | 24 / 80 | 24 / 80 | 24 / 80 | 24 / 80 |
| Drive & Control | Controller | - | DC | DC | DC | DC |
| Performance | ||||||
| Performance | Driving Speed | km/h | 4 / 4.5 | 4 / 4.5 | 4 / 4.5 | 4 / 4.5 |
| Performance | Lifting Speed | mm/s | 45 / 55 | 45 / 55 | 45 / 55 | 45 / 55 |
| Performance | Lowering Speed | mm/s | 40 / 55 | 40 / 55 | 40 / 55 | 40 / 55 |
| Performance | Max. Climbing Ability | % | 3 | 3 | 3 | 3 |
| Other | ||||||
| Other | Driving Type | - | Electric | Electric | Electric | Electric |
| Other | Steering Type | - | Manual | Manual | Manual | Manual |
| Other | Noise Level | dB | 68 | 68 | 68 | 68 |
| Other | Waterproof Grade | - | IP54 | IP54 | IP54 | IP54 |
