Electric Forklift
CPD-40
The 4 Ton Electric Counterbalance Forklift is designed for warehouse loading, factory handling, pallet transfer and daily industrial material movement. With a 4000kg rated capacity, counterbalance structure and seated operation, it provides reliable performance for efficient loading and unloading. Rated Capacity: 4000 kg Lift Height: 3000 mm Battery: 48V / 400Ah Travel Speed: 13 km/h Application: Warehouse loading, factory handling, pallet transfer and truck loading
01
4 TON ELECTRIC COUNTERBALANCE FORKLIFT
Reliable Seated Forklift For Warehouse And Factory Handling
The 4 ton electric counterbalance forklift is designed for pallet transport, warehouse loading, truck loading and factory material handling. With a 4000kg rated capacity, seated operation and counterbalance design without front support legs, it provides flexible pallet access and stable daily industrial performance.4000kg rated capacity for warehouse pallet handling
Counterbalance design without front support legs
Suitable for loading, unloading, pallet transfer and factory handling
02

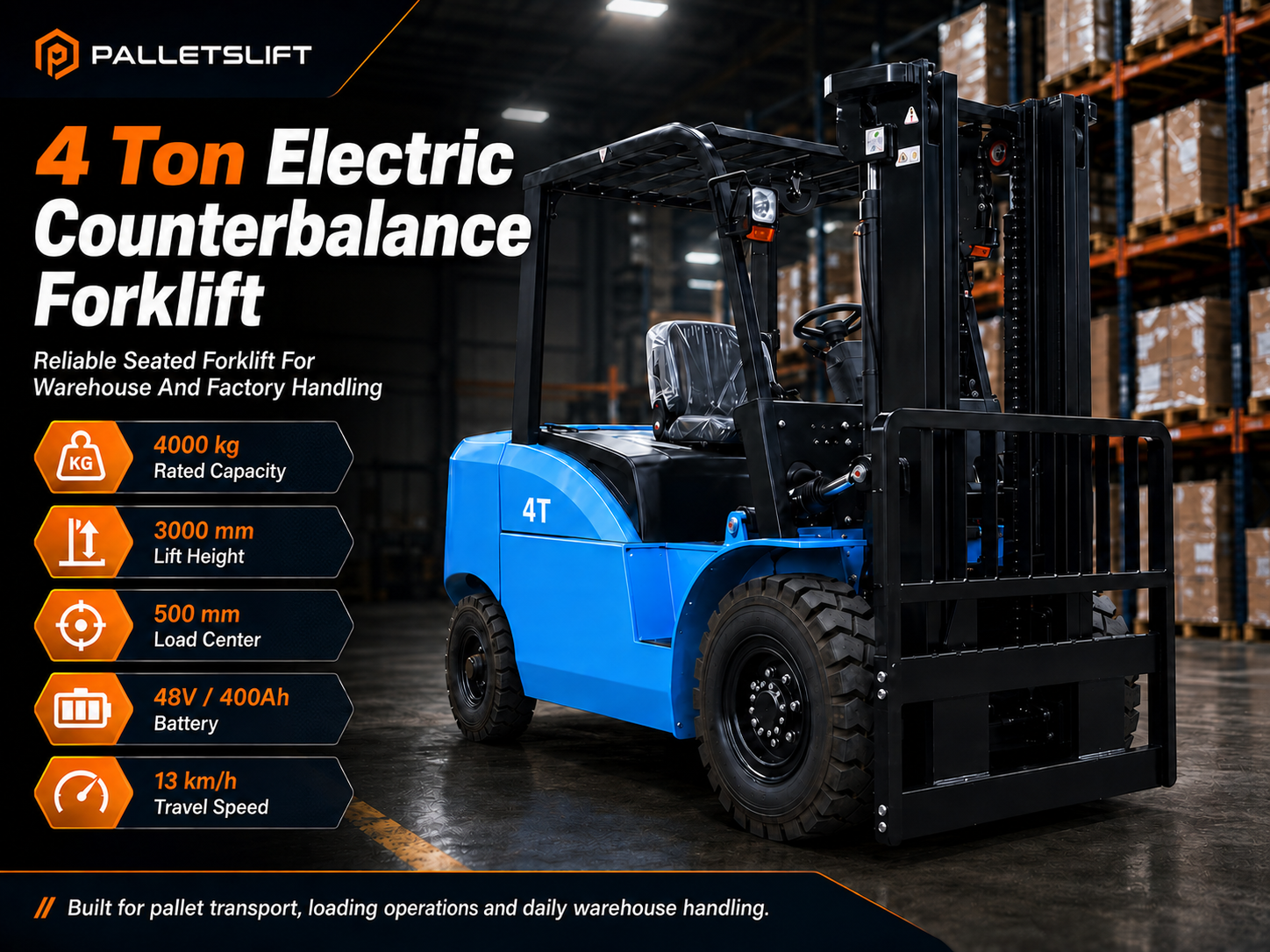

MAIN FEATURES
4 Ton Electric Counterbalance Forklift For Daily Handling
With 4000kg rated capacity, 3000mm lift height, 48V/400Ah battery and 13km/h travel speed, this forklift is built for dependable warehouse handling, pallet transfer and factory loading operations.Rated capacity: 4000 kg
Lift height: 3000 mm
Battery: 48V / 400Ah with 13 km/h travel speed
03

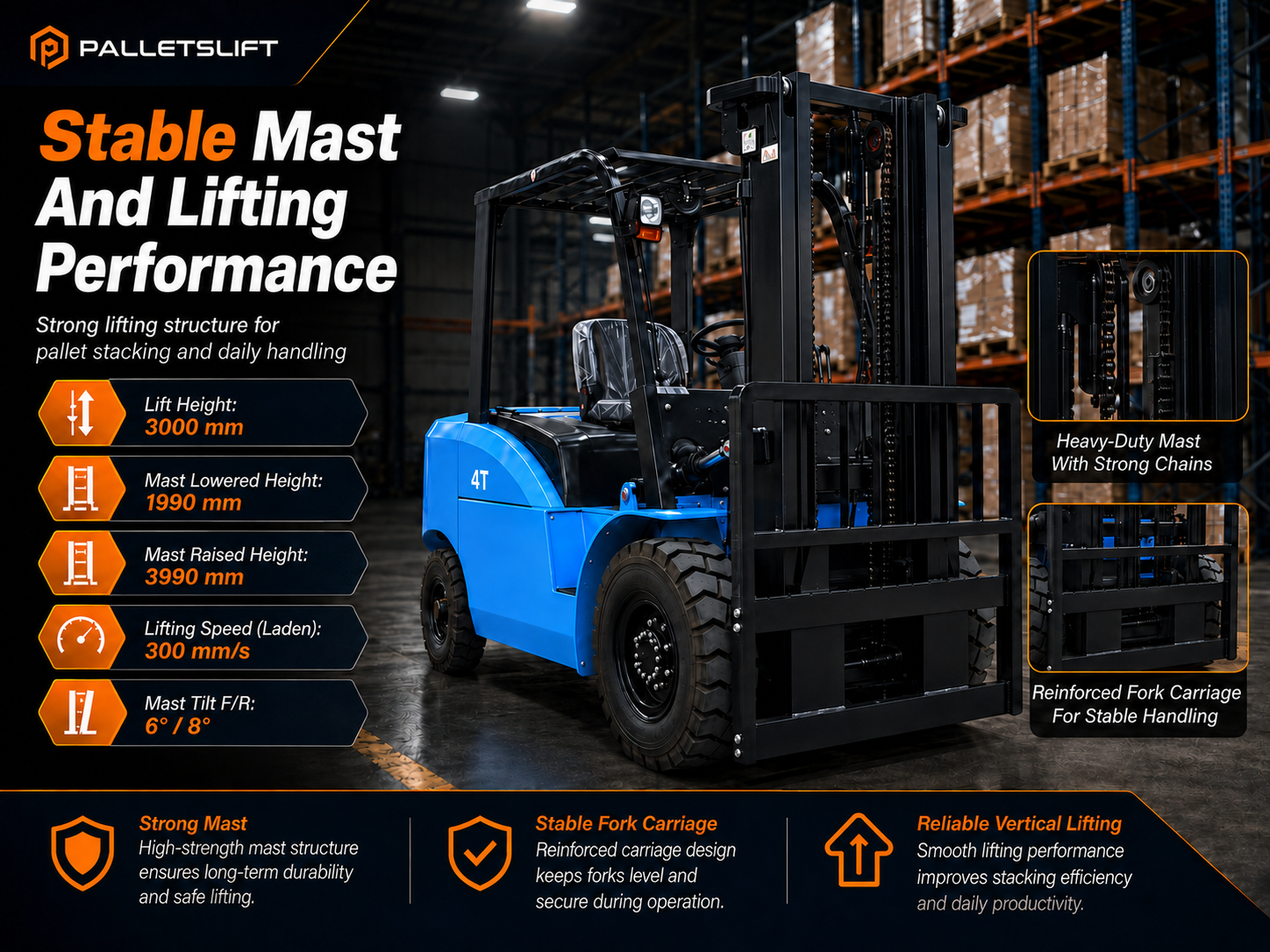

STABLE MAST AND LIFTING
Strong Mast Structure For Stable Vertical Lifting
The reinforced mast and fork carriage are designed for stable lifting performance in warehouse and factory applications. Heavy-duty mast chains, strong carriage support and reliable vertical lifting help keep the forks level and secure during operation.Lift height: 3000 mm
Mast lowered height: 1990 mm / Mast raised height: 3990 mm
Lifting speed laden: 300 mm/s / Mast tilt F/R: 6° / 8°
04

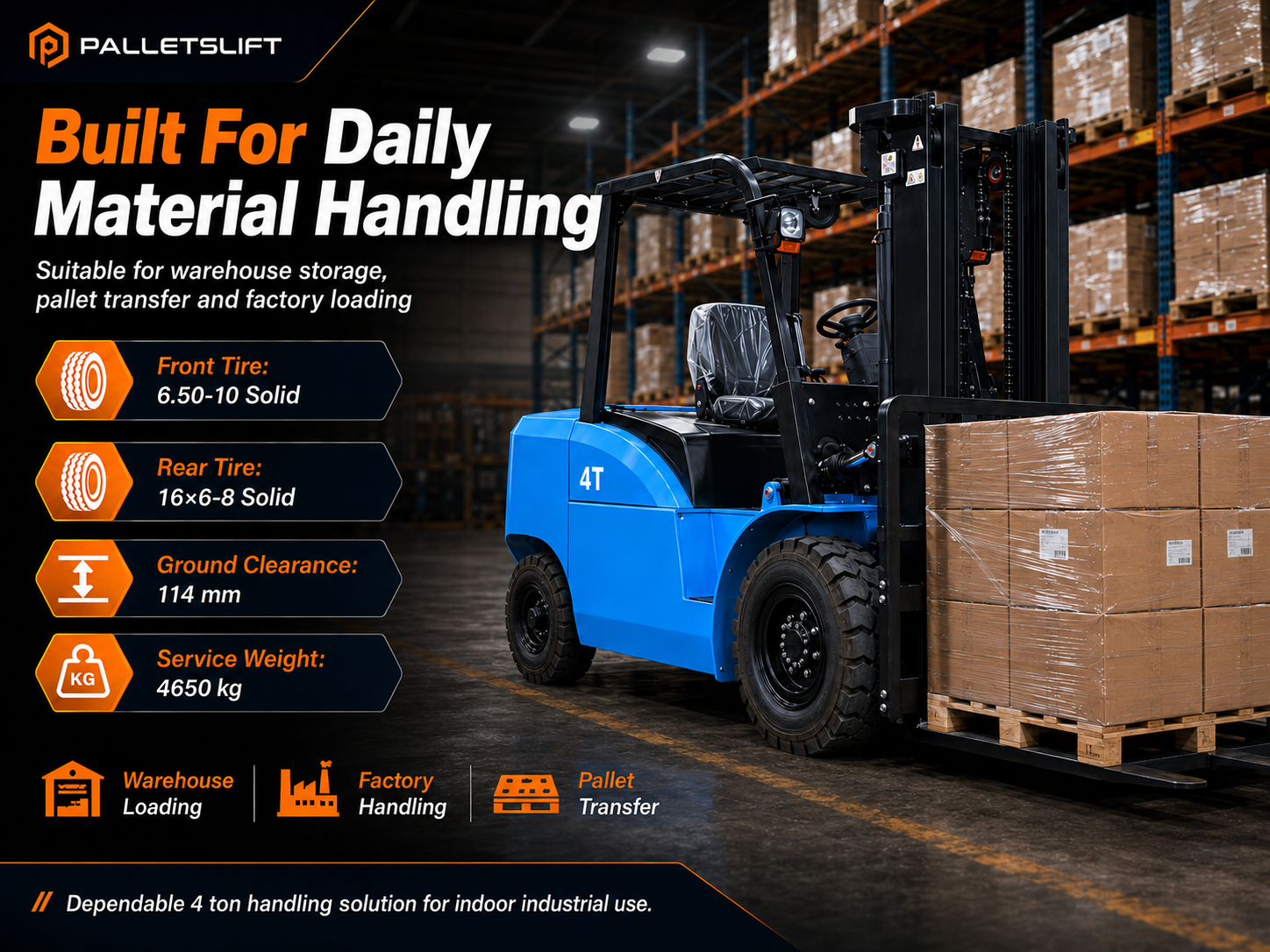

DAILY MATERIAL HANDLING
Built For Warehouse Loading, Factory Handling And Pallet Transfer
This 4 ton electric counterbalance forklift is suitable for warehouse storage, pallet transfer and factory loading. The stable body, solid tires and compact operating layout support frequent indoor industrial use.Front tire: 6.50-10 solid
Rear tire: 16×6-8 solid
Ground clearance: 114 mm / Service weight: 4650 kg
05

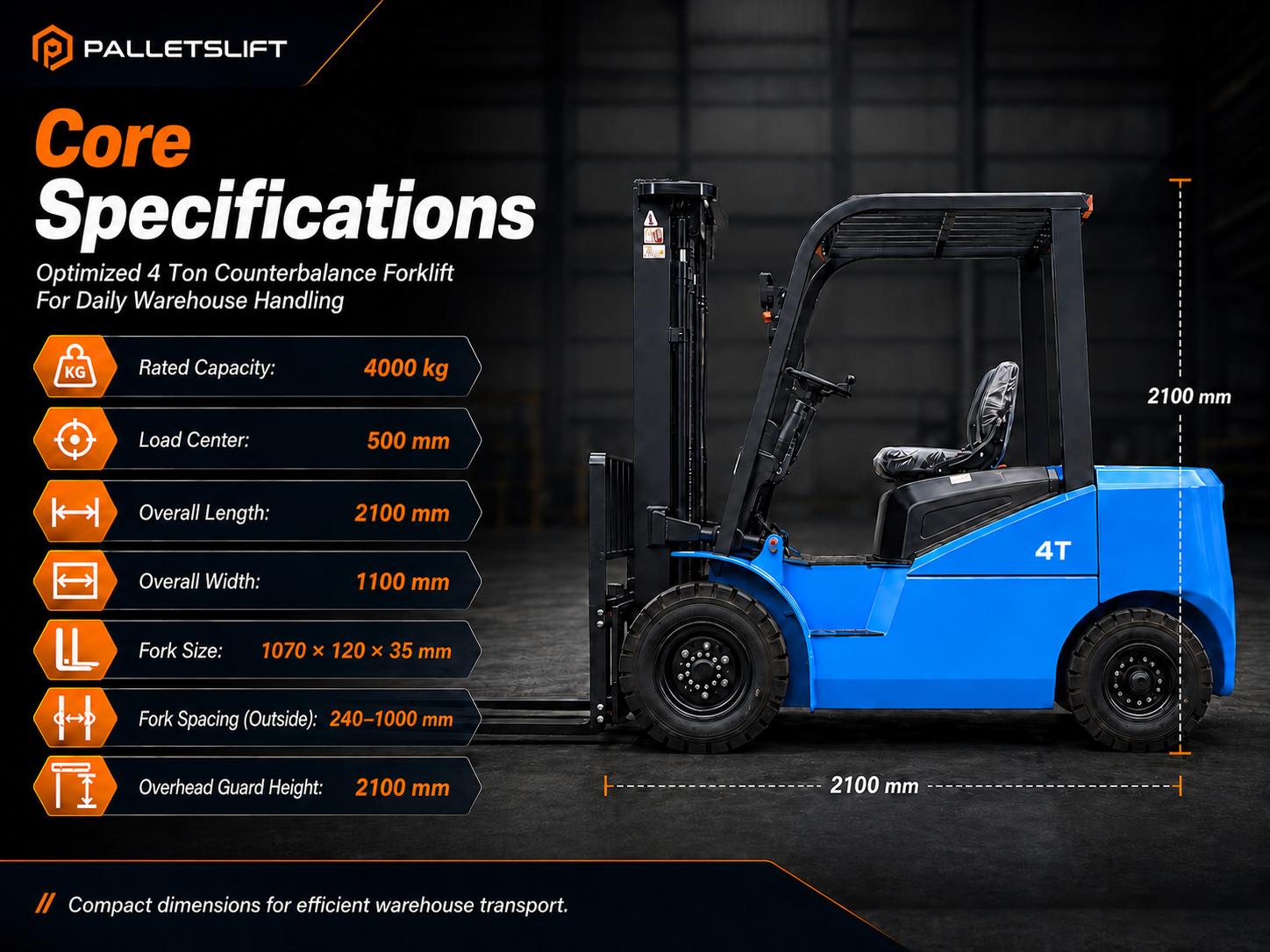

CORE SPECIFICATIONS
Compact Dimensions For Efficient Warehouse Transport
The 4 ton electric counterbalance forklift uses a practical body layout for daily warehouse transport. With 2100mm overall length, 1100mm overall width and standard fork size, it is suitable for palletized goods handling in warehouses and factories.Overall length: 2100 mm / Overall width: 1100 mm
Fork size: 1070×120×35 mm
Fork spacing outside: 240–1000 mm / Overhead guard height: 2100 mm
06

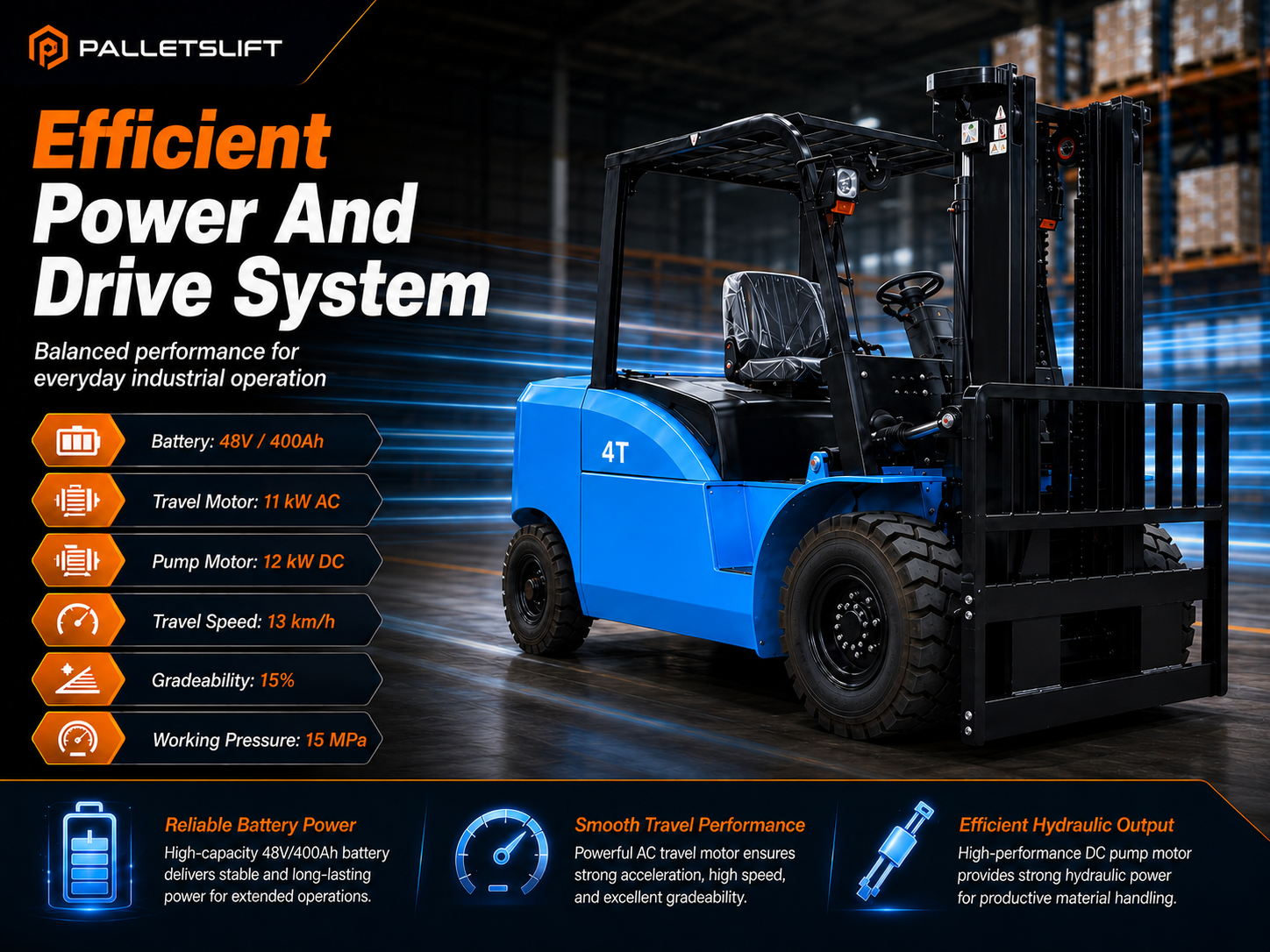

POWER AND DRIVE SYSTEM
Efficient Power System For Everyday Industrial Operation
The forklift is equipped with a 48V/400Ah battery, 11kW AC travel motor and 12kW DC pump motor. The power and hydraulic system provide stable travel, reliable lifting and smooth handling performance for daily industrial operation.Battery: 48V / 400Ah
Travel motor: 11 kW AC / Pump motor: 12 kW DC
Travel speed: 13 km/h / Gradeability: 15% / Working pressure: 15 MPa
07

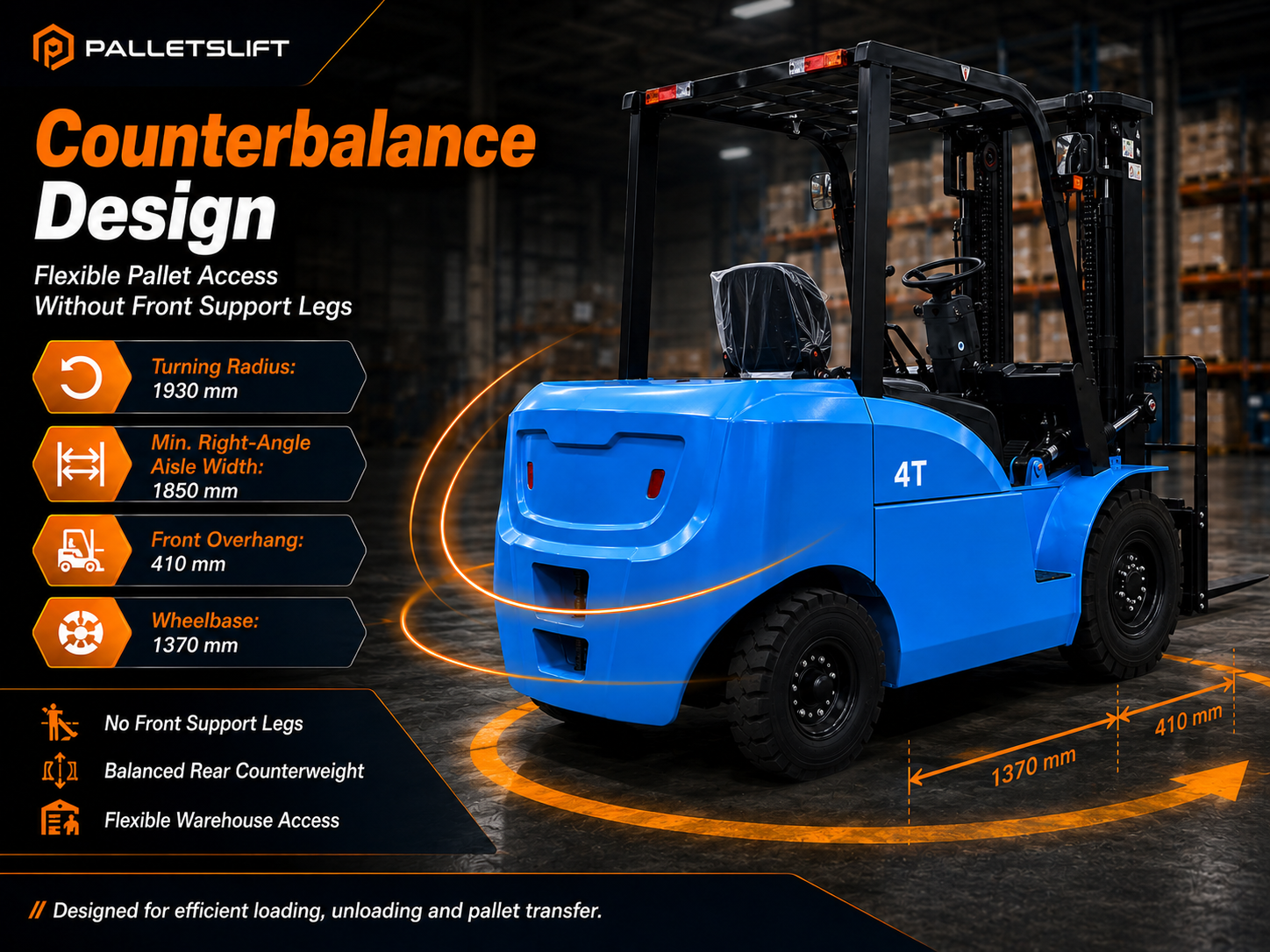

COUNTERBALANCE DESIGN
Flexible Pallet Access Without Front Support Legs
The counterbalance structure allows the forklift to access pallets directly without front support legs. This design improves flexibility for loading, unloading and pallet transfer in warehouse and factory environments.Turning radius: 1930 mm
Min. right-angle aisle width: 1850 mm
Front overhang: 410 mm / Wheelbase: 1370 mm
TECHNICAL SPECIFICATIONS
4 Ton Electric Counterbalance Forklift Parameters
Main technical data for 4 ton electric counterbalance forklift. Suitable for warehouse loading, factory handling, pallet transfer and indoor industrial material movement.| Category | Item | Unit | 4 Ton Electric Counterbalance Forklift |
|---|---|---|---|
| Main Performance | |||
| Performance | Rated Capacity | kg | 4000 |
| Performance | Load Center | mm | 500 |
| Performance | Lift Height | mm | 3000 |
| Performance | Travel Speed | km/h | 13 |
| Performance | Gradeability | % | 15 |
| Performance | Working Pressure | MPa | 15 |
| Dimension | |||
| Dimension | Overall Length | mm | 2100 |
| Dimension | Overall Width | mm | 1100 |
| Dimension | Overhead Guard Height | mm | 2100 |
| Dimension | Fork Size | mm | 1070×120×35 |
| Dimension | Fork Spacing Outside | mm | 240–1000 |
| Mast | |||
| Mast | Mast Lowered Height | mm | 1990 |
| Mast | Mast Raised Height | mm | 3990 |
| Mast | Lifting Speed Laden | mm/s | 300 |
| Mast | Mast Tilt F/R | ° | 6 / 8 |
| Turning And Body | |||
| Turning | Turning Radius | mm | 1930 |
| Turning | Min. Right-Angle Aisle Width | mm | 1850 |
| Turning | Front Overhang | mm | 410 |
| Turning | Wheelbase | mm | 1370 |
| Power And Tires | |||
| Power | Battery | V/Ah | 48 / 400 |
| Power | Travel Motor | kW | 11 AC |
| Power | Pump Motor | kW | 12 DC |
| Tire | Front Tire | - | 6.50-10 Solid |
| Tire | Rear Tire | - | 16×6-8 Solid |
| Weight | Service Weight | kg | 4650 |
