CPD-30L
The CPD-30L 3 Ton Lithium Electric Counterbalance Forklift is designed for warehouse, workshop, factory and logistics material handling. With 3000 kg rated capacity, 500 mm load center, 3000 mm lift height, 80V / 248Ah lithium battery and powerful AC drive system, it provides clean electric power, stable lifting and efficient daily pallet handling performance.

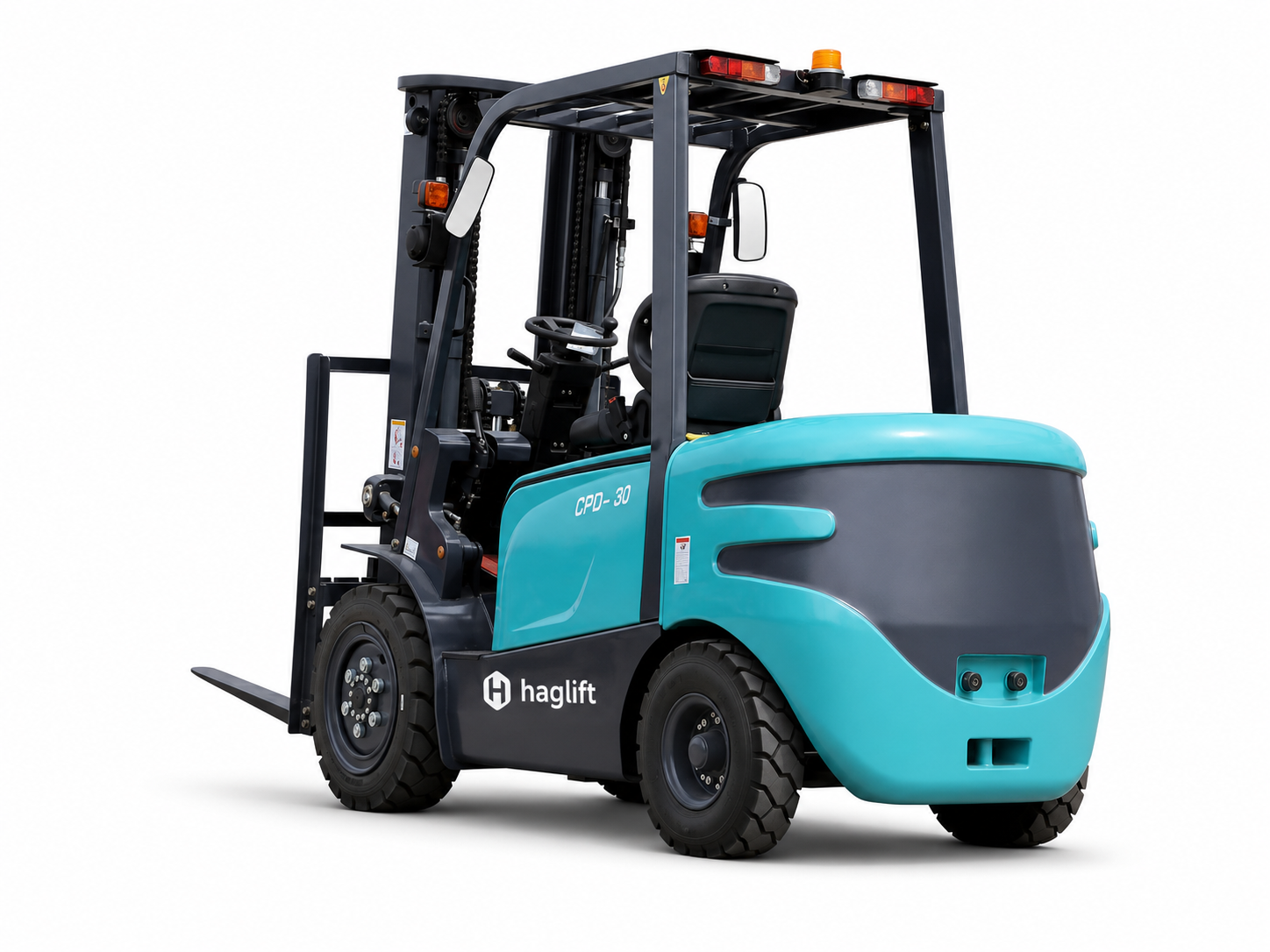

CPD-30L 3 Ton Lithium Electric Counterbalance Forklift
The CPD-30L lithium electric counterbalance forklift is designed for warehouse, workshop and factory material handling. With 3000 kg rated capacity, 80V/248Ah lithium battery, powerful AC drive and stable counterbalance structure, it provides clean electric performance for pallet transfer, loading work and daily industrial handling.
Designed For Warehouse And Factory Applications
This electric counterbalance forklift is ideal for pallet transfer, warehouse storage, factory handling and loading operations. The lithium battery system provides low emissions and cleaner indoor operation for modern material handling sites.
- Suitable for warehouse storage and pallet transfer
- Reliable for factory handling and daily loading work
- Compact design for flexible movement in tight spaces
- Electric power with low emissions for cleaner indoor use
3 Ton Lithium Electric Counterbalance Forklift
The CPD-30L combines lithium power, seated operation and durable pneumatic tires to provide stable heavy-duty handling for warehouse, workshop and factory applications.
- Rated capacity: 3000 kg
- Load center: 500 mm
- Standard lift height: 3000 mm
- Travel speed: 14.5 / 15 km/h
Powerful Electric Drive And Lithium Power
The 80V lithium battery and AC drive system provide strong power output, smooth acceleration and efficient daily performance. The electric power system reduces emissions and helps lower maintenance costs.
- Battery: 80V / 248Ah lithium
- Travel motor: 21 kW AC
- Lifting motor: 12 kW
- Gradeability: 15°
- Lifting speed loaded / unloaded: 250 / 360 mm/s
Ergonomic Operator Control System
The ergonomic seated operation layout, responsive steering, integrated hydraulic levers and clear forward visibility help improve comfort, safety and productivity during daily material handling.
- Comfortable seat for all-day operation
- Responsive steering for smooth and precise control
- Integrated hydraulic levers for accurate operation
- Optimized mast design for better forward visibility
Stable Mast And Reliable Lifting Performance
The wide-view mast, heavy-duty mast chains and reinforced carriage provide smooth lifting, stable pallet handling and reliable daily stacking performance.
- Standard lift height: 3000 mm
- Mast tilt F/R: 6° / 8°
- Free lift height: 135 mm
- Mast lowered height: 2080 mm
- Mast raised height: 4040 mm

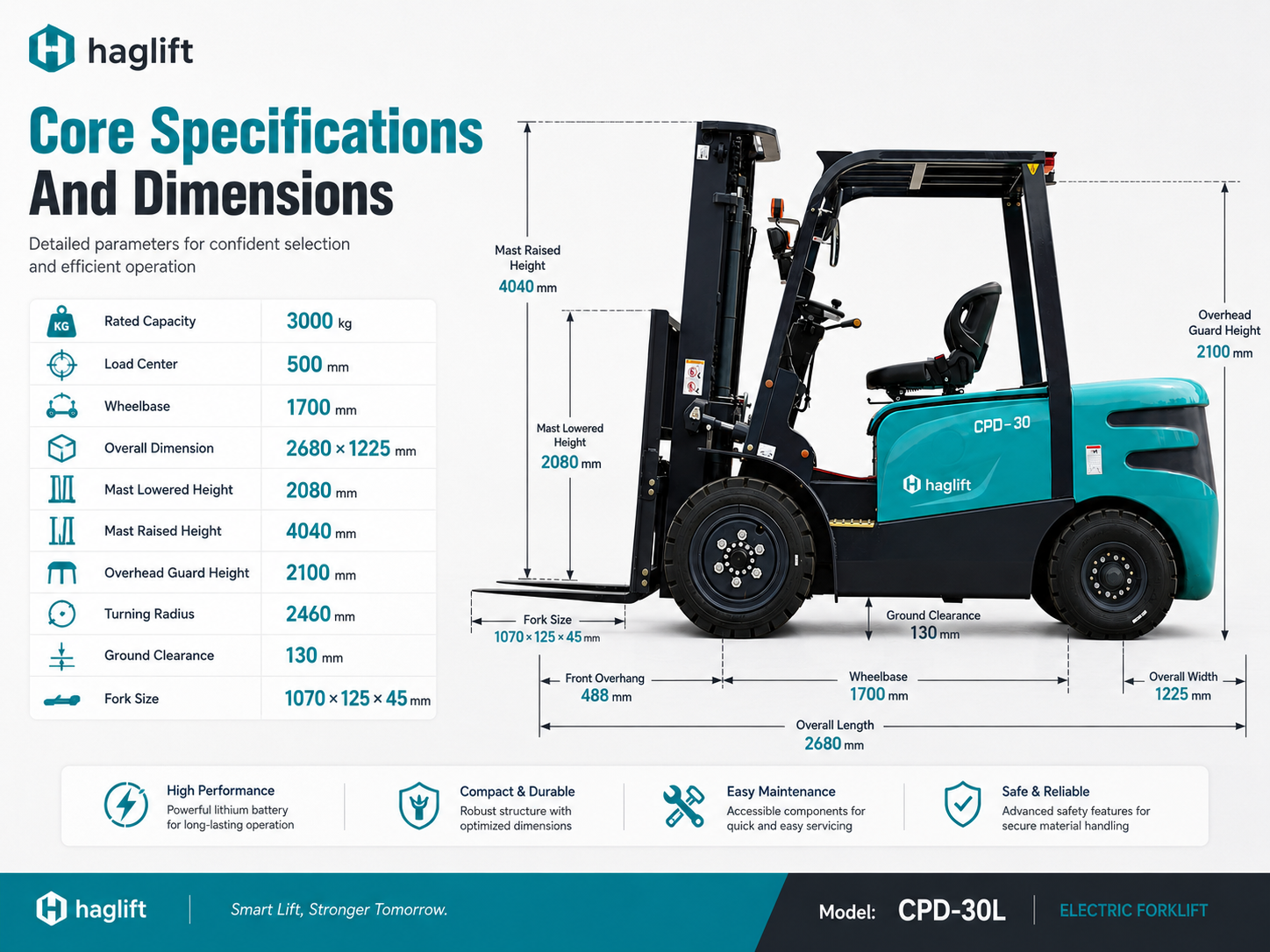

Core Specifications And Dimensions
Detailed parameters help users select the right forklift for working aisles, pallet sizes and daily operation requirements.
| Item | Specification |
|---|---|
| Rated Capacity | 3000 kg |
| Load Center | 500 mm |
| Wheelbase | 1700 mm |
| Overall Dimension | 2680 × 1225 mm |
| Mast Lowered Height | 2080 mm |
| Mast Raised Height | 4040 mm |
| Overhead Guard Height | 2100 mm |
| Turning Radius | 2460 mm |
| Ground Clearance | 130 mm |
| Fork Size | 1070 × 125 × 45 mm |
Technical Specifications
| Item | CPD-30L |
|---|---|
| Product Name | 3 Ton Lithium Electric Counterbalance Forklift |
| Rated Capacity | 3000 kg |
| Load Center | 500 mm |
| Lift Height | 3000 mm |
| Battery | 80V / 248Ah Lithium |
| Travel Speed | 14.5 / 15 km/h |
| Travel Motor | 21 kW AC |
| Lifting Motor | 12 kW |
| Mast Tilt F/R | 6° / 8° |
| Mast Lowered / Raised Height | 2080 / 4040 mm |
| Overall Dimension | 2680 × 1225 mm |
| Fork Size | 1070 × 125 × 45 mm |
| Turning Radius | 2460 mm |
