CPD-30E
The CPD-30E Lithium Electric Counterbalance Forklift is designed for efficient warehouse, factory and indoor logistics material handling. With 3000 kg rated capacity, 500 mm load center, 3000 mm lift height, 80V / 248Ah lithium battery and AC controller, it provides clean electric power, stable lifting performance and comfortable seated operation for daily pallet stacking, loading and unloading work.

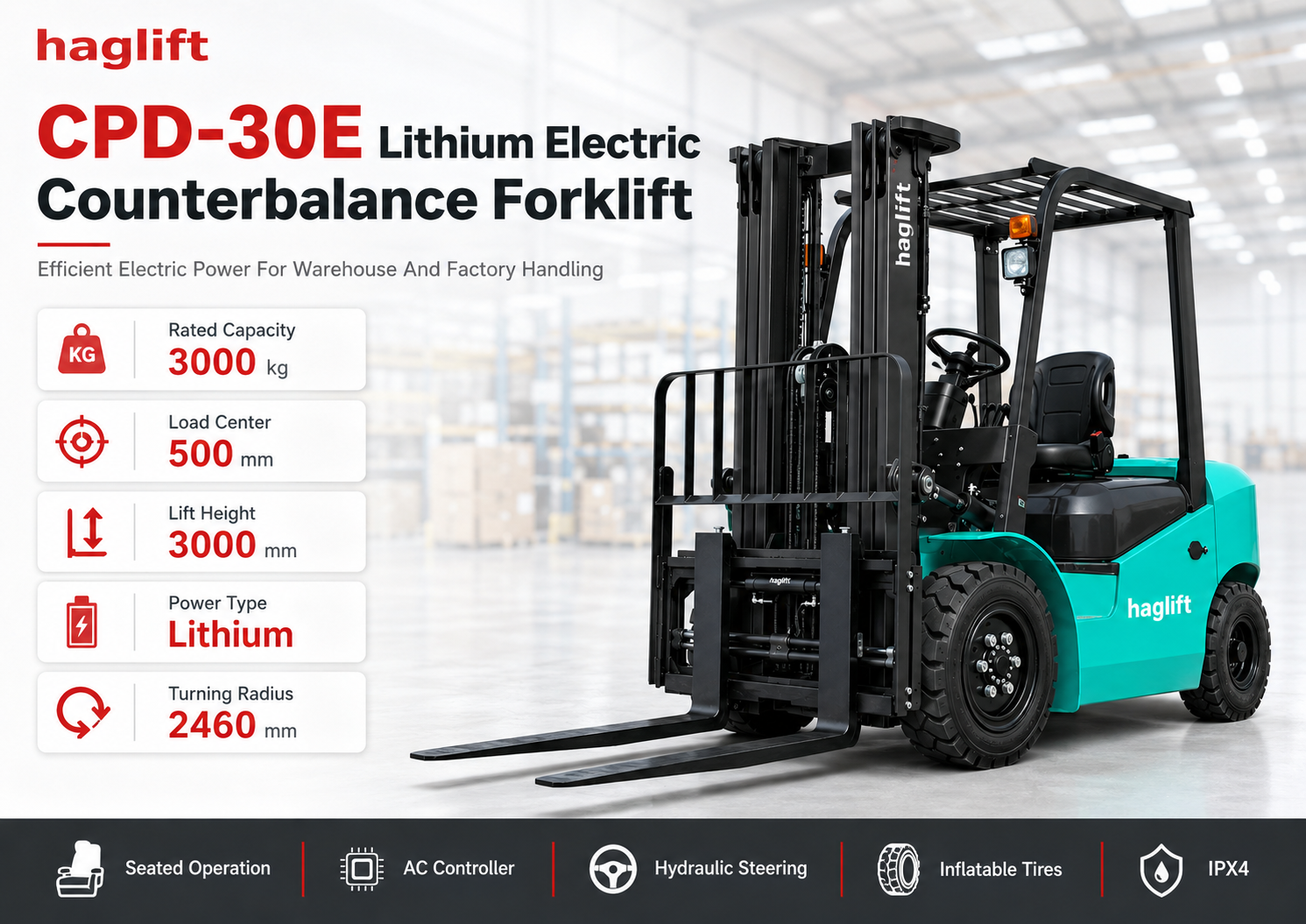

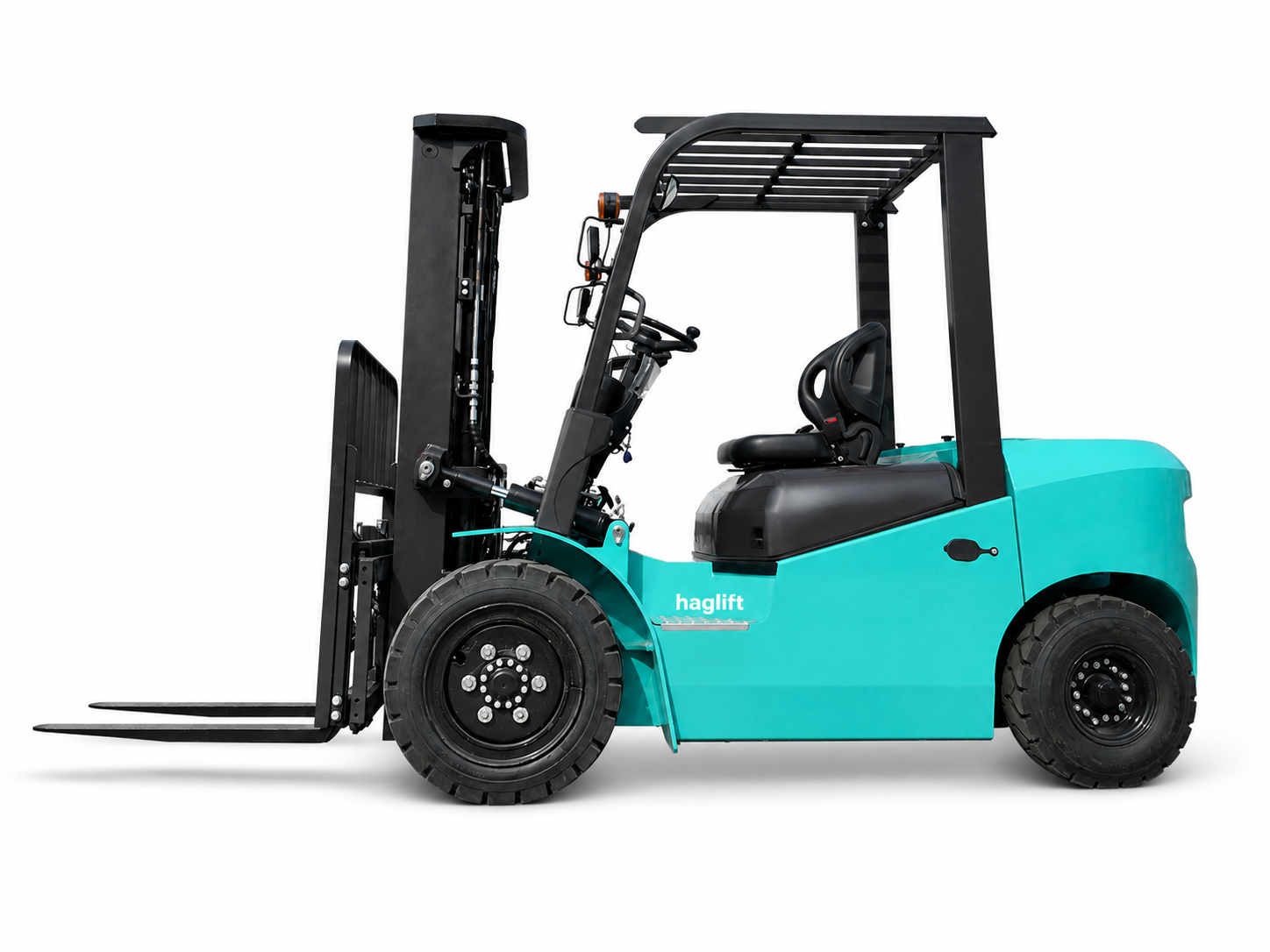

CPD-30E Lithium Electric Counterbalance Forklift
The CPD-30E lithium electric counterbalance forklift is designed for efficient warehouse, factory and indoor material handling. With 3000 kg rated capacity, 500 mm load center, 3000 mm lift height and seated operation, it provides stable lifting, flexible handling and clean lithium electric power for daily pallet transfer and loading tasks.
Efficient Electric Power For Warehouse Handling
This 3 ton lithium electric forklift is suitable for pallet stacking, warehouse transport, factory material handling, loading and unloading, and daily multi-shift indoor logistics work.
- 3000 kg rated capacity for heavy pallet handling
- 500 mm load center for stable load support
- 2460 mm turning radius for compact operation
- Seated operation with hydraulic steering
- IPX4 waterproof grade for reliable daily use

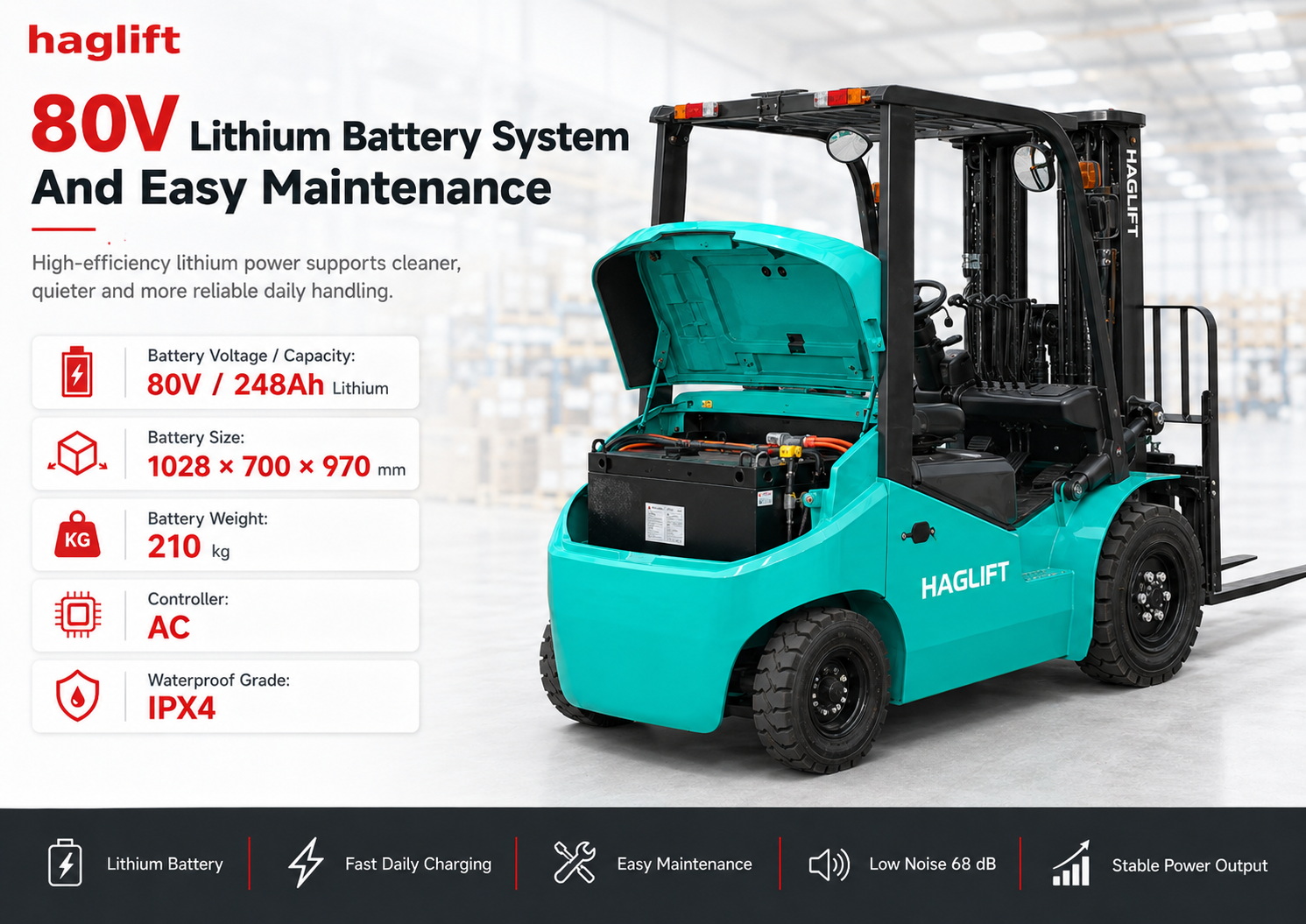

80V Lithium Battery System And Easy Maintenance
The high-efficiency lithium battery system supports cleaner, quieter and more reliable daily handling. The easy maintenance structure helps reduce downtime and supports continuous warehouse operation.
- Battery voltage / capacity: 80V / 248Ah lithium
- Battery size: 1028 × 700 × 970 mm
- Battery weight: 210 kg
- AC controller for smooth power output
- Low noise level: 68 dB

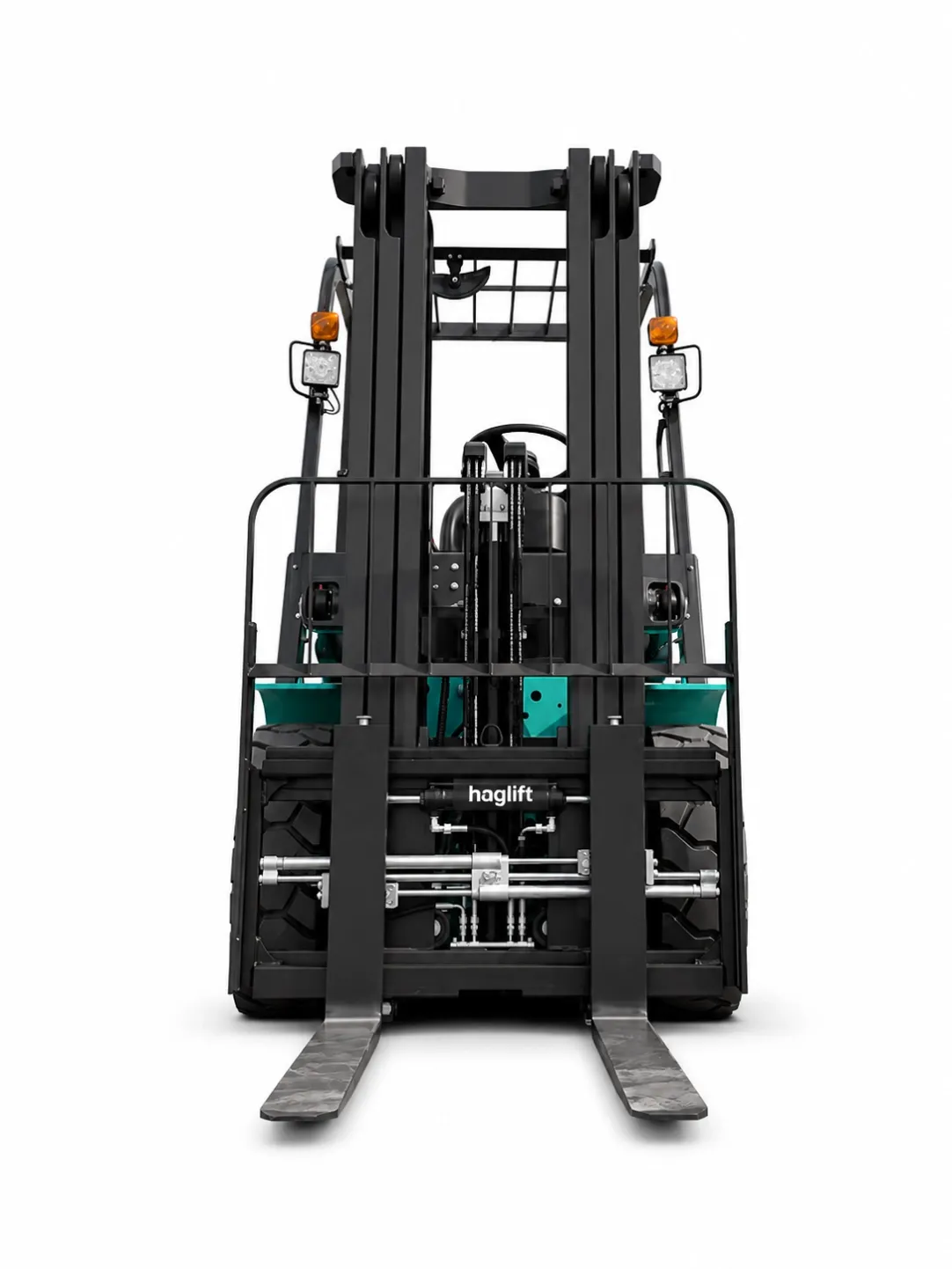

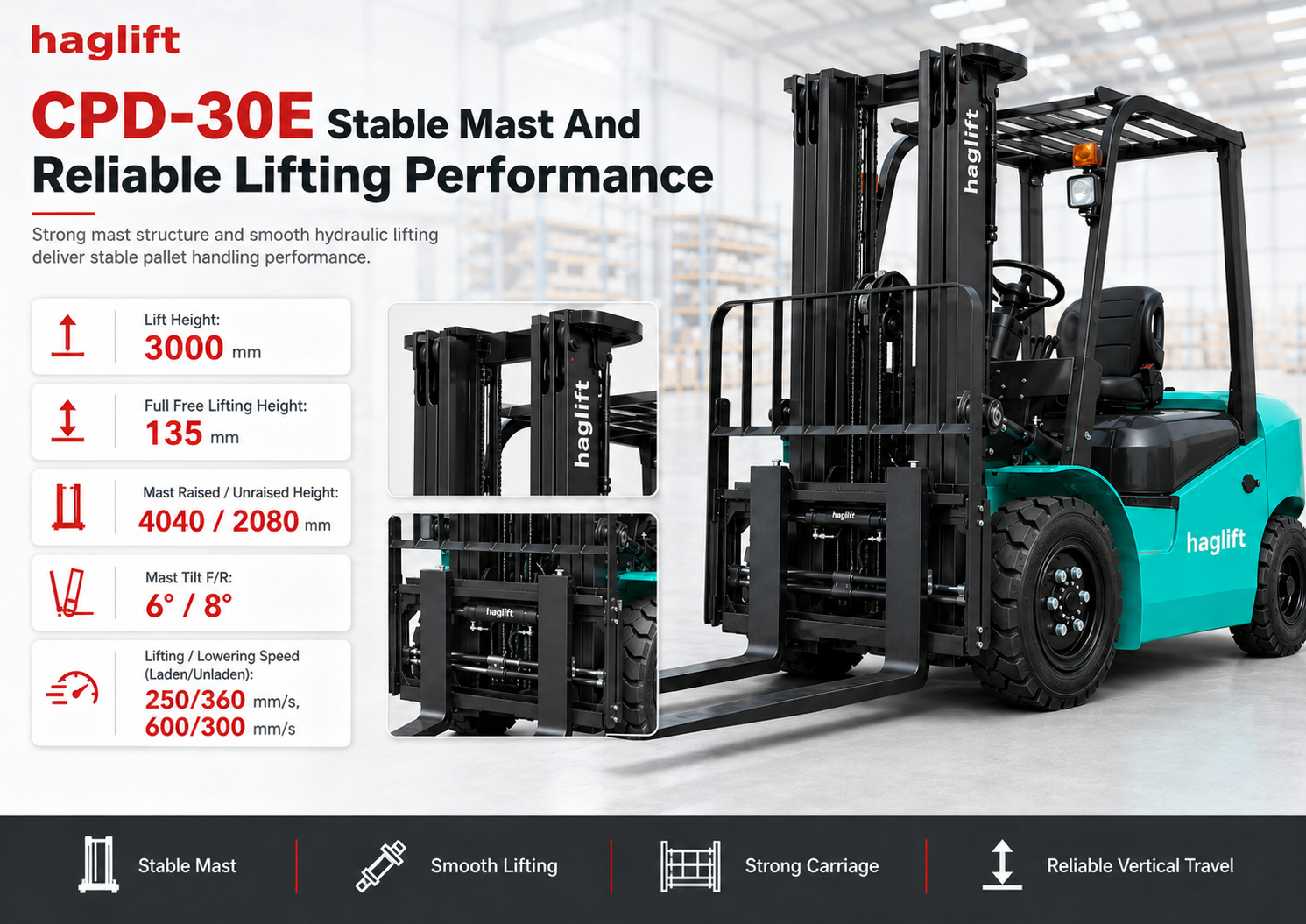

Stable Mast And Reliable Lifting Performance
Strong mast structure and smooth hydraulic lifting deliver stable pallet handling performance. Heavy-duty mast chains, reinforced carriage and reliable vertical travel help improve safety and efficiency during stacking work.
- Lift height: 3000 mm
- Full free lift height: 135 mm
- Mast raised / unraised height: 4040 / 2080 mm
- Mast tilt F/R: 6° / 8°
- Lifting / lowering speed: 250 / 360 mm/s, 600 / 300 mm/s

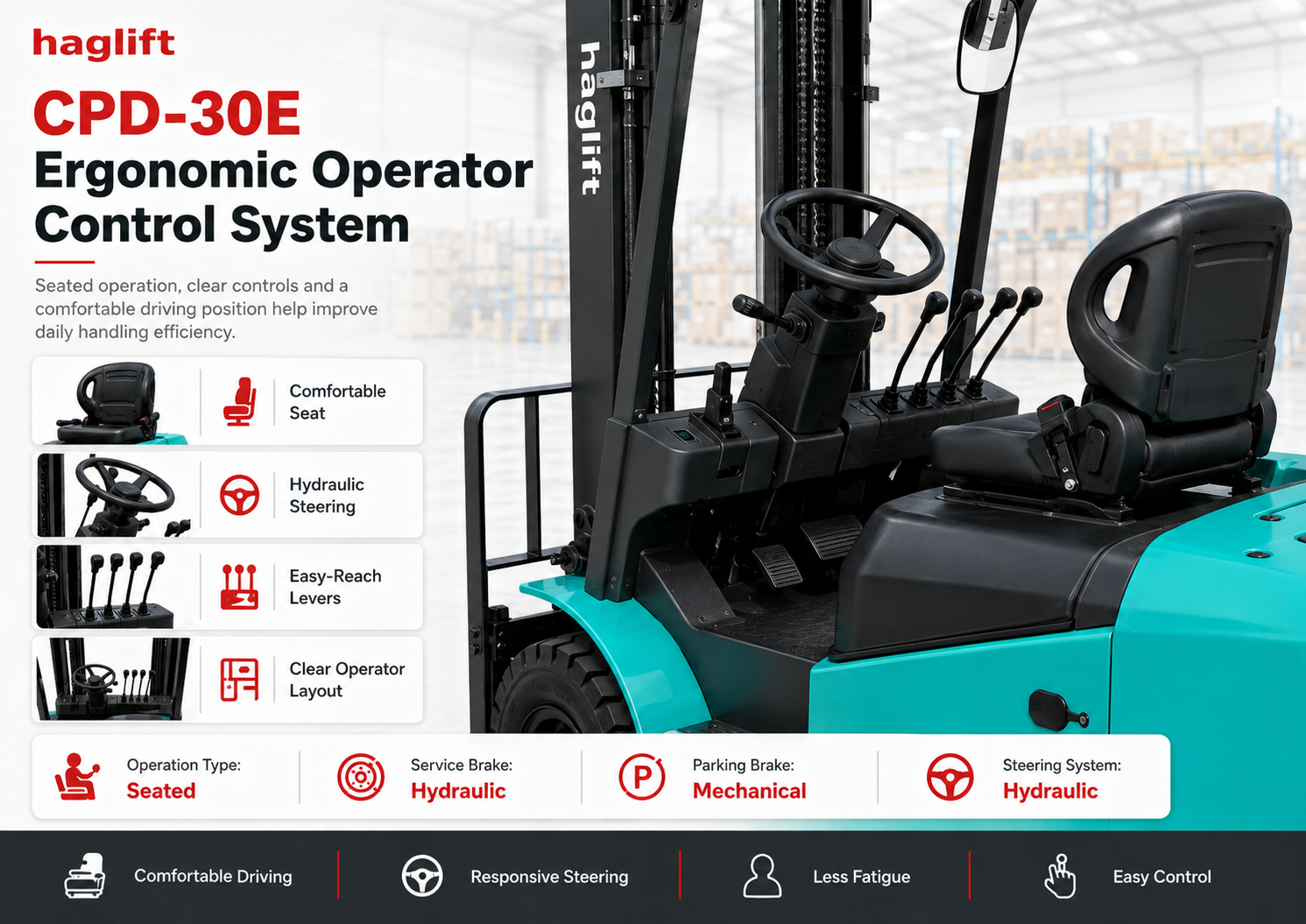

Ergonomic Operator Control System
The seated operator layout, hydraulic steering, easy-reach levers and clear operator area help reduce fatigue and improve handling efficiency during long daily shifts.
- Operation type: seated
- Service brake: hydraulic
- Parking brake: mechanical
- Steering system: hydraulic
- Comfortable seat and easy-reach control levers

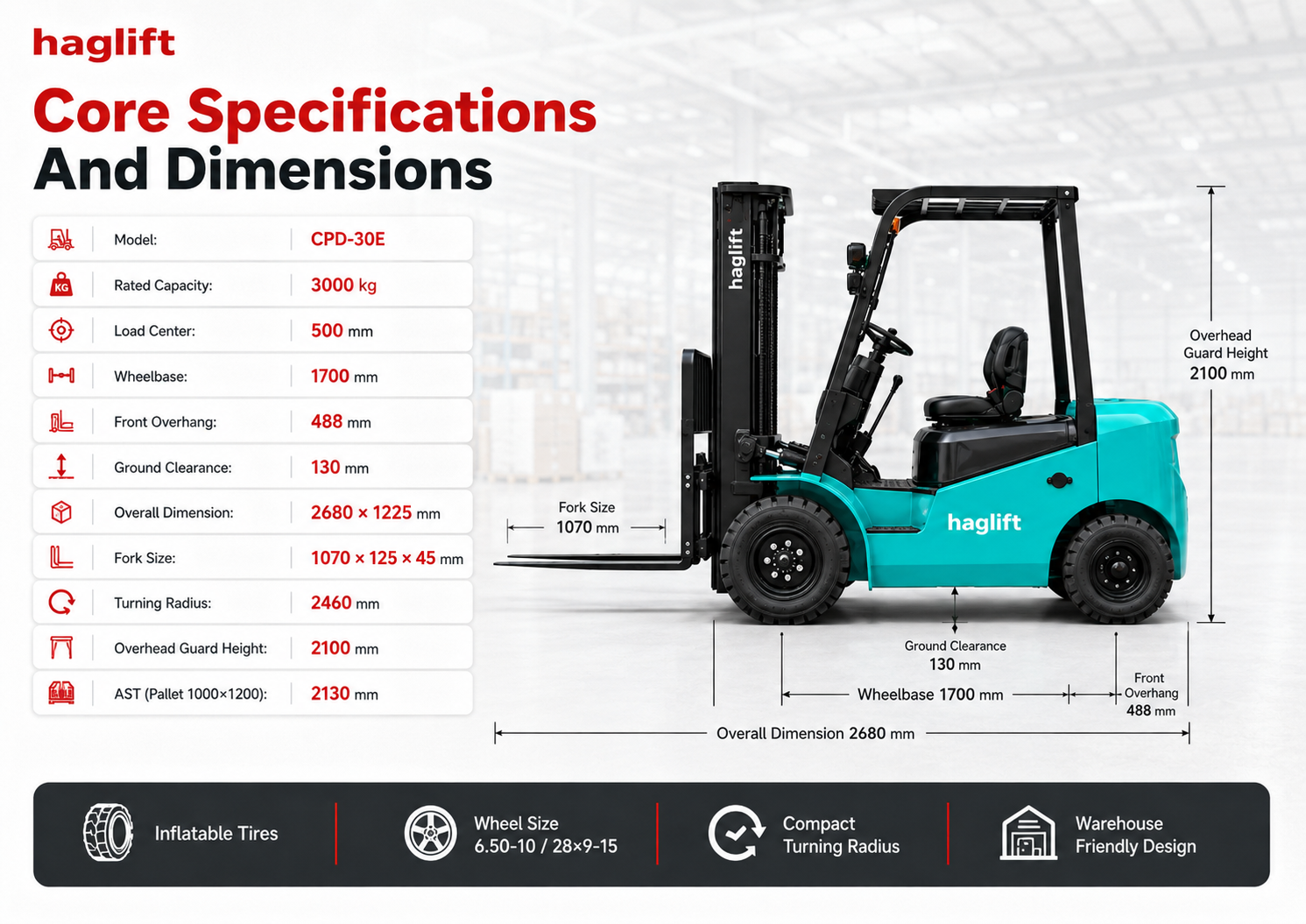

Core Specifications And Dimensions
Detailed forklift dimensions help users match the CPD-30E with pallet size, aisle width, loading area and warehouse working conditions.
| Item | Specification |
|---|---|
| Model | CPD-30E |
| Rated Capacity | 3000 kg |
| Load Center | 500 mm |
| Wheelbase | 1700 mm |
| Front Overhang | 488 mm |
| Ground Clearance | 130 mm |
| Overall Dimension | 2680 × 1225 mm |
| Fork Size | 1070 × 125 × 45 mm |
| Turning Radius | 2460 mm |
| Overhead Guard Height | 2100 mm |
| AST Pallet 1000×1200 | 2130 mm |

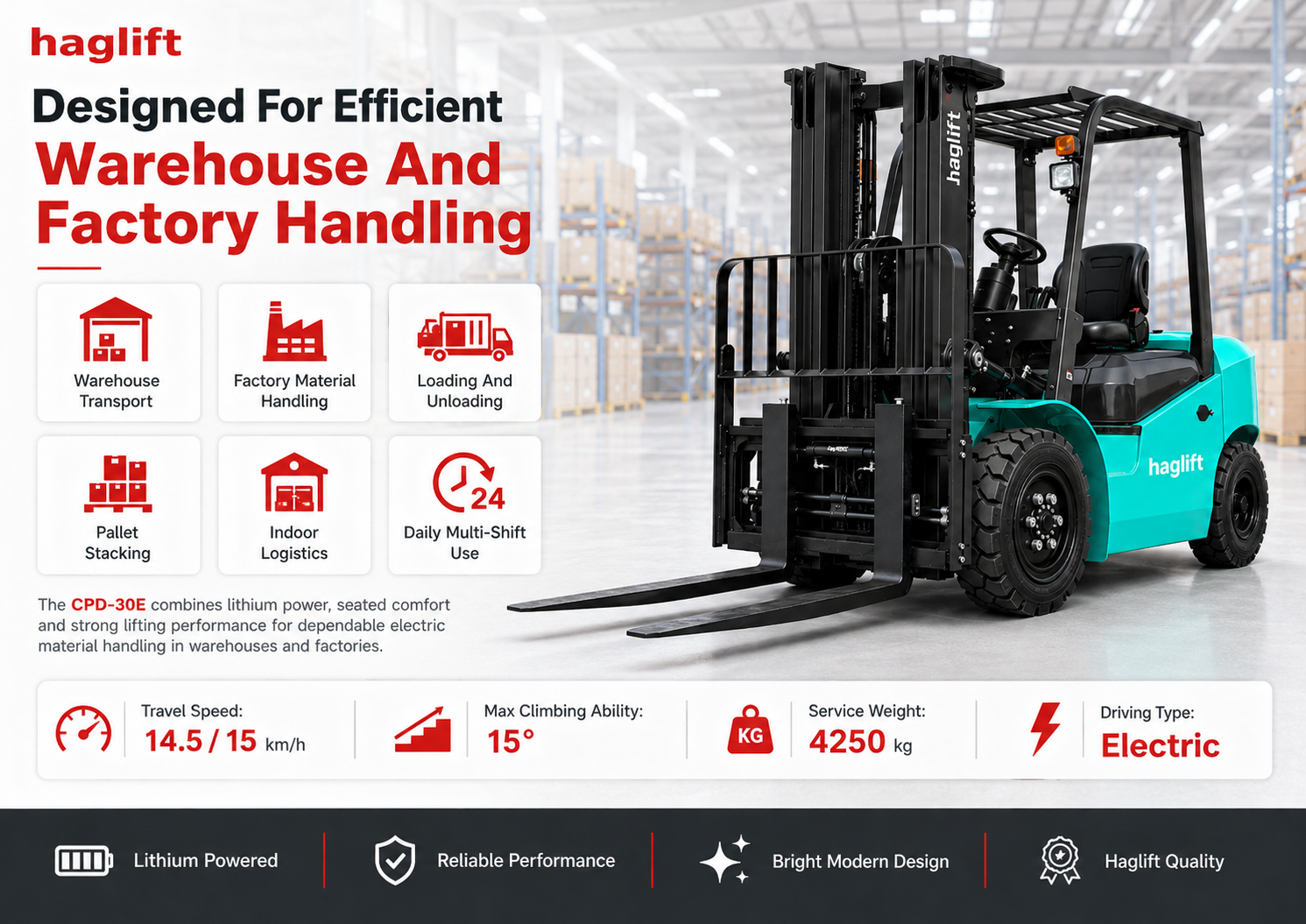

Designed For Efficient Warehouse And Factory Handling
The CPD-30E combines lithium power, seated comfort and strong lifting performance for dependable electric material handling in warehouses, factories and logistics environments.
Technical Specifications
| Item | CPD-30E |
|---|---|
| Origin | China |
| Brand | HAGLIFT |
| Model | CPD-30E |
| Power Type | Lithium |
| Operation Type | Seated |
| Rated Capacity | 3000 kg |
| Load Center | 500 mm |
| Front Overhang | 488 mm |
| Wheelbase | 1700 mm |
| Mast Tilting Angle F/R | 6° / 8° |
| Ground Clearance | 130 mm |
| Lift Height | 3000 mm |
| Overall Dimension | 2680 × 1225 mm |
| Mast Raised / Unraised Height | 4040 / 2080 mm |
| Fork Size | 1070 × 125 × 45 mm |
| Turning Radius | 2460 mm |
| Full Free Lift Height | 135 mm |
| Overhead Guard Height | 2100 mm |
| AST Pallet 1000×1200 | 2130 mm |
| Service Weight With Battery | 4250 kg |
| Battery Weight | 210 kg |
| Weight Distribution Loaded Front / Rear | 2900 / 4350 kg |
| Weight Distribution Unloaded Front / Rear | 850 / 3400 kg |
| Wheel Type | Inflatable |
| Turning Wheel Size | 6.50-10-10PR |
| Driving Wheel Size | 28×9-15-12PR |
| Tread, Turning | 970 mm |
| Tread, Driving | 1000 mm |
| Driving Motor | 21 kW / 60 min |
| Lifting Motor | 12 kW / 15 min |
| Battery Size | 1028 × 700 × 970 mm |
| Battery Voltage / Capacity | 80V / 248Ah Lithium |
| Controller | AC |
| Working Pressure | 15 MPa |
| Travel Speed Loaded / Unloaded | 14.5 / 15 km/h |
| Lifting Speed Loaded / Unloaded | 250 / 360 mm/s |
| Lowering Speed Loaded / Unloaded | 600 / 300 mm/s |
| Max Climbing Ability | 15° |
| Service Brake | Hydraulic |
| Parking Brake | Mechanical |
| Driving Type | Electric |
| Steering System | Hydraulic |
| Noise Level | 68 dB |
| Waterproof Grade | IPX4 |
