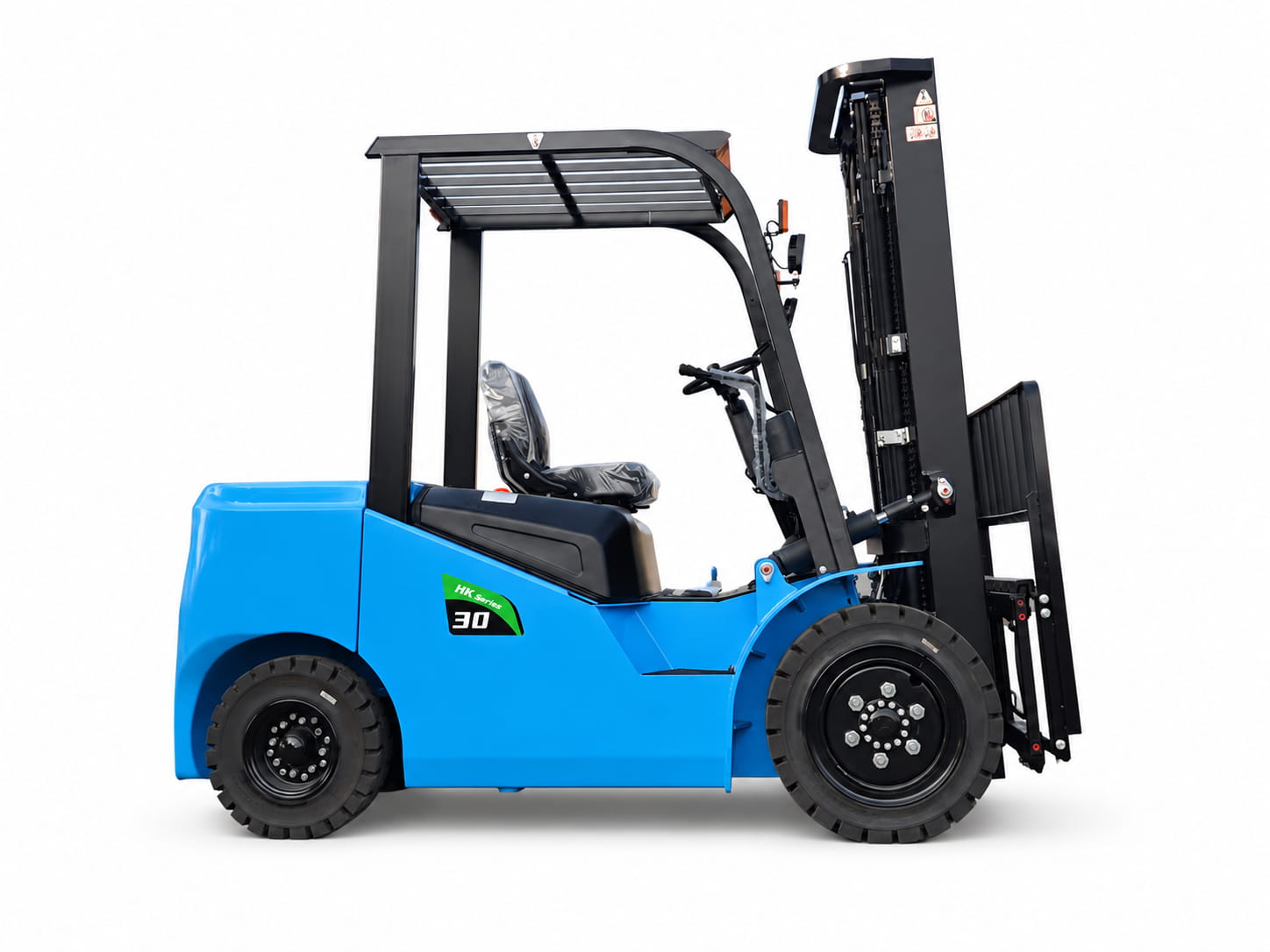

Electric Forklift
CPD-35
The 3.5 Ton Electric Counterbalance Forklift is built for heavy-duty warehouse loading, pallet transfer, truck loading and factory material handling. With a 3500kg rated capacity, up to 4800mm lift height, 80V/560Ah lithium battery and counterbalance design without front support legs, it provides flexible pallet access, stable lifting and reliable daily industrial performance. Rated Capacity: 3500kg Lift Height: Up to 4800mm Battery: 80V / 560Ah Lithium Travel Speed: 14 km/h
01
3.5 TON ELECTRIC COUNTERBALANCE FORKLIFT
Heavy-Duty Seated Forklift For Warehouse And Factory Handling
The 3.5 ton electric counterbalance forklift is designed for heavy pallet transport, warehouse loading, truck loading and factory material handling. With seated operation, strong mast structure and counterbalance design, it provides stable lifting, flexible pallet access and reliable daily industrial performance.3500kg rated capacity for heavy-duty pallet handling
Counterbalance design without front support legs
Suitable for warehouse loading, factory handling, pallet transfer and truck loading
02

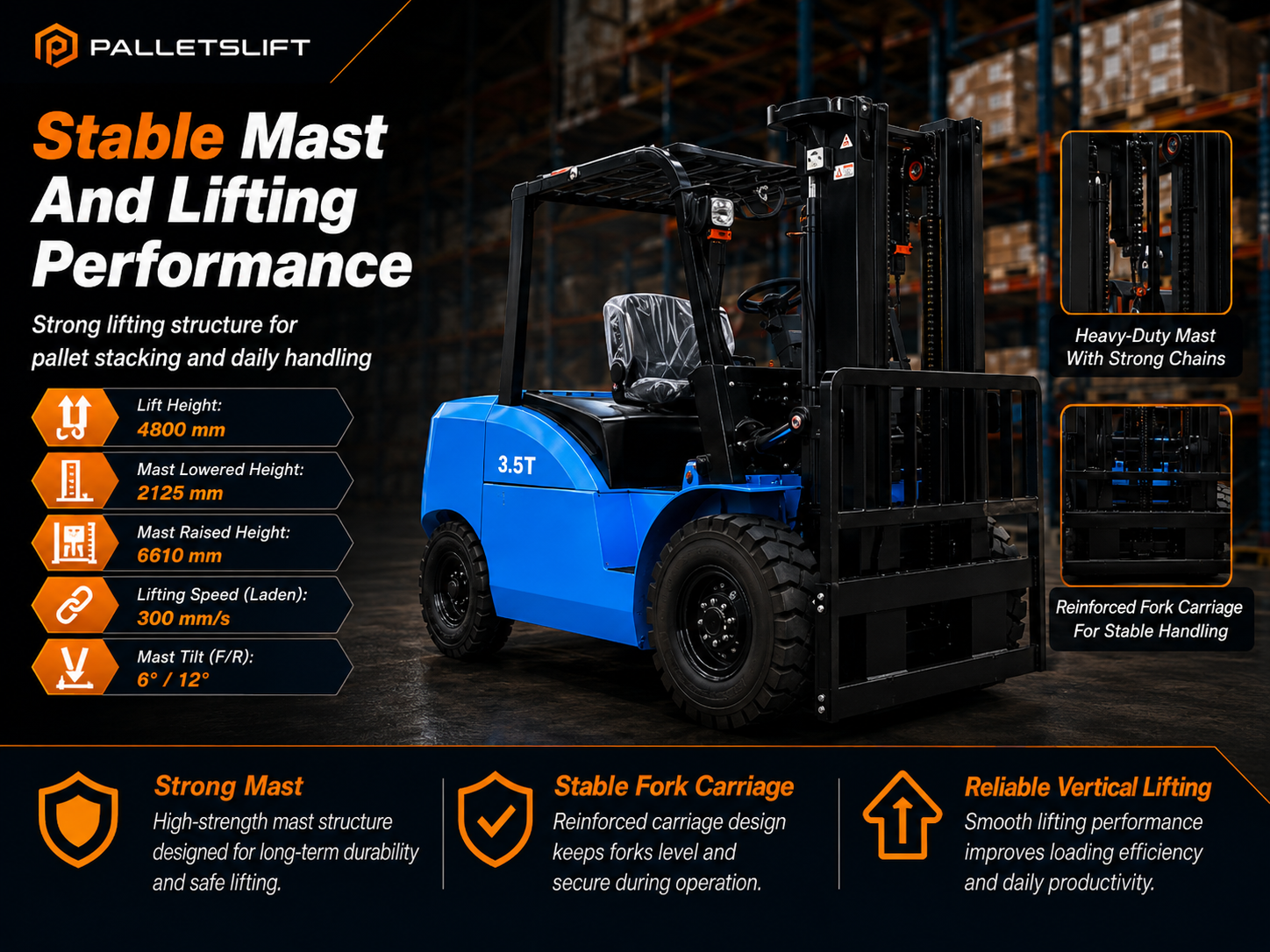

STABLE MAST AND LIFTING
Strong Mast Structure For Stable Heavy Load Handling
The reinforced mast and fork carriage are built for stable lifting performance in demanding warehouse and factory applications. Heavy-duty mast chains, reliable vertical lifting and stable fork carriage support help improve handling efficiency and operational safety.Lift height: 4800 mm
Mast lowered height: 2125 mm / Mast raised height: 6610 mm
Lifting speed laden: 300 mm/s / Mast tilt F/R: 6° / 12°
03

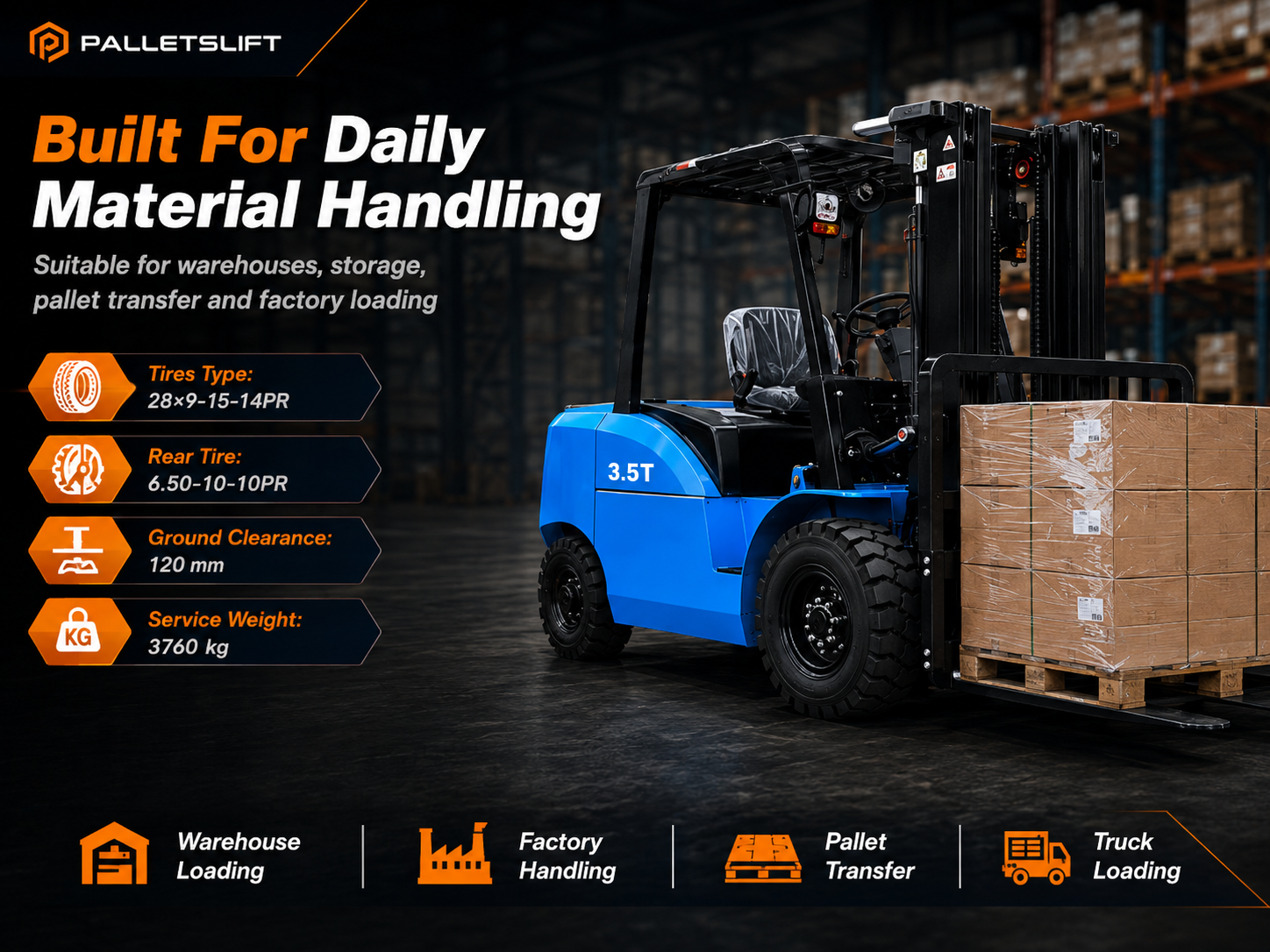

DAILY MATERIAL HANDLING
Built For Warehouse Loading, Factory Handling And Pallet Transfer
This 3.5 ton electric counterbalance forklift is suitable for warehouses, storage areas, pallet transfer and factory loading. Heavy-duty tires, stable service weight and strong chassis structure support frequent indoor industrial operation.Tire type: 28×9-15-14PR
Rear tire: 6.50-10-10PR
Ground clearance: 120 mm / Service weight: 3760 kg
04

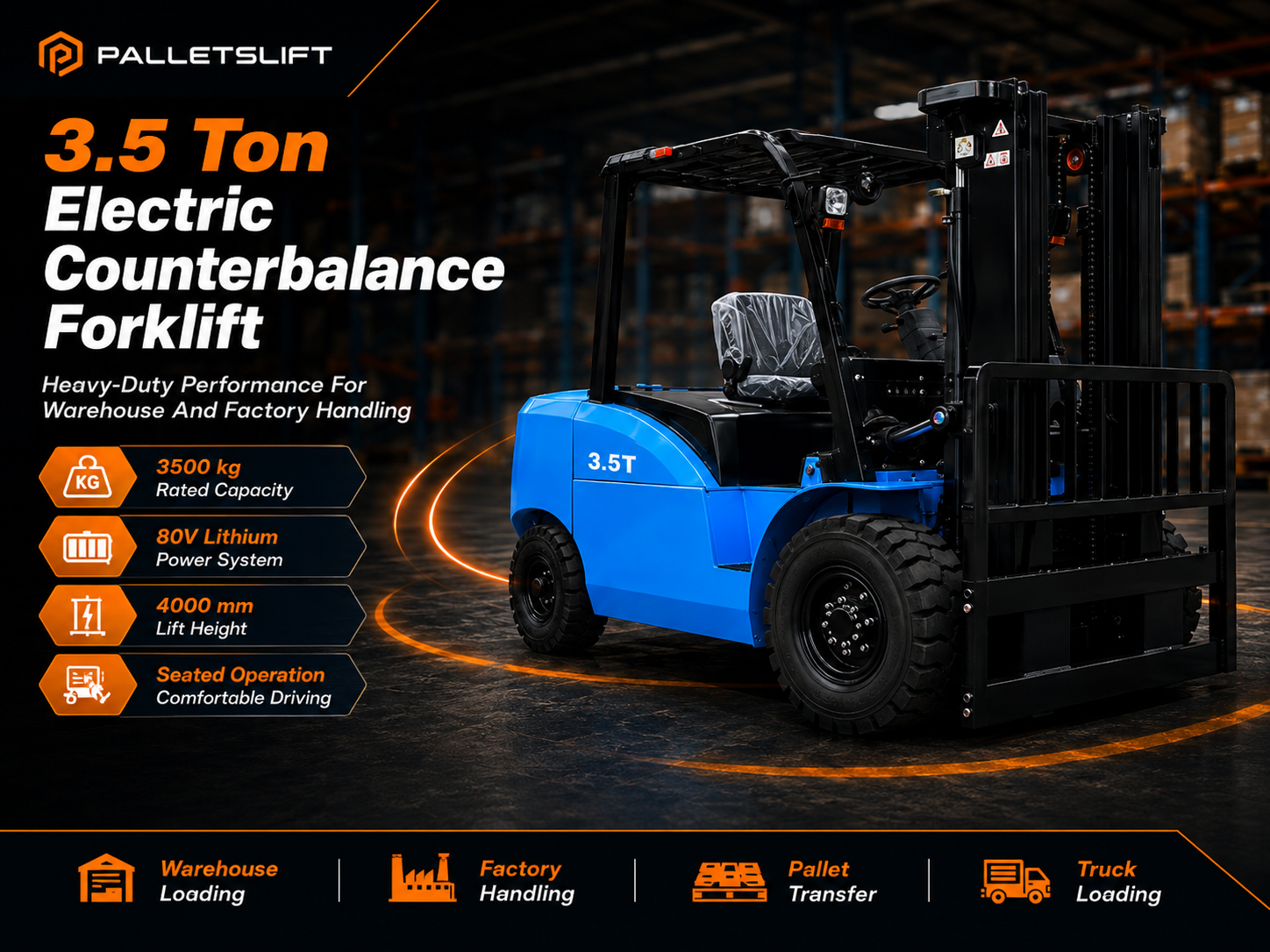

MAIN FEATURES
3.5 Ton Electric Counterbalance Forklift For Heavy-Duty Performance
With 3500kg rated capacity, 80V lithium power system, 4000mm lift height and comfortable seated operation, this electric counterbalance forklift is built for productive warehouse and factory material handling.Rated capacity: 3500 kg
80V lithium power system
4000 mm lift height with comfortable seated operation
05

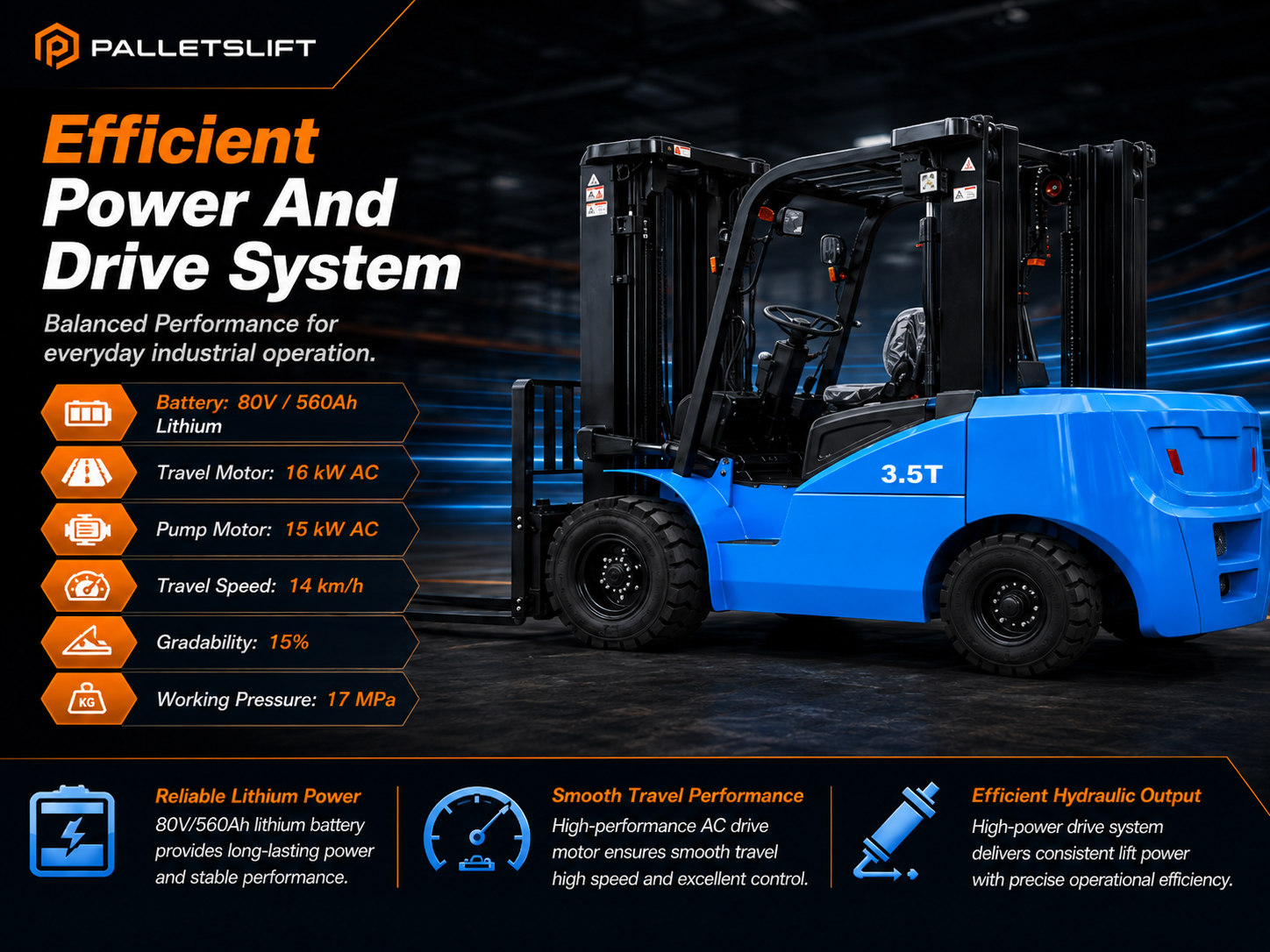

POWER AND DRIVE SYSTEM
Efficient Power System For Everyday Industrial Operation
The forklift uses an 80V/560Ah lithium battery, 16kW AC travel motor and 15kW AC pump motor. The power system delivers long-lasting operation, smooth travel performance and efficient hydraulic output for heavy-duty handling work.Battery: 80V / 560Ah lithium
Travel motor: 16 kW AC / Pump motor: 15 kW AC
Travel speed: 14 km/h / Gradeability: 15% / Working pressure: 17 MPa
06

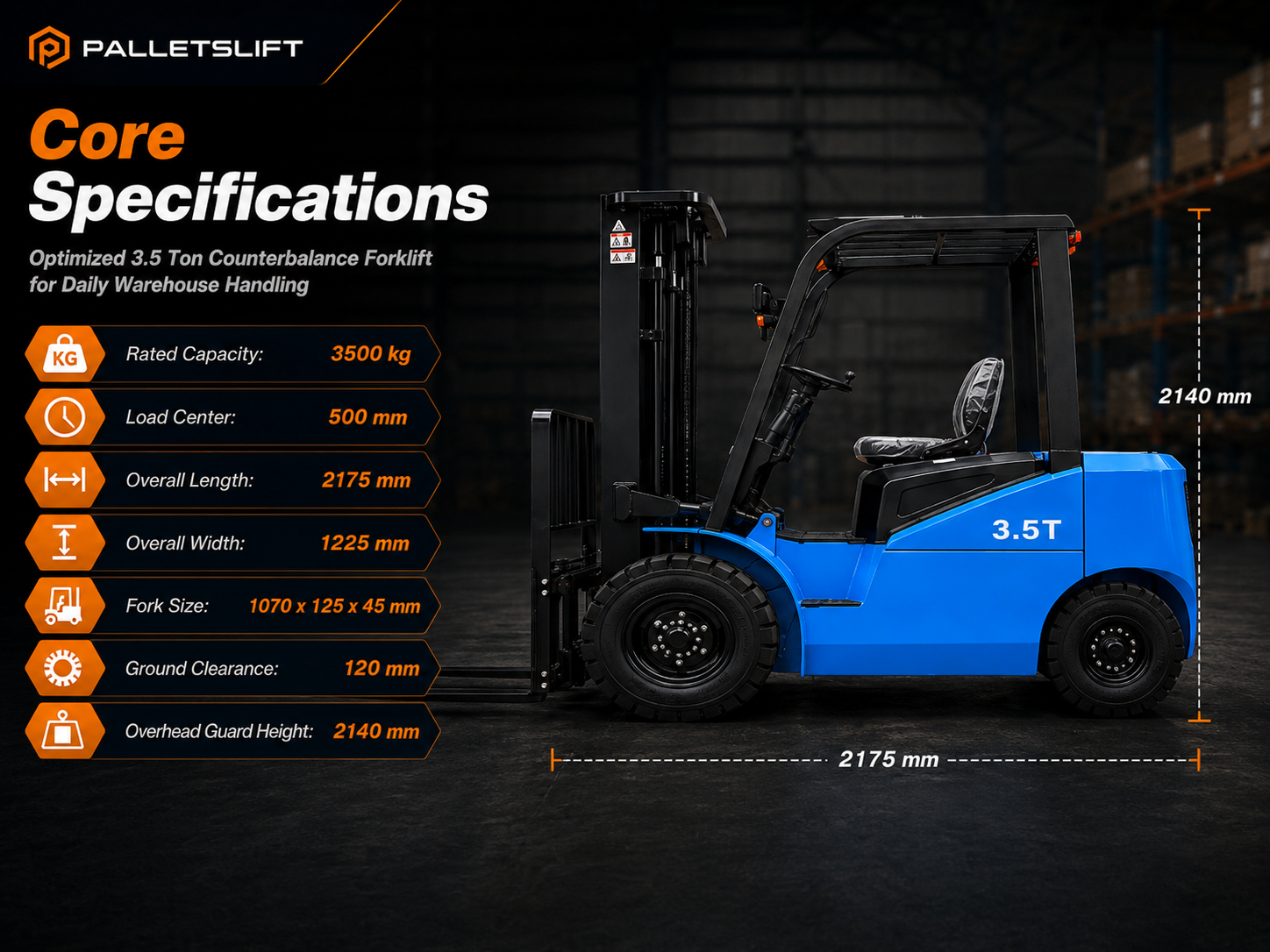

CORE SPECIFICATIONS
Optimized Dimensions For Heavy Warehouse Transport
The compact body and balanced layout help improve heavy material handling efficiency. With 2175mm overall length, 1225mm overall width and 1070×125×45mm fork size, this forklift is suitable for daily warehouse transport and pallet handling.Overall length: 2175 mm / Overall width: 1225 mm
Fork size: 1070×125×45 mm
Ground clearance: 120 mm / Overhead guard height: 2140 mm
07

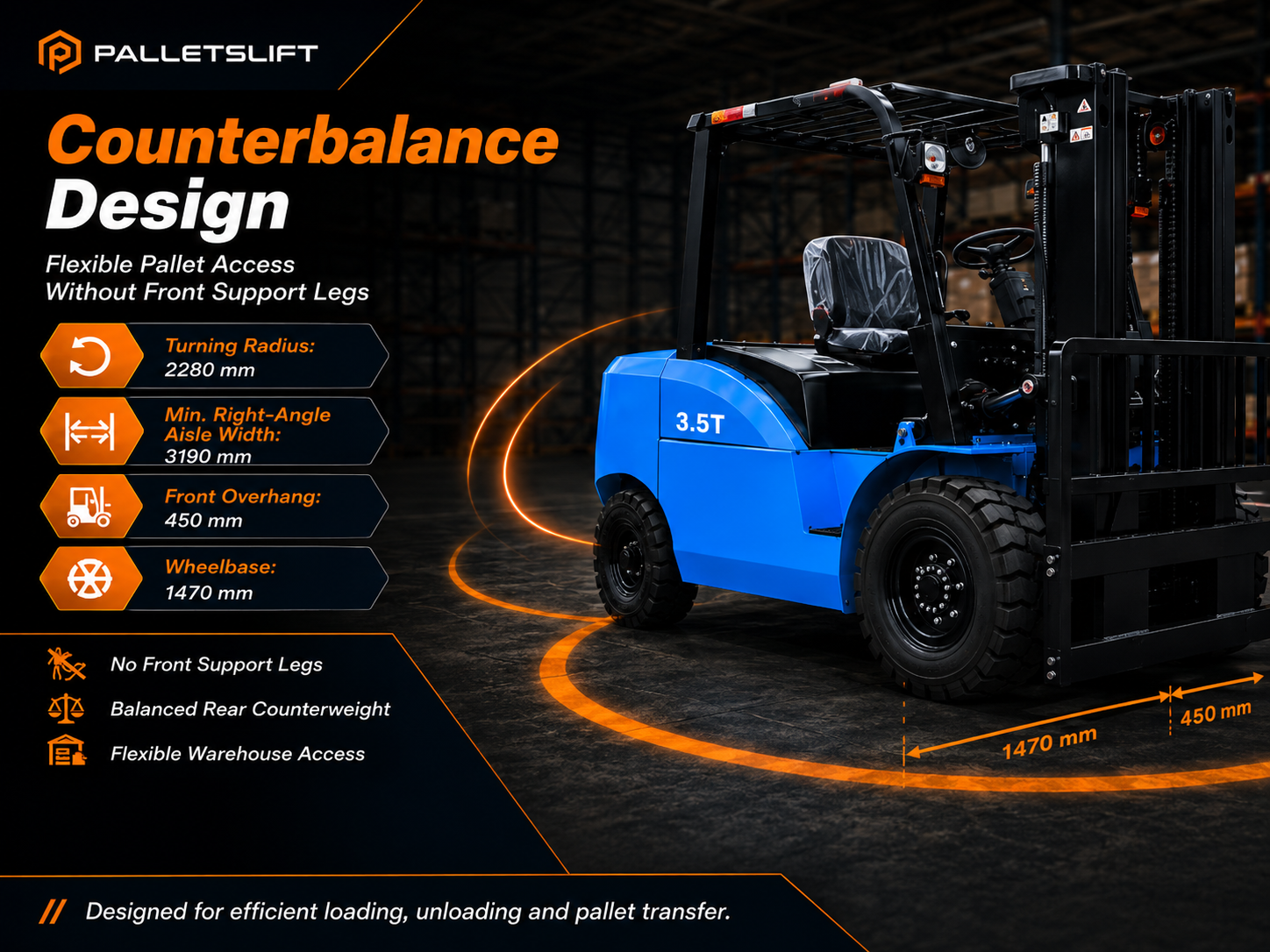

COUNTERBALANCE DESIGN
Flexible Pallet Access Without Front Support Legs
The counterbalance structure allows flexible access to pallets without front support legs, making loading, unloading and pallet transfer more efficient. The balanced rear counterweight and optimized turning parameters help improve maneuverability in warehouse and factory environments.Turning radius: 2280 mm
Min. right-angle aisle width: 3190 mm
Front overhang: 450 mm / Wheelbase: 1470 mm
TECHNICAL SPECIFICATIONS
3.5 Ton Electric Counterbalance Forklift Parameters
Main technical data for 3.5 ton electric counterbalance forklift. Suitable for warehouse loading, factory handling, pallet transfer and heavy indoor industrial material movement.| Category | Item | Unit | 3.5 Ton Electric Counterbalance Forklift |
|---|---|---|---|
| Main Performance | |||
| Performance | Rated Capacity | kg | 3500 |
| Performance | Load Center | mm | 500 |
| Performance | Lift Height | mm | 4000 / 4800 |
| Performance | Travel Speed | km/h | 14 |
| Performance | Gradeability | % | 15 |
| Performance | Working Pressure | MPa | 17 |
| Dimension | |||
| Dimension | Overall Length | mm | 2175 |
| Dimension | Overall Width | mm | 1225 |
| Dimension | Overhead Guard Height | mm | 2140 |
| Dimension | Fork Size | mm | 1070×125×45 |
| Dimension | Ground Clearance | mm | 120 |
| Mast | |||
| Mast | Mast Lowered Height | mm | 2125 |
| Mast | Mast Raised Height | mm | 6610 |
| Mast | Lifting Speed Laden | mm/s | 300 |
| Mast | Mast Tilt F/R | ° | 6 / 12 |
| Turning And Body | |||
| Turning | Turning Radius | mm | 2280 |
| Turning | Min. Right-Angle Aisle Width | mm | 3190 |
| Turning | Front Overhang | mm | 450 |
| Turning | Wheelbase | mm | 1470 |
| Power And Tires | |||
| Power | Battery | V/Ah | 80 / 560 Lithium |
| Power | Travel Motor | kW | 16 AC |
| Power | Pump Motor | kW | 15 AC |
| Tire | Tire Type | - | 28×9-15-14PR |
| Tire | Rear Tire | - | 6.50-10-10PR |
| Weight | Service Weight | kg | 3760 |
