Electric Forklift
CPD-30
The 3 Ton Electric Counterbalance Forklift is built for warehouse loading, pallet transfer and factory material handling. With a 3000kg rated capacity, 4800mm lift height, 80V/300Ah battery and counterbalance design without front support legs, it provides flexible pallet access, stable lifting and reliable daily industrial performance. Rated Capacity: 3000kg Lift Height: 4800mm Battery: 80V / 300Ah Travel Speed: 14.5 km/h Advantage: Counterbalance design for flexible pallet loading and unloading
01
3 TON ELECTRIC COUNTERBALANCE FORKLIFT
Reliable Seated Forklift For Warehouse And Factory Handling
The 3 ton electric counterbalance forklift is designed for pallet transport, warehouse loading, factory handling and daily indoor industrial material movement. With seated operation, strong mast structure and counterbalance design, it provides stable lifting and flexible pallet access for demanding warehouse applications.3000kg rated capacity for heavy pallet handling
Counterbalance design without front support legs
Suitable for warehouse loading, pallet transfer and factory handling
02

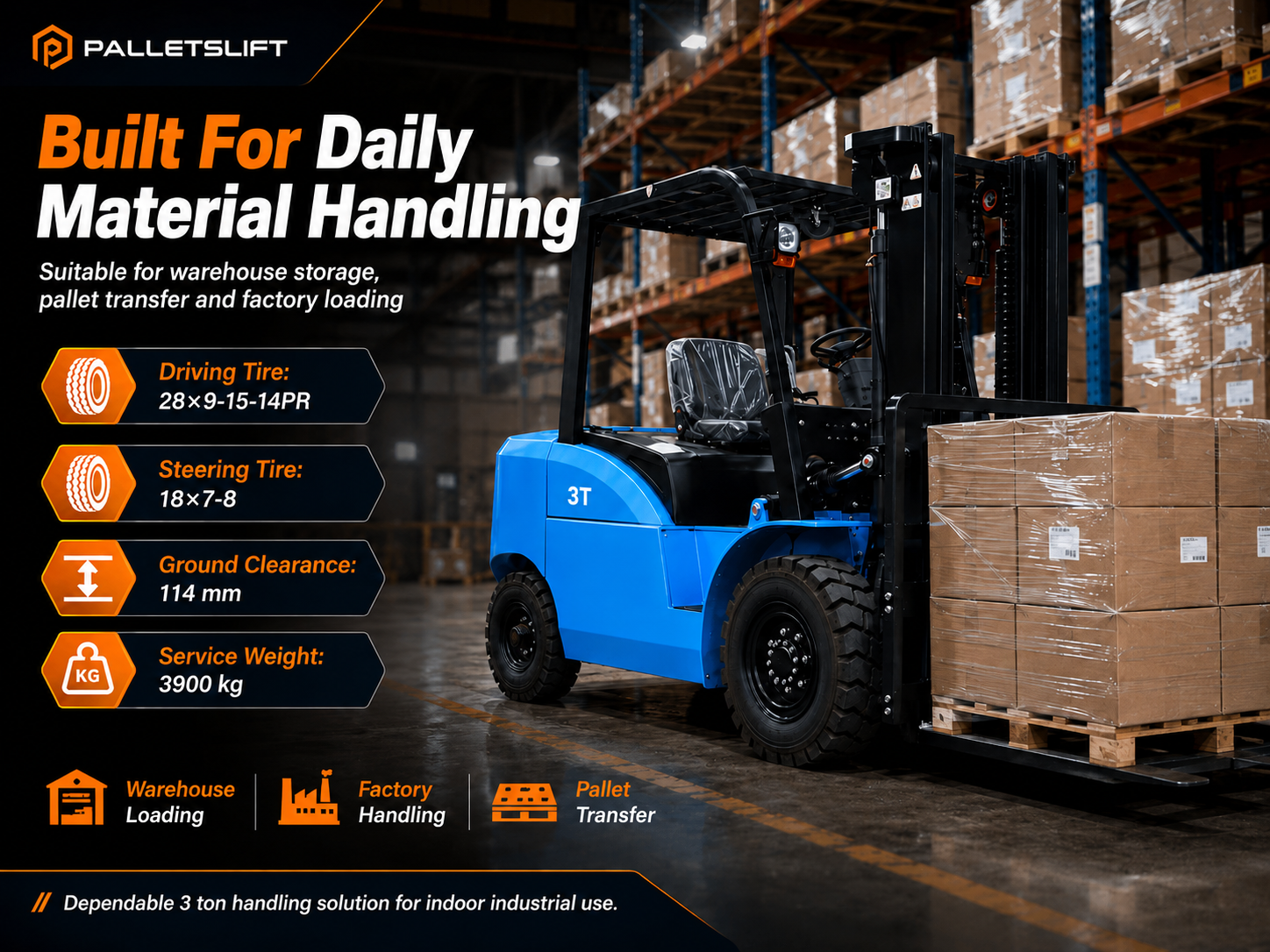

DAILY MATERIAL HANDLING
Built For Warehouse Storage, Pallet Transfer And Factory Loading
Designed for daily industrial use, this 3 ton forklift provides dependable handling for warehouse loading, pallet transfer and factory material movement. Heavy-duty tires, stable service weight and compact body structure help support frequent indoor operation.Driving tire: 28×9-15-14PR
Steering tire: 18×7-8
Ground clearance: 114 mm / Service weight: 3900 kg
03

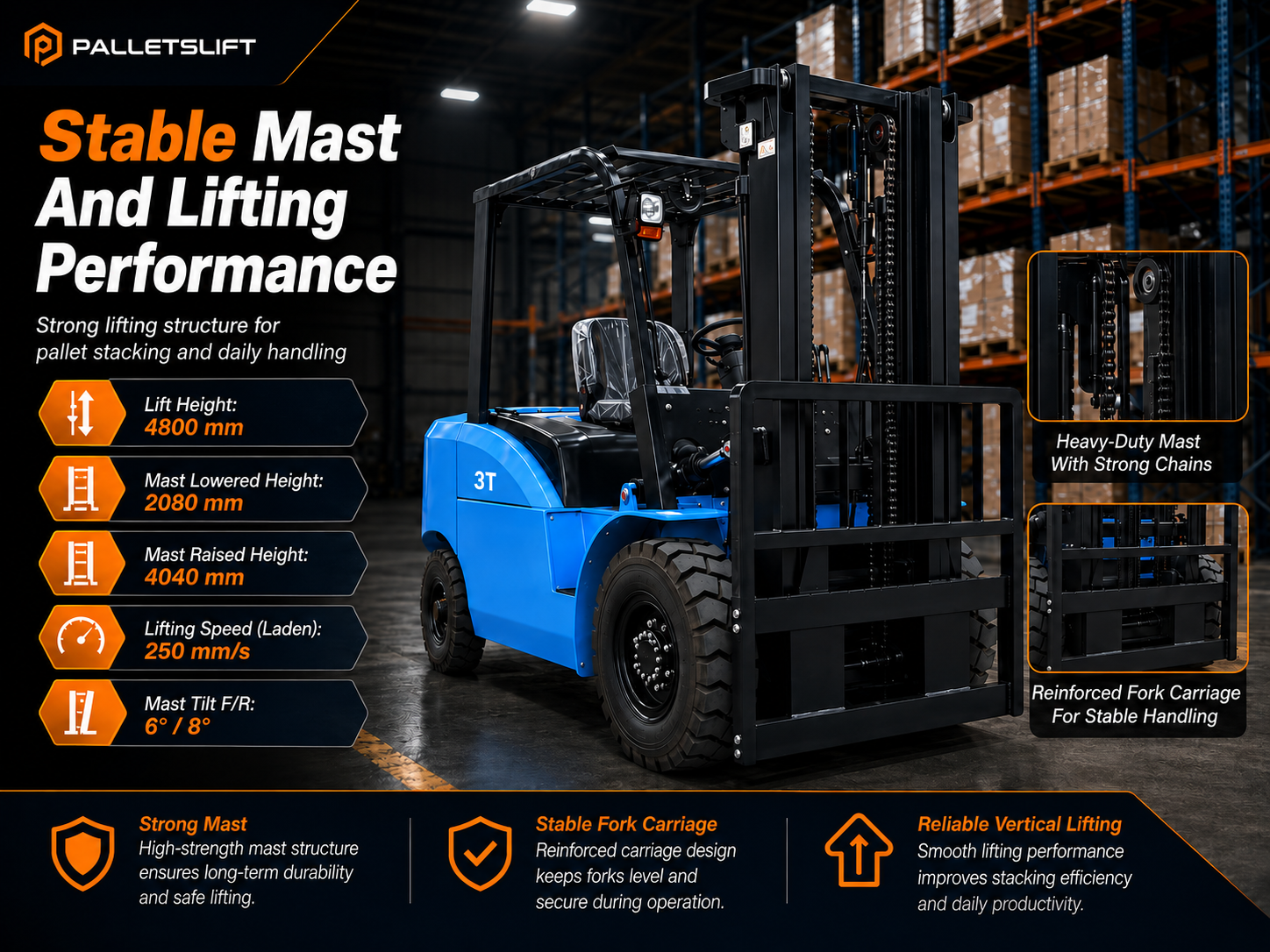

STABLE MAST AND LIFTING
Strong Mast Structure For Pallet Stacking And Daily Handling
The reinforced mast and fork carriage provide stable lifting performance for pallet stacking and warehouse loading. Heavy-duty mast chains, reliable vertical lifting and mast tilt function help improve productivity and handling stability.Lift height: 4800 mm
Mast lowered height: 2080 mm / Mast raised height: 4040 mm
Lifting speed laden: 250 mm/s / Mast tilt F/R: 6° / 8°
04

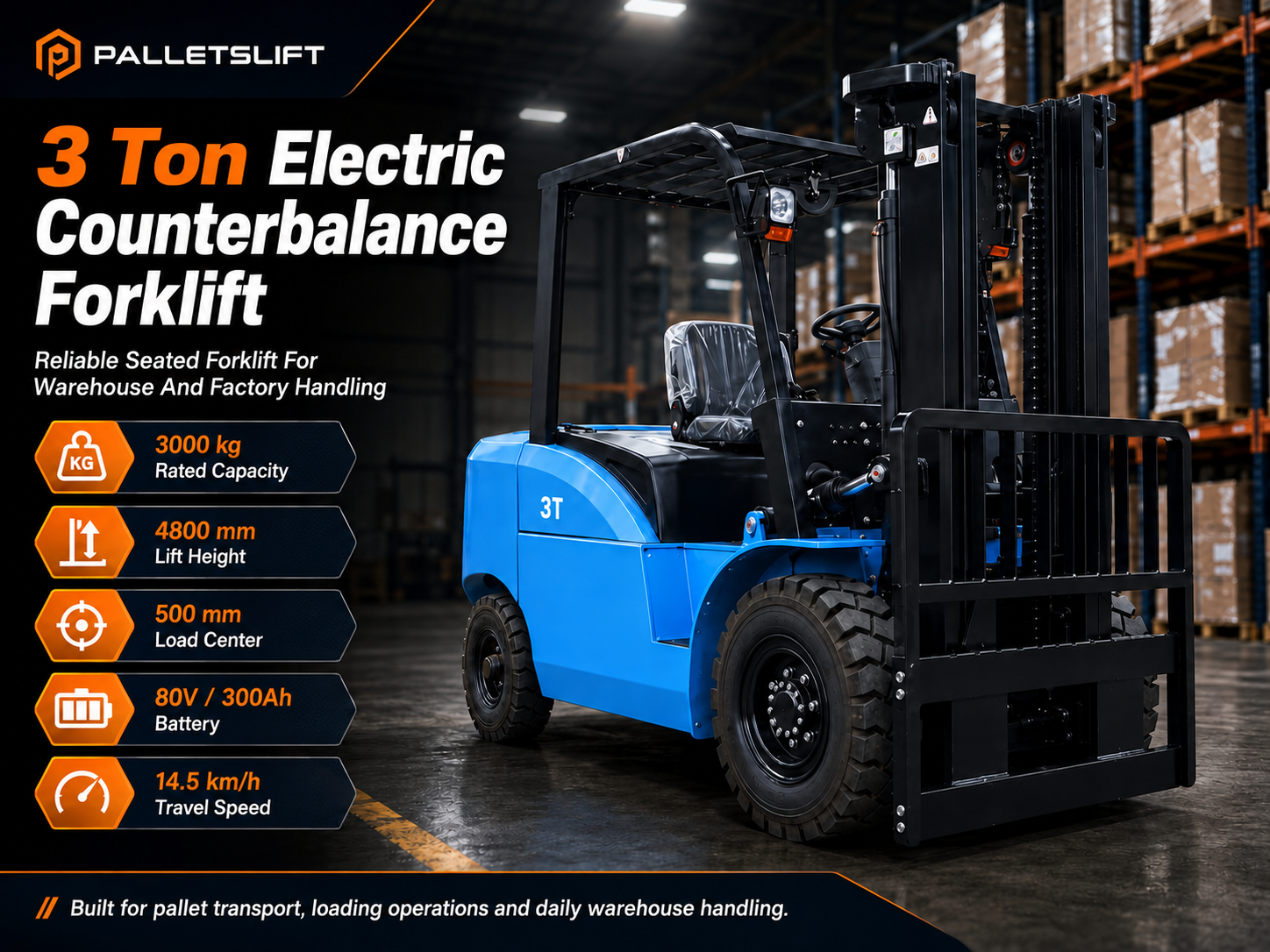

MAIN FEATURES
3 Ton Electric Counterbalance Forklift For Heavy Warehouse Work
With 3000kg rated capacity, 4800mm lift height and 80V/300Ah battery, this electric counterbalance forklift is built for pallet transport, loading operations and daily warehouse handling. It offers stable power, smooth operation and strong lifting performance for indoor industrial applications.Rated capacity: 3000 kg
Lift height: 4800 mm / Load center: 500 mm
80V / 300Ah battery with 14.5 km/h travel speed
05

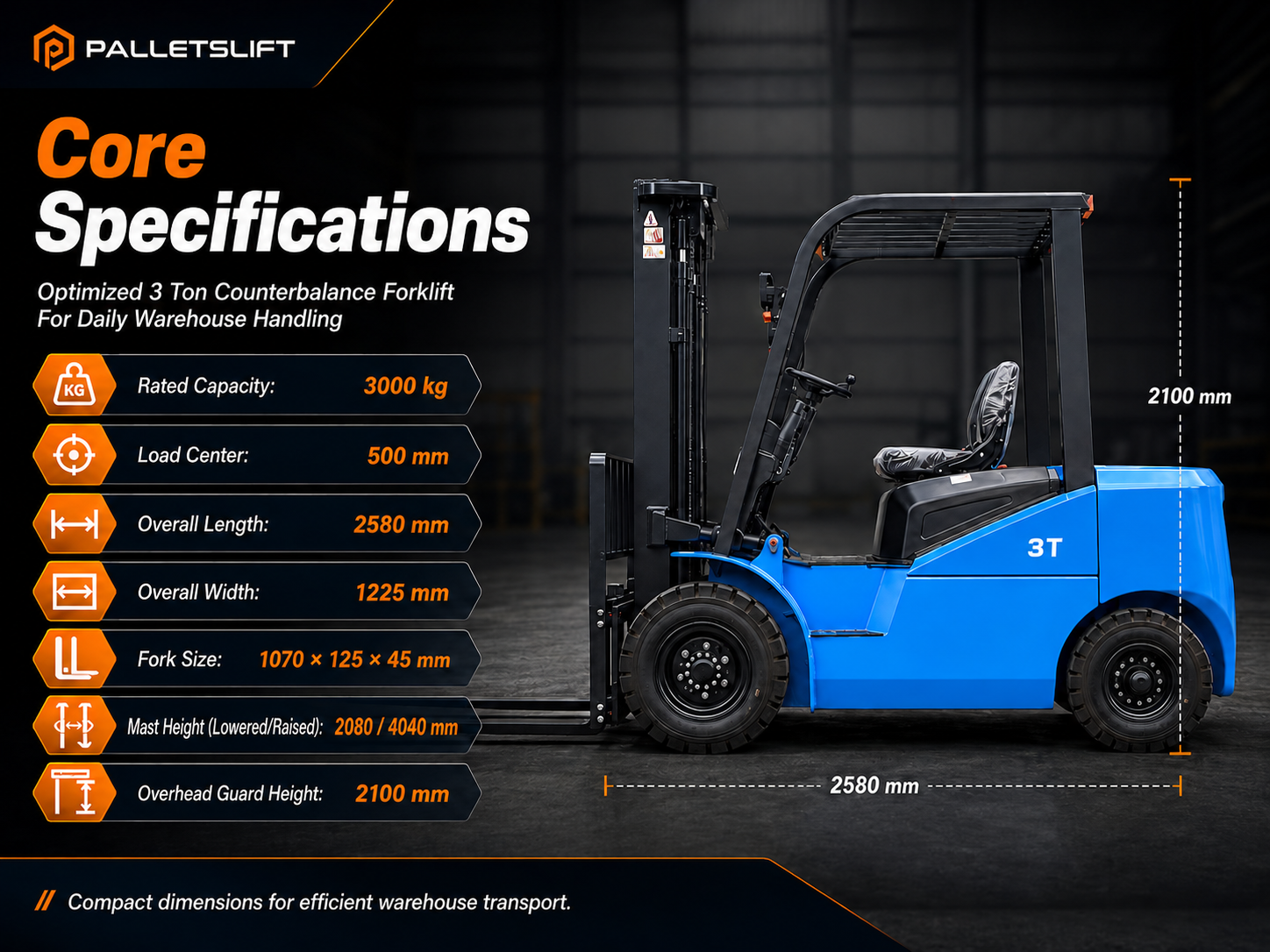

CORE SPECIFICATIONS
Compact Dimensions For Efficient Warehouse Transport
The compact body and standard fork configuration help improve daily warehouse transport efficiency. With 2580mm overall length, 1225mm overall width and 1070×125×45mm fork size, it is suitable for common pallet handling, warehouse loading and indoor industrial transport.Overall length: 2580 mm / Overall width: 1225 mm
Fork size: 1070×125×45 mm
Mast height lowered/raised: 2080 / 4040 mm
06

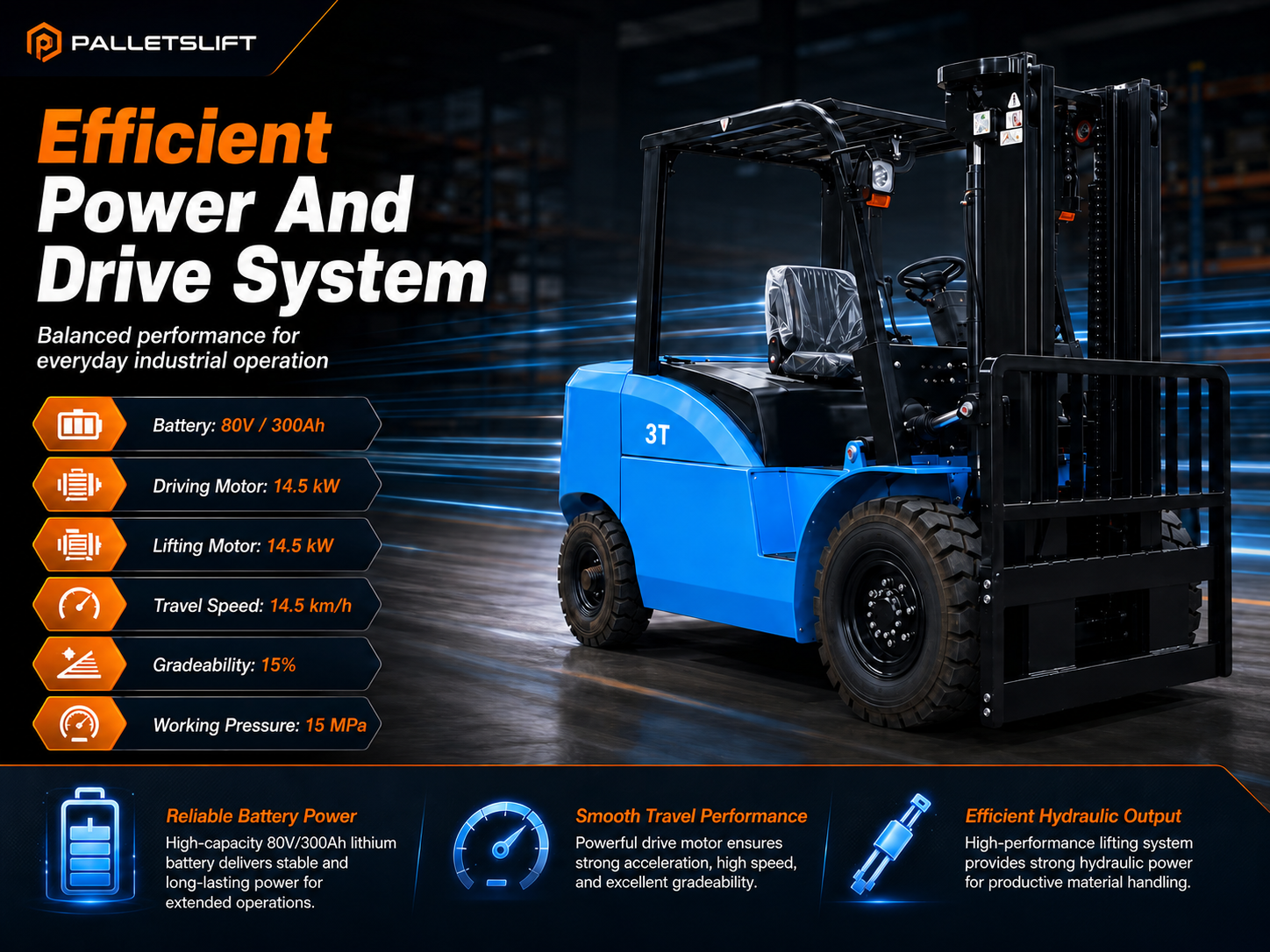

POWER AND DRIVE SYSTEM
Efficient Power System For Everyday Industrial Operation
The forklift is equipped with an 80V/300Ah lithium battery, 14.5kW driving motor and 14.5kW lifting motor. The power system delivers smooth travel performance, strong hydraulic output and stable operation for productive warehouse material handling.Battery: 80V / 300Ah
Driving motor: 14.5 kW / Lifting motor: 14.5 kW
Travel speed: 14.5 km/h / Gradeability: 15% / Working pressure: 15 MPa
07

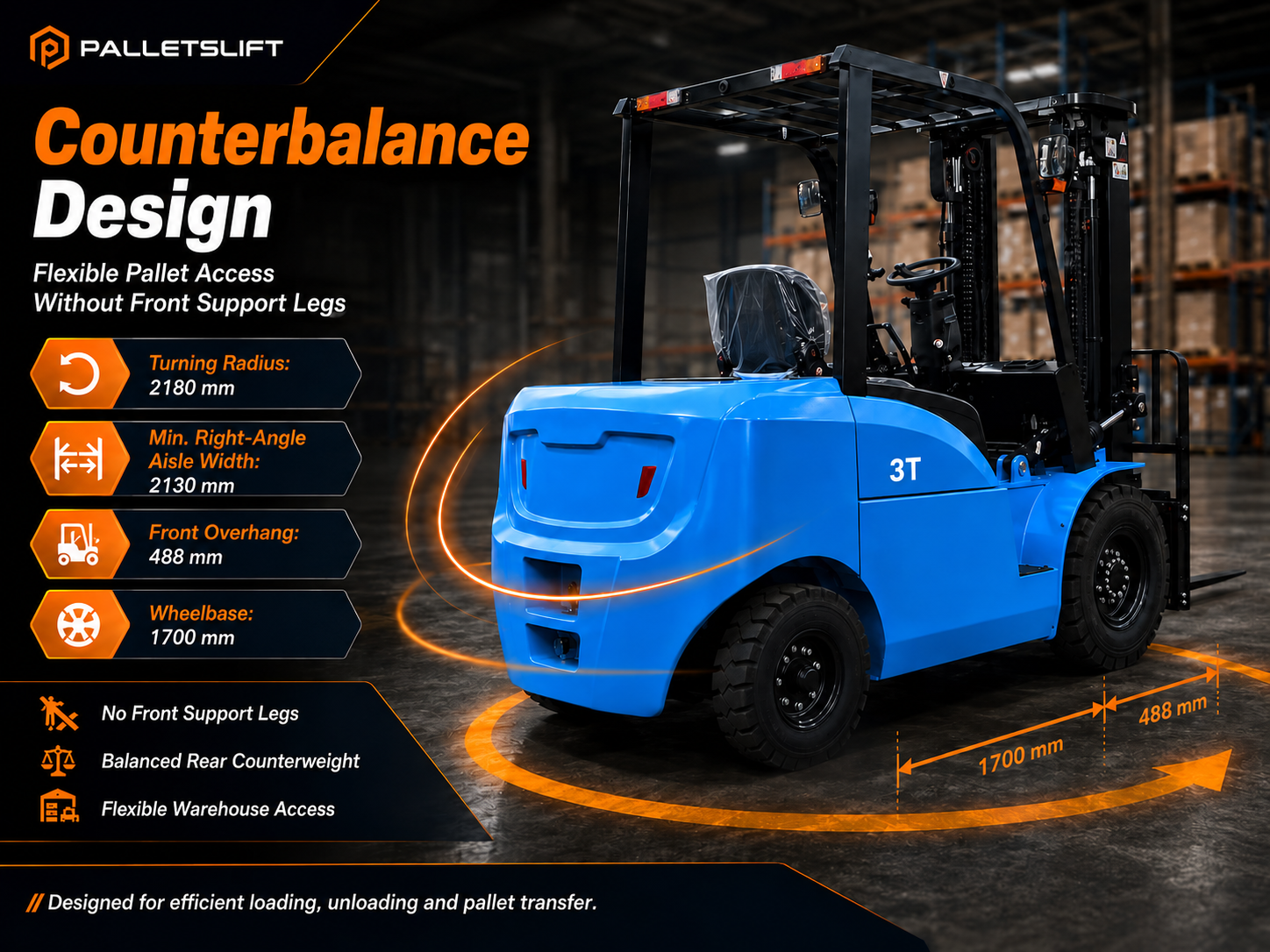

COUNTERBALANCE DESIGN
Flexible Pallet Access Without Front Support Legs
The counterbalance structure allows the forklift to access pallets without front support legs, making loading, unloading and pallet transfer more flexible. The balanced rear counterweight and compact turning parameters help improve movement efficiency in warehouse aisles.Turning radius: 2180 mm
Min. right-angle aisle width: 2130 mm
Front overhang: 488 mm / Wheelbase: 1700 mm
TECHNICAL SPECIFICATIONS
3 Ton Electric Counterbalance Forklift Parameters
Main technical data for 3 ton electric counterbalance forklift. Suitable for pallet transport, warehouse loading, factory handling and daily indoor industrial material movement.| Category | Item | Unit | 3 Ton Electric Counterbalance Forklift |
|---|---|---|---|
| Main Performance | |||
| Performance | Rated Capacity | kg | 3000 |
| Performance | Load Center | mm | 500 |
| Performance | Lift Height | mm | 4800 |
| Performance | Travel Speed | km/h | 14.5 |
| Performance | Gradeability | % | 15 |
| Performance | Working Pressure | MPa | 15 |
| Dimension | |||
| Dimension | Overall Length | mm | 2580 |
| Dimension | Overall Width | mm | 1225 |
| Dimension | Overhead Guard Height | mm | 2100 |
| Dimension | Fork Size | mm | 1070×125×45 |
| Dimension | Ground Clearance | mm | 114 |
| Mast | |||
| Mast | Mast Lowered Height | mm | 2080 |
| Mast | Mast Raised Height | mm | 4040 |
| Mast | Lifting Speed Laden | mm/s | 250 |
| Mast | Mast Tilt F/R | ° | 6 / 8 |
| Turning And Body | |||
| Turning | Turning Radius | mm | 2180 |
| Turning | Min. Right-Angle Aisle Width | mm | 2130 |
| Turning | Front Overhang | mm | 488 |
| Turning | Wheelbase | mm | 1700 |
| Power And Tires | |||
| Power | Battery | V/Ah | 80 / 300 |
| Power | Driving Motor | kW | 14.5 |
| Power | Lifting Motor | kW | 14.5 |
| Tire | Driving Tire | - | 28×9-15-14PR |
| Tire | Steering Tire | - | 18×7-8 |
| Weight | Service Weight | kg | 3900 |
