Electric Forklift
CPD-25
The 2.5 Ton Electric Counterbalance Forklift is designed for warehouse loading, pallet transfer and factory material handling. With a 2500kg rated capacity, 3000mm lift height, 48V/400Ah battery and counterbalance design without front support legs, Rated Capacity: 2500kg Lift Height: 3000mm Battery: 48V / 400Ah Travel Speed: 13 km/h Advantage: Counterbalance design for flexible pallet loading and unloading
01
2.5 TON ELECTRIC COUNTERBALANCE FORKLIFT
Reliable Seated Forklift For Warehouse And Factory Handling
The 2.5 ton electric counterbalance forklift is designed for pallet transport, warehouse loading, factory handling and daily indoor industrial material movement. With seated operation, stable mast structure and counterbalance design, it provides flexible pallet access and dependable lifting performance.2500kg rated capacity for daily pallet handling
Counterbalance design without front support legs
Suitable for warehouse loading, pallet transfer and factory handling
02

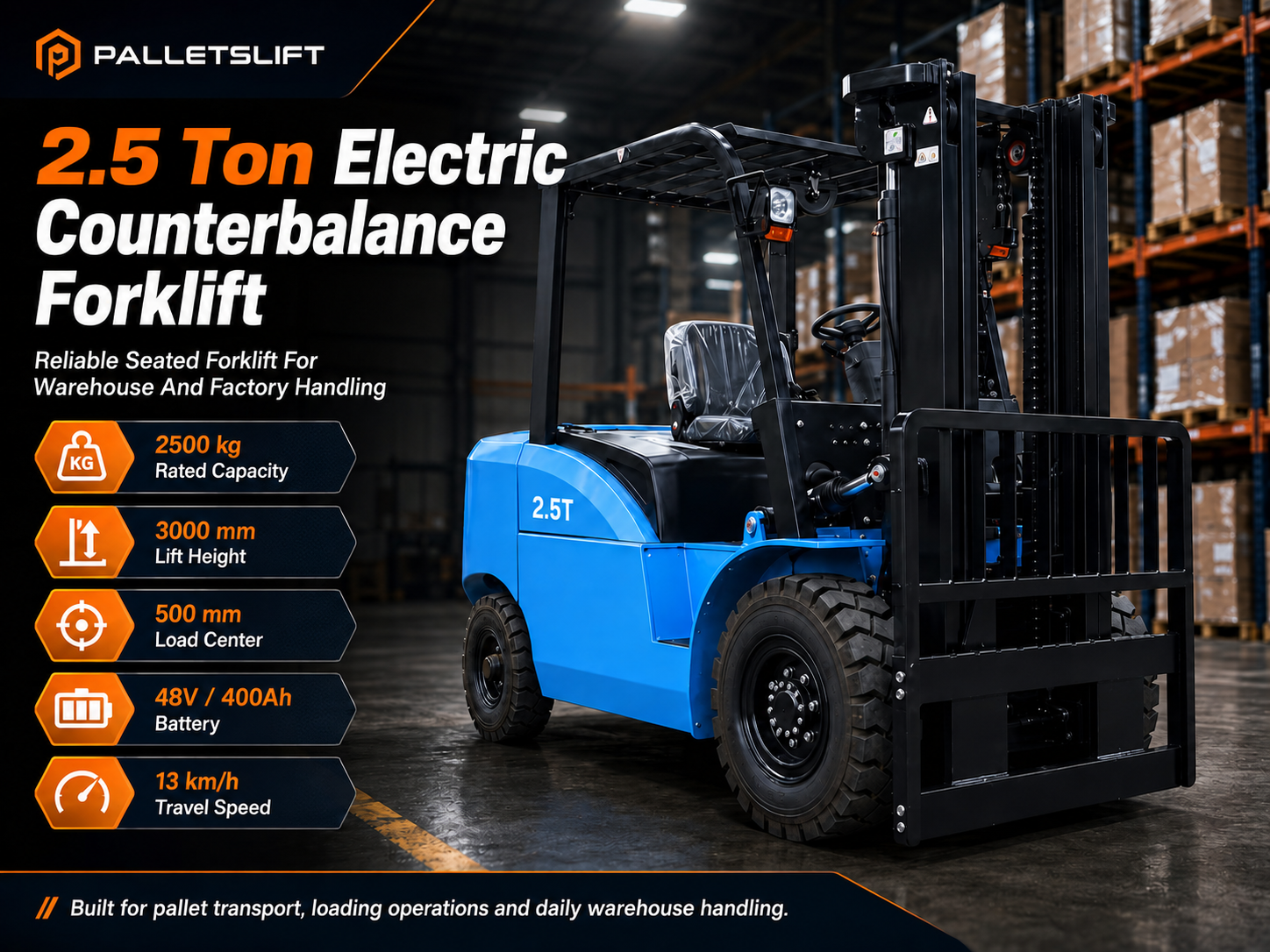

MAIN FEATURES
2.5 Ton Electric Counterbalance Forklift For Daily Warehouse Work
With 2500kg rated capacity, 3000mm lift height and 48V/400Ah battery, this electric counterbalance forklift is built for pallet transport, loading operations and routine warehouse handling. It offers smooth operation and reliable indoor industrial performance.Rated capacity: 2500 kg
Lift height: 3000 mm / Load center: 500 mm
48V / 400Ah battery with 13 km/h travel speed
03

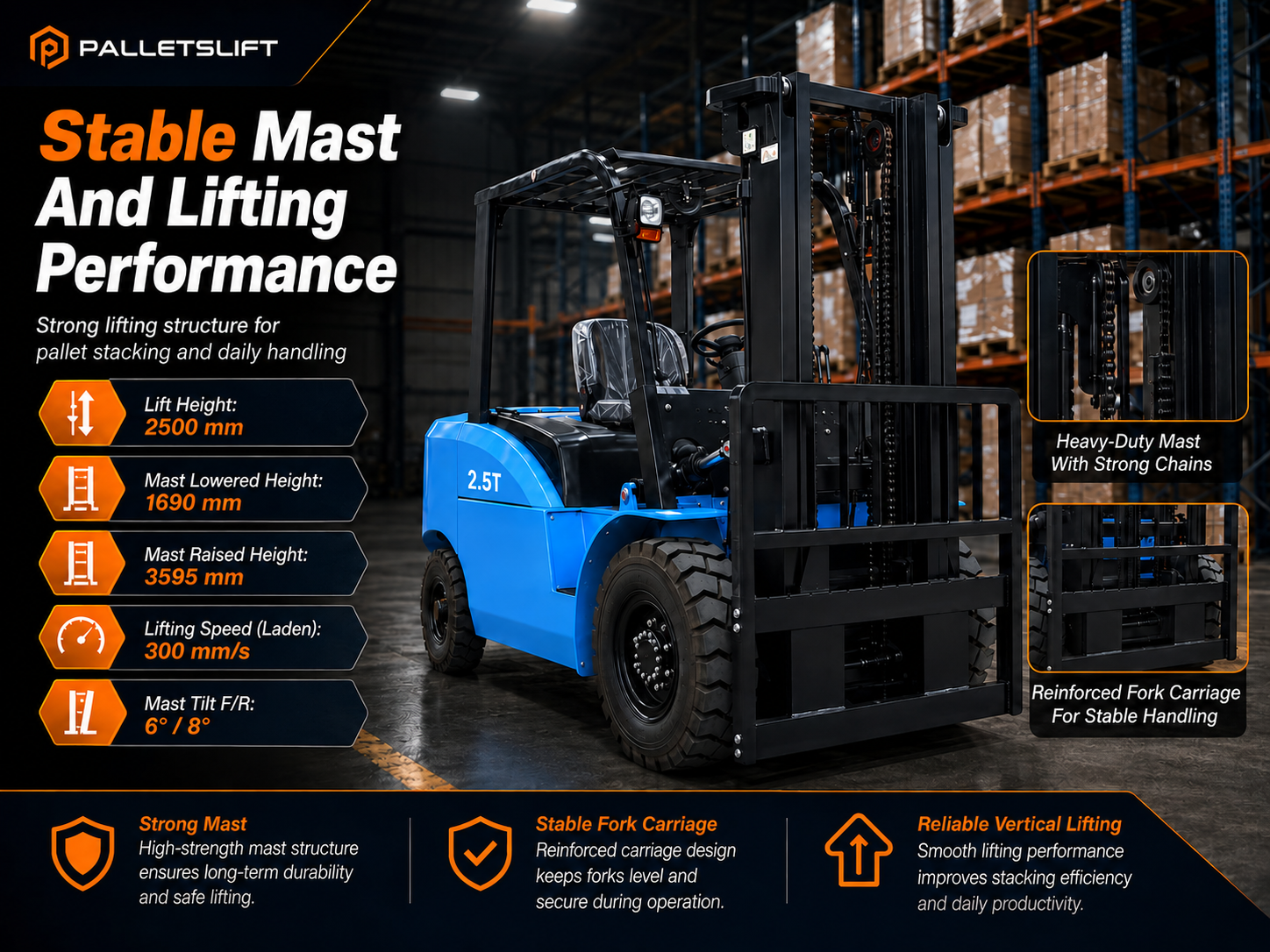

STABLE MAST AND LIFTING
Strong Mast Structure For Pallet Stacking And Daily Handling
The reinforced mast and fork carriage provide stable lifting performance for pallet stacking and warehouse loading. Heavy-duty mast chains, reliable vertical lifting and mast tilt function help improve handling stability and daily productivity.Lift height: 2500 mm
Mast lowered height: 1690 mm / Mast raised height: 3595 mm
Lifting speed laden: 300 mm/s / Mast tilt F/R: 6° / 8°
04

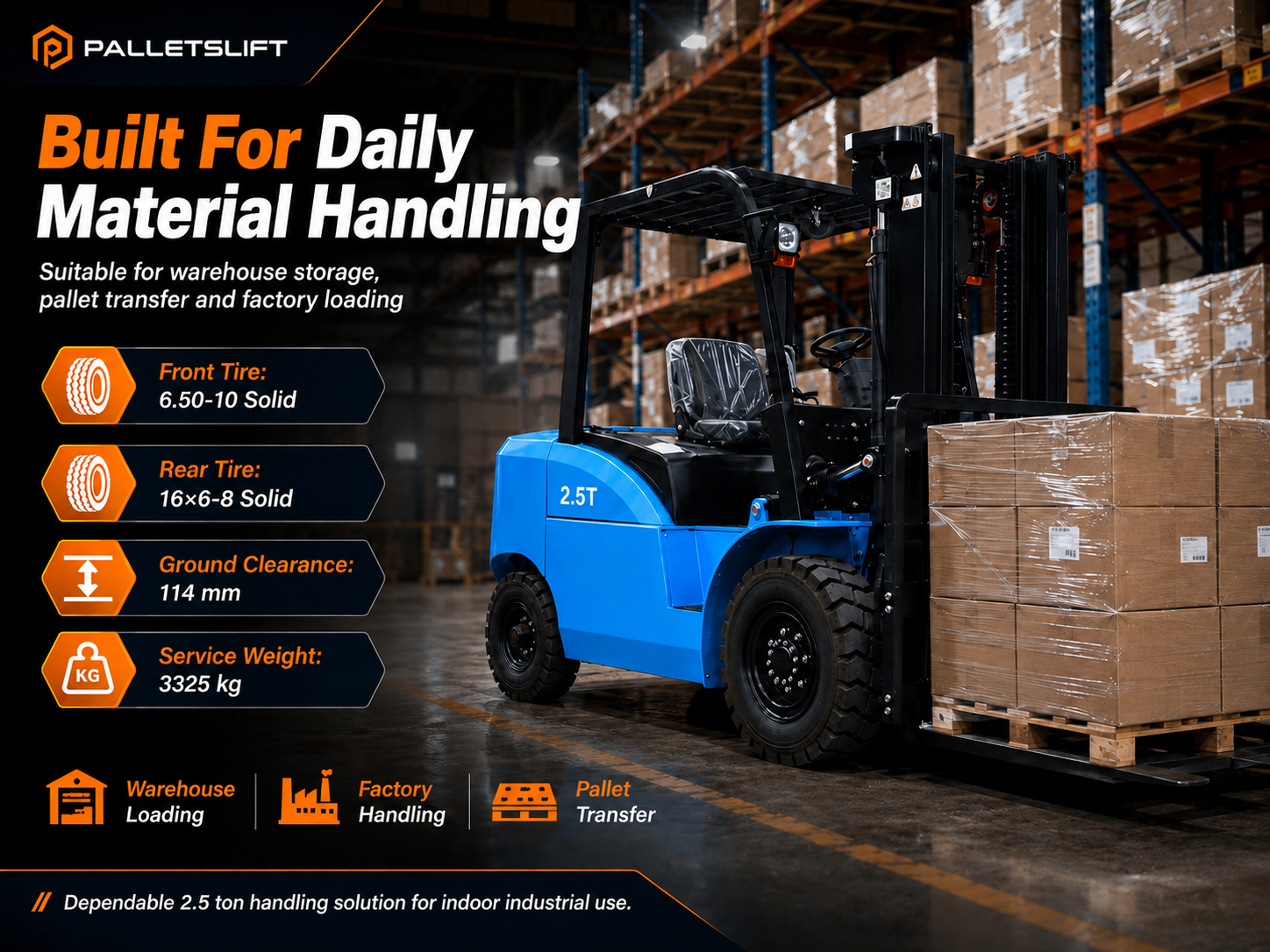

DAILY MATERIAL HANDLING
Built For Warehouse Storage, Pallet Transfer And Factory Loading
Designed for daily industrial use, this 2.5 ton forklift provides dependable handling for warehouse loading, pallet transfer and factory material movement. Solid tires, stable service weight and compact body structure help support frequent indoor operation.Front tire: 6.50-10 solid
Rear tire: 16×6-8 solid
Ground clearance: 114 mm / Service weight: 3325 kg
05

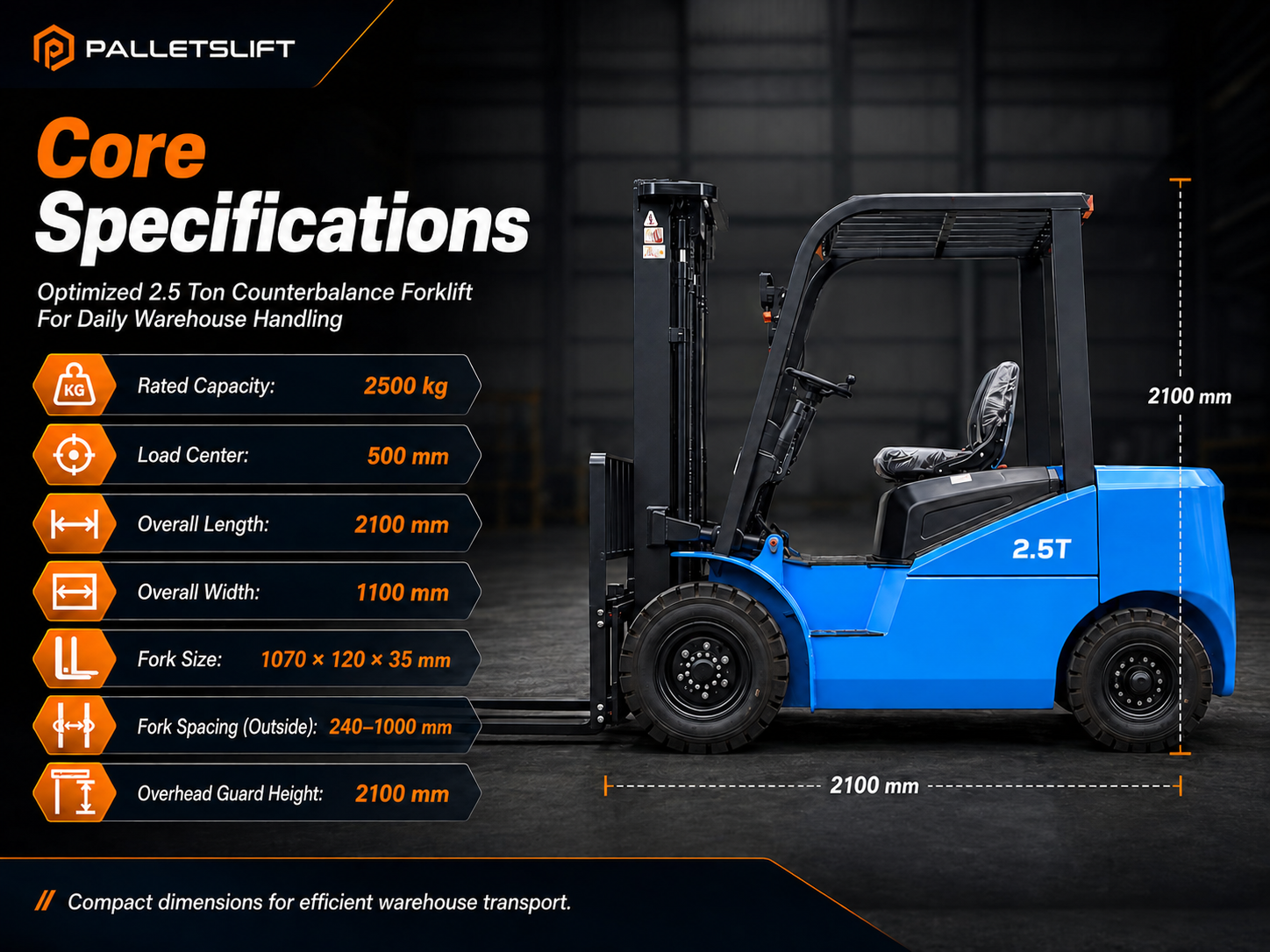

CORE SPECIFICATIONS
Compact Dimensions For Efficient Warehouse Transport
The compact body and standard fork configuration help improve daily warehouse transport efficiency. With 2100mm overall length, 1100mm overall width and 1070×120×35mm fork size, it is suitable for common pallet handling and indoor warehouse loading tasks.Overall length: 2100 mm / Overall width: 1100 mm
Fork size: 1070×120×35 mm
Fork spacing outside: 240–1000 mm / Overhead guard height: 2100 mm
06

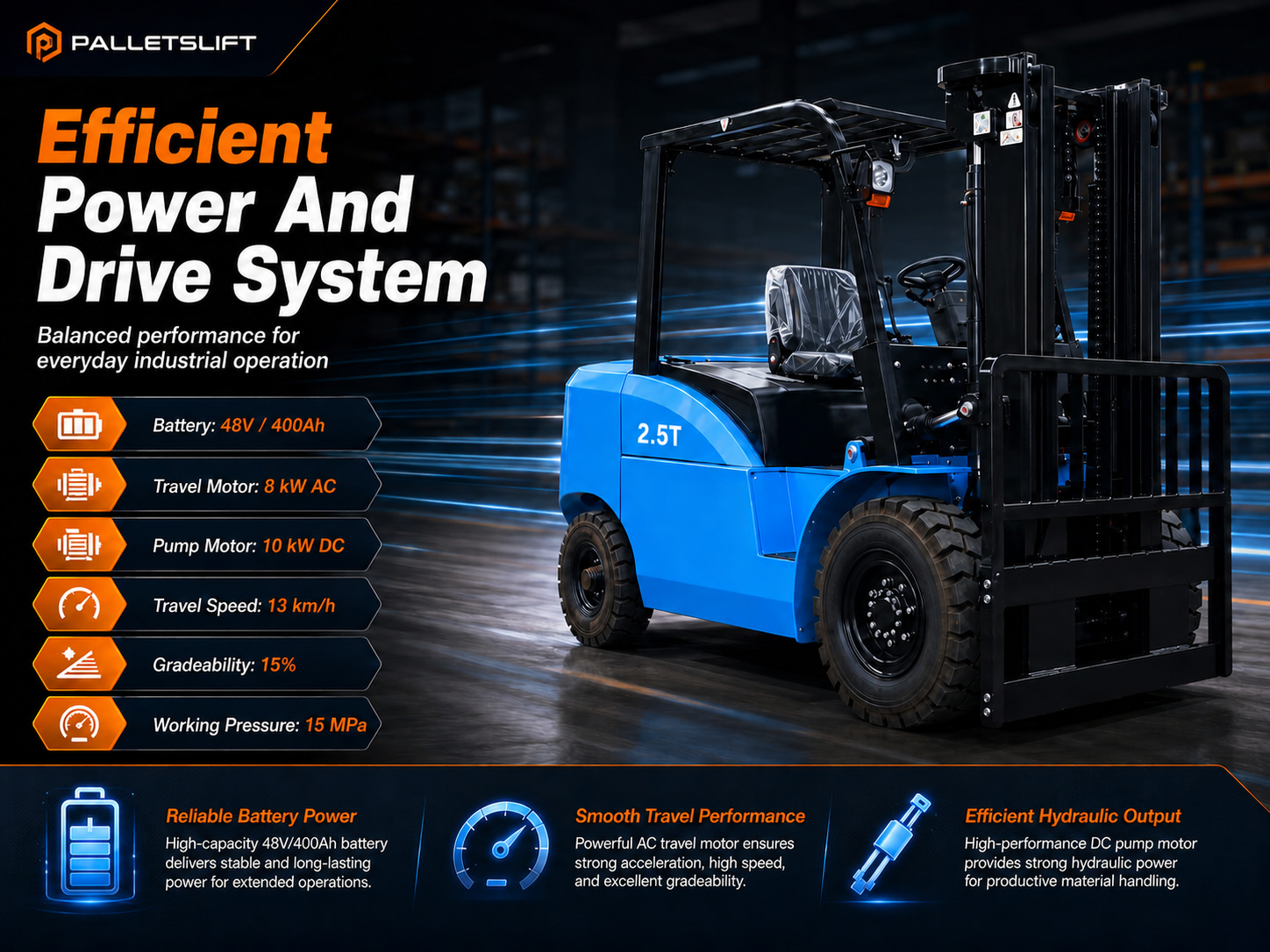

POWER AND DRIVE SYSTEM
Efficient Power System For Everyday Industrial Operation
The forklift is equipped with a 48V/400Ah battery, 8kW AC travel motor and 10kW DC pump motor. The power system delivers smooth travel performance, strong hydraulic output and stable operation for productive warehouse material handling.Battery: 48V / 400Ah
Travel motor: 8 kW AC / Pump motor: 10 kW DC
Travel speed: 13 km/h / Gradeability: 15% / Working pressure: 15 MPa
07

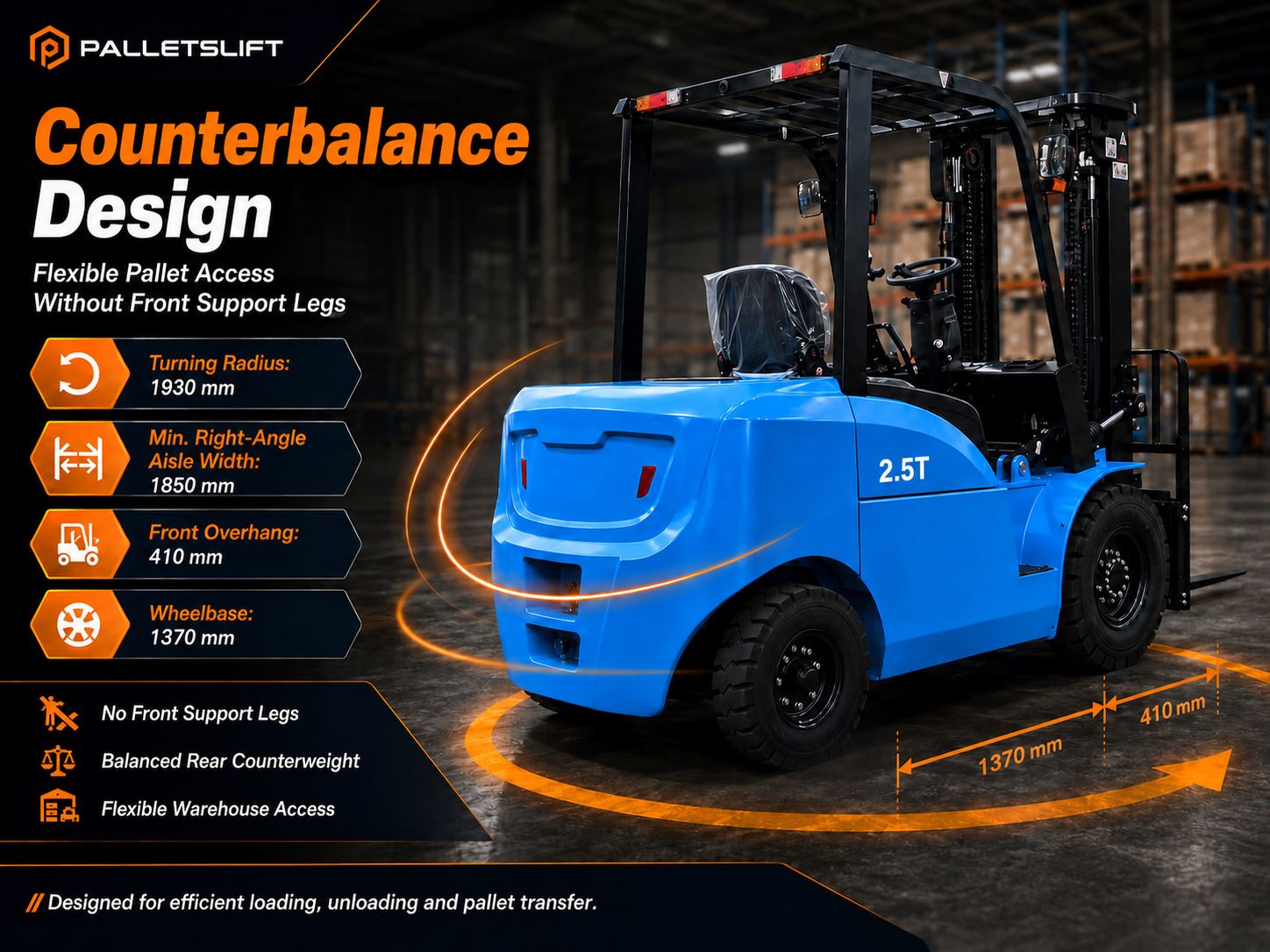

COUNTERBALANCE DESIGN
Flexible Pallet Access Without Front Support Legs
The counterbalance structure allows the forklift to access pallets without front support legs, making loading, unloading and pallet transfer more flexible. The balanced rear counterweight and compact turning parameters help improve movement efficiency in warehouse aisles.Turning radius: 1930 mm
Min. right-angle aisle width: 1850 mm
Front overhang: 410 mm / Wheelbase: 1370 mm
TECHNICAL SPECIFICATIONS
2.5 Ton Electric Counterbalance Forklift Parameters
Main technical data for 2.5 ton electric counterbalance forklift. Suitable for pallet transport, warehouse loading, factory handling and daily indoor industrial material movement.| Category | Item | Unit | 2.5 Ton Electric Counterbalance Forklift |
|---|---|---|---|
| Main Performance | |||
| Performance | Rated Capacity | kg | 2500 |
| Performance | Load Center | mm | 500 |
| Performance | Lift Height | mm | 3000 |
| Performance | Travel Speed | km/h | 13 |
| Performance | Gradeability | % | 15 |
| Performance | Working Pressure | MPa | 15 |
| Dimension | |||
| Dimension | Overall Length | mm | 2100 |
| Dimension | Overall Width | mm | 1100 |
| Dimension | Overhead Guard Height | mm | 2100 |
| Dimension | Fork Size | mm | 1070×120×35 |
| Dimension | Fork Spacing Outside | mm | 240–1000 |
| Dimension | Ground Clearance | mm | 114 |
| Mast | |||
| Mast | Mast Lowered Height | mm | 1690 |
| Mast | Mast Raised Height | mm | 3595 |
| Mast | Lifting Speed Laden | mm/s | 300 |
| Mast | Mast Tilt F/R | ° | 6 / 8 |
| Turning And Body | |||
| Turning | Turning Radius | mm | 1930 |
| Turning | Min. Right-Angle Aisle Width | mm | 1850 |
| Turning | Front Overhang | mm | 410 |
| Turning | Wheelbase | mm | 1370 |
| Power And Tires | |||
| Power | Battery | V/Ah | 48 / 400 |
| Power | Travel Motor | kW | 8 AC |
| Power | Pump Motor | kW | 10 DC |
| Tire | Front Tire | - | 6.50-10 Solid |
| Tire | Rear Tire | - | 16×6-8 Solid |
| Weight | Service Weight | kg | 3325 |
