Electric Forklift
CPD-20
The 2 Ton Electric Counterbalance Forklift is designed for daily warehouse loading, pallet transport and factory material handling. With a counterbalance design, seated operation, 3000mm lift height and 48V/400Ah battery power system, it provides stable lifting, flexible pallet access and reliable indoor industrial performance. Rated Capacity: 2000kg Lift Height: 3000mm Battery: 48V / 400Ah Advantage: Counterbalance design without front support legs for flexible pallet access
01

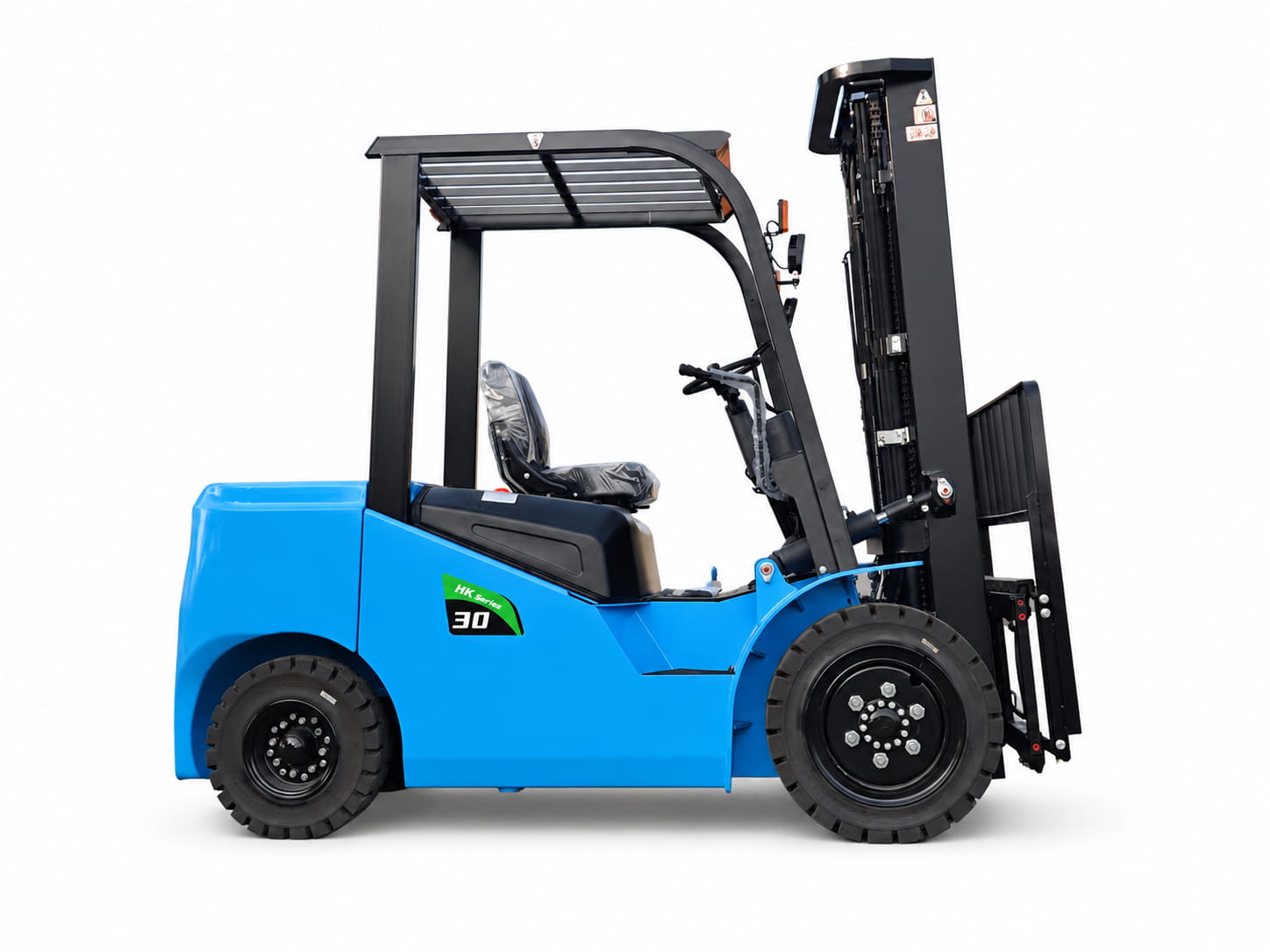

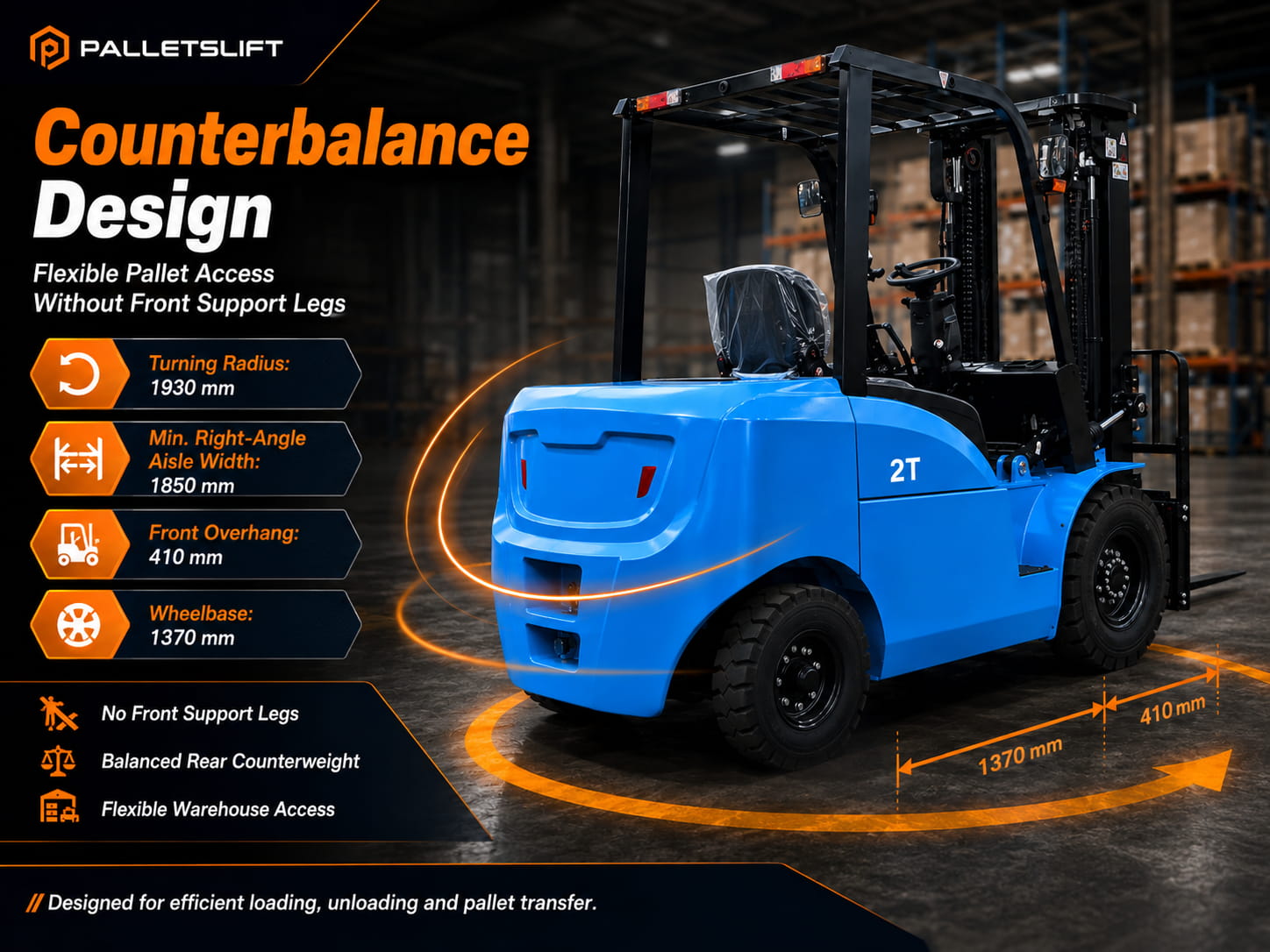

COUNTERBALANCE DESIGN
Flexible Pallet Access Without Front Support Legs
The electric counterbalance forklift is designed for efficient loading, unloading and pallet transfer. Without front support legs, it can access pallets more flexibly and handle standard warehouse loading operations with a balanced rear counterweight structure.Turning radius: 1930 mm
Min. right-angle aisle width: 1850 mm
Balanced rear counterweight for flexible warehouse access
02
PRODUCT OVERVIEW
2 Ton Electric Counterbalance Forklift For Warehouse Handling
This 2 ton electric counterbalance forklift is suitable for pallet transport, loading operations and daily warehouse handling. The seated driving design, strong mast and compact counterbalance structure make it ideal for indoor industrial material handling.2000kg rated capacity
Seated operation for daily warehouse work
Suitable for pallet transport, loading and factory handling
03

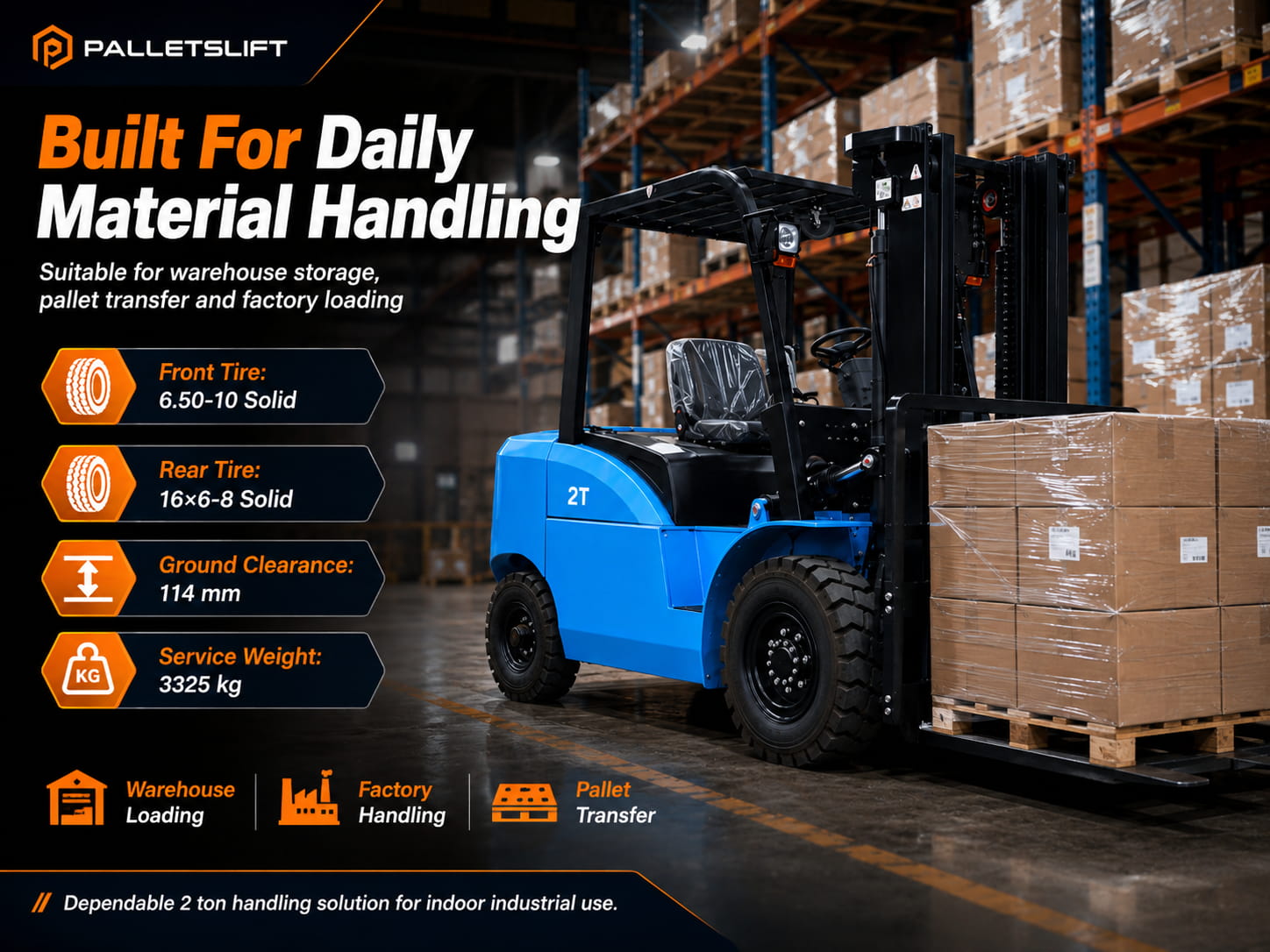

DAILY MATERIAL HANDLING
Built For Warehouse Storage, Pallet Transfer And Factory Loading
Designed for daily industrial use, this forklift provides dependable handling for warehouse loading, pallet transfer and factory material movement. Solid tires, strong ground clearance and stable service weight help support frequent indoor operation.Front tire: 6.50-10 solid
Rear tire: 16×6-8 solid
Ground clearance: 114 mm / Service weight: 3325 kg
04

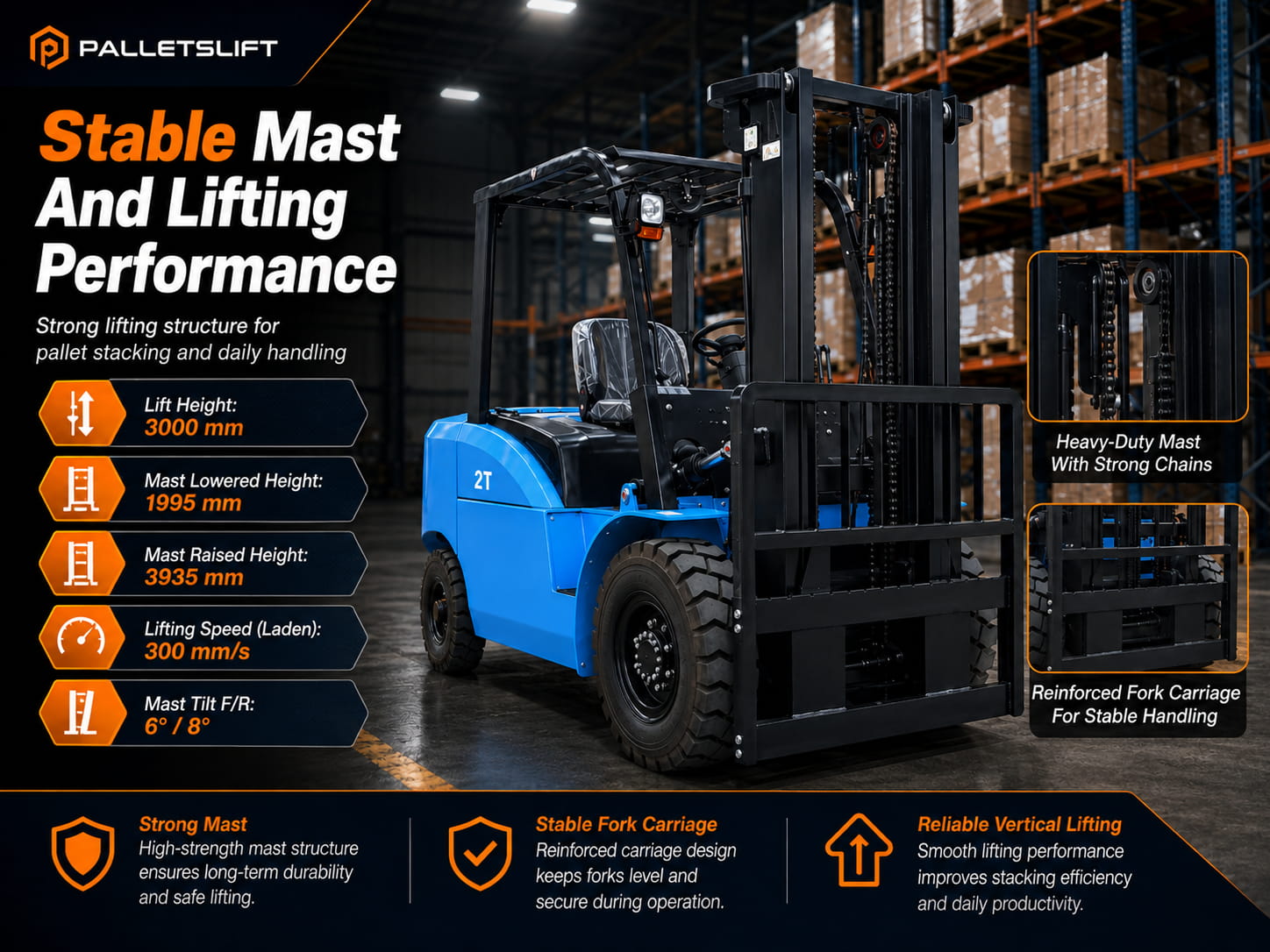

STABLE MAST AND LIFTING
Strong Mast Structure For Pallet Stacking And Daily Handling
The reinforced mast and fork carriage provide stable lifting performance for pallet stacking and warehouse loading. Heavy-duty mast chains, reliable vertical lifting and mast tilt function help improve productivity and handling safety.Lift height: 3000 mm
Mast lowered height: 1995 mm / Mast raised height: 3935 mm
Mast tilt F/R: 6° / 8°
05

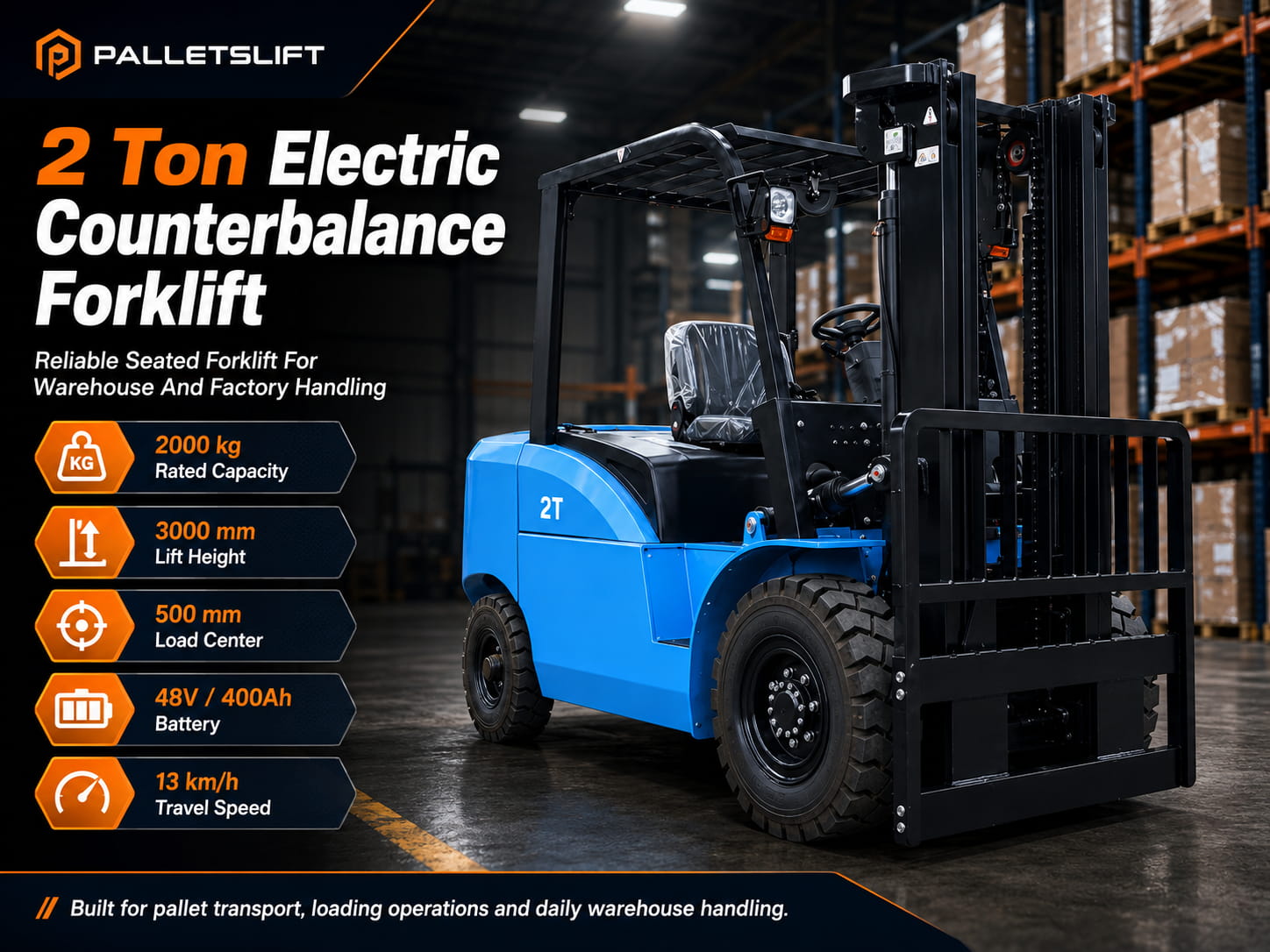

MAIN FEATURES
Reliable Seated Forklift For Warehouse And Factory Handling
With 2000kg rated capacity, 3000mm lift height and 48V/400Ah battery, this electric counterbalance forklift is built for pallet transport, loading operations and daily warehouse handling. It offers stable power and smooth operation for indoor industrial applications.Rated capacity: 2000 kg
Lift height: 3000 mm / Load center: 500 mm
48V / 400Ah battery with 13 km/h travel speed
06

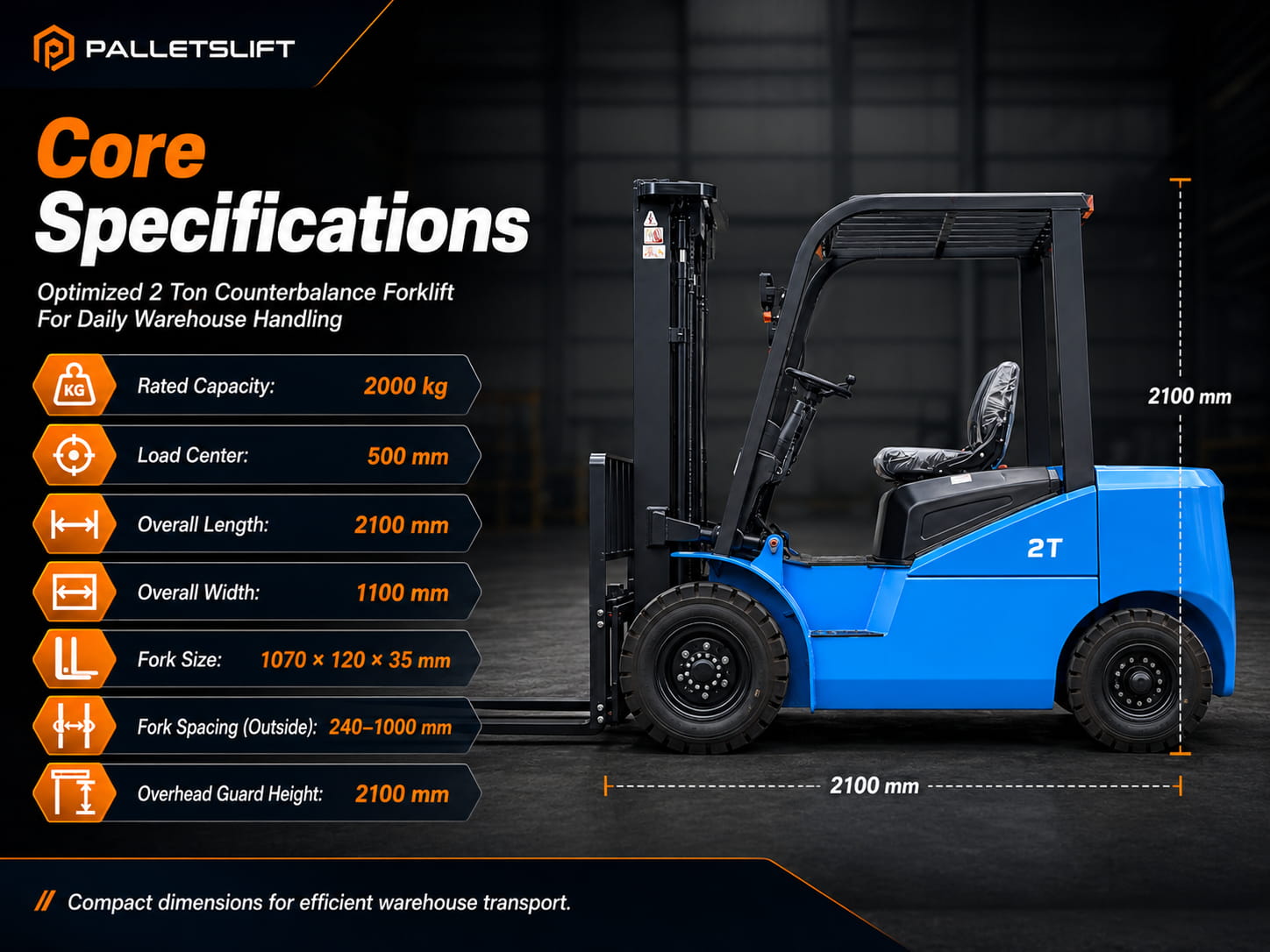

CORE SPECIFICATIONS
Compact Dimensions For Efficient Warehouse Transport
The compact body and standard fork configuration help improve daily warehouse transport efficiency. With 2100mm overall length, 1100mm overall width and 1070×120×35mm fork size, it is suitable for common pallet handling and warehouse loading tasks.Overall length: 2100 mm / Overall width: 1100 mm
Fork size: 1070×120×35 mm
Fork spacing outside: 240–1000 mm
07

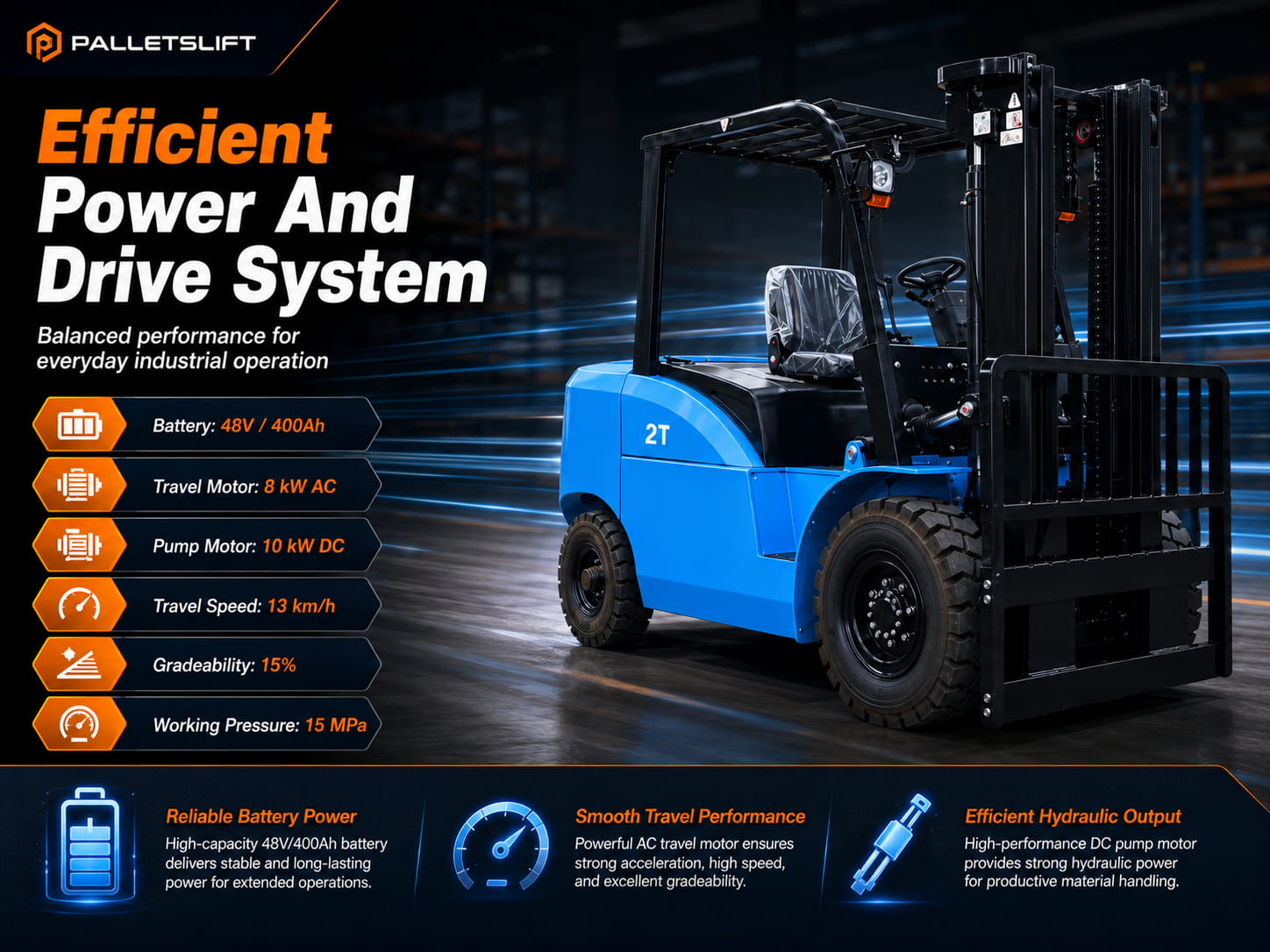

POWER AND DRIVE SYSTEM
Efficient Power System For Everyday Industrial Operation
The forklift is equipped with a 48V/400Ah battery, 8kW AC travel motor and 10kW DC pump motor. The power system delivers smooth travel performance, strong hydraulic output and stable operation for productive warehouse material handling.Battery: 48V / 400Ah
Travel motor: 8 kW AC / Pump motor: 10 kW DC
Travel speed: 13 km/h / Gradeability: 15%
TECHNICAL SPECIFICATIONS
2 Ton Electric Counterbalance Forklift Parameters
Main technical data for 2 ton electric counterbalance forklift. Suitable for pallet transport, warehouse loading, factory handling and daily indoor industrial material movement.| Category | Item | Unit | 2 Ton Electric Counterbalance Forklift |
|---|---|---|---|
| Main Performance | |||
| Performance | Rated Capacity | kg | 2000 |
| Performance | Load Center | mm | 500 |
| Performance | Lift Height | mm | 3000 |
| Performance | Travel Speed | km/h | 13 |
| Performance | Gradeability | % | 15 |
| Performance | Working Pressure | MPa | 15 |
| Dimension | |||
| Dimension | Overall Length | mm | 2100 |
| Dimension | Overall Width | mm | 1100 |
| Dimension | Overhead Guard Height | mm | 2100 |
| Dimension | Fork Size | mm | 1070×120×35 |
| Dimension | Fork Spacing Outside | mm | 240–1000 |
| Dimension | Ground Clearance | mm | 114 |
| Mast | |||
| Mast | Mast Lowered Height | mm | 1995 |
| Mast | Mast Raised Height | mm | 3935 |
| Mast | Lifting Speed Laden | mm/s | 300 |
| Mast | Mast Tilt F/R | ° | 6 / 8 |
| Turning And Body | |||
| Turning | Turning Radius | mm | 1930 |
| Turning | Min. Right-Angle Aisle Width | mm | 1850 |
| Turning | Front Overhang | mm | 410 |
| Turning | Wheelbase | mm | 1370 |
| Power And Tires | |||
| Power | Battery | V/Ah | 48 / 400 |
| Power | Travel Motor | kW | 8 AC |
| Power | Pump Motor | kW | 10 DC |
| Tire | Front Tire | - | 6.50-10 Solid |
| Tire | Rear Tire | - | 16×6-8 Solid |
| Weight | Service Weight | kg | 3325 |
