CPD-16

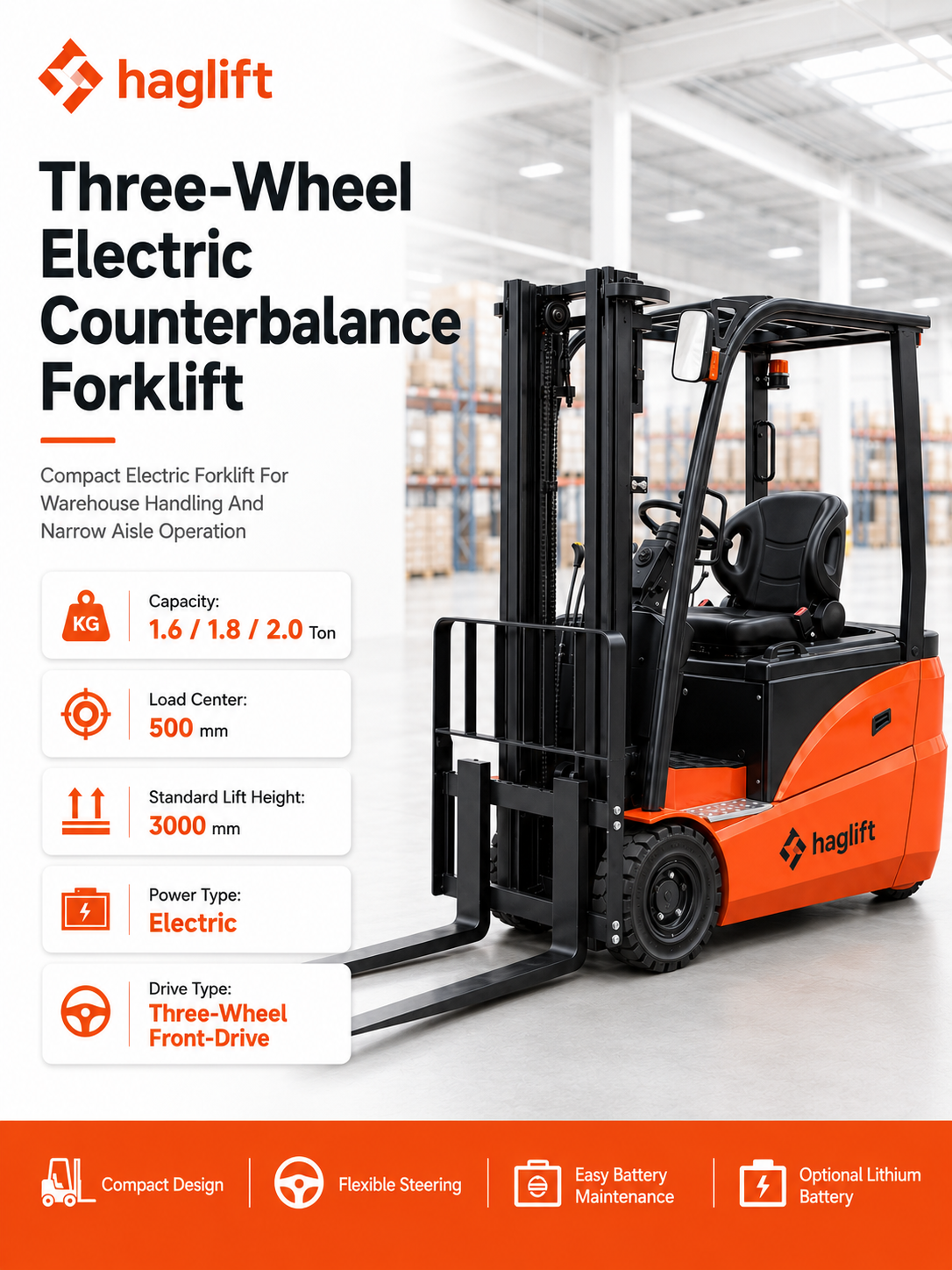

The CPD-16 Three-Wheel Electric Counterbalance Forklift is designed for modern warehouse handling, narrow aisle operation and efficient pallet transfer. With 1600 / 1800 / 2000 kg capacity options, 500 mm load center, 3000 mm standard lift height and a compact three-wheel front-drive structure, it provides flexible steering, stable lifting and clean electric operation for daily warehouse, logistics and e-commerce storage applications.

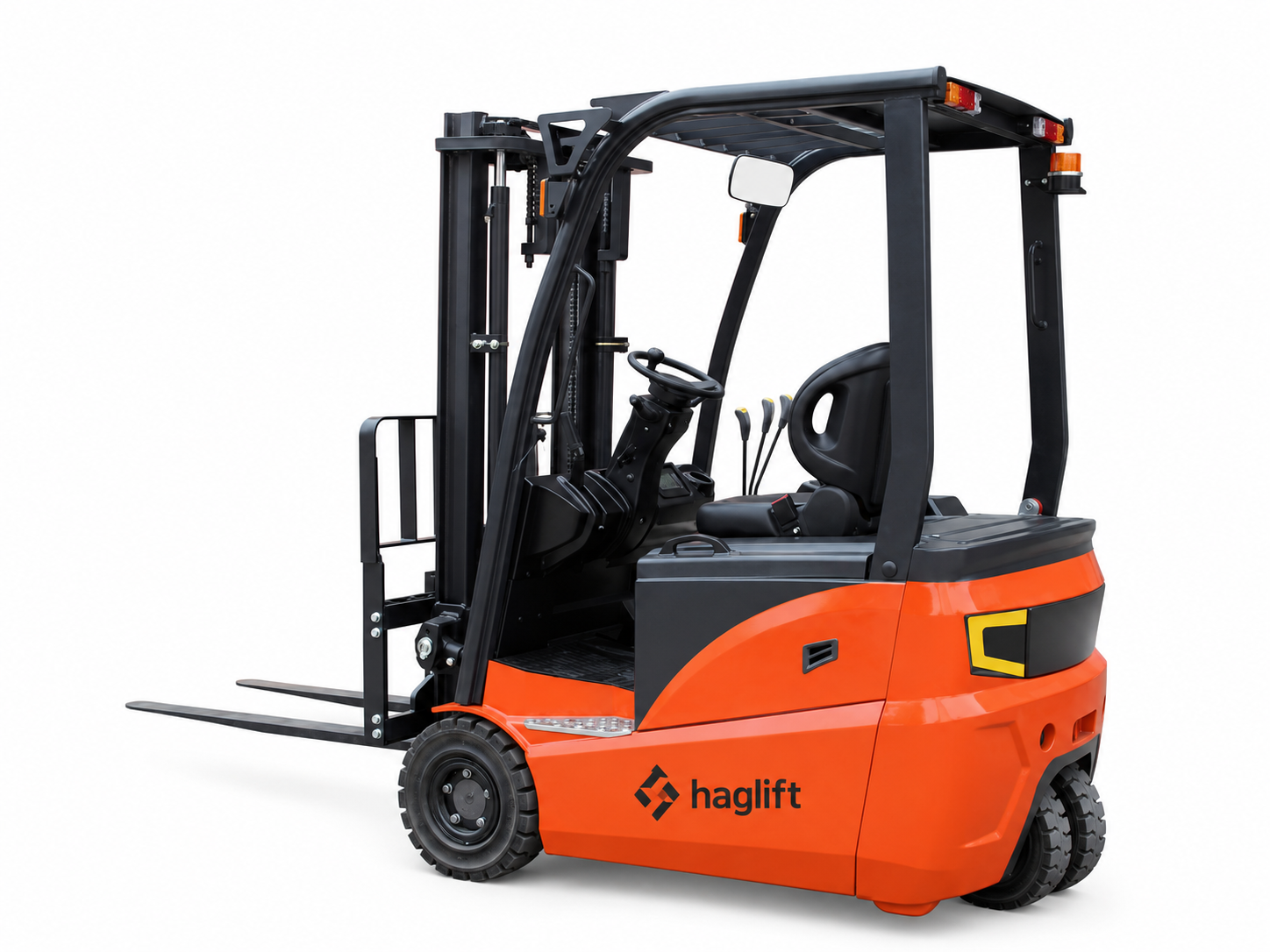

Three-Wheel Electric Counterbalance Forklift
The three-wheel electric counterbalance forklift is designed for modern warehouse handling, pallet transfer and narrow aisle operation. With compact three-wheel front-drive structure, electric power system and ergonomic operator layout, it provides flexible steering, stable lifting and efficient daily material handling.
Compact Electric Forklift For Warehouse Handling
This electric counterbalance forklift is suitable for pallet transfer, warehouse storage, e-commerce logistics and narrow aisle operation. The compact body improves maneuverability while the counterbalance structure allows easy pallet access without front support legs.
- 1.6 / 1.8 / 2.0 ton capacity options
- Electric power type for clean warehouse operation
- Compact design for flexible aisle handling
- Optional lithium battery configuration available

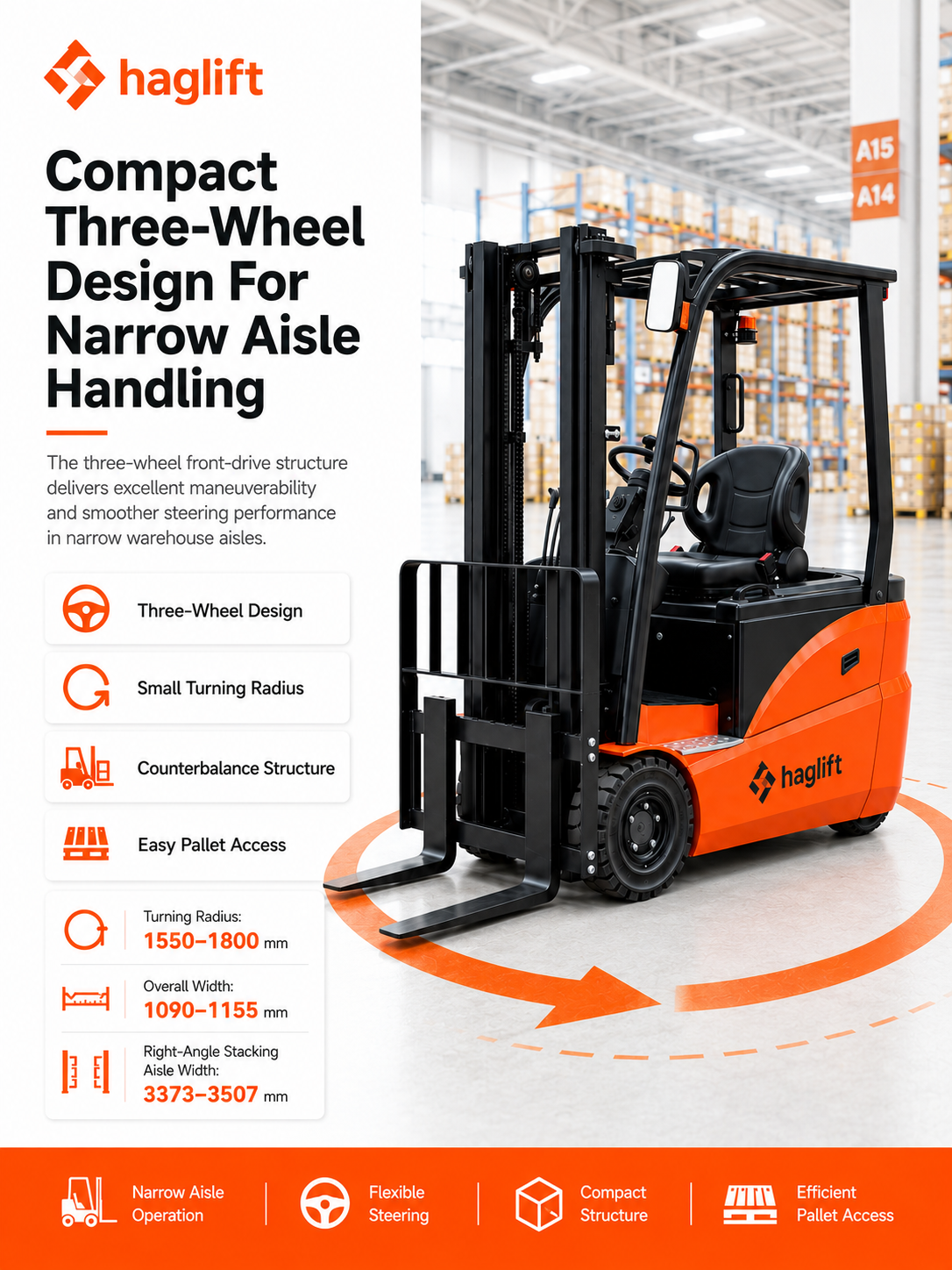

Compact Three-Wheel Design For Narrow Aisles
The three-wheel front-drive structure delivers excellent maneuverability and smoother steering performance in narrow warehouse aisles, helping operators move pallets more efficiently in limited working space.
- Small turning radius: 1550–1800 mm
- Overall width: 1090–1155 mm
- Right-angle stacking aisle width: 3373–3507 mm
- Counterbalance structure for easy pallet access

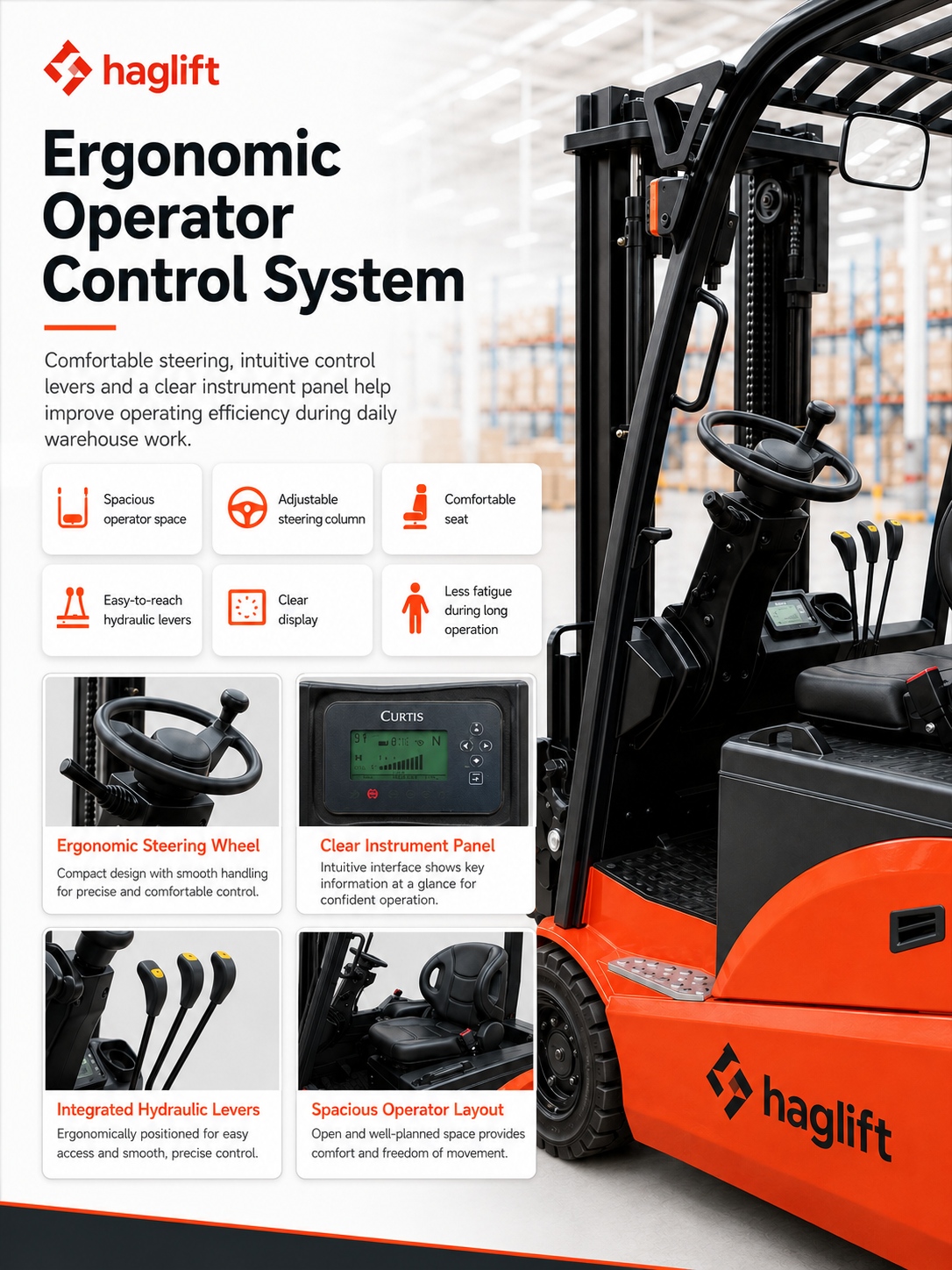

Ergonomic Operator Control System
The comfortable steering wheel, clear instrument panel, integrated hydraulic levers and spacious operator layout help improve control comfort and working efficiency during daily warehouse handling.
- Adjustable steering column and comfortable seat
- Easy-to-reach hydraulic levers
- Clear instrument panel for operation feedback
- Spacious operator layout for long working shifts

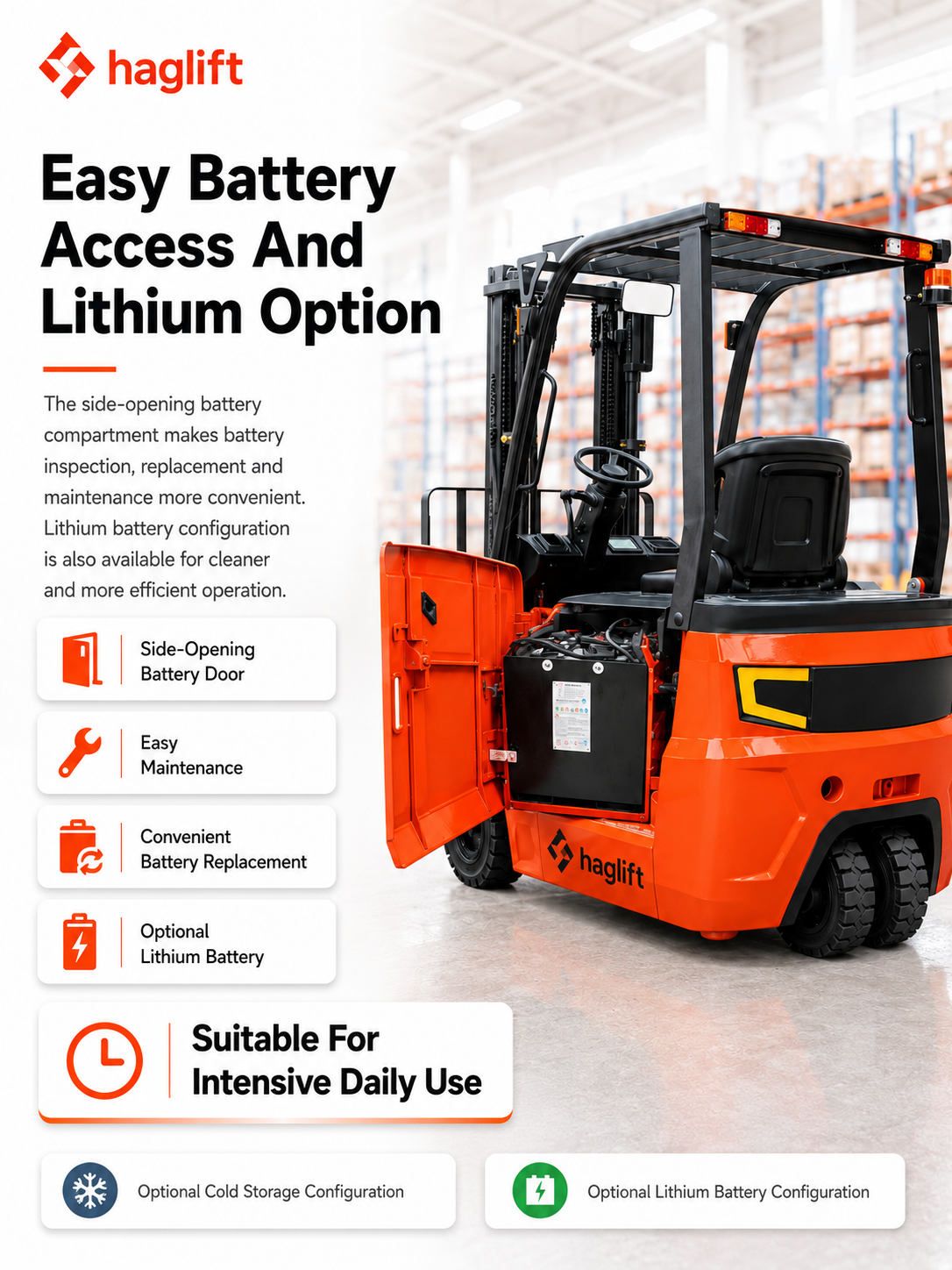

Easy Battery Access And Lithium Option
The side-opening battery compartment makes battery inspection, replacement and maintenance more convenient. Optional lithium battery configuration is available for cleaner, more efficient and low-maintenance operation.
- Side-opening battery door
- Easy maintenance and battery replacement
- Optional lithium battery configuration
- Suitable for intensive daily warehouse use

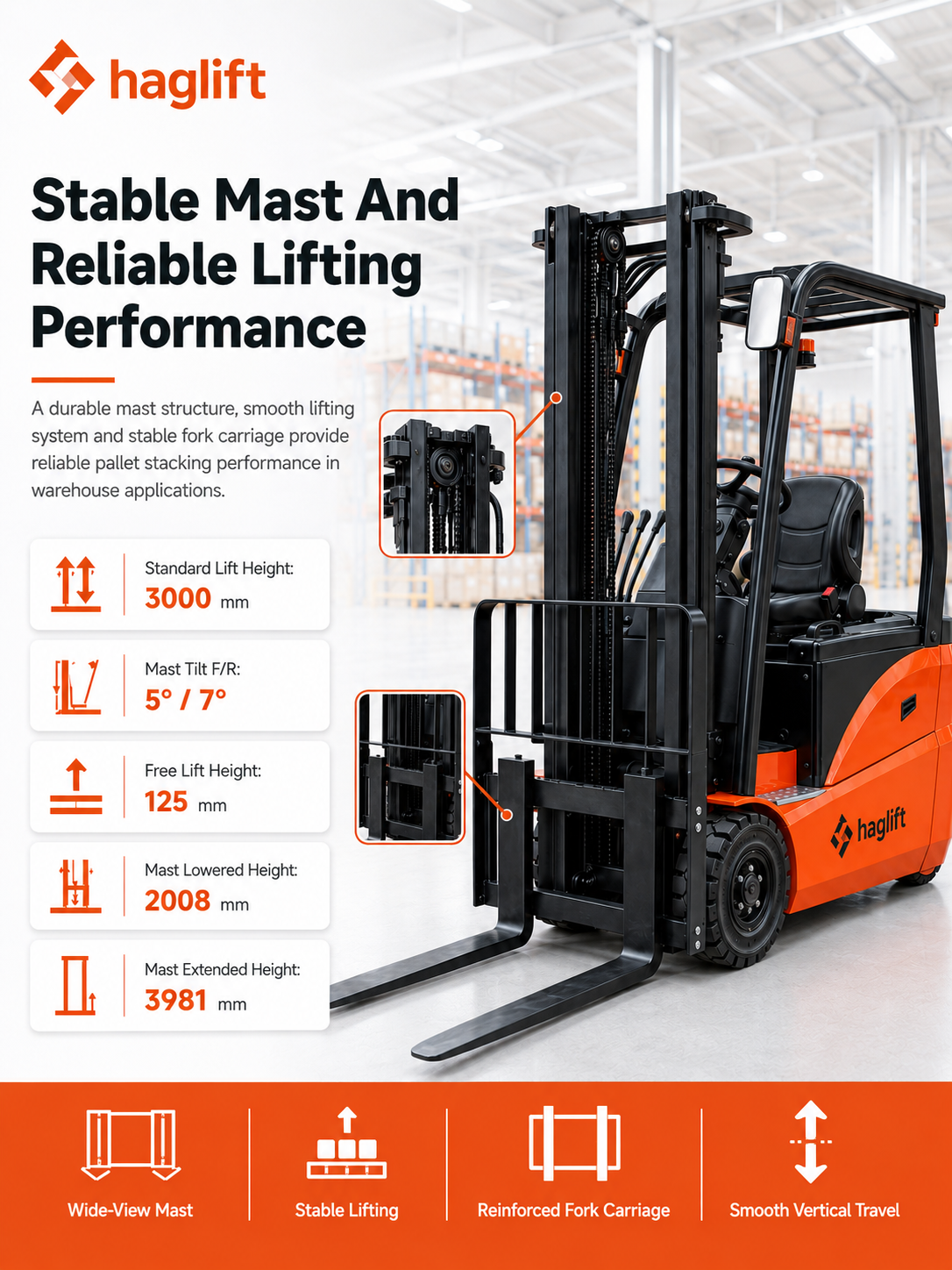

Stable Mast And Reliable Lifting Performance
The durable mast structure, smooth lifting system and reinforced fork carriage provide reliable pallet stacking performance for warehouse applications.
- Standard lift height: 3000 mm
- Mast tilt F/R: 5° / 7°
- Free lift height: 125 mm
- Mast lowered height: 2008 mm
- Mast extended height: 3981 mm

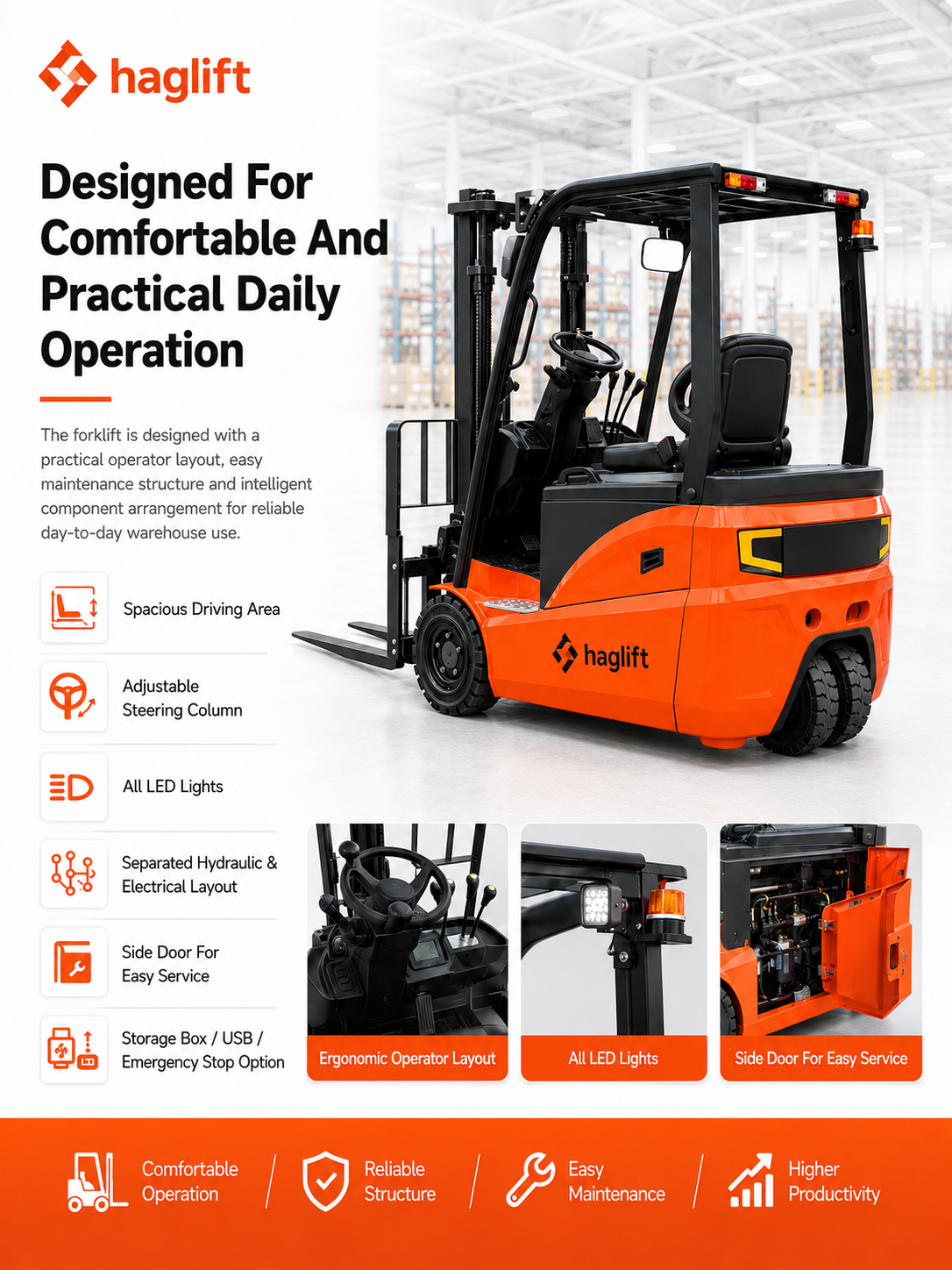

Designed For Comfortable And Practical Operation
The forklift is designed with a practical operator layout, easy maintenance structure and intelligent component arrangement for reliable day-to-day warehouse use.
- Spacious driving area for comfortable operation
- All LED lights for safer daily use
- Separated hydraulic and electrical layout
- Side door design for easy service
Core Specifications And Dimensions
Multiple capacity models are available to match different warehouse load requirements, aisle widths and pallet sizes.
| Item | Specification |
|---|---|
| Model Options | CPD-16 / CPD-18 / CPD-20 |
| Rated Capacity | 1600 / 1800 / 2000 kg |
| Load Center | 500 mm |
| Wheelbase | 1360 / 1360 / 1490 mm |
| Overall Length | 2845 / 3000 / 3130 mm |
| Overall Width | 1090 / 1135 / 1155 mm |
| Mast Lowered Height | 2008 mm |
| Overhead Guard Height | 2075 mm |
| Turning Radius | 1550 / 1650 / 1800 mm |
| Fork Size | 35×100×920 / 40×100×1070 / 40×120×1070 mm |

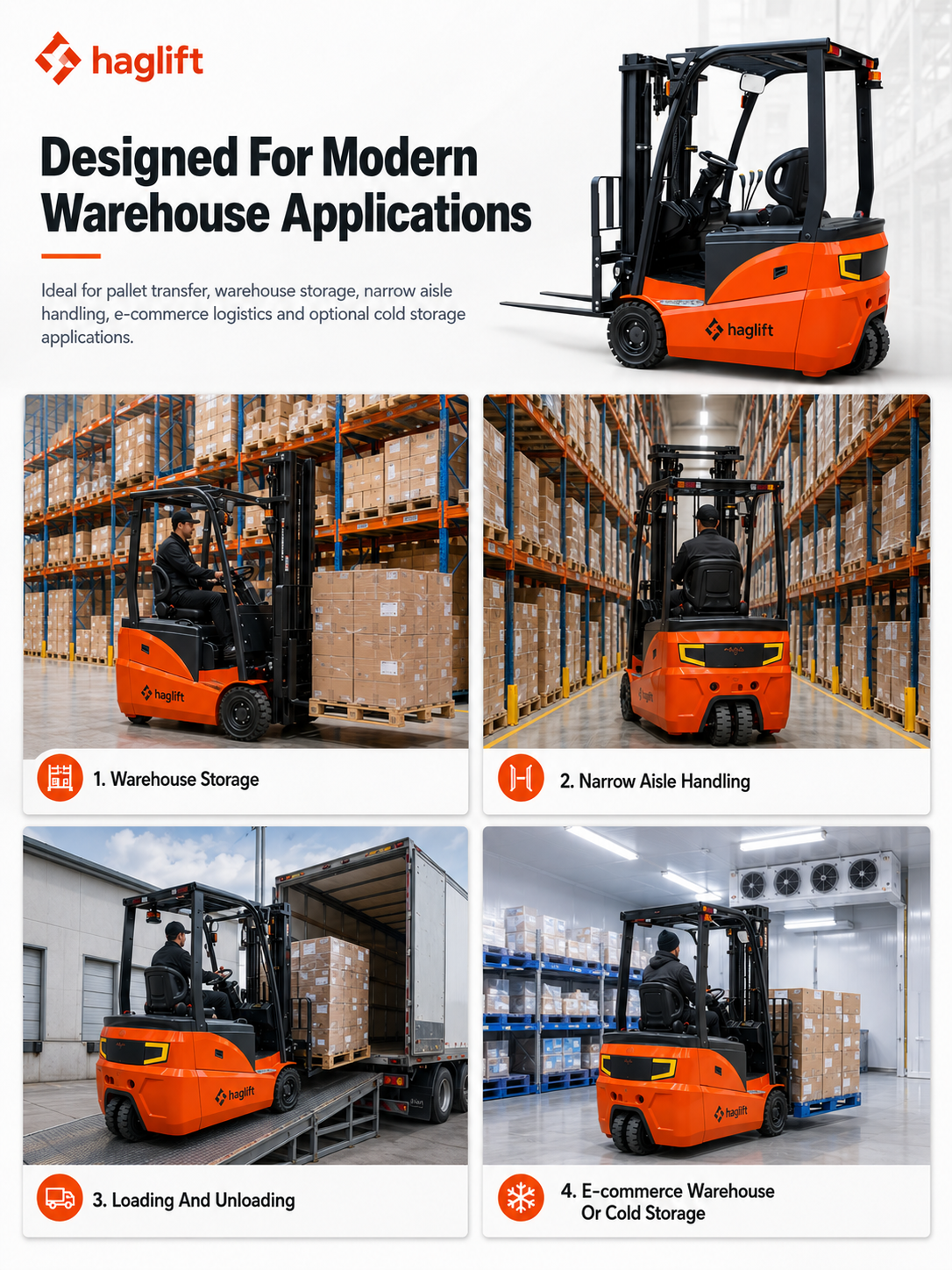

Designed For Modern Warehouse Applications
Ideal for pallet transfer, warehouse storage, narrow aisle handling, e-commerce logistics, loading and unloading, and optional cold storage applications.
