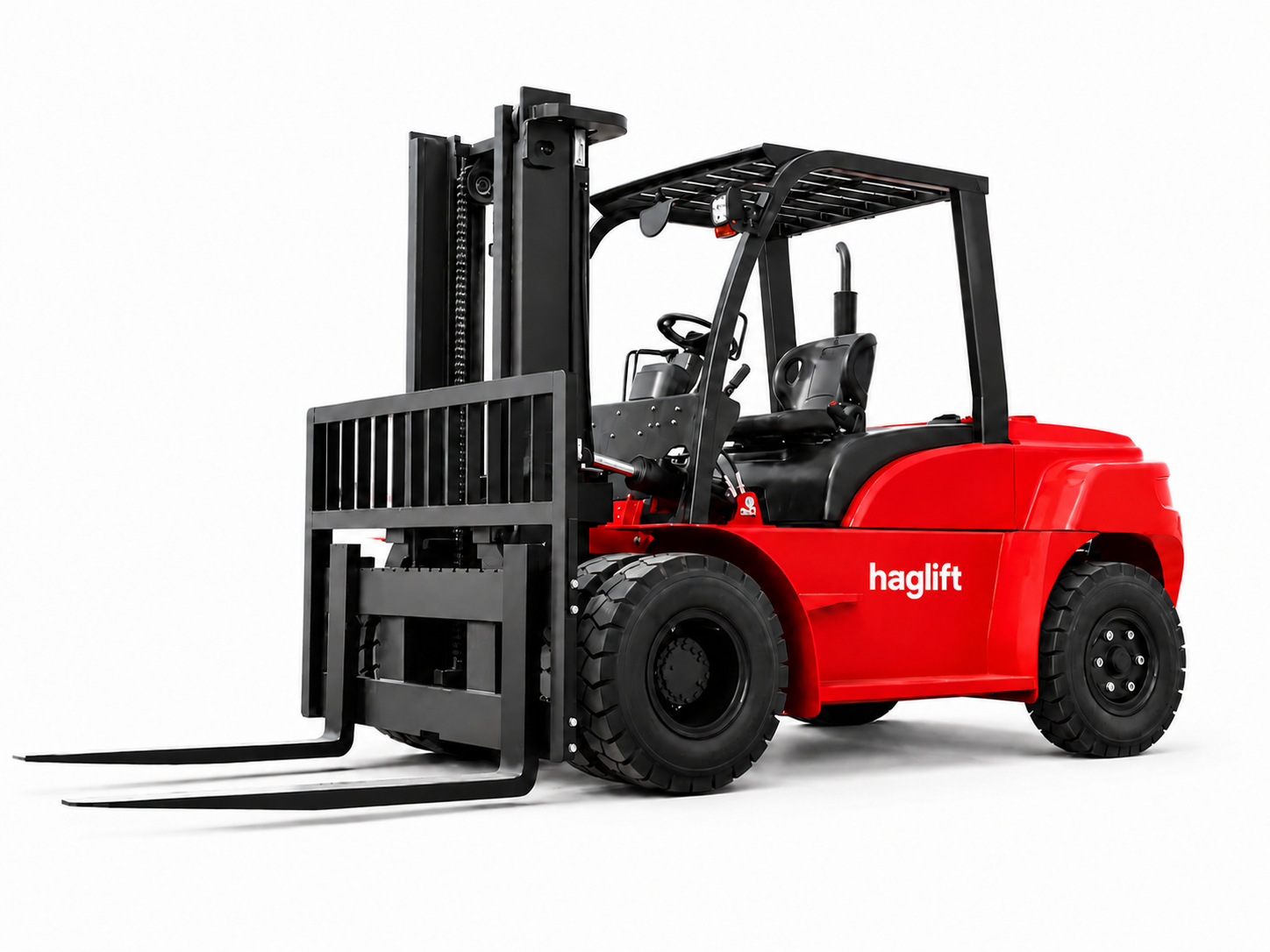

Diesel Forklift
CPCD-G70
The 7 Ton Diesel Counterbalance Forklift CPCD-G70 is built for heavy-duty warehouse, yard and factory material handling. With 7000 kg rated capacity, 600 mm load center, 3000 mm max lift height and durable pneumatic tires, it provides stable lifting, flexible pallet access and reliable performance for loading, unloading and heavy pallet transfer.
Heavy-Duty Forklift
7 Ton Diesel Counterbalance Forklift
Reliable heavy-duty handling solution for warehouse, yard and factory use. Designed for high-capacity pallet transport, loading operations and daily industrial material handling.7000 kg Rated CapacityBuilt for heavy pallets and demanding loading tasks.
600 mm Load CenterStable load handling for industrial applications.
3000 mm Max Lift HeightSuitable for common warehouse stacking needs.
Durable Pneumatic TiresReliable traction for indoor and outdoor working sites.

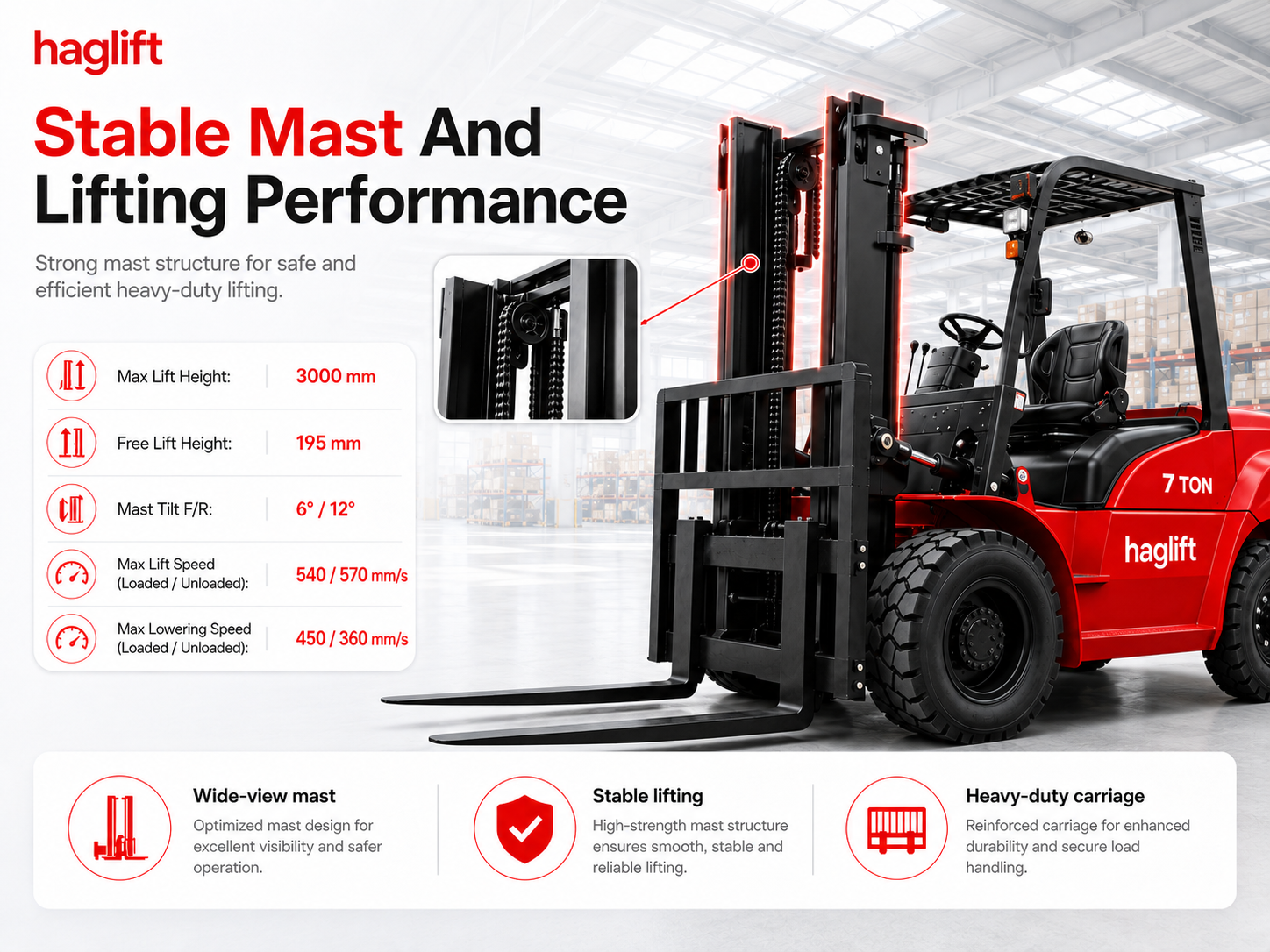

Stable Lifting
Stable Mast And Lifting Performance
The high-strength mast structure provides reliable vertical lifting performance for heavy-duty warehouse and yard handling. A wide-view mast helps improve operator visibility during loading and stacking work.✓Wide-view mast design for safer operation.
✓Stable lifting structure for heavy-duty loads.
✓Reinforced carriage helps keep loads secure.

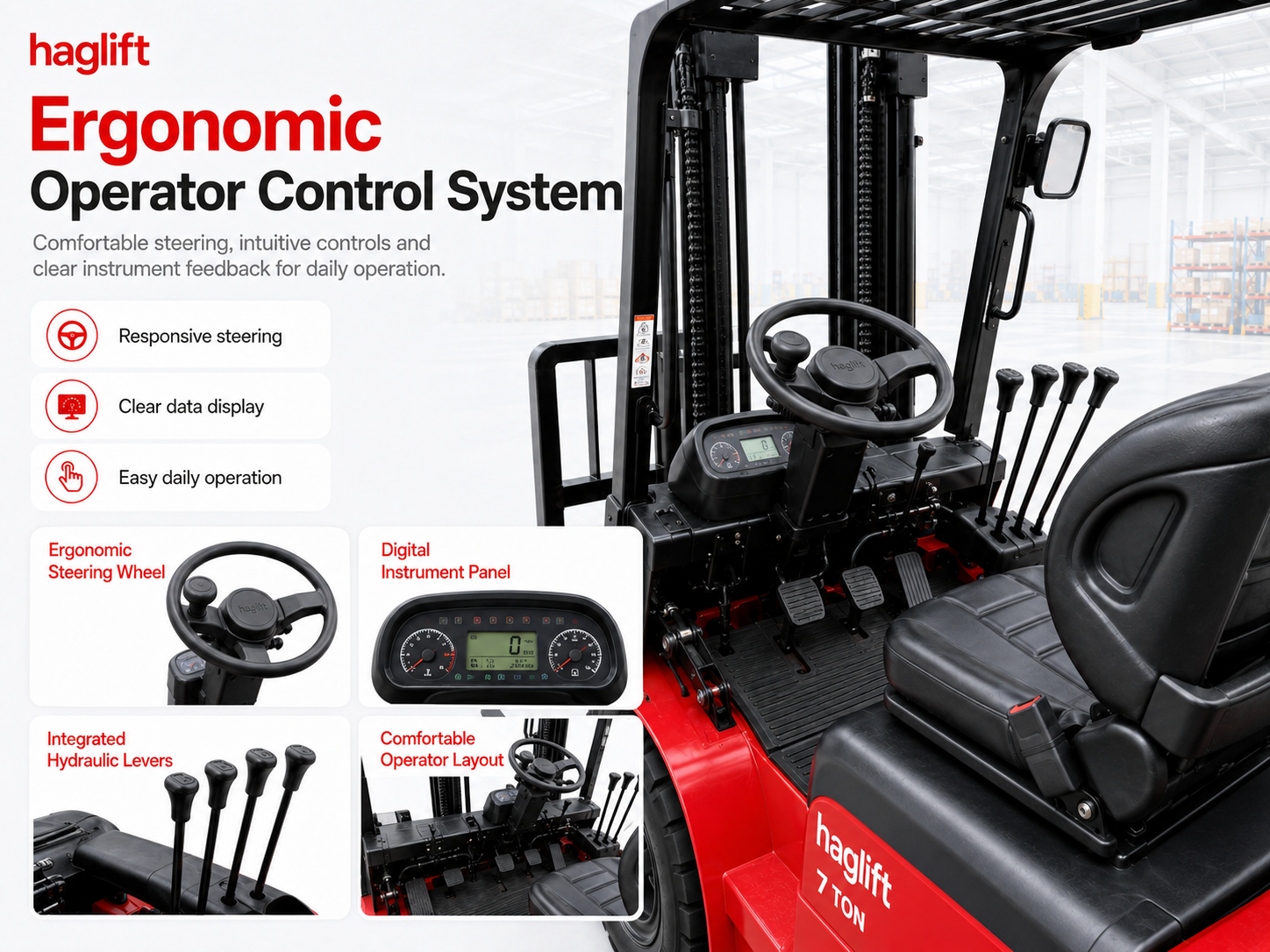

Operator Control
Ergonomic Operator Control System
Designed with comfortable steering, intuitive hydraulic levers and clear instrument feedback, the forklift helps operators complete daily handling work with better control and efficiency.✓Responsive steering for flexible daily operation.
✓Clear data display for easy machine status checking.
✓Comfortable operator layout for long working shifts.

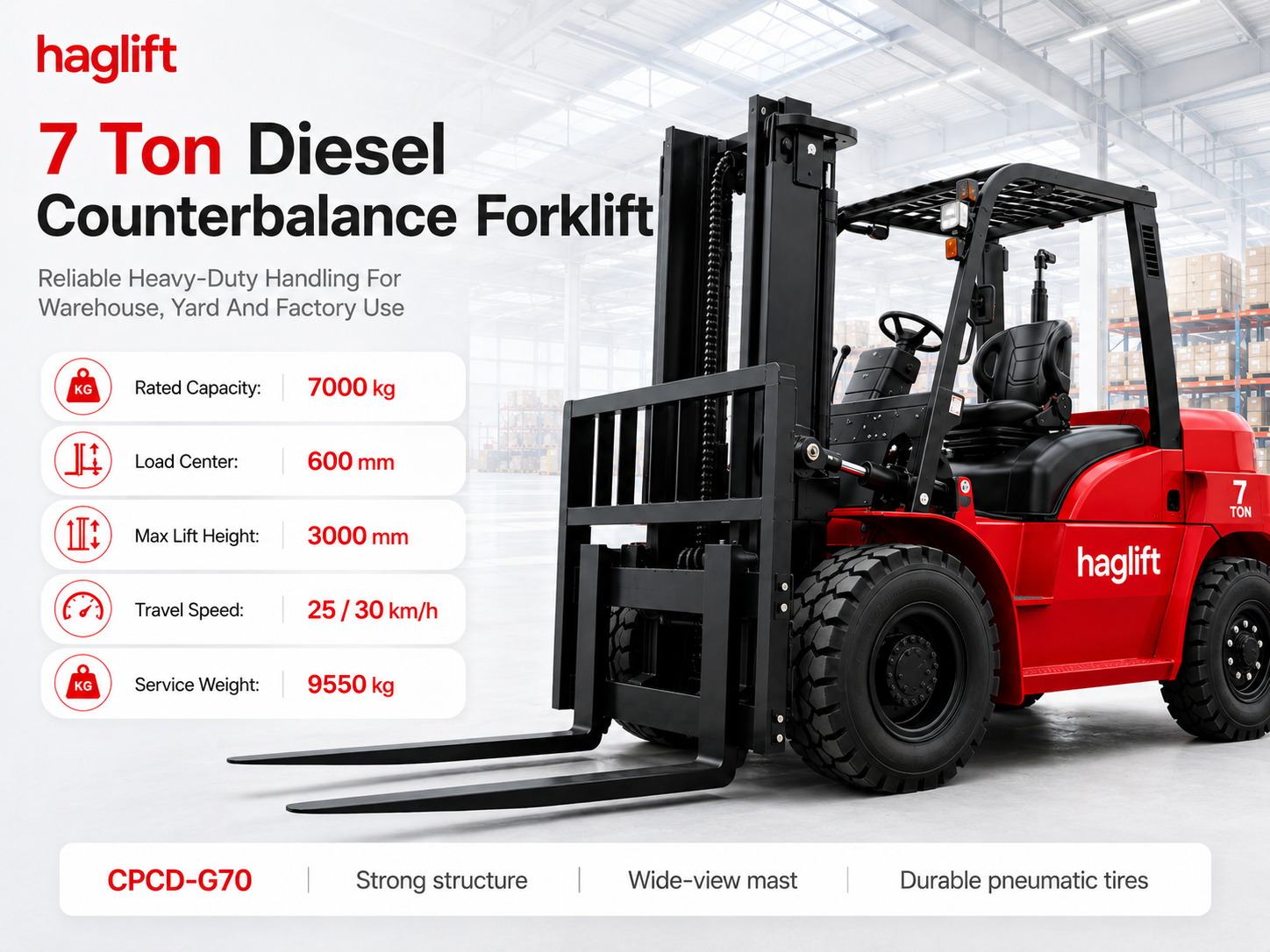

Heavy-Duty Performance
Reliable 7 Ton Handling For Warehouse, Yard And Factory Use
The CPCD-G70 diesel counterbalance forklift is built for heavy pallet movement, loading and unloading, yard transfer and factory material handling. Its counterbalance design supports direct pallet access without front support legs.✓7000 kg rated capacity for heavy-duty handling.
✓25 / 30 km/h travel speed for efficient site movement.
✓Suitable for warehouse loading, factory handling and yard transfer.

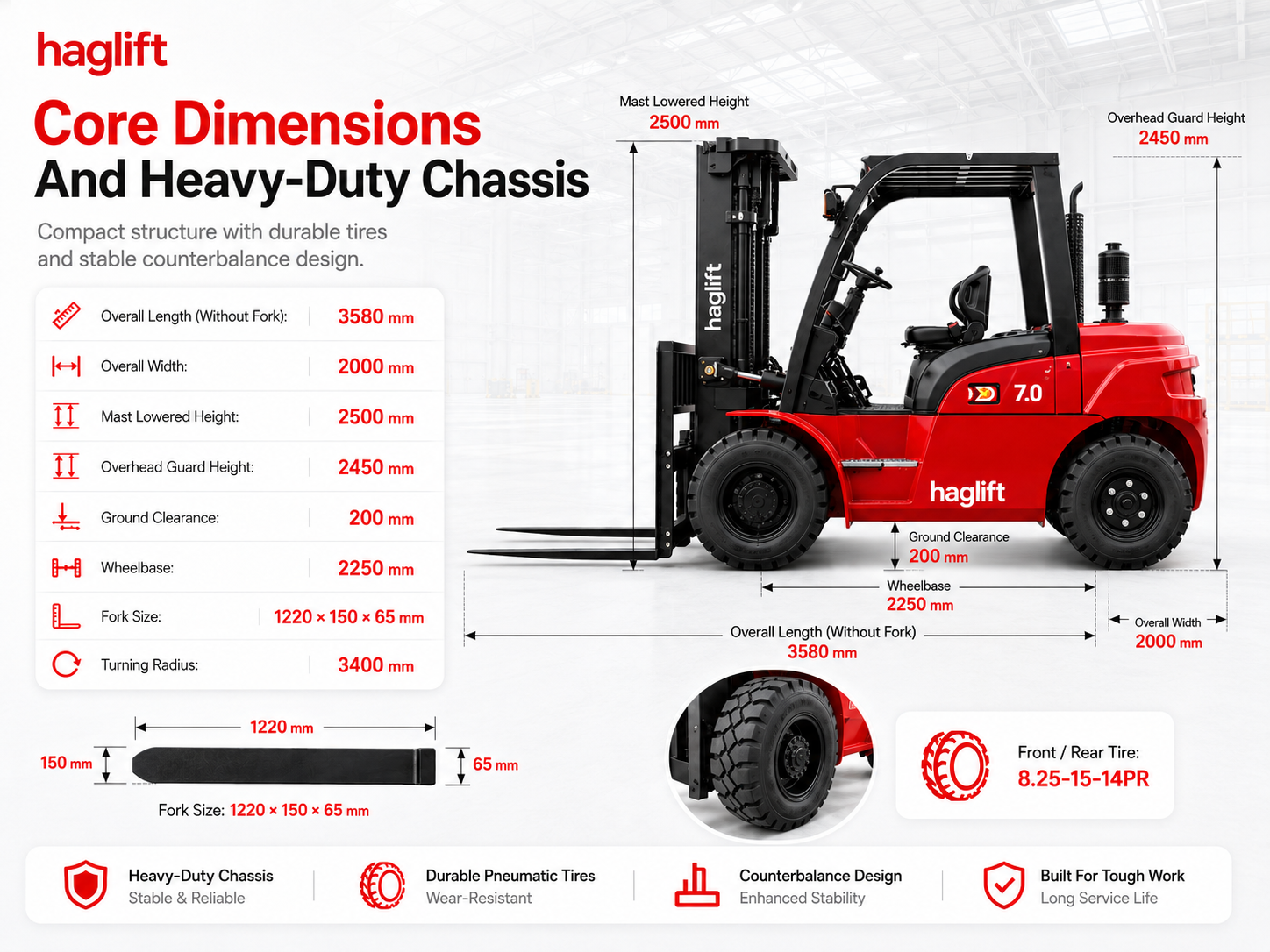

Core Dimensions
Heavy-Duty Chassis With Stable Counterbalance Design
The forklift uses a compact heavy-duty chassis, durable tires and stable counterbalance structure to support tough work conditions while maintaining dependable handling performance.✓Durable pneumatic tires for demanding working sites.
✓Stable chassis structure for long service life.
✓Counterbalance design for flexible pallet access.
CPCD-G70 Core Specifications
Key parameters for the 7 Ton Diesel Counterbalance Forklift. Specifications can be adjusted according to different working conditions and customization requirements.| Item | Specification | Description |
|---|---|---|
| Model | CPCD-G70 | 7 ton diesel counterbalance forklift |
| Rated Capacity | 7000 kg | Designed for heavy-duty pallet handling |
| Load Center | 600 mm | Stable load support for industrial use |
| Max Lift Height | 3000 mm | Suitable for common stacking applications |
| Travel Speed | 25 / 30 km/h | Efficient travel for warehouse and yard handling |
| Service Weight | 9550 kg | Heavy-duty structure for stable operation |
| Overall Length Without Fork | 3580 mm | Compact chassis dimension |
| Overall Width | 2000 mm | Suitable for industrial working areas |
| Mast Lowered Height | 2500 mm | Standard mast configuration |
| Overhead Guard Height | 2450 mm | Operator protection structure |
| Ground Clearance | 200 mm | Better passability for yard and factory use |
| Wheelbase | 2250 mm | Stable driving and lifting support |
| Fork Size | 1220 × 150 × 65 mm | Heavy-duty fork for large pallet loads |
| Turning Radius | 3400 mm | Flexible turning for heavy-duty forklift operation |
| Front / Rear Tire | 8.25-15-14PR | Durable pneumatic tires |
