CPCD-G100
The CPCD-G100 10 Ton Diesel Counterbalance Forklift is designed for heavy-duty warehouse, yard, factory and logistics material handling. With 10000 kg rated capacity, 600 mm load center, 3000 mm max lift height and durable pneumatic tires, it provides strong lifting performance, stable load handling and reliable operation for demanding industrial applications.

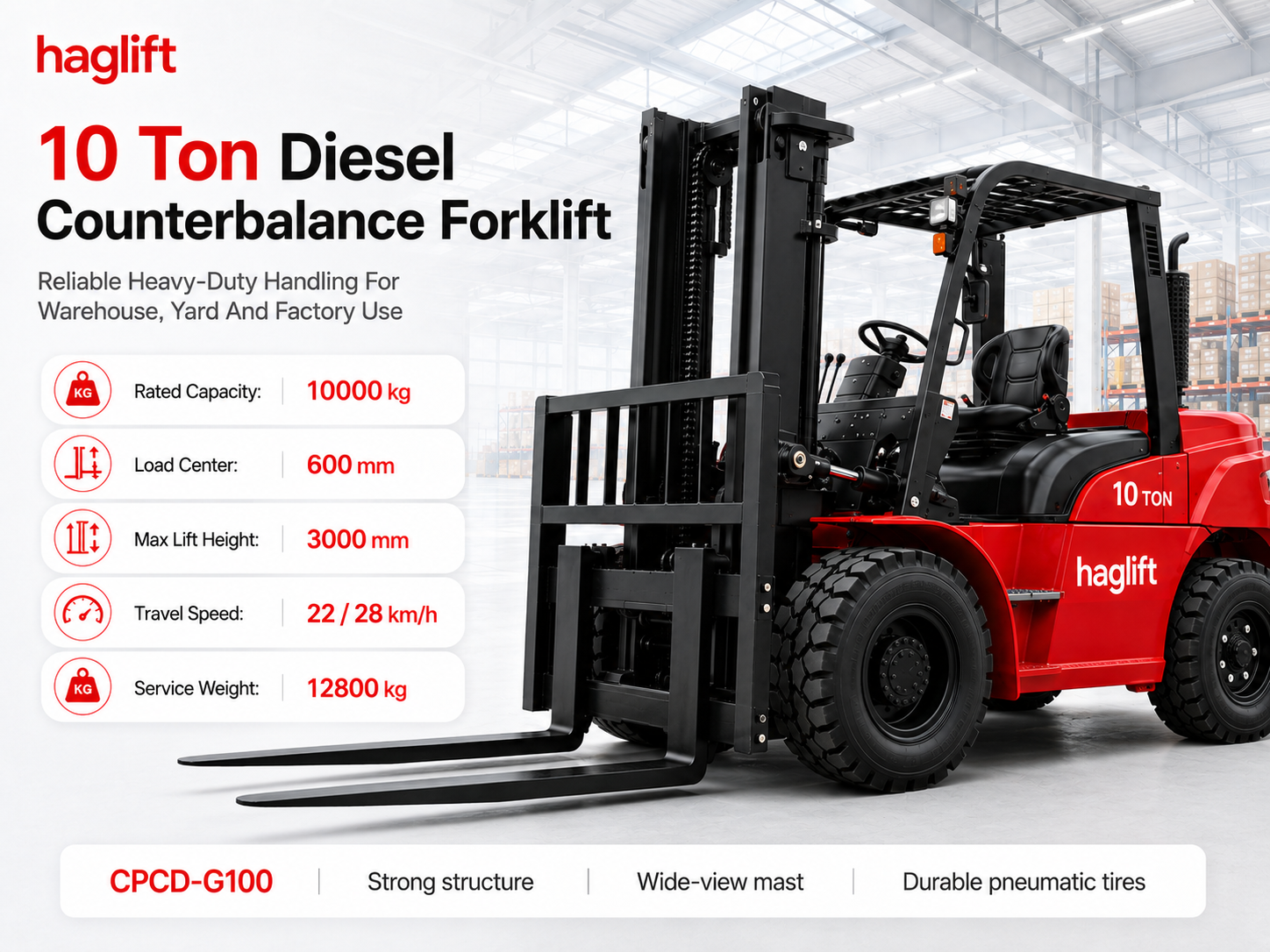

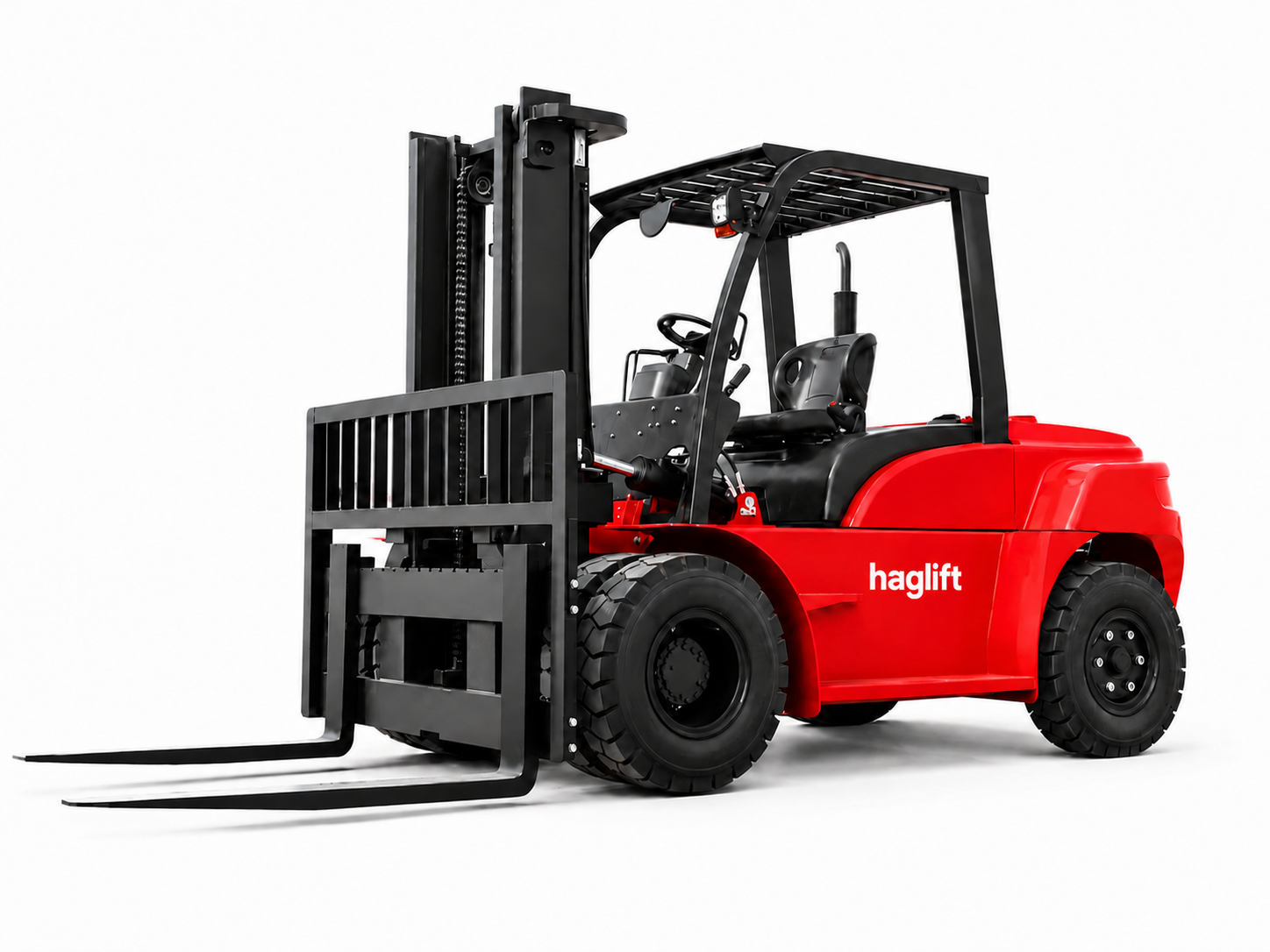

CPCD-G100 10 Ton Diesel Counterbalance Forklift
The CPCD-G100 diesel counterbalance forklift is built for heavy-duty material handling in warehouses, factories, freight yards and outdoor loading areas. With a 10000 kg rated capacity, 600 mm load center, reinforced chassis and durable pneumatic tires, it is suitable for lifting large pallets, machinery parts, steel materials and other heavy industrial loads.

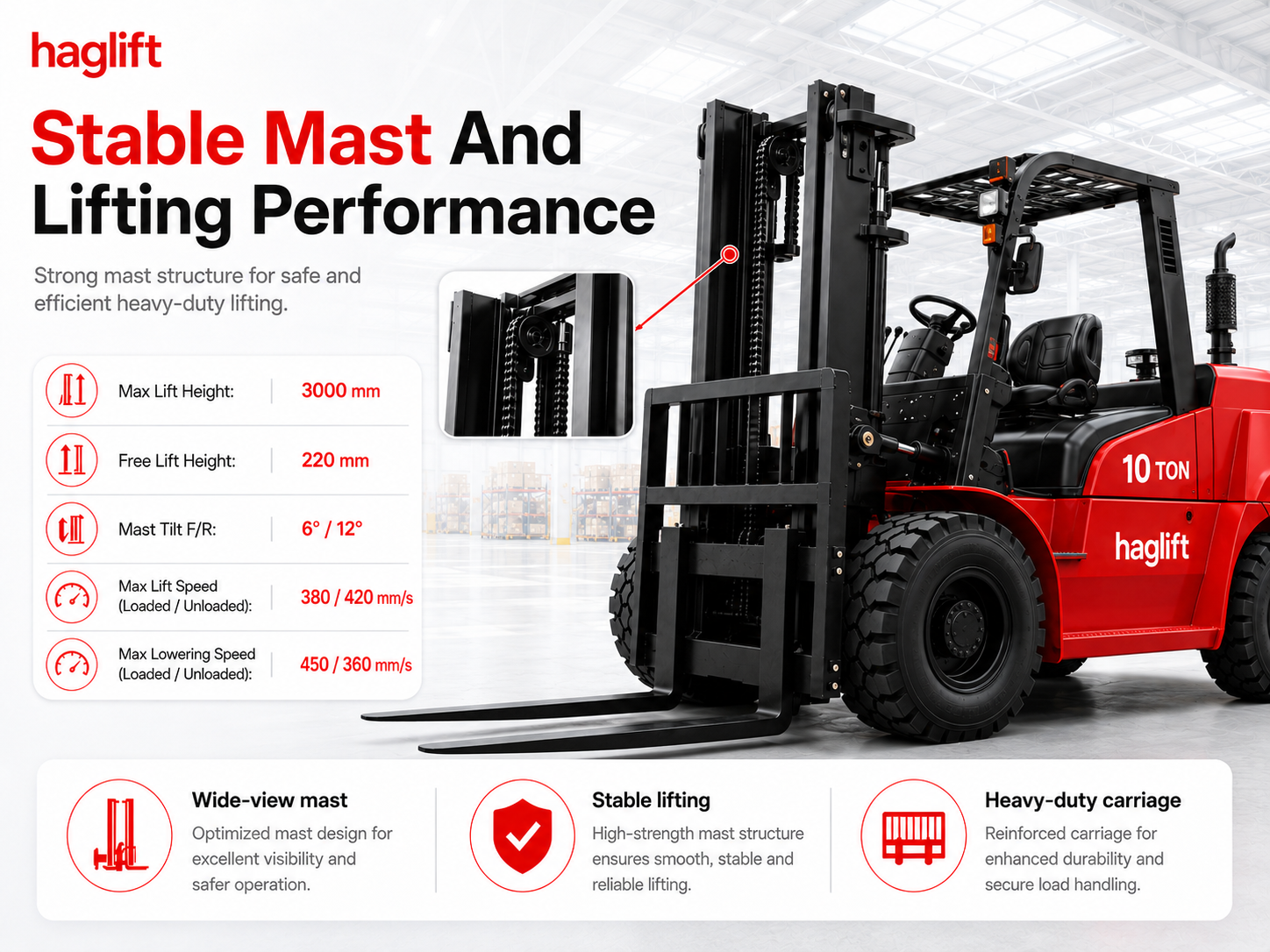

Stable Mast And Lifting Performance
The heavy-duty mast structure provides stable lifting support for demanding loading operations. A wide-view mast, reinforced carriage and reliable lifting system help improve safety, visibility and working efficiency during daily forklift use.
- Strong mast structure for heavy-duty lifting
- Wide-view design for safer operation
- Stable carriage for secure load handling

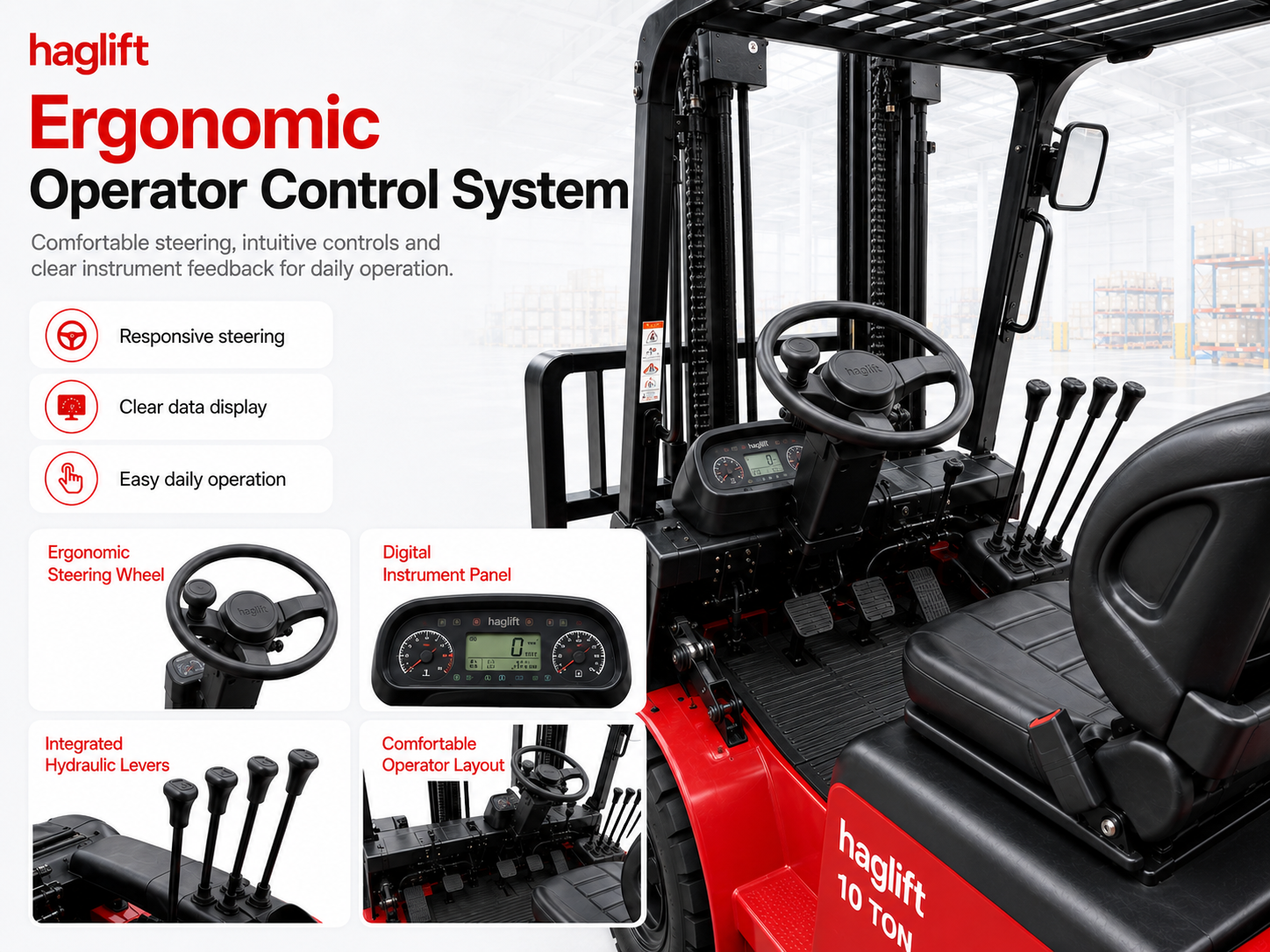

Ergonomic Operator Control System
The comfortable steering layout, clear instrument display, integrated hydraulic levers and spacious operator seat help improve driving comfort and daily operating efficiency.
- Responsive steering for precise operation
- Clear data display for easy monitoring
- Integrated hydraulic levers for lifting and tilting control
- Comfortable operator layout for long working shifts
Heavy-Duty Diesel Power For Tough Work
Built for heavy industrial use, this 10 ton forklift is suitable for handling large pallets, heavy equipment, steel materials, machinery components and bulk goods in demanding working conditions.

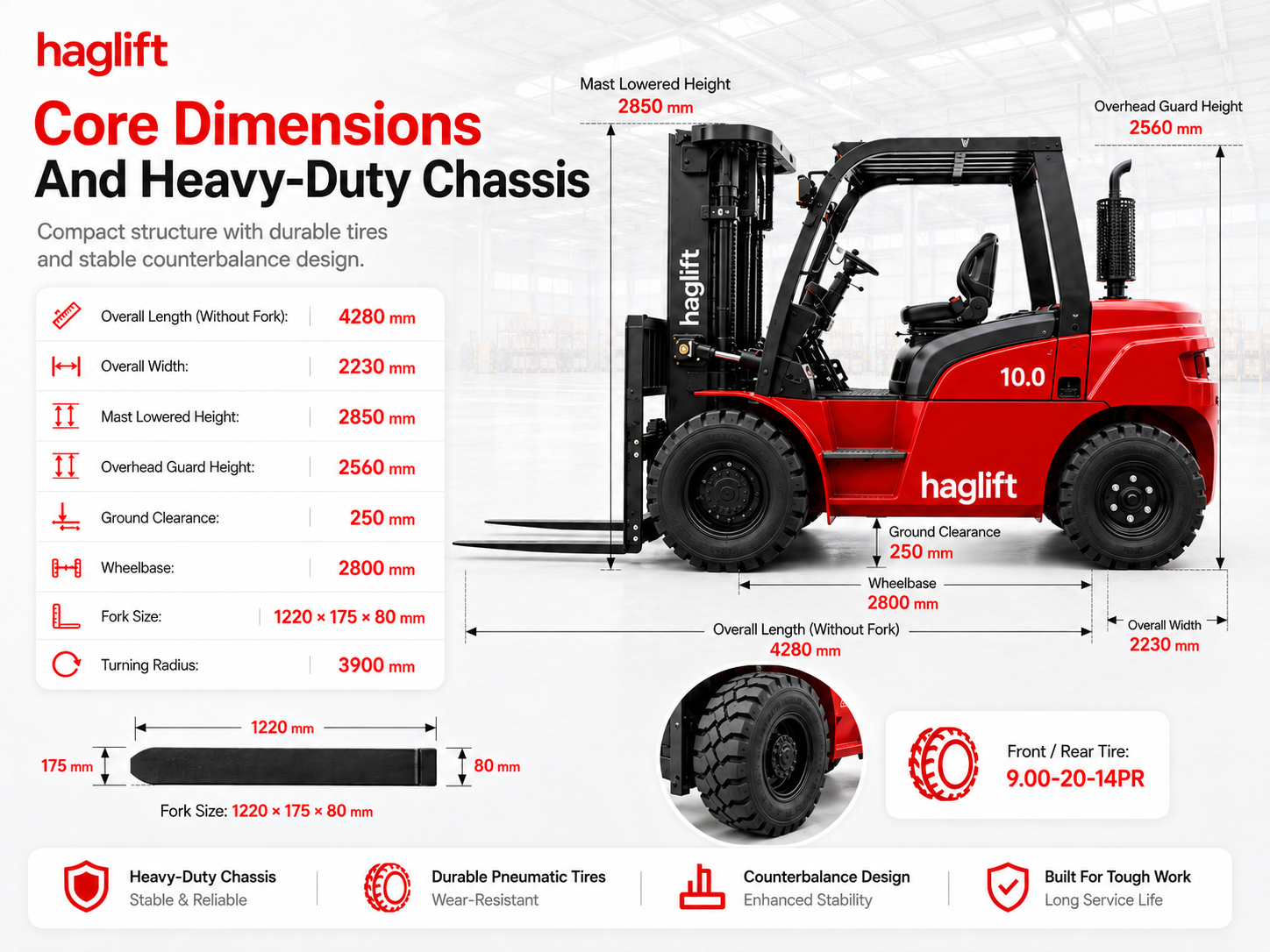

Core Dimensions And Heavy-Duty Chassis
The reinforced chassis, large pneumatic tires and stable counterbalance design provide reliable support for high-capacity handling tasks.
| Overall Length Without Fork | 4280 mm |
| Overall Width | 2230 mm |
| Mast Lowered Height | 2850 mm |
| Overhead Guard Height | 2560 mm |
| Ground Clearance | 250 mm |
| Wheelbase | 2800 mm |
| Fork Size | 1220 × 175 × 80 mm |
| Turning Radius | 3900 mm |
Technical Specifications
| Item | CPCD-G100 |
|---|---|
| Power Type | Diesel |
| Rated Capacity | 10000 kg |
| Load Center | 600 mm |
| Max Lift Height | 3000 mm |
| Mast Lowered Height | 2850 mm |
| Overhead Guard Height | 2560 mm |
| Overall Length Without Fork | 4280 mm |
| Overall Width | 2230 mm |
| Ground Clearance | 250 mm |
| Wheelbase | 2800 mm |
| Fork Size | 1220 × 175 × 80 mm |
| Turning Radius | 3900 mm |
| Travel Speed | 22 / 28 km/h |
| Service Weight | 12800 kg |
| Front / Rear Tire | 9.00-20-14PR |
