Diesel Forklift
CPCD-G50
The 5 Ton Diesel Counterbalance Forklift is designed for heavy-duty warehouse, yard and factory handling. With a 5000kg rated capacity, 600mm load center and strong diesel power, it delivers stable lifting, reliable travel performance and efficient pallet handling for demanding industrial applications.
Heavy Duty Diesel Forklift

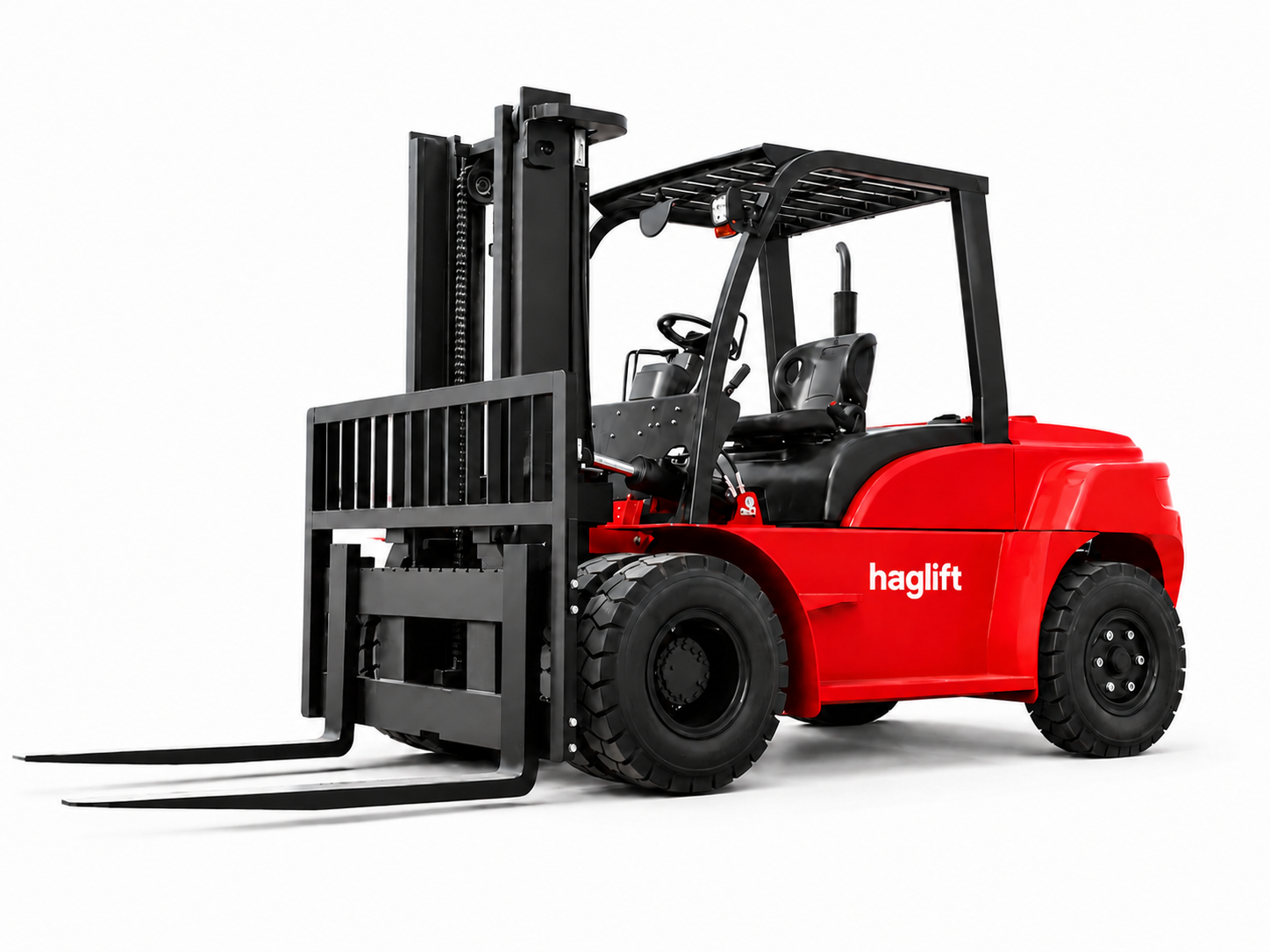

5 Ton Diesel Counterbalance Forklift
Built for heavy-duty warehouse, yard and factory handling, this 5 ton diesel counterbalance forklift delivers strong lifting performance, stable load handling and reliable operation for demanding industrial applications.5000 kgRated Capacity
600 mmLoad Center
3000 mmMax Lift Height
Stable Lifting

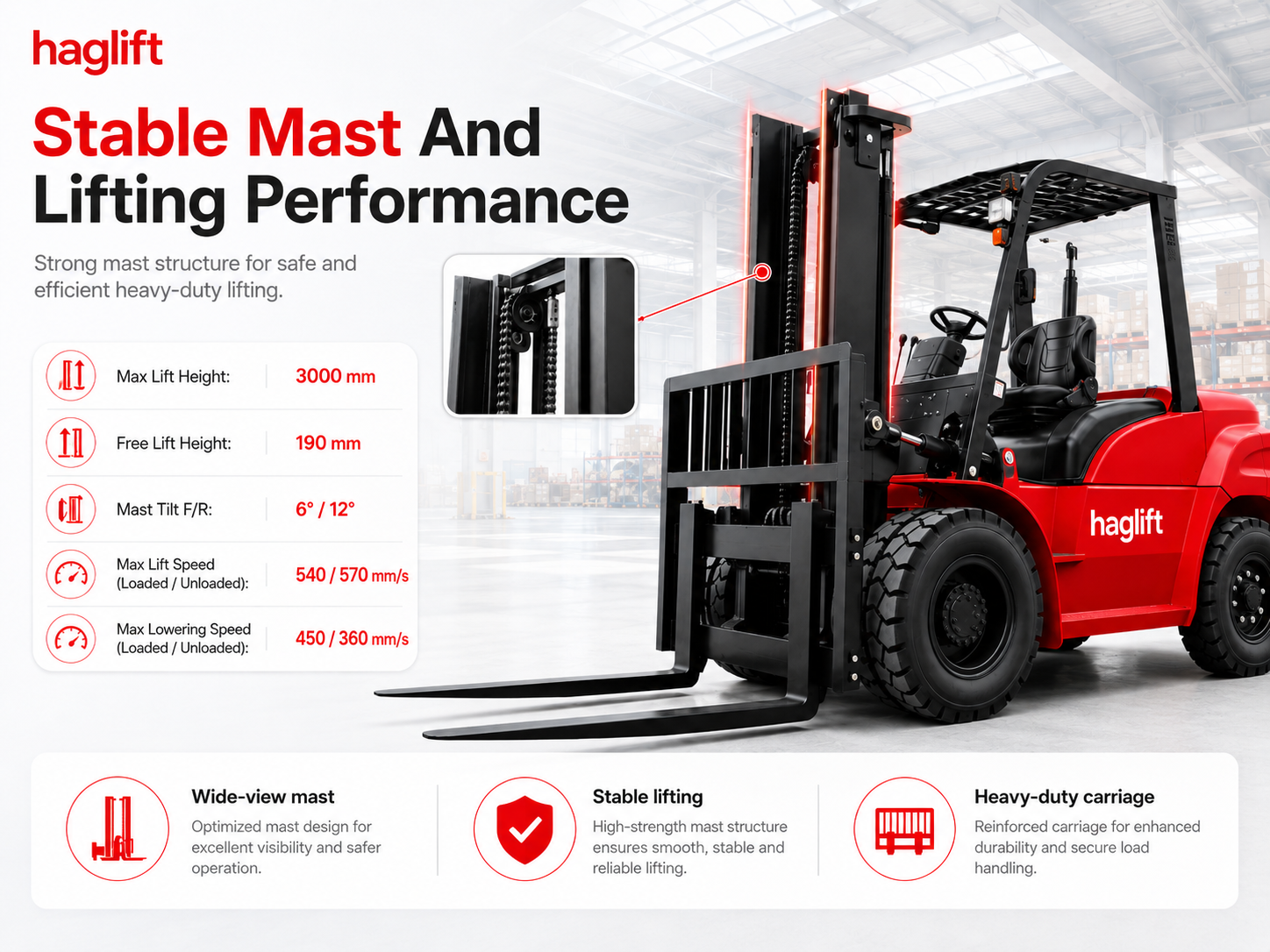

Stable Mast And Lifting Performance
The reinforced mast structure helps improve visibility, lifting stability and safe heavy-duty operation during pallet loading, stacking and material transfer.Wide-view mast: Optimized mast design for better operating visibility.
Stable lifting: Strong structure ensures smooth and reliable vertical lifting.
Heavy-duty carriage: Reinforced carriage improves durability and secure load handling.
Operator Control

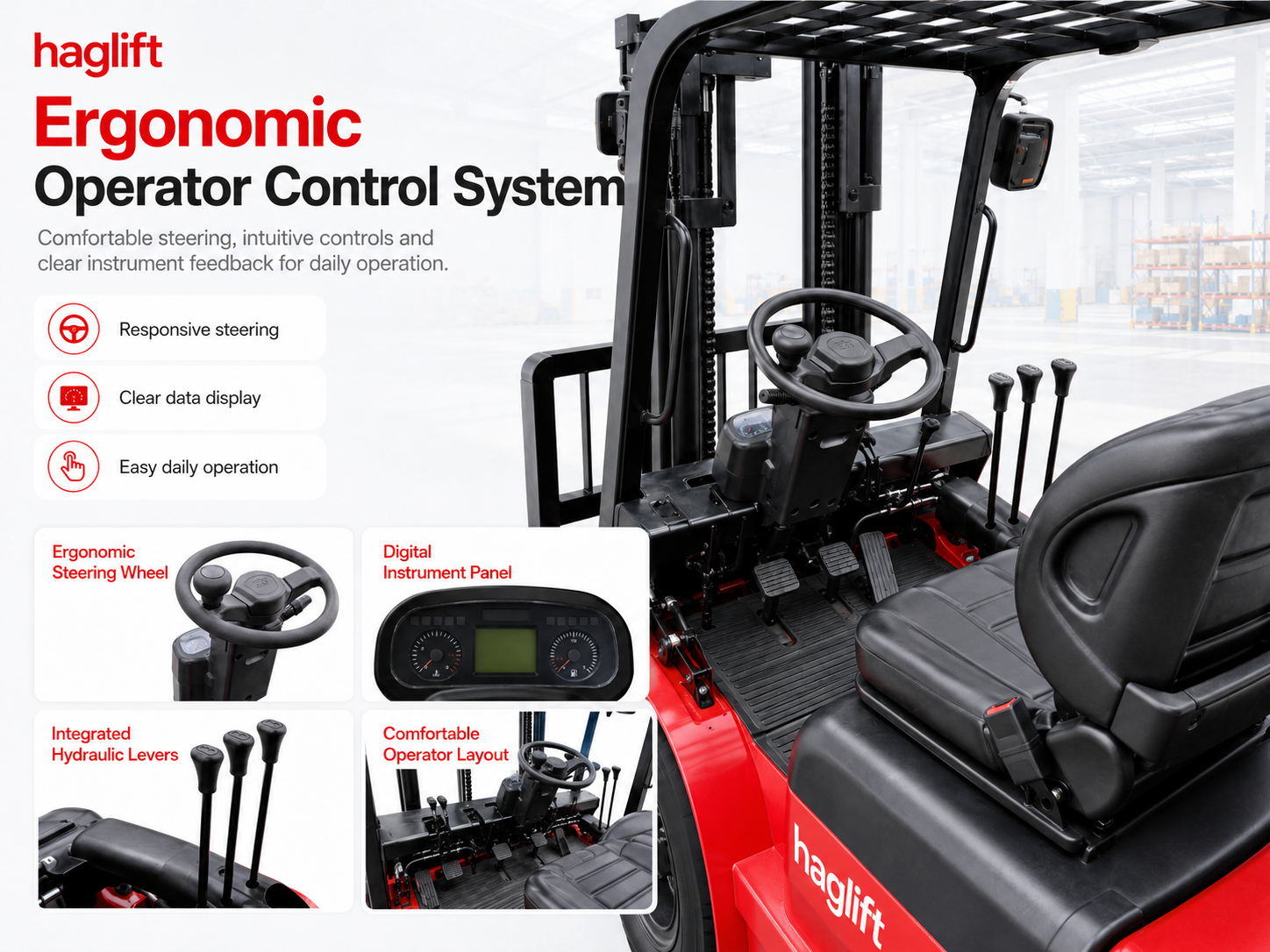

Ergonomic Operator Control System
Comfortable steering, intuitive hydraulic levers and a clear instrument panel help operators work efficiently during long daily handling tasks.Responsive steering: Easy control for precise driving and positioning.
Clear data display: Instrument panel provides quick operating feedback.
Comfortable layout: Seat, pedals and levers are arranged for practical daily operation.
CPCD-G50

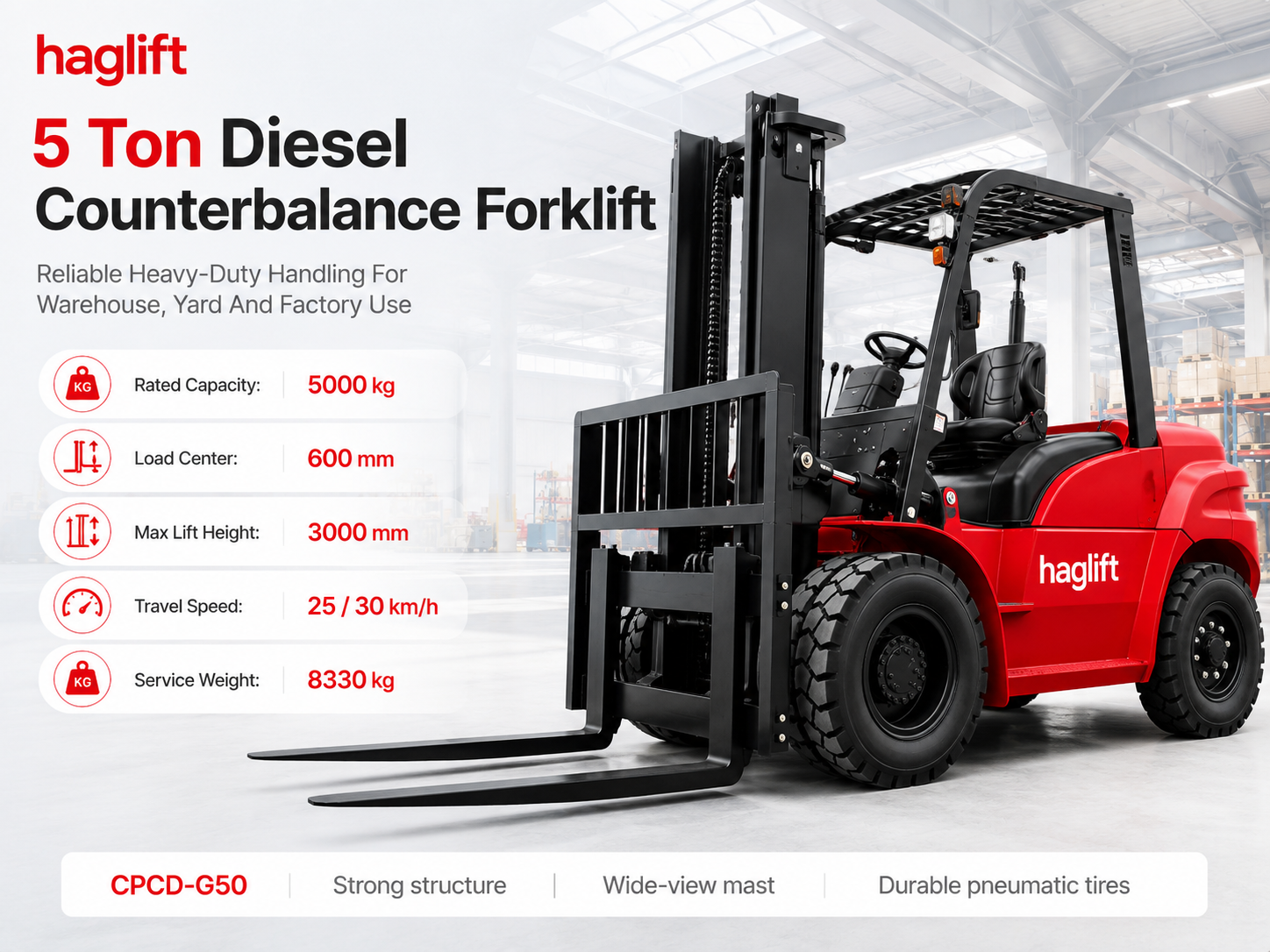

Reliable Heavy-Duty Handling For Warehouse Yard And Factory Use
Designed for heavy pallets, outdoor yards and industrial loading areas, the 5 ton diesel counterbalance forklift provides strong power, durable pneumatic tires and stable counterbalance performance.Rated capacity: 5000 kg heavy-duty load handling.
Travel speed: 25 / 30 km/h for efficient material movement.
Durable tires: Pneumatic tire configuration suitable for yard and factory ground conditions.

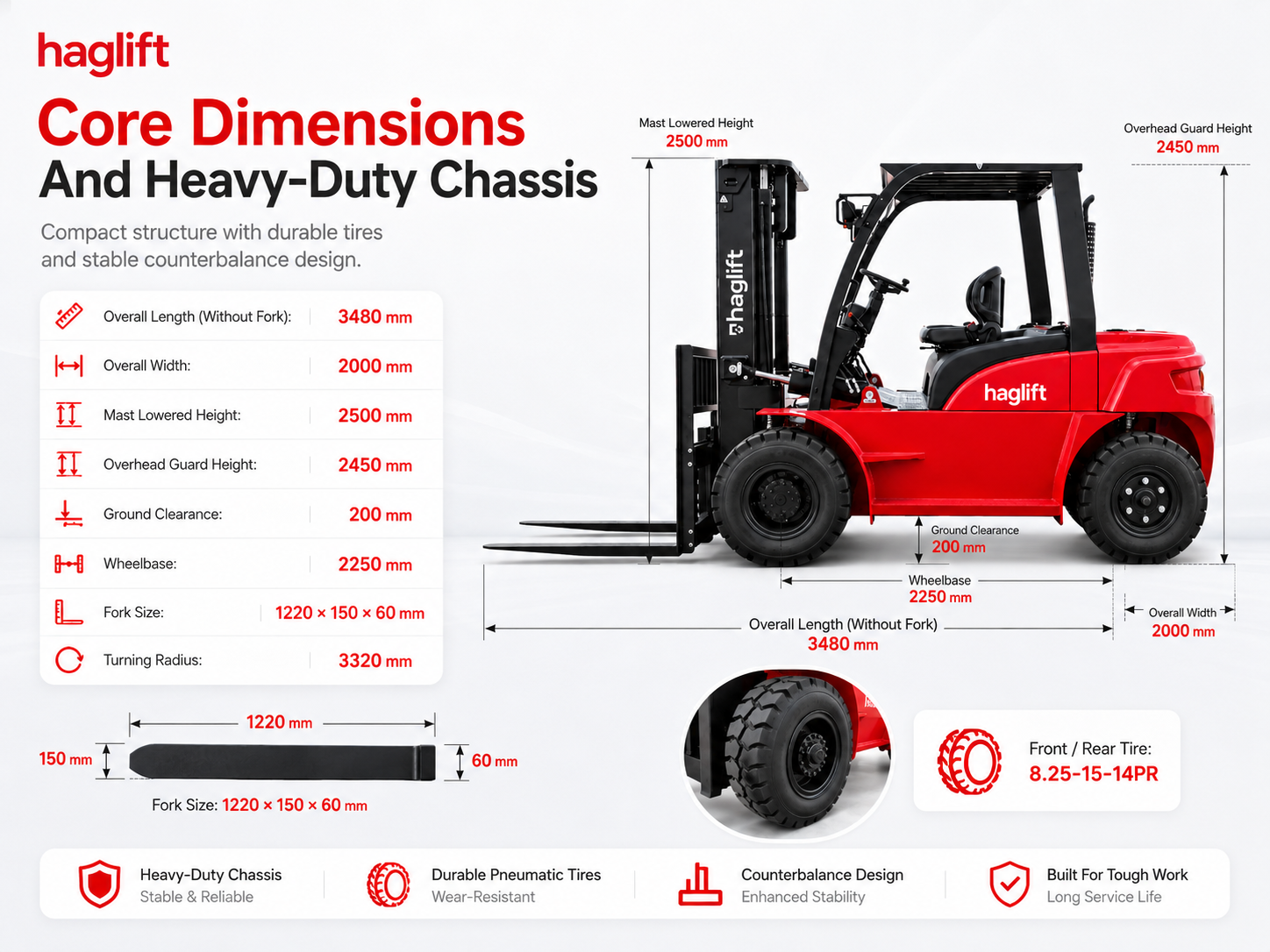

Core Dimensions
Heavy-Duty Chassis With Stable Counterbalance Design
The compact chassis, wide wheelbase and durable tire structure help improve stability, durability and operating confidence in tough material handling environments.Overall length: 3480 mm without fork.
Overall width: 2000 mm for heavy-duty stability.
Fork size: 1220 × 150 × 60 mm for industrial pallet handling.
Core Specifications
Rated Capacity5000 kg
Load Center600 mm
Max Lift Height3000 mm
Service Weight8330 kg
Overall Length3480 mm
Overall Width2000 mm
Ground Clearance200 mm
Turning Radius3320 mm
Parameter Table
5 Ton Diesel Forklift Technical Data
Key parameters for model selection, warehouse planning and heavy-duty handling applications.| Item | Specification | Description |
|---|---|---|
| Model | CPCD-G50 | 5 ton diesel counterbalance forklift |
| Rated Capacity | 5000 kg | Suitable for heavy-duty pallet loading and industrial material handling |
| Load Center | 600 mm | Designed for stable handling of large palletized loads |
| Max Lift Height | 3000 mm | Standard mast height for common warehouse and factory stacking needs |
| Free Lift Height | 190 mm | Helps improve flexibility during low-clearance handling |
| Mast Tilt F/R | 6° / 12° | Forward and backward mast tilt for safer loading and unloading |
| Max Lift Speed Loaded / Unloaded | 540 / 570 mm/s | Efficient lifting performance for daily heavy-duty operation |
| Max Lowering Speed Loaded / Unloaded | 450 / 360 mm/s | Smooth lowering control for secure load positioning |
| Travel Speed | 25 / 30 km/h | Efficient travel speed for yard, warehouse and factory use |
| Service Weight | 8330 kg | Heavy chassis structure for stable counterbalance performance |
| Overall Length Without Fork | 3480 mm | Compact chassis dimension without fork length |
| Overall Width | 2000 mm | Wide body design for heavy-load stability |
| Mast Lowered Height | 2500 mm | Useful reference for workshop door and warehouse height clearance |
| Overhead Guard Height | 2450 mm | Operator protection structure height |
| Ground Clearance | 200 mm | Suitable for factory ground, yard and loading area movement |
| Wheelbase | 2250 mm | Stable wheelbase for heavy load transport |
| Fork Size | 1220 × 150 × 60 mm | Heavy-duty fork size for industrial pallet handling |
| Turning Radius | 3320 mm | Reference for aisle width and warehouse route planning |
| Front / Rear Tire | 8.25-15-14PR | Durable pneumatic tire configuration for heavy-duty use |
