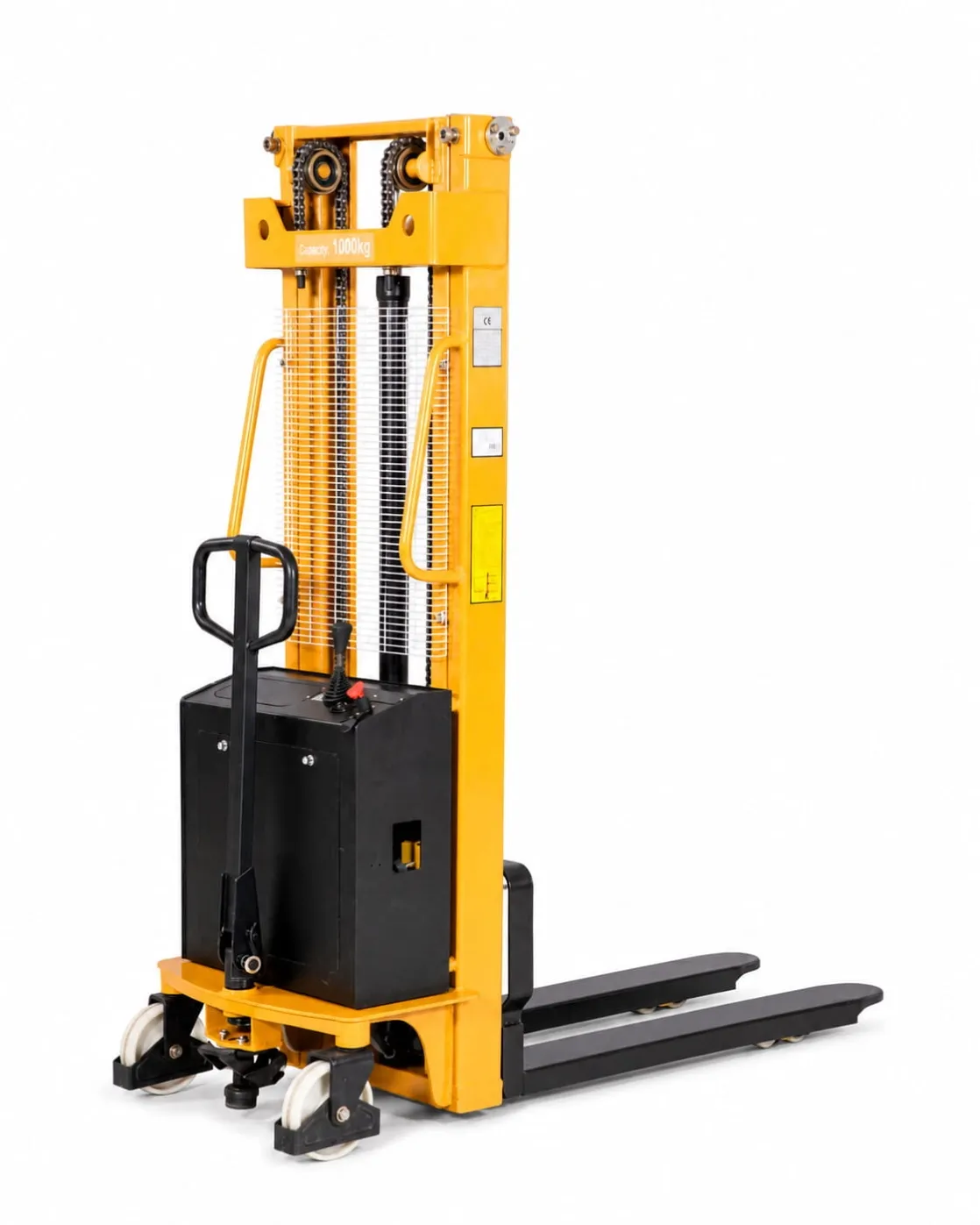

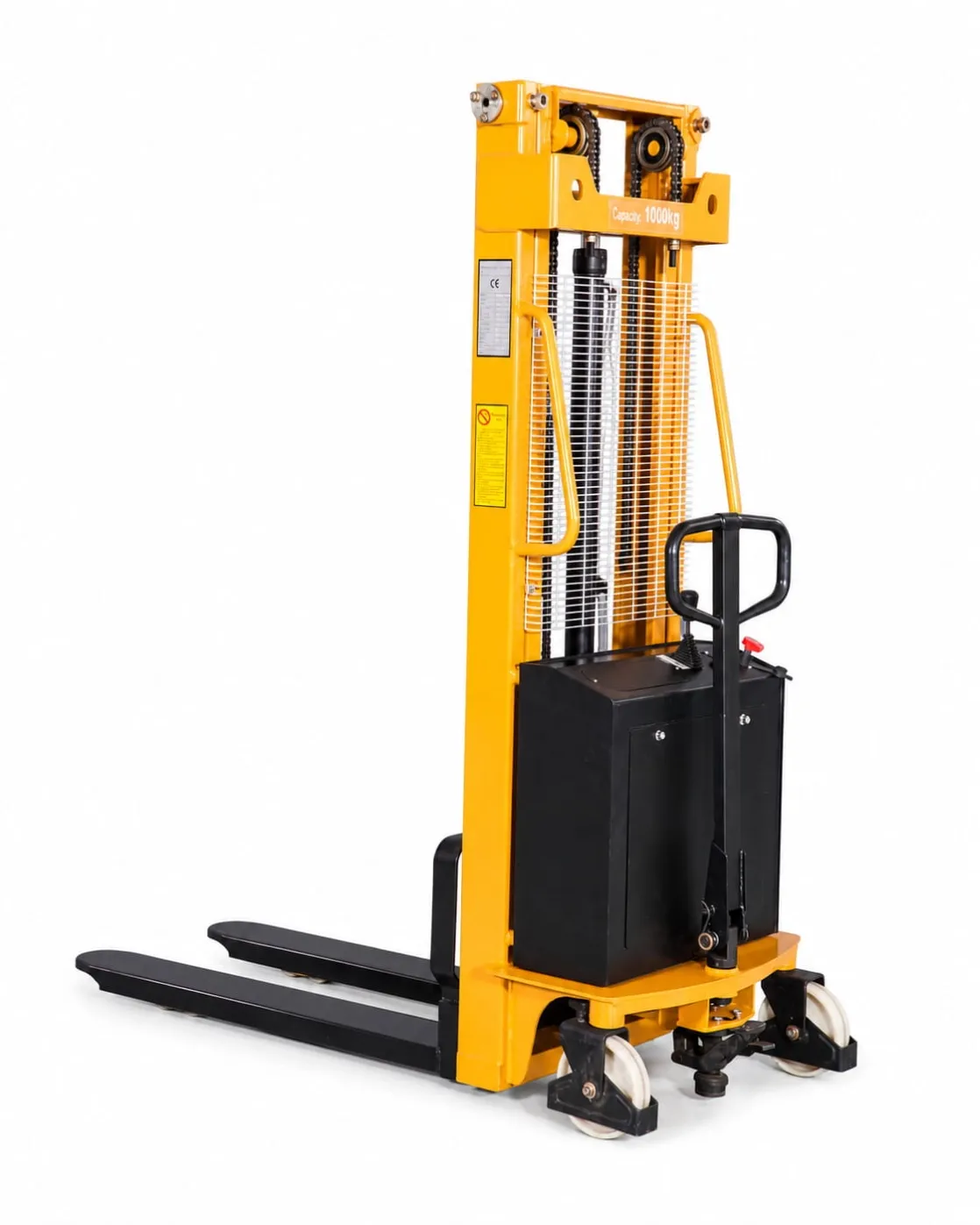

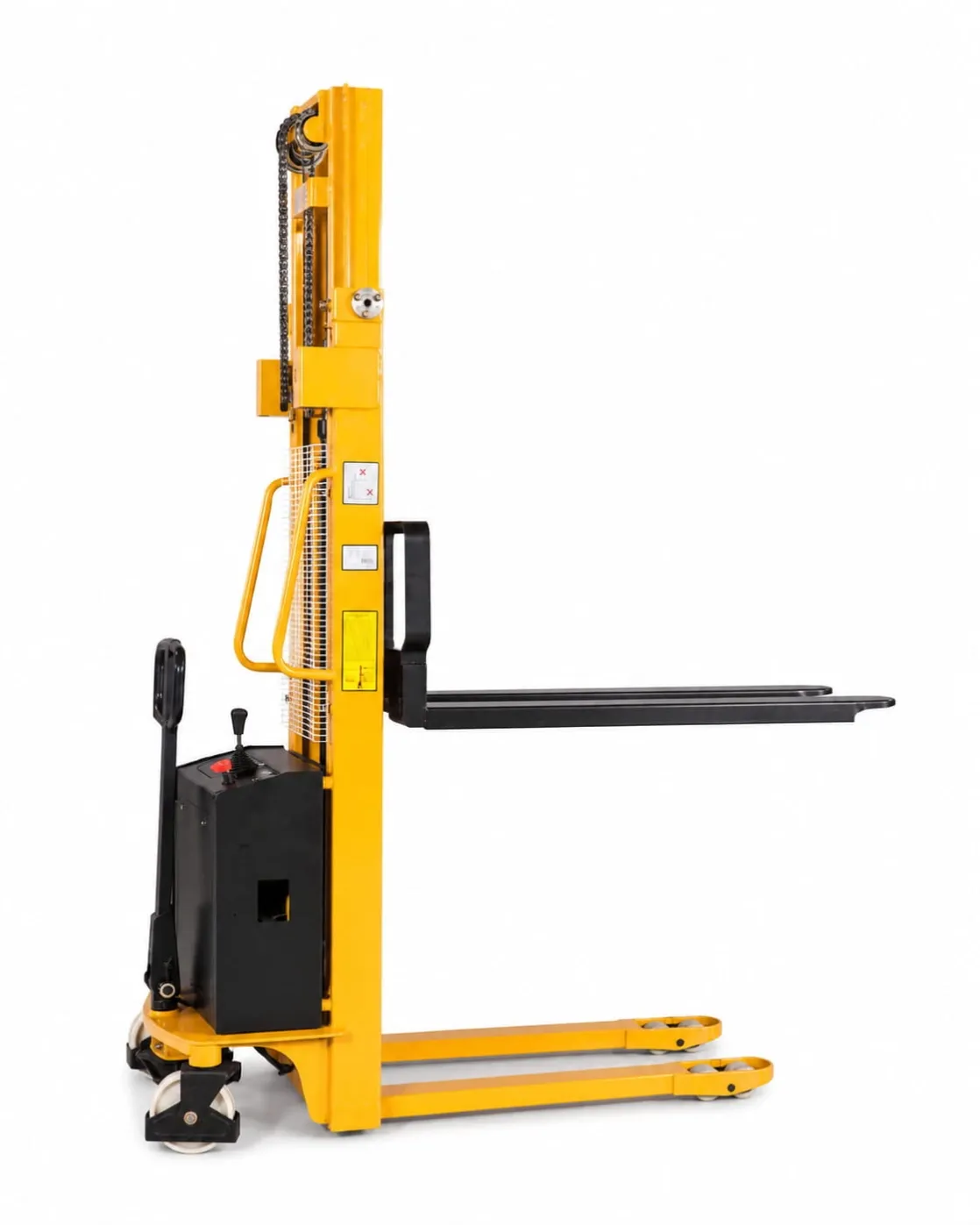

Semi Electric Pallet Stacker
Semi Electric Pallet Stacker
The Semi Electric Pallet Stacker is designed for daily warehouse stacking, pallet loading, unloading and short-distance material transfer. With electric lifting, manual travel and a compact body, it is a practical and cost-effective choice for small and medium warehouses, workshops and storage areas. Capacity: 1000kg / 1500kg Lift Height Options: 1.6m / 2.5m / 3.0m / 3.3m Fork Size: 1150mm fork length / 560mm fork width Power System: 12V/1600W lifting motor with 12V/100Ah battery
01
SEMI ELECTRIC PALLET STACKER
Reliable Stacking Solution For Daily Warehouse Handling
This semi electric pallet stacker is designed for daily pallet stacking, loading, unloading and short-distance material transfer. With electric lifting and manual travel, it offers a practical and cost-effective solution for small and medium warehouses, workshops and storage areas.1000kg / 1500kg capacity options
Electric lifting with manual travel operation
Suitable for warehouse storage and pallet stacking
02
WAREHOUSE STACKING APPLICATION
Designed For Daily Warehouse Stacking
Ideal for pallet stacking, loading, unloading and material transfer in daily warehouse operations. The compact structure helps operators handle palletized goods efficiently in small and medium warehouses.Suitable for warehouse storage and workshop handling
Practical solution for pallet loading and unloading
Designed for everyday warehouse operation
03
ELECTRIC LIFTING SYSTEM
12V/1600W Lifting Motor For Labor-Saving Operation
The electric lifting system is equipped with a 12V/1600W lifting motor and 12V/100Ah battery for stable and smooth lifting performance. It helps reduce manual lifting effort and improves handling efficiency during daily stacking tasks.12V/1600W lifting motor
12V/100Ah battery configuration
Stable hydraulic cylinder for smooth lifting output
04
MULTIPLE LIFT HEIGHT OPTIONS
Flexible Mast Height Choices For Different Rack Levels
Available in multiple lift height options to meet different warehouse stacking needs. Operators can choose suitable mast height according to pallet storage height, rack level and working environment.Lift height options: 1.6m / 2.5m / 3.0m / 3.3m
Suitable for different warehouse rack levels
Flexible height choices for daily stacking work
05
STANDARD FORK SIZE
1150mm Fork Length For Standard Pallet Handling
The 1150mm fork length and 560mm fork width make the stacker suitable for open-bottom pallets and standard warehouse handling applications. The 600mm load center helps support stable pallet handling during lifting and movement.1150mm fork length
560mm fork width
600mm load center for stable pallet handling
06
COST-EFFECTIVE STACKING CHOICE
Semi Electric Pallet Stacker For Practical Warehouse Use
This semi electric pallet stacker combines electric lifting with manual travel, making it a reliable and economical choice for warehouses that need frequent pallet stacking without the cost of a full electric stacker.Electric lifting for easier stacking
Manual travel for simple and reliable movement
Cost-effective choice for daily warehouse handling
07
COMPACT BODY DESIGN
Compact Body For Warehouse And Workshop Use
The compact body design helps operators move and position goods in warehouses, workshops and storage areas. With an overall length of 1770mm and width of 700–800mm, it is suitable for daily pallet handling in limited working spaces.1770mm overall length
700–800mm body width
Easy positioning for warehouse and workshop use
TECHNICAL SPECIFICATIONS
Semi Electric Pallet Stacker Parameters
Main technical data for semi electric pallet stacker. Suitable for pallet stacking, warehouse storage, workshop handling and daily material transfer.| Category | Item | Unit | Semi Electric Pallet Stacker |
|---|---|---|---|
| Main Performance | |||
| Performance | Product Name | - | Semi Electric Pallet Stacker |
| Performance | Load Capacity | kg | 1000 / 1500 |
| Performance | Lift Height Options | m | 1.6 / 2.5 / 3.0 / 3.3 |
| Performance | Operation Type | - | Walkie Operation |
| Performance | Lifting Type | - | Electric Lifting |
| Performance | Travel Type | - | Manual Travel |
| Fork And Dimension | |||
| Dimension | Fork Length | mm | 1150 |
| Dimension | Fork Width | mm | 560 |
| Dimension | Load Center | mm | 600 |
| Dimension | Overall Length | mm | 1770 |
| Dimension | Overall Width | mm | 700–800 |
| Power System | |||
| Power | Lifting Motor | - | 12V / 1600W |
| Power | Battery | - | 12V / 100Ah |
| Power | Hydraulic System | - | Stable Hydraulic Cylinder |
| Application | |||
| Application | Suitable Pallet Type | - | Open-bottom Pallets |
| Application | Application Scenarios | - | Warehouse Storage / Workshop Handling / Pallet Stacking / Material Transfer |
