Semi Electric Pallet Stacker
CUSTOM SEMI ELECTRIC ROLL STACKER

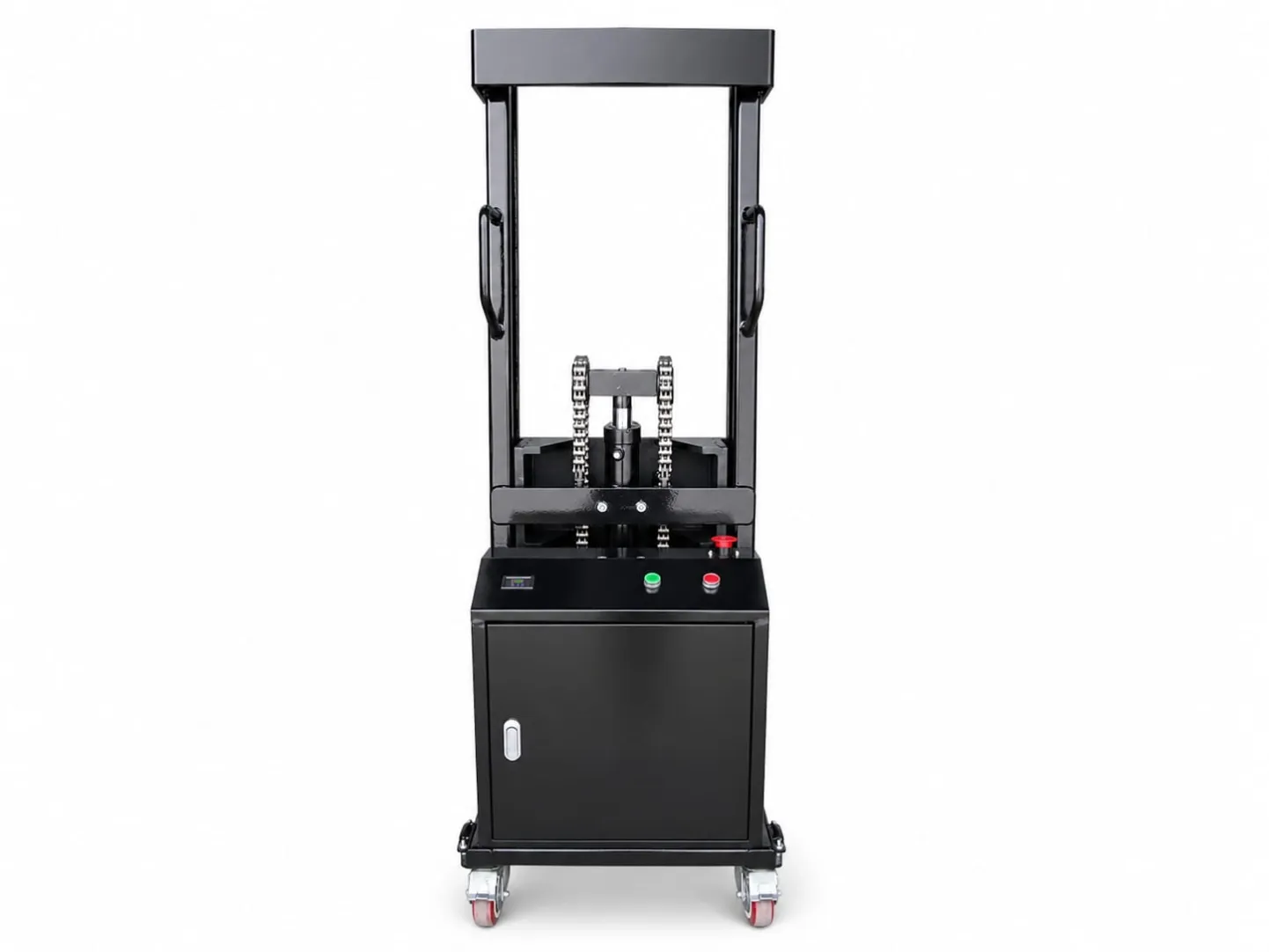

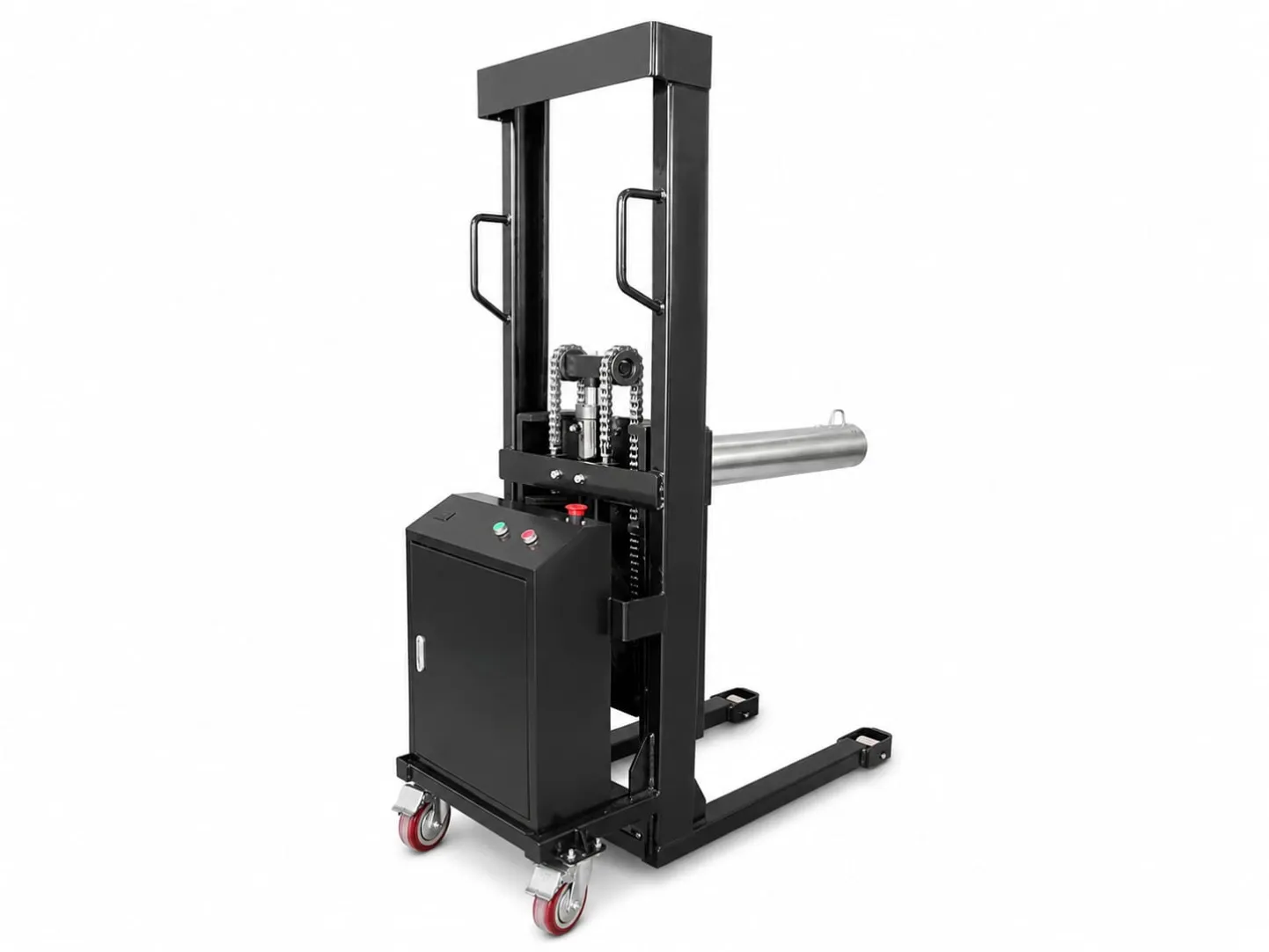

The Custom Semi Electric Roll Stacker is designed for efficient roll loading, unloading, lifting and transfer. With a horizontal shaft structure, semi electric powered lift and customizable roll handling design, it is suitable for paper rolls, film rolls, fabric rolls, non-woven rolls, foil rolls and coil materials. Shaft Diameter: 6–10 inch Shaft Length: 700–1500 mm Lift Height: 1.5–3 m Custom Design Available for different roll sizes and working needs
01
PRODUCT OVERVIEW
Custom Semi Electric Roll Stacker For Roll Material Handling

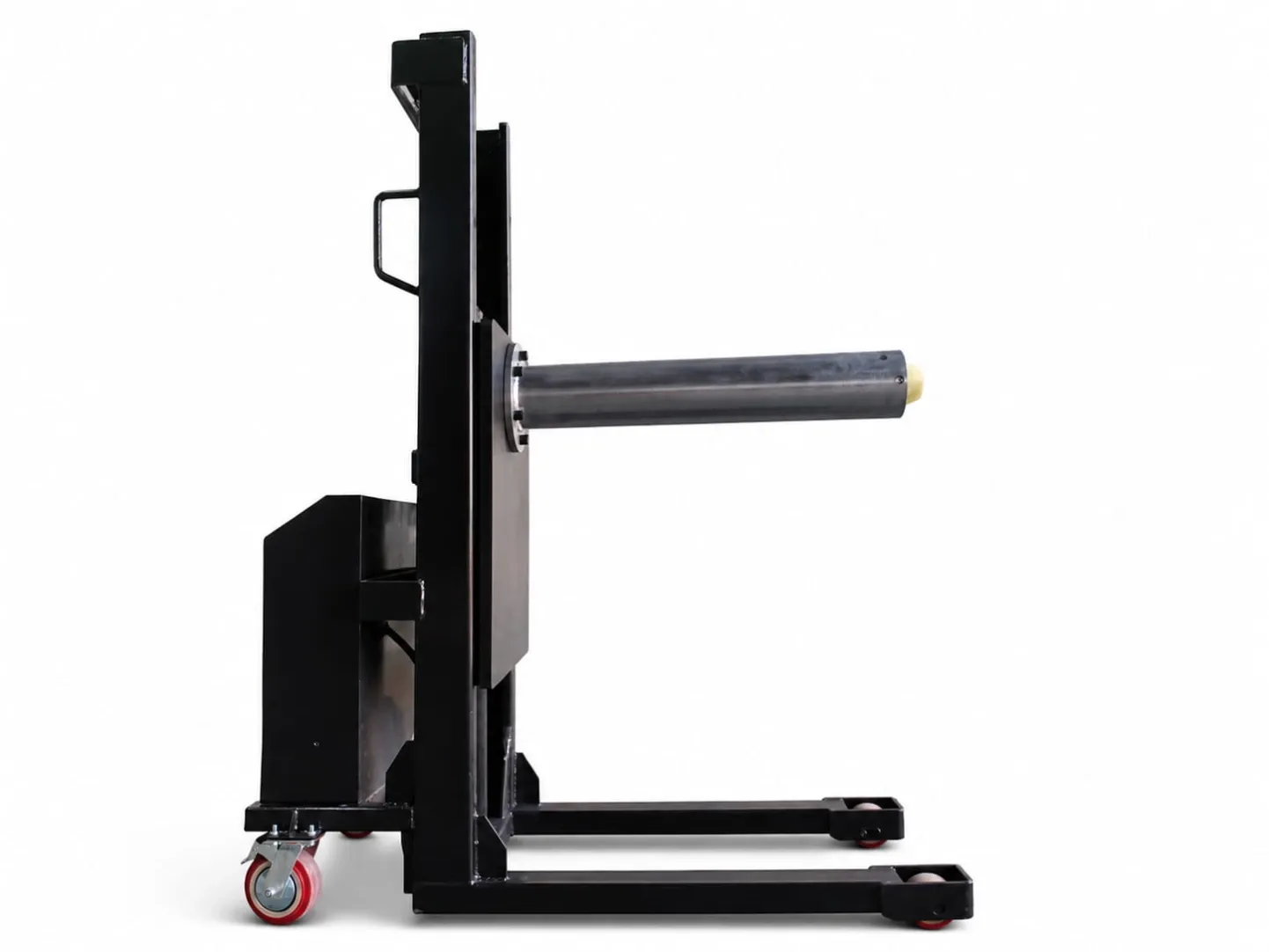

This custom semi electric roll stacker is designed for lifting, loading, unloading and transferring roll materials. The horizontal shaft structure is suitable for roll core handling, helping operators move paper rolls, film rolls, fabric rolls, non-woven rolls, foil rolls and coil materials more efficiently.Horizontal shaft design for roll core handling
Semi electric powered lift for easier operation
Custom roll handling solution for different industries
02
CUSTOM ROLL HANDLING SOLUTION
Built For Paper Rolls, Film Rolls, Fabric Rolls And Coil Materials
With heavy-duty steel frame, compact body and customized roll shaft, this semi electric roll stacker is suitable for workshops, packaging plants, paper warehouses, film processing factories and roll material storage areas.Shaft diameter: 6–10 inch
Shaft length: 700–1500 mm
Lift height options: 1.5–3 m
03
CUSTOM CONFIGURATION
Flexible Design For Different Roll Handling Needs
The shaft diameter, shaft length, bearing rows and lift height can be customized according to roll diameter, roll width, core size, roll weight and working height. It helps the equipment match different production lines and warehouse handling requirements.Shaft diameter: 6–10 inch
Bearing rows: 1 / 2 / 3
Custom design available for special roll materials
04
VERSATILE APPLICATIONS
Suitable For Various Roll Materials
This roll handling stacker is suitable for paper, packaging, textile, film, printing and converting industries. It can be used for roll loading, roll transfer, workshop handling, packaging roll movement and warehouse roll storage.Suitable for paper roll, film roll and fabric roll
Also supports non-woven roll, foil roll and coil material
Ideal for paper, packaging, textile, film and converting industries
05
LIFT HEIGHT OPTIONS
1.5m–3m Lifting Height For Different Working Needs
The lifting height can be customized from 1.5m to 3m, making the stacker suitable for machine feeding, roll loading, rack storage and workshop material transfer. Different lift height options can be selected according to the customer's actual working environment.1.5m / 2.0m / 2.5m / 3.0m lift height options
Suitable for different roll handling requirements
Stable and reliable semi electric powered lift
06
EFFICIENT ROLL LOADING
Beaded Suspension Arm For Fast And Convenient Operation

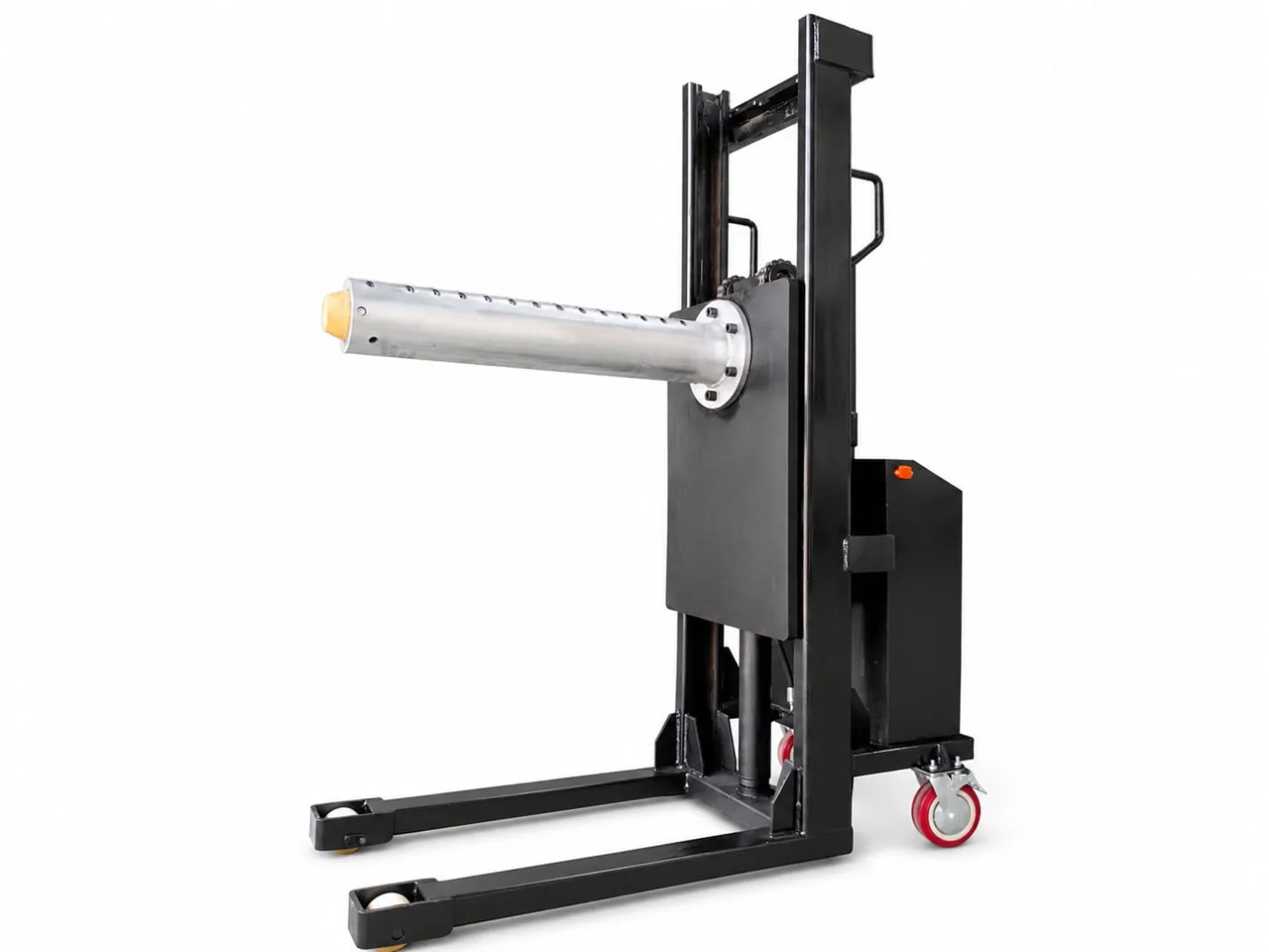

The suspension arm uses a seamless steel tube with precision polishing and chrome-plated finishing for a bright and durable appearance. The safety retaining pin, PU protective rings and wear-resistant nylon end cap help improve roll positioning and protect materials during handling.Safety retaining pin for stable roll positioning
PU protective rings for impact resistance
Wear-resistant nylon end cap at the shaft tip
07
WHEEL AND BRAKE SYSTEM
Rear Swivel Wheels With Brake For Stable Movement
PU wear-resistant wheels provide smooth rolling, low noise and strong durability. Rear swivel wheels with brake help lock the equipment during loading and unloading, while front directional wheels improve smooth travel and stable movement under load.PU wear-resistant wheels for low-noise movement
Rear swivel wheels with brake for safer positioning
Strong load capacity and 360° flexible steering
TECHNICAL SPECIFICATIONS
Custom Semi Electric Roll Stacker Parameters
Main customizable parameters for semi electric roll stacker. Final configuration can be adjusted according to roll material, roll diameter, roll width, core size, roll weight and working height.| Category | Item | Unit | Custom Semi Electric Roll Stacker |
|---|---|---|---|
| Roll Handling Configuration | |||
| Roll Handling | Product Name | - | Custom Semi Electric Roll Stacker |
| Roll Handling | Applicable Materials | - | Paper Roll / Film Roll / Fabric Roll / Non-woven Roll / Foil Roll / Coil Material |
| Roll Handling | Shaft Diameter | inch | 6–10 |
| Roll Handling | Shaft Length | mm | 700–1500 |
| Roll Handling | Bearing Rows | - | 1 / 2 / 3 |
| Roll Handling | Roll Locking | - | Safety Retaining Pin |
| Lifting System | |||
| Lifting | Lift Height | m | 1.5–3 |
| Lifting | Lifting Type | - | Semi Electric Powered Lift |
| Lifting | Operation Type | - | Walkie Operation |
| Structure And Movement | |||
| Structure | Body Structure | - | Heavy-duty Steel Frame |
| Structure | Shaft Direction | - | Horizontal Shaft |
| Movement | Wheel Type | - | PU Wear-resistant Wheels |
| Movement | Rear Wheel | - | Swivel Wheel With Brake |
| Movement | Front Wheel | - | PU Directional Front Wheel |
| Customization | |||
| Customization | Custom Design | - | Available |
| Customization | Custom Items | - | Shaft Diameter / Shaft Length / Lift Height / Bearing Rows / Roll Support Structure |
