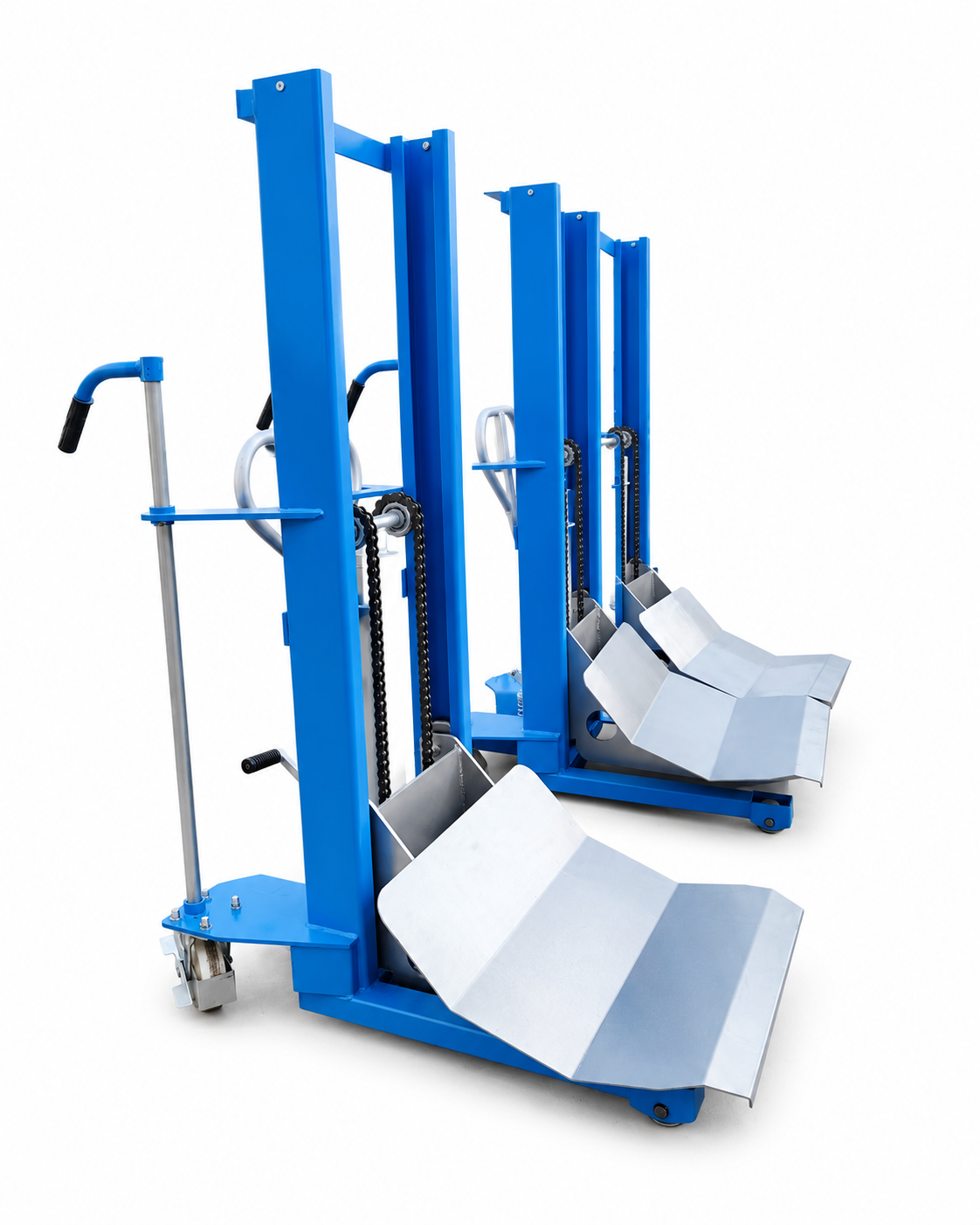

Manual Roll Handling Stacker
The Manual Roll Handling Stacker is designed for paper rolls, film rolls, fabric rolls, non-woven rolls, foil rolls and other cylindrical material handling. With a custom V-shaped roll cradle, manual hydraulic lifting system and compact walkie structure, it provides a practical solution for roll transfer, roll positioning, workshop handling and warehouse storage applications.
Manual Roll Handling Stacker
The manual roll handling stacker is designed for paper rolls, film rolls, fabric rolls, non-woven rolls, foil rolls and other cylindrical materials. With a custom V-shaped cradle, manual hydraulic lifting system and compact walkie structure, it provides a practical solution for roll transfer, roll positioning and workshop material handling.
Custom Design Available
Cradle size, lift height, load capacity and overall structure can be customized according to roll diameter, roll width and working conditions. It is suitable for special roll handling requirements in workshops, warehouses and production lines.
- Custom cradle size for different roll diameters
- Custom lift height according to working position
- Custom load capacity for different roll weights
- Custom overall width and structure for special applications
Manual Hydraulic Lifting System
The manual hydraulic lifting system offers simple, reliable and low-maintenance lifting for roll positioning and short-distance transfer. Chain drive structure and reinforced mast design help provide stable vertical lifting performance.
- Manual hydraulic lifting for simple daily operation
- Chain drive structure for reliable lifting transmission
- No complex electronics, easier maintenance
- Built for daily workshop and warehouse use
Custom V-Shaped Cradle For Roll Handling
The V-shaped roll cradle is designed to support cylindrical materials and help keep rolls stable during lifting and transfer. It is suitable for paper rolls, film rolls and other cylindrical loads that cannot be handled by standard forks.
- V-shaped cradle provides secure roll support
- Compact walkie design for flexible maneuvering
- Custom structure available for different roll sizes
- Suitable for paper, film, fabric and foil rolls
Suitable For Various Roll Materials
This roll handling stacker can be used for different cylindrical materials in printing, packaging, paper making, textile, film processing and warehouse storage applications.
- Paper roll handling and positioning
- Film roll transfer and workshop movement
- Fabric roll and non-woven roll handling
- Foil roll and cylindrical material storage area use
V-Shaped Cradle For Secure Roll Support
The V-shaped cradle helps improve roll contact, reduce rolling movement and maintain better positioning during lifting and transfer. Reinforced support structure improves stability for daily roll handling tasks.
- Anti-roll cradle design for safer handling
- Better roll positioning during lifting
- Stable material contact for cylindrical loads
- Reinforced support structure for improved stability
Product Configuration
| Item | Reference Information |
|---|---|
| Product Name | Manual Roll Handling Stacker |
| Lifting Type | Manual hydraulic lifting |
| Operation Type | Manual walkie operation |
| Cradle Type | Custom V-shaped roll cradle |
| Handling Material | Paper roll, film roll, fabric roll, non-woven roll, foil roll and cylindrical materials |
| Main Applications | Roll transfer, roll positioning, workshop handling, warehouse storage and production line feeding |
| Customization Options | Cradle size, lift height, load capacity, overall width, support leg size and color |
