Manual Hydraulic Stacker

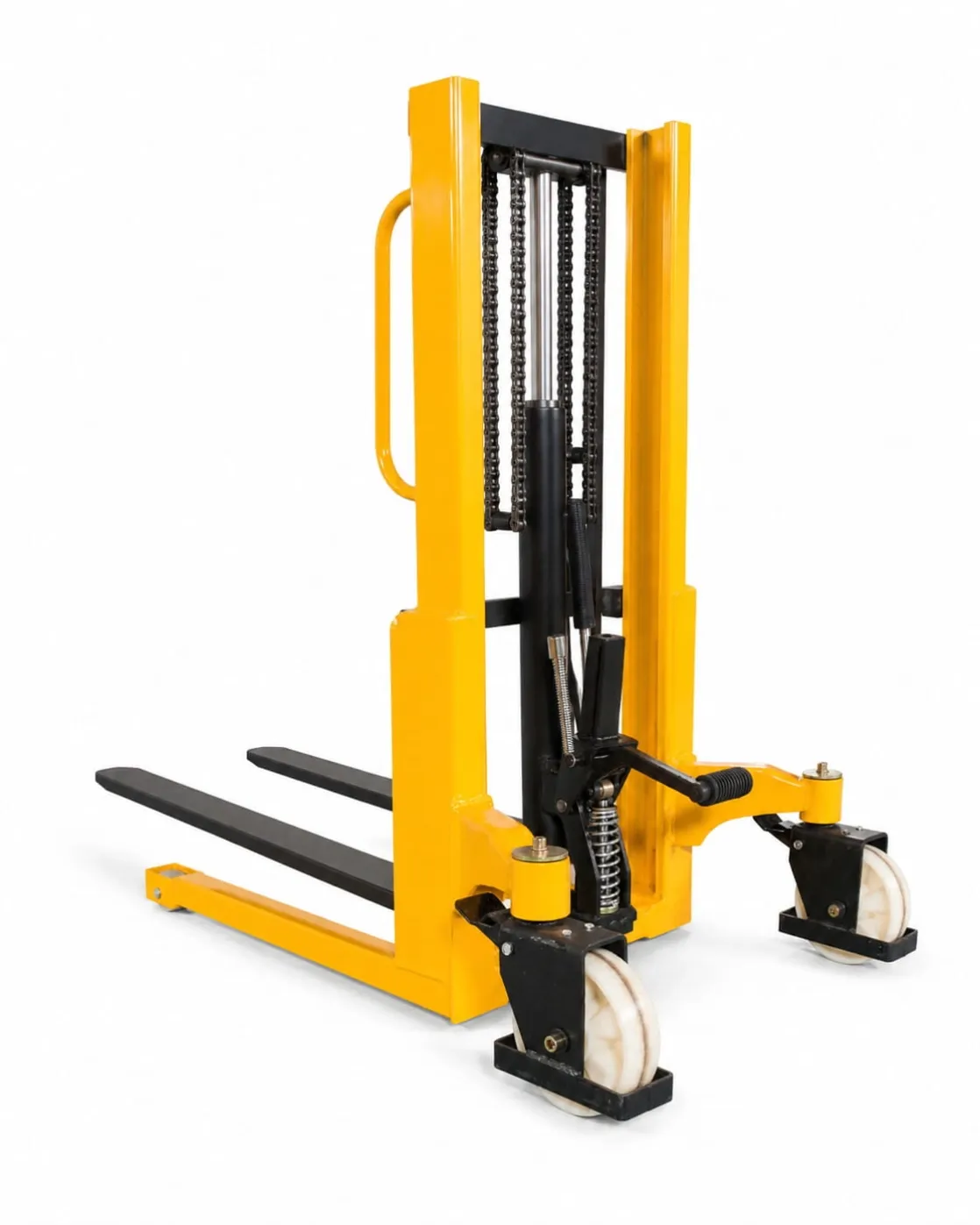

The Manual Hydraulic Stacker is a cost-effective pallet lifting solution for daily warehouse handling. With manual hydraulic lifting, adjustable fork width and a stable mast structure, it is suitable for pallet stacking, goods loading, workshop handling and small warehouse material transfer.
01
MANUAL HYDRAULIC STACKER
Cost-Effective Pallet Lifting Solution For Daily Warehouse Handling
The manual hydraulic stacker is designed for pallet lifting, stacking, loading and workshop material handling. With manual hydraulic lifting, adjustable fork width and low-maintenance structure, it is a practical choice for small warehouses, storage rooms and daily pallet handling applications.1T / 2T / 3T capacity options
Manual hydraulic lifting, no battery required
Adjustable fork width for different pallet sizes
02
SMALL WAREHOUSE STACKING
Designed For Small Warehouse Stacking And Workshop Handling
This manual stacker is ideal for small warehouse stacking, goods loading, storage room material movement and workshop handling. It helps operators lift and position palletized goods without relying on electric travel or battery charging.Suitable for small warehouses and storage rooms
Practical solution for pallet stacking and loading
Standard brake for stable positioning during operation
03
CAPACITY OPTIONS
1T / 2T / 3T Models For Different Load Requirements
Available in 1000kg, 2000kg and 3000kg models, this manual hydraulic stacker can meet different warehouse stacking and loading needs. The 1.6m standard lift height is suitable for common pallet lifting and low-level stacking applications.1000kg capacity for light-duty pallet handling
2000kg capacity for regular warehouse use
3000kg capacity for heavier palletized goods
04
MANUAL HYDRAULIC LIFTING SYSTEM
Simple Hydraulic Structure With Reliable Lifting Performance

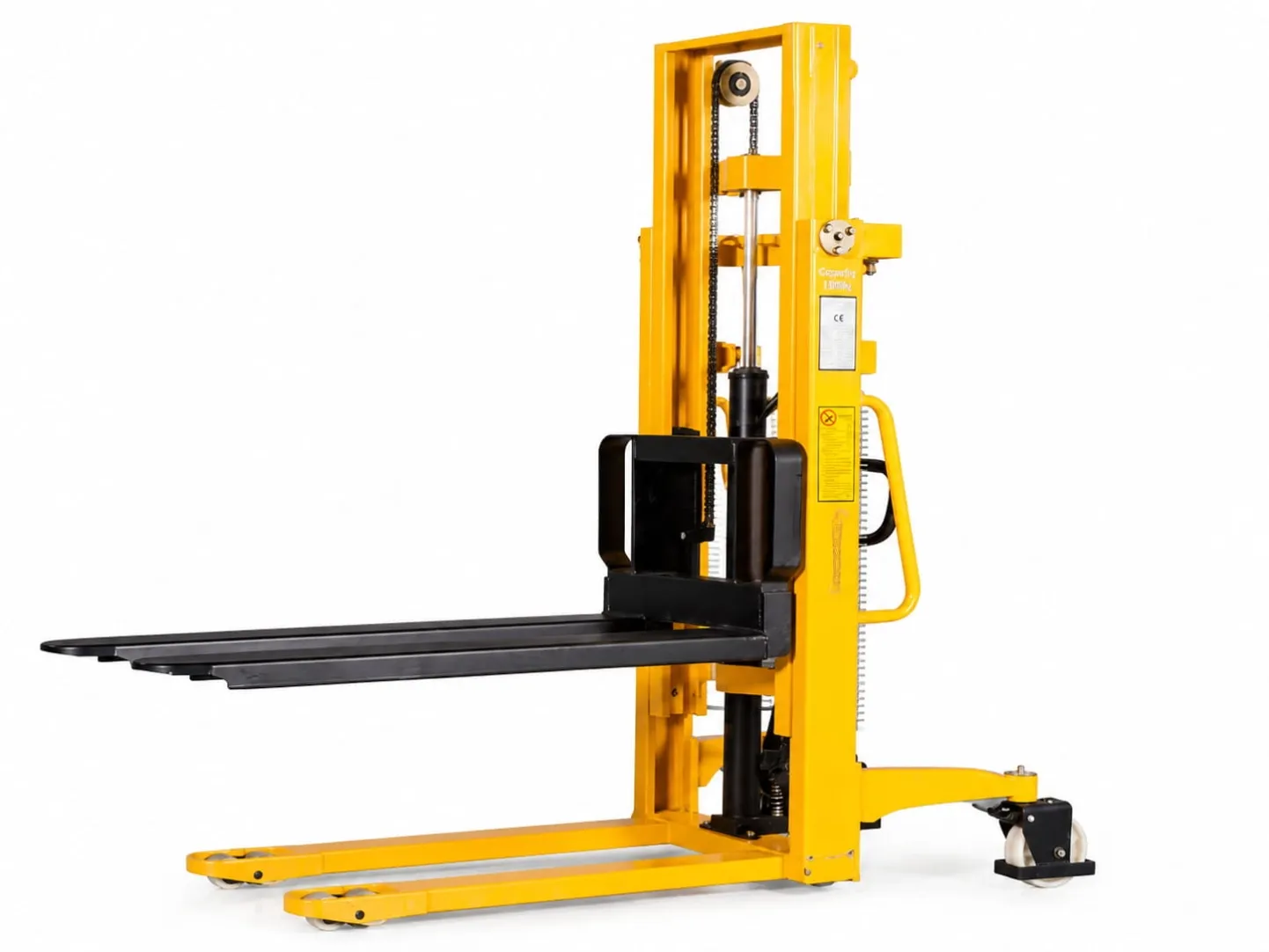

The manual hydraulic lifting system includes lifting chain, hydraulic cylinder and pump handle. The simple structure helps reduce maintenance needs, while the ergonomic pump handle provides easy control for lifting and lowering palletized goods.No battery required and low maintenance
High-strength lifting chain for smooth lifting
Durable hydraulic cylinder with long service life
05
ADJUSTABLE FORK WIDTH
Adjustable Fork Width For Flexible Pallet Handling

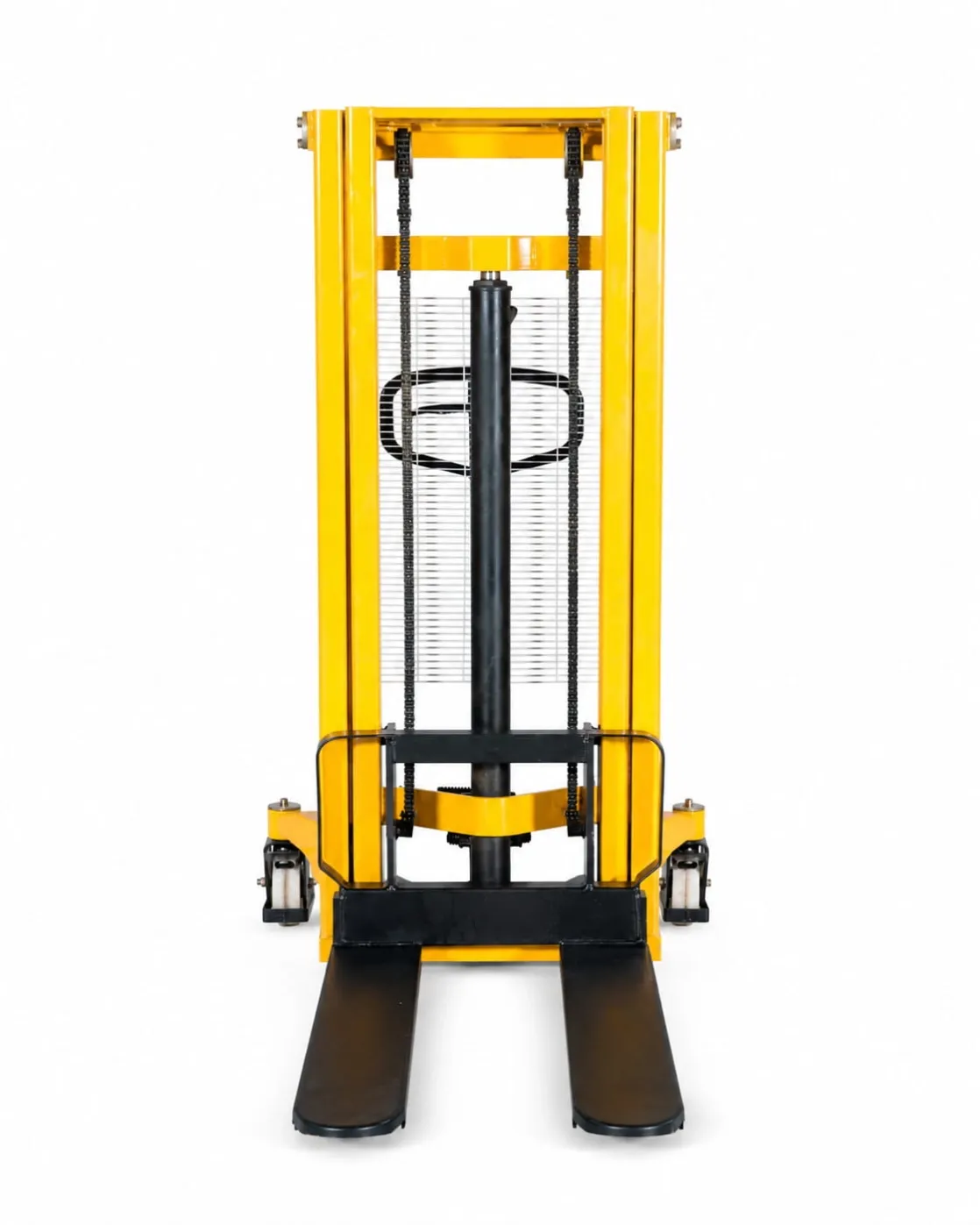

The adjustable fork width allows the stacker to handle different pallet sizes and warehouse goods more flexibly. With 215–760mm adjustable range and 85mm lowered fork height, it is suitable for daily pallet handling and open-bottom pallet applications.215–760mm adjustable fork width range
85mm lowered fork height
Flexible pallet handling for different warehouse needs
06
PRACTICAL WAREHOUSE HANDLING
Manual Hydraulic Stacker For Pallet Lifting And Daily Handling
With manual hydraulic lifting, adjustable fork width and stable steel structure, this stacker is suitable for daily warehouse pallet lifting, workshop goods transfer and low-level stacking. It provides a simple, reliable and cost-effective handling solution.Manual hydraulic lifting for easy operation
Adjustable fork width for pallet compatibility
Low maintenance design for long-term daily use
07
STABLE MAST STRUCTURE
Heavy-Duty Mast Design For Stable And Reliable Lifting

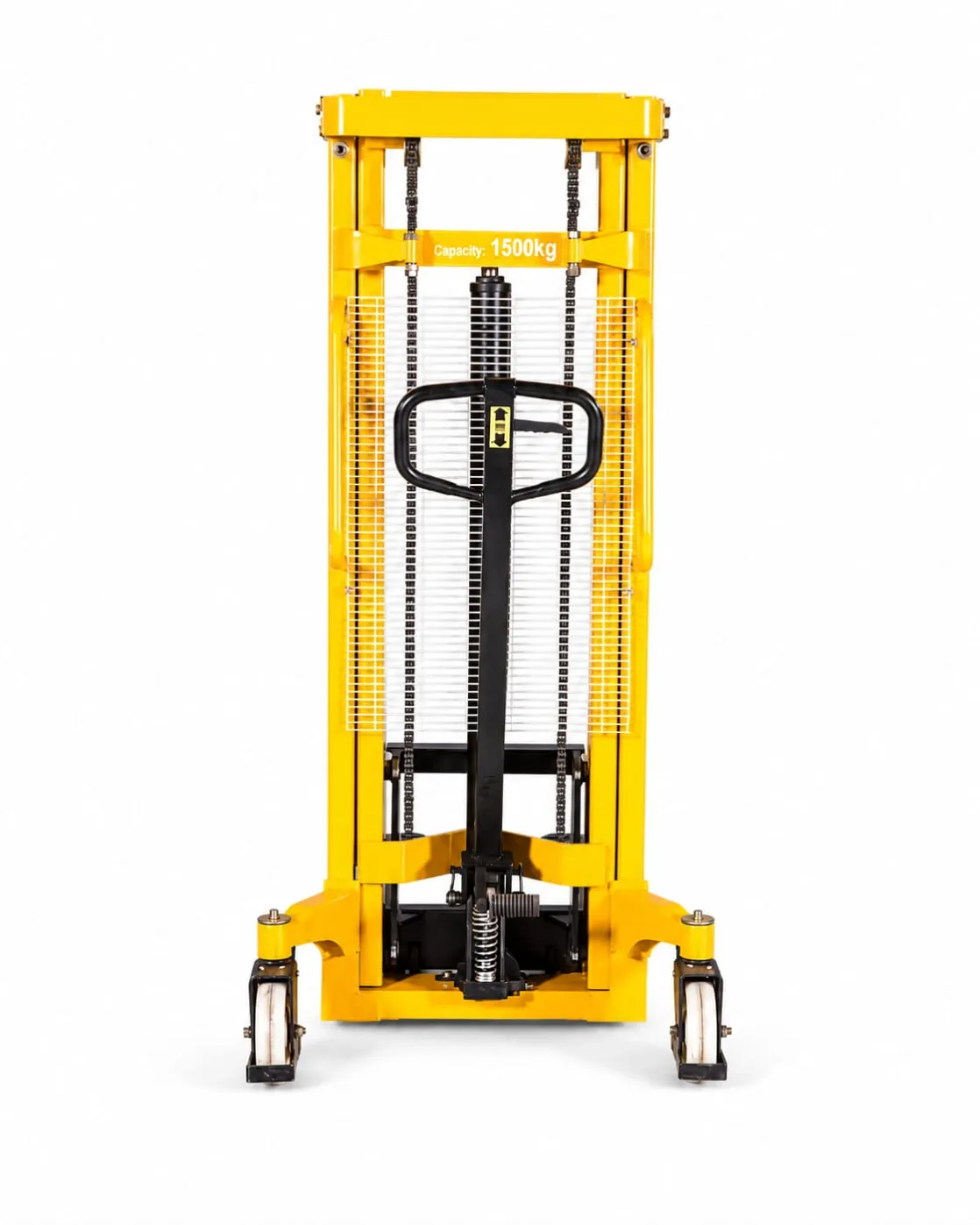

The mast structure uses channel steel, C-type steel and heavy-duty I-beam mast options to provide stable support for different load capacities. Combined with lifting chains and hydraulic cylinder, it ensures smooth lifting performance for daily warehouse use.Steel mast for stable load support
Lifting chain for smooth lifting operation
Heavy-duty structure built for reliable performance
TECHNICAL SPECIFICATIONS
Manual Hydraulic Stacker Parameters
Main technical data for manual hydraulic stacker. Suitable for pallet lifting, warehouse stacking, workshop handling and daily material transfer.| Category | Item | Unit | Manual Hydraulic Stacker |
|---|---|---|---|
| Main Performance | |||
| Performance | Product Name | - | Manual Hydraulic Stacker |
| Performance | Load Capacity | kg | 1000 / 2000 / 3000 |
| Performance | Lift Height | m | 1.6 |
| Performance | Lifting Type | - | Manual Hydraulic Lifting |
| Performance | Travel Type | - | Manual Travel |
| Performance | Power Requirement | - | No Battery Required |
| Fork And Dimension | |||
| Dimension | Adjustable Fork Width | mm | 215–760 |
| Dimension | Lowered Fork Height | mm | 85 |
| Dimension | Fork Type | - | Adjustable Fork |
| Structure | |||
| Structure | Mast Structure | - | Channel Steel / C-Type Steel / I-Beam Steel Options |
| Structure | Lifting System | - | Lifting Chain + Hydraulic Cylinder + Pump Handle |
| Structure | Brake | - | Standard Brake |
| Application | |||
| Application | Suitable Pallet Type | - | Open-bottom Pallets |
| Application | Application Scenarios | - | Small Warehouse / Storage Room / Workshop Handling / Pallet Stacking / Goods Loading |
