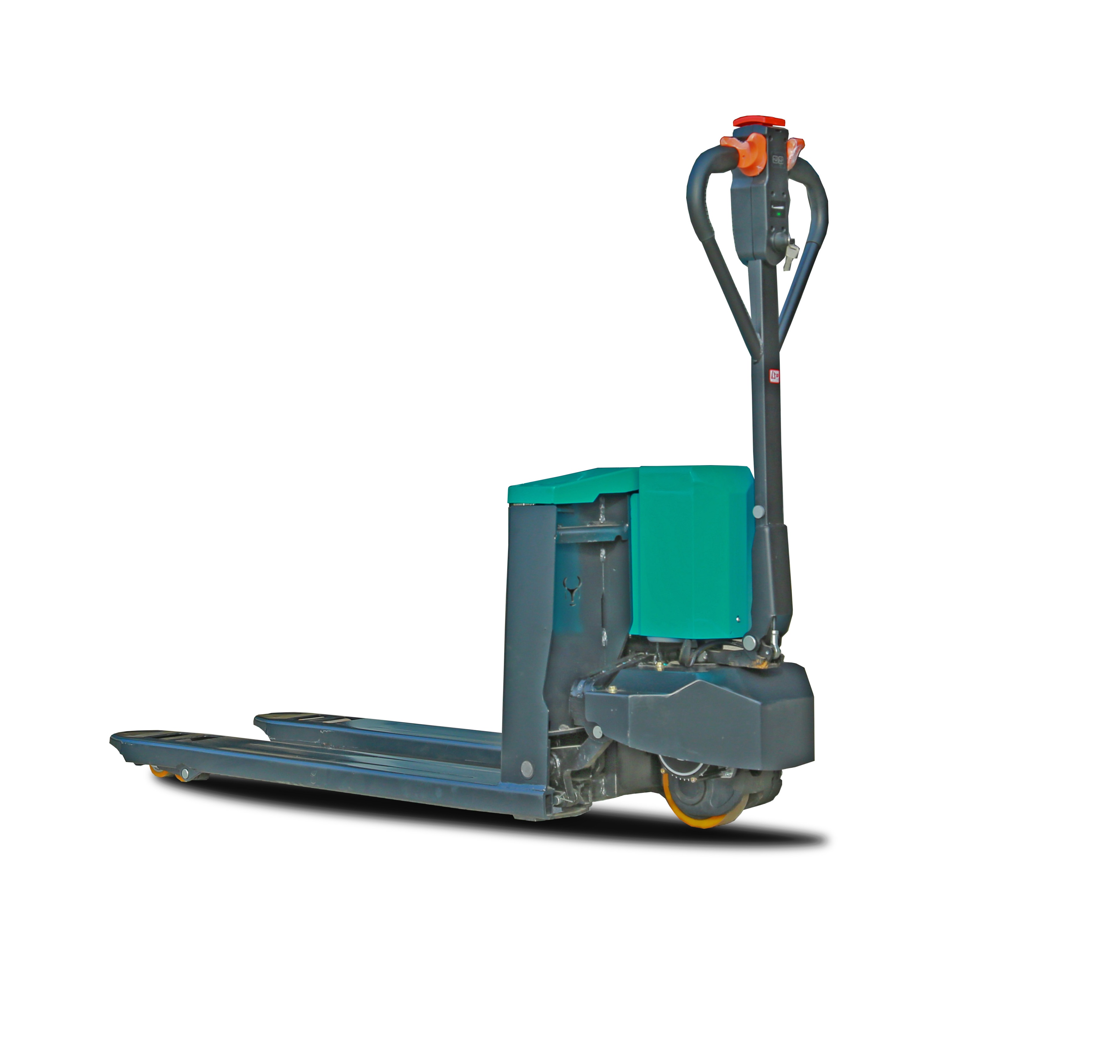

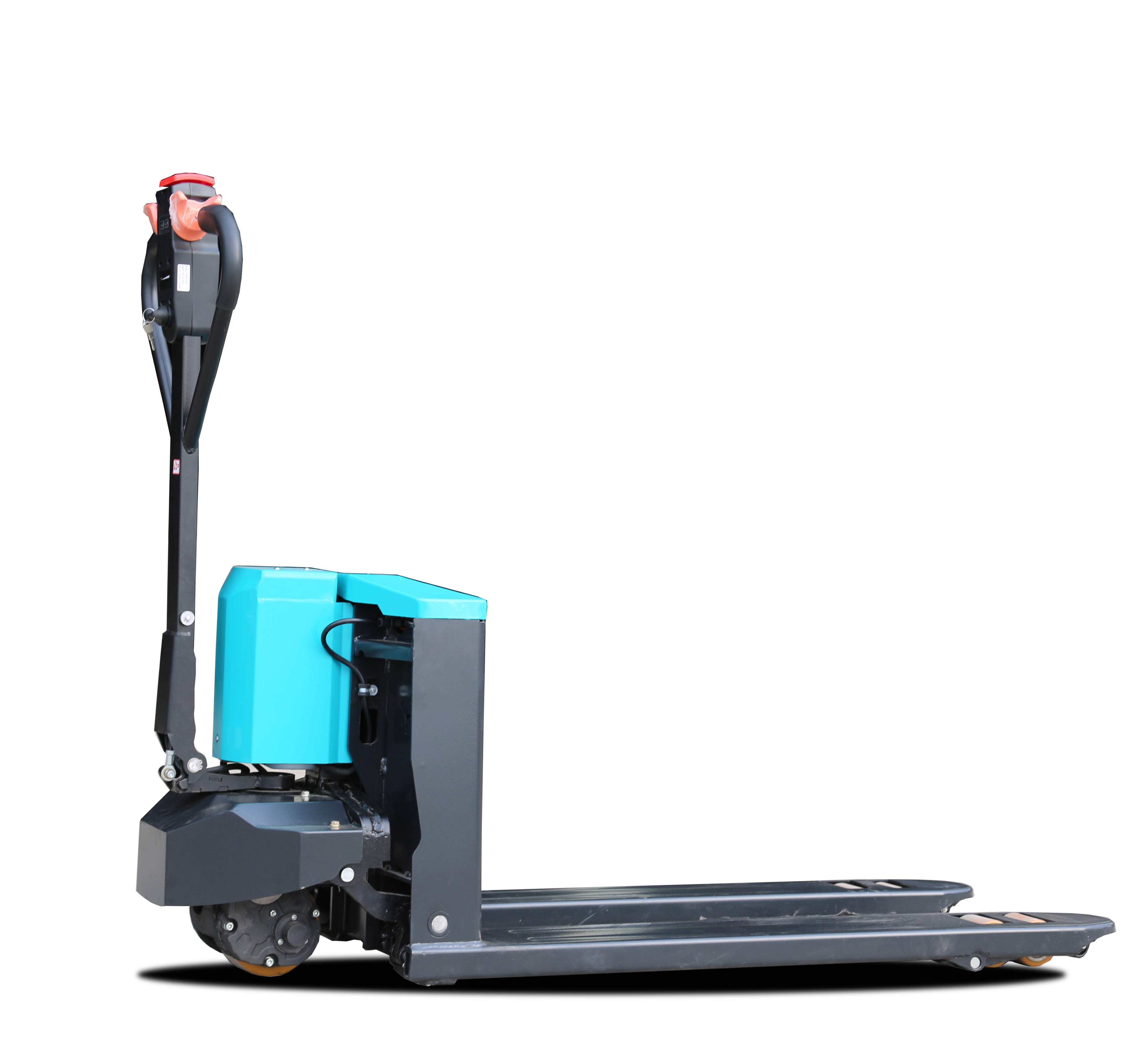

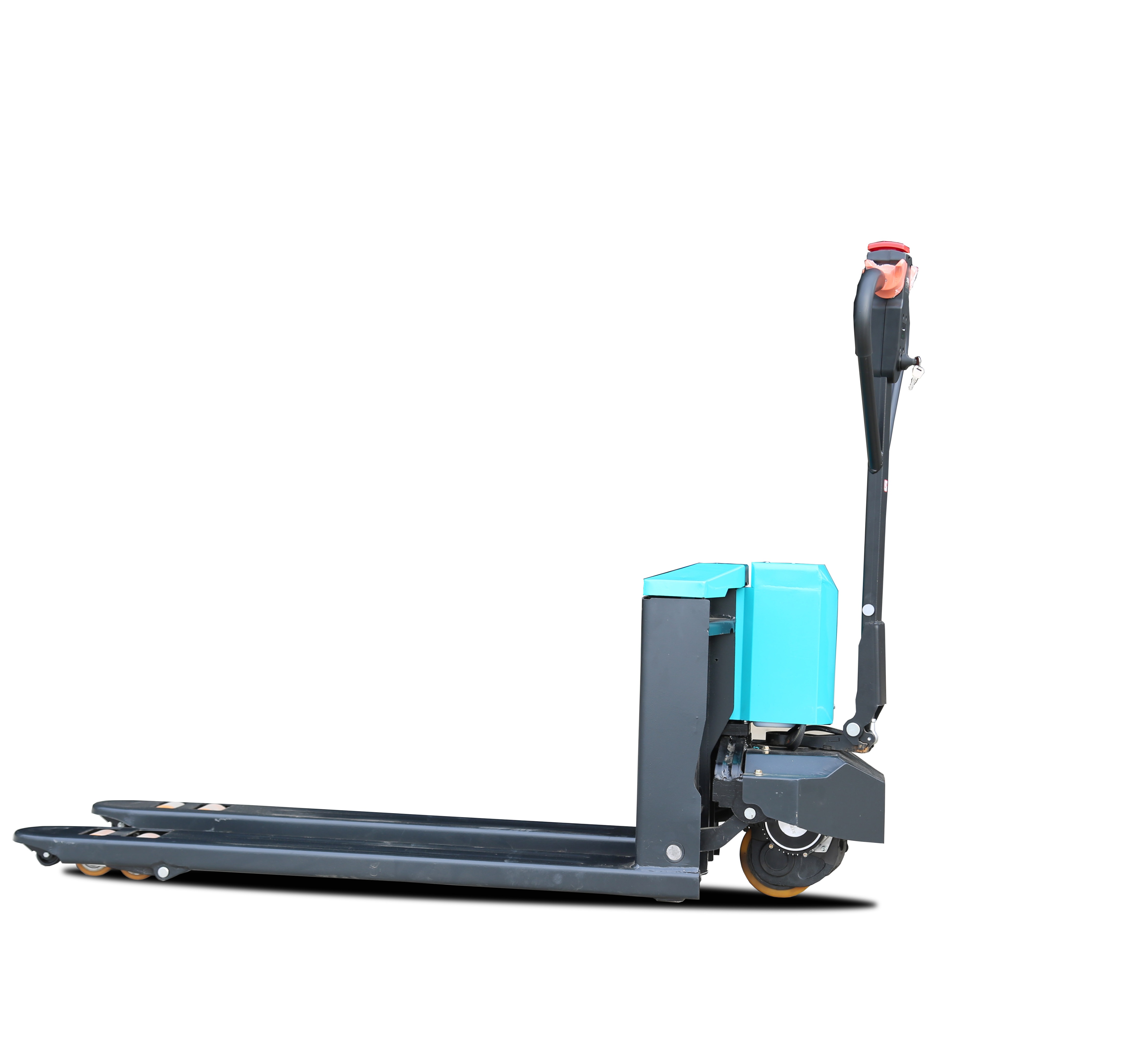

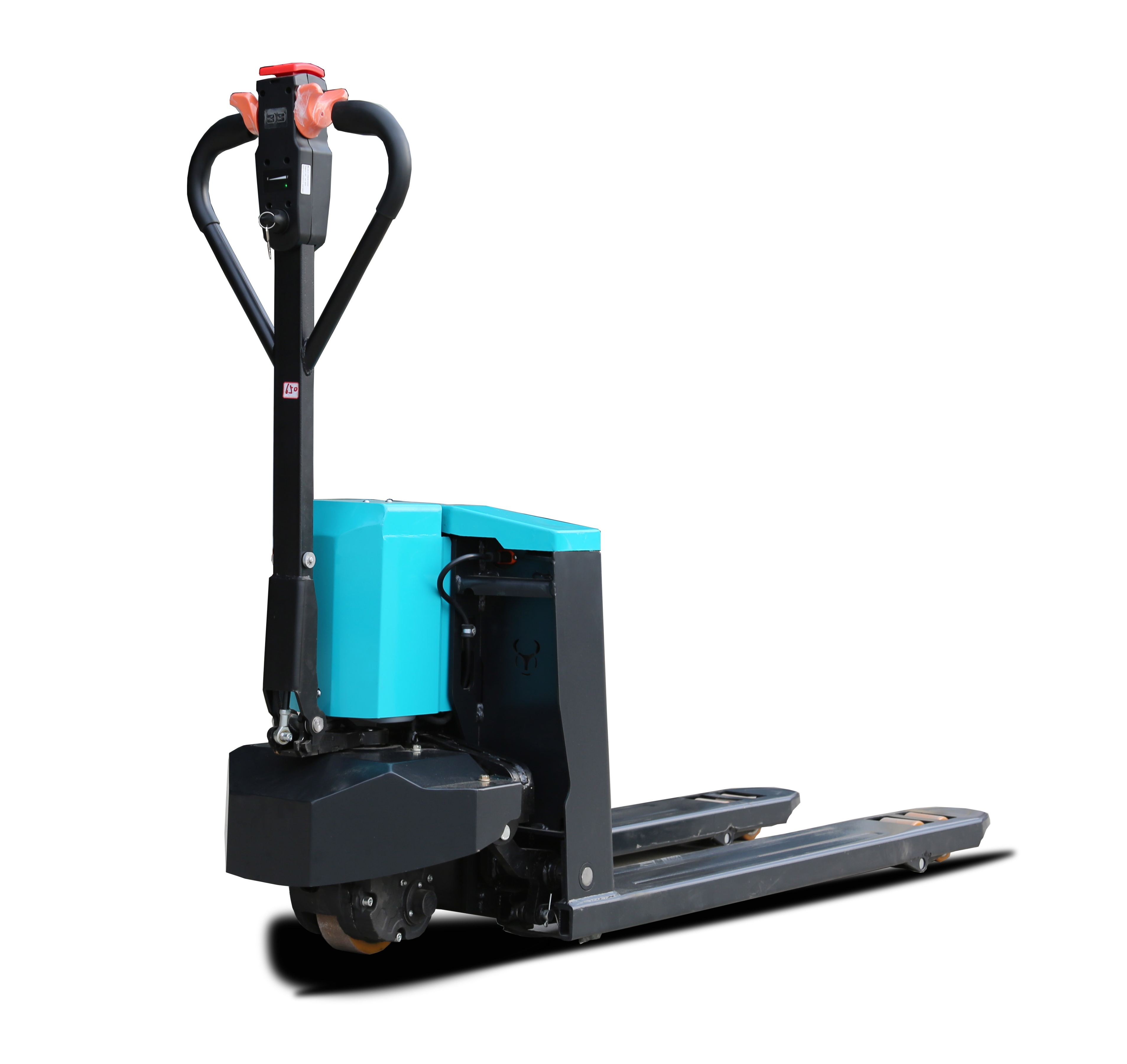

All Electric Pallet Truck CTX30Q-B
Classic all electric pallet truck, equipped with a 1.5 kW brushless motor and a load capacity of 2,000–3,000 kg.
Labor-Saving Handling For Daily Warehouse Transfer
This full electric pallet truck is designed for warehouse transfer, pallet movement and factory material handling. Electric driving helps reduce manual pushing effort and makes daily handling work easier.
- Electric power assist for easier operation
- Efficient pallet handling for daily use
- Compact body design for flexible movement
- Suitable for warehouses, factories and logistics areas
Key Configurations Clear At A Glance
The truck integrates practical configurations for daily handling, including a multi-function control handle, electric drive assist, lithium power system and reinforced support chassis.
- Multi-function control handle for flexible operation
- Electric drive assist reduces manual pushing
- Lithium power system with stable output
- Reinforced support chassis improves load stability
Ergonomic Handle Easy And Efficient Operation
The control handle is designed for intuitive operation. Forward and reverse movement, fork lifting, fork lowering and horn functions are arranged clearly for convenient daily use.
- Forward / reverse control for easy movement
- Fork lift and fork lower buttons are easy to operate
- LED display shows battery level and working status
- Speed mode switch supports different working needs
Easier Obstacle Crossing For Complex Floor Conditions
The raised chassis design helps the truck pass ramps, thresholds, uneven surfaces and expansion joints more smoothly. It is suitable for varied warehouse and factory floor conditions.
- 8–20 cm lift height for better passing ability
- Raised ground clearance helps avoid bottoming out
- Stable linkage structure improves handling stability
- Suitable for ramps, thresholds and uneven floors
3 Ton Heavy-Duty Capacity Stable And Reliable
With 3000kg rated load capacity, this electric pallet truck is suitable for heavy pallet goods, cartons and factory materials. It helps improve handling efficiency while reducing labor intensity.
- Rated load capacity: 3000kg
- Strong structure for heavy-duty handling
- Smart control makes operation easier
- Suitable for warehouse, factory and logistics transfer
Need A Price For This Electric Pallet Truck?
Tell us your required load capacity, fork width, battery type and working environment. Our team will recommend a suitable model and provide a quotation quickly.
Request a QuoteCTX30Q-B Battery Electric Pallet Truck
Battery electric pallet truck designed for 3000kg load handling, warehouse transfer, factory material movement and efficient pallet transport.
| Category | No. | Item | Unit | Specification |
|---|---|---|---|---|
| Features | ||||
| Features | 1.1 | Origin | - | Changge, Henan |
| Features | 1.2 | Brand | - | / |
| Features | 1.3 | Model | - | CTX30Q-B |
| Features | 1.4 | Power Type | - | Lead-acid Battery / Optional Lithium Battery |
| Features | 1.5 | Operation Type | - | Walking Type |
| Features | 1.6 | Rated Load | kg | 3000 |
| Features | 1.7 | Load Center Distance | mm | 500 |
| Features | 1.8 | Lift Height | mm | 200 |
| Dimensions | ||||
| Dimensions | 2.1 | Overall Size (L×W×H) | mm | 1670×(550/685)×1325 |
| Dimensions | 2.2 | Fork Size | mm | 1150×160×55 |
| Dimensions | 2.3 | Fork Width Min./Max. | mm | 550/685 |
| Dimensions | 2.4 | Minimum Ground Clearance | mm | 85 |
| Dimensions | 2.5 | Minimum Turning Radius | mm | 1200 |
| Weight | ||||
| Weight | 3.1 | Truck Weight Including Battery | kg | 175 |
| Weight | 3.2 | Battery Weight | kg | 20 |
| Wheels | ||||
| Wheels | 4.1 | Wheel Type (Drive / Steering) | - | Solid PU Tires |
| Wheels | 4.2 | Drive Wheel Size | mm | 160×55 |
| Wheels | 4.3 | Load Wheel Size | mm | 80×70 |
| Power Unit & Control | ||||
| Power Unit & Control | 5.1 | Drive Motor Rated Power | kW (60min) | 1.8 |
| Power Unit & Control | 5.2 | Lifting Motor Rated Power | kW (60min) | 0.8 |
| Power Unit & Control | 5.3 | Cylinder Diameter | mm | 55 |
| Power Unit & Control | 5.4 | Battery Size | mm | 159×188×104 |
| Power Unit & Control | 5.5 | Battery Voltage / Capacity | V/Ah | 2×24/20 |
| Power Unit & Control | 5.6 | Controller | - | AC |
| Power Unit & Control | 5.7 | Working Pressure | MPa | 14 |
| Performance | ||||
| Performance | 6.1 | Travel Speed (Loaded / Unloaded) | km/h | 3.5/4 |
| Performance | 6.2 | Maximum Gradeability | % | 4 |
| Performance | 6.3 | Brake Type | - | Electromagnetic Brake |
| Others | ||||
| Others | 7.1 | Drive Control Type | - | Electric |
| Others | 7.2 | Steering Type | - | Manual |
| Others | 7.3 | Noise Level | dB | 63 |
| Others | 7.4 | Waterproof Grade | - | IPX4 |
