EPTY-30Q
The 3 Ton Off-Road Electric Pallet Truck is designed for heavy-duty material handling in construction sites, outdoor yards, rough ground and demanding work environments. With strong load capacity, rugged tires and a raised chassis design, it helps move heavy pallets more efficiently on uneven surfaces.

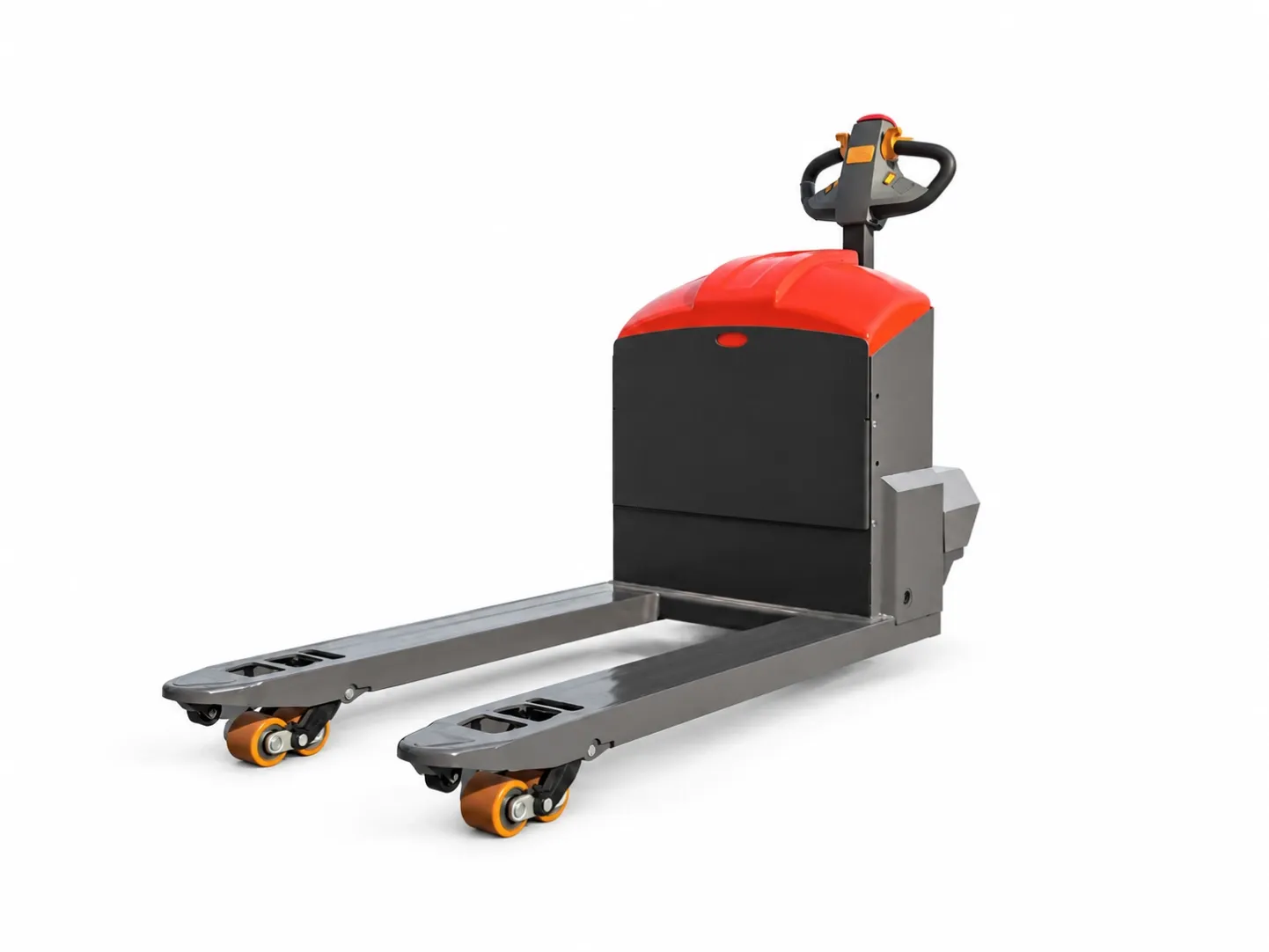

3 Ton Off-Road Electric Pallet Truck
Designed for outdoor yards, construction sites, factory transfer and uneven ground material handling. Strong drive power, raised chassis and off-road tires help improve handling efficiency.
3 Ton Capacity Built For Rough Ground
This 3 ton off-road electric pallet truck is designed for outdoor yards, construction sites, factory areas and uneven ground handling. Strong drive power and reinforced structure help make heavy material transfer easier.
- 3000kg rated load capacity
- Off-road tire design for outdoor use
- Electric drive reduces manual pushing
- Suitable for factory, yard and worksite transfer
Stable Movement For Outdoor Handling
The truck is suitable for rough working environments such as gravel roads, construction materials, outdoor storage areas and mixed indoor-outdoor handling routes.
- Reliable passability on uneven surfaces
- Useful for pallets, building materials and cargo transfer
- Stable operation under heavy loads
- Practical choice for outdoor material handling
Raised Chassis Better Ground Clearance

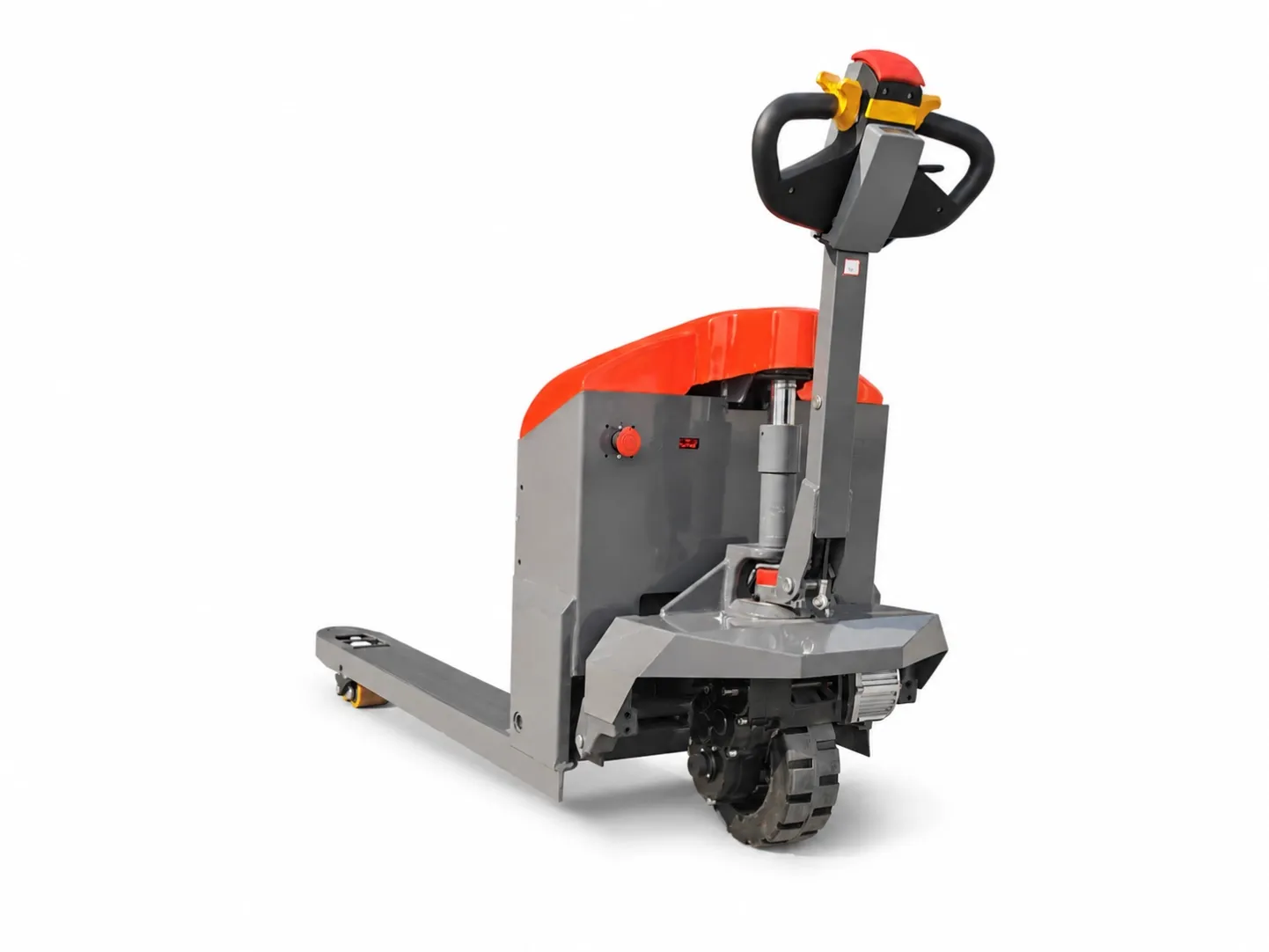

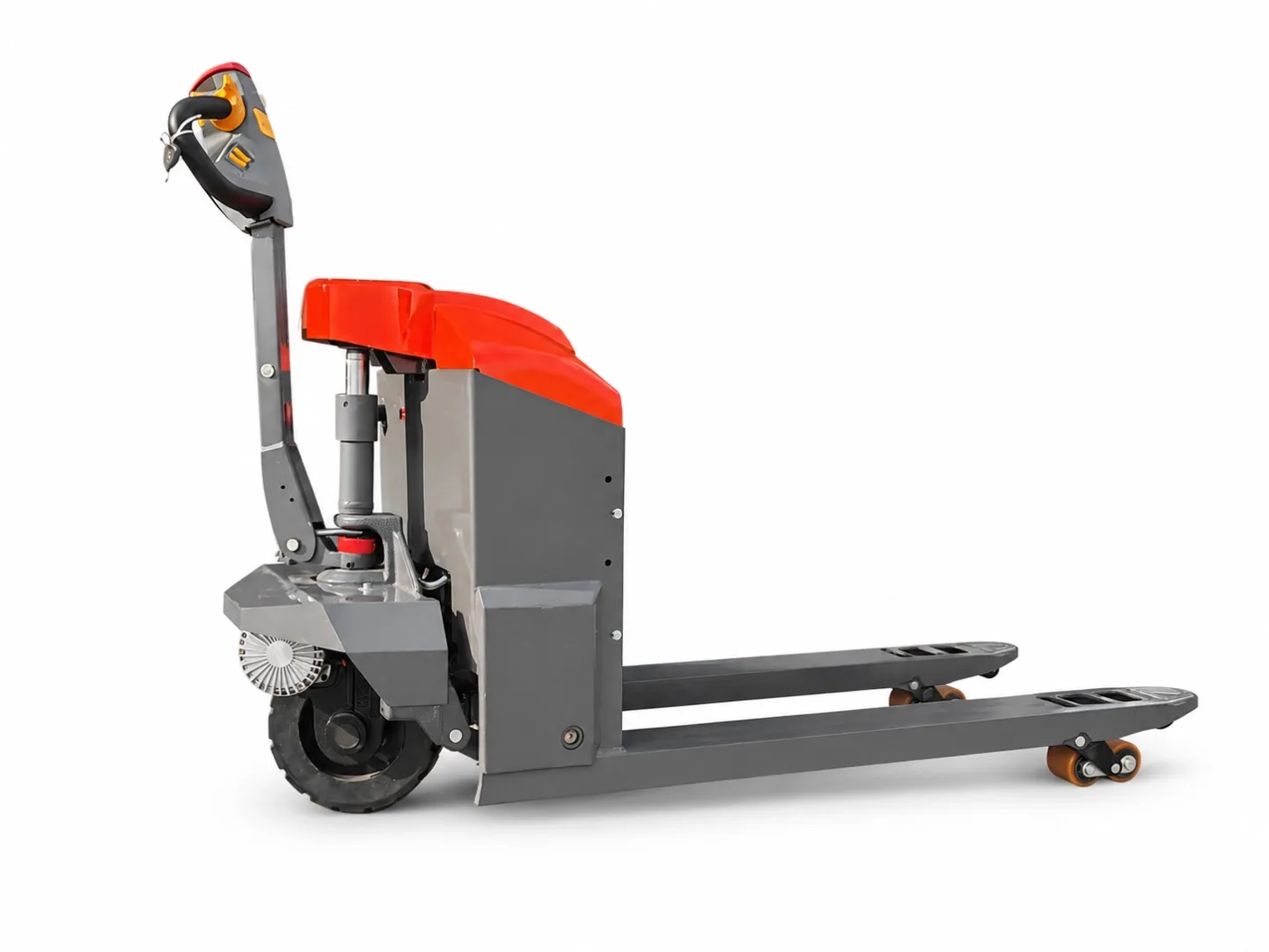

The raised chassis and solid rubber tire configuration help the pallet truck pass through complex ground conditions while reducing bottom scraping risk during daily work.
- Higher ground clearance for rough roads
- Solid rubber tires for stronger support
- Reduced risk of chassis scraping
- Good passability for outdoor yards and workshops
Strong Drive Power For Heavy Transfer
The electric drive system provides practical torque output for 3 ton material handling. Optional lithium battery configuration can be selected according to working time and use frequency.
- High-power drive motor for heavy cargo
- Optional lead-acid or lithium battery
- Stable start and smooth movement
- Suitable for frequent handling tasks
Easy Operation Clear Control Layout
The ergonomic control handle integrates common operating functions, helping operators control forward, reverse, lift and lower actions more easily during material handling.
- Simple forward and reverse control
- Lift and lower functions integrated
- Comfortable grip for daily operation
- Easy to learn and use
Fork Size And Battery Can Be Customized
Fork length, fork width, battery capacity and tire configuration can be adjusted according to pallet size, load type and working environment.
- Fork length can be customized
- Wide and narrow fork options available
- Battery capacity options for different working hours
- Suitable for non-standard handling requirements
3 Ton Off-Road Electric Pallet Truck Specification
Reference specifications for 3000kg off-road pallet handling. Fork size, battery capacity, wheel configuration and body dimensions can be customized according to actual working conditions.
| Category | No. | Item | Unit | Specification |
|---|---|---|---|---|
| Features | ||||
| Features | 1.1 | Origin | - | Changge, Henan |
| Features | 1.2 | Model | - | EPTY-30Q |
| Features | 1.3 | Power Type | - | Lead-acid Battery / Optional Lithium Battery |
| Features | 1.4 | Operation Type | - | Walkie Type |
| Features | 1.5 | Rated Load | kg | 3000 |
| Features | 1.6 | Load Center Distance | mm | 500 |
| Features | 1.7 | Lift Height | mm | 200 |
| Dimensions | ||||
| Dimensions | 2.1 | Overall Size (L×W×H) | mm | Reference size / customizable |
| Dimensions | 2.2 | Fork Size | mm | 1150×160×55 / customizable |
| Dimensions | 2.3 | Fork Width Min./Max. | mm | 550/685 / customizable |
| Dimensions | 2.4 | Minimum Ground Clearance | mm | Raised chassis design |
| Dimensions | 2.5 | Minimum Turning Radius | mm | 1200 / according to configuration |
| Weight | ||||
| Weight | 3.1 | Truck Weight Including Battery | kg | According to battery and configuration |
| Weight | 3.2 | Battery Weight | kg | According to battery capacity |
| Wheels | ||||
| Wheels | 4.1 | Wheel Type | - | Solid Rubber Off-Road Tires |
| Wheels | 4.2 | Drive Wheel Size | mm | 300×100 / customizable |
| Wheels | 4.3 | Load Wheel Size | mm | 80×70 / customizable |
| Power Unit & Control | ||||
| Power Unit & Control | 5.1 | Drive Motor Rated Power | kW | 1.5–1.8 / according to configuration |
| Power Unit & Control | 5.2 | Lifting Motor Rated Power | kW | 0.8 |
| Power Unit & Control | 5.3 | Battery Voltage / Capacity | V/Ah | 48V / capacity optional |
| Power Unit & Control | 5.4 | Controller | - | AC / Electric Control |
| Power Unit & Control | 5.5 | Brake Type | - | Electromagnetic Brake |
| Performance | ||||
| Performance | 6.1 | Travel Speed (Loaded / Unloaded) | km/h | 3.5/4 |
| Performance | 6.2 | Maximum Gradeability | % | According to ground condition |
| Performance | 6.3 | Working Environment | - | Warehouse, yard, worksite and outdoor transfer |
| Others | ||||
| Others | 7.1 | Drive Control Type | - | Electric |
| Others | 7.2 | Steering Type | - | Manual |
| Others | 7.3 | Noise Level | dB | Low-noise operation |
| Others | 7.4 | Waterproof Grade | - | IPX4 / according to configuration |
