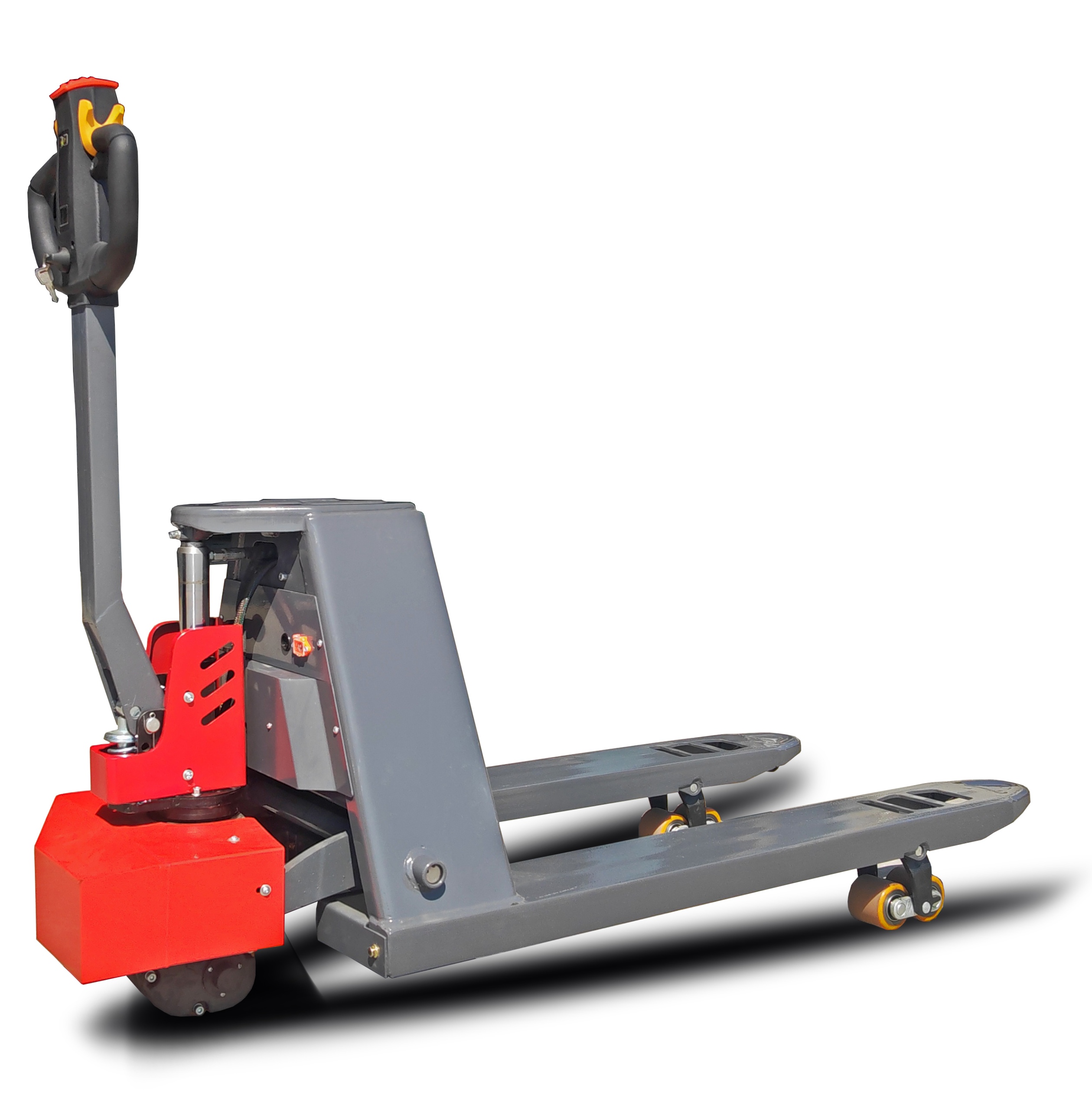

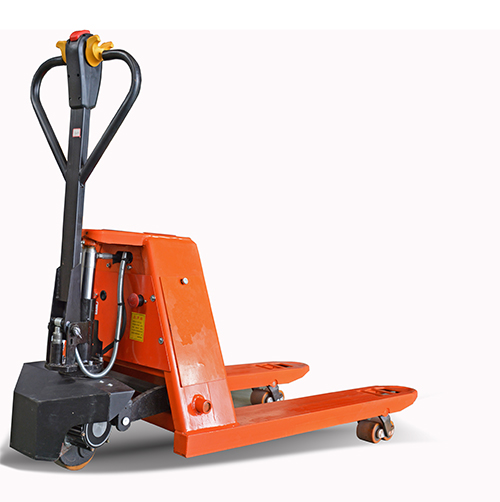

All Electric Pallet Truck PTE-30
Compact all-electric pallet truck，Suitable for factories, warehouses, workshops, logistics centers, etc.
Service Details
Service Duration4-8 months
Service ContentCurrent state analysis, solution design, implementation guidance
DeliverablesOptimization plan, process documentation, system configuration
Hot-selling all-electric pallet trucks Capacity of 2-3 tons
Electric Pallet Truck Forklift Specification | ||||
FEATURE | 1.1 | Origin | | China |
1.2 | Brand | | | |
1.3 | Model | | PTE-30Q | |
1.4 | Power Type | | Lead Battery/Lithium | |
1.5 | Operation Type | | Walking | |
1.6 | Rated Capacity | kg | 3000 | |
1.7 | Load Center | mm | 500 | |
1.8 | Lifting Height | mm | 200 | |
DIMENSION | 2.1 | Overall Dimension(L/W/H) | mm | 1730×700×1325 |
2.2 | Fork Sizes | mm | 1150×155×55 | |
2.3 | Fork Width Min./Max. | mm | 550/685 | |
2.4 | Min. Ground Clearance | mm | 85 | |
2.5 | Turning Radius | mm | 1200 | |
2.6 | Min.Right Angle Channel Width | mm | 1560 | |
WEIGHT | 3.1 | Self-weight(with battery) | kg | 195 |
3.2 | Battery Weight | kg | 20 | |
WHEEL | 4.1 | Wheel Type (driving/turning) | | Solid PU |
4.2 | Driving Wheel Sizes | mm | 170X53 | |
4.3 | Loading Wheel Sizes | mm | 80X70 | |
DRIVING ＆ CONTROL | 5.1 | Driving Motor | kw(60min) | 1.5 |
5.2 | Lifting Motor | kw(60min) | 0.8 | |
5.3 | Battery Dimension | mm | 159×188×104 | |
5.4 | Battery Voltage/Capacity | V/ah | 2x24/20 | |
5.5 | Controller | | DC | |
PERFORMANCE | 6.1 | Travel speed(laden/unladen) | km/h | 3.5/4 |
6.2 | Lifting speed(laden/unladen) | mm/s | 4 | |
6.5 | Max Climbing Ability | % | 15 | |
6.6 | Braking | | electromagnetic induction | |
OTHER | 7.1 | Driving Type | | Electric |
7.2 | Steering System | | Manual | |
7.3 | Noise Level | | 40 | |
7.4 | Waterproof Grade | | IP68 | |
