ProductsAll Electric Pallet Truck EPTY-30
Electric Pallet TruckNew

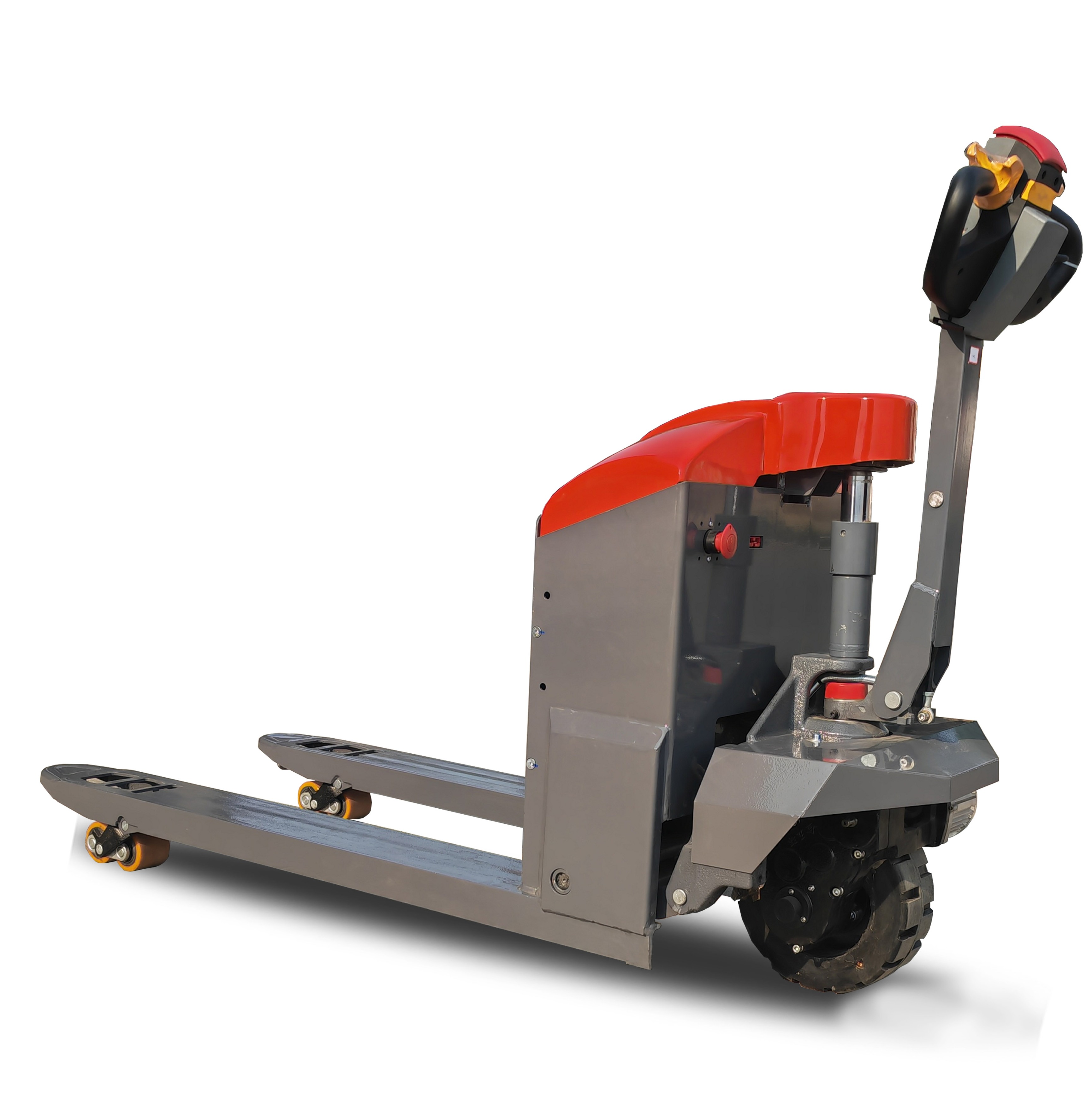

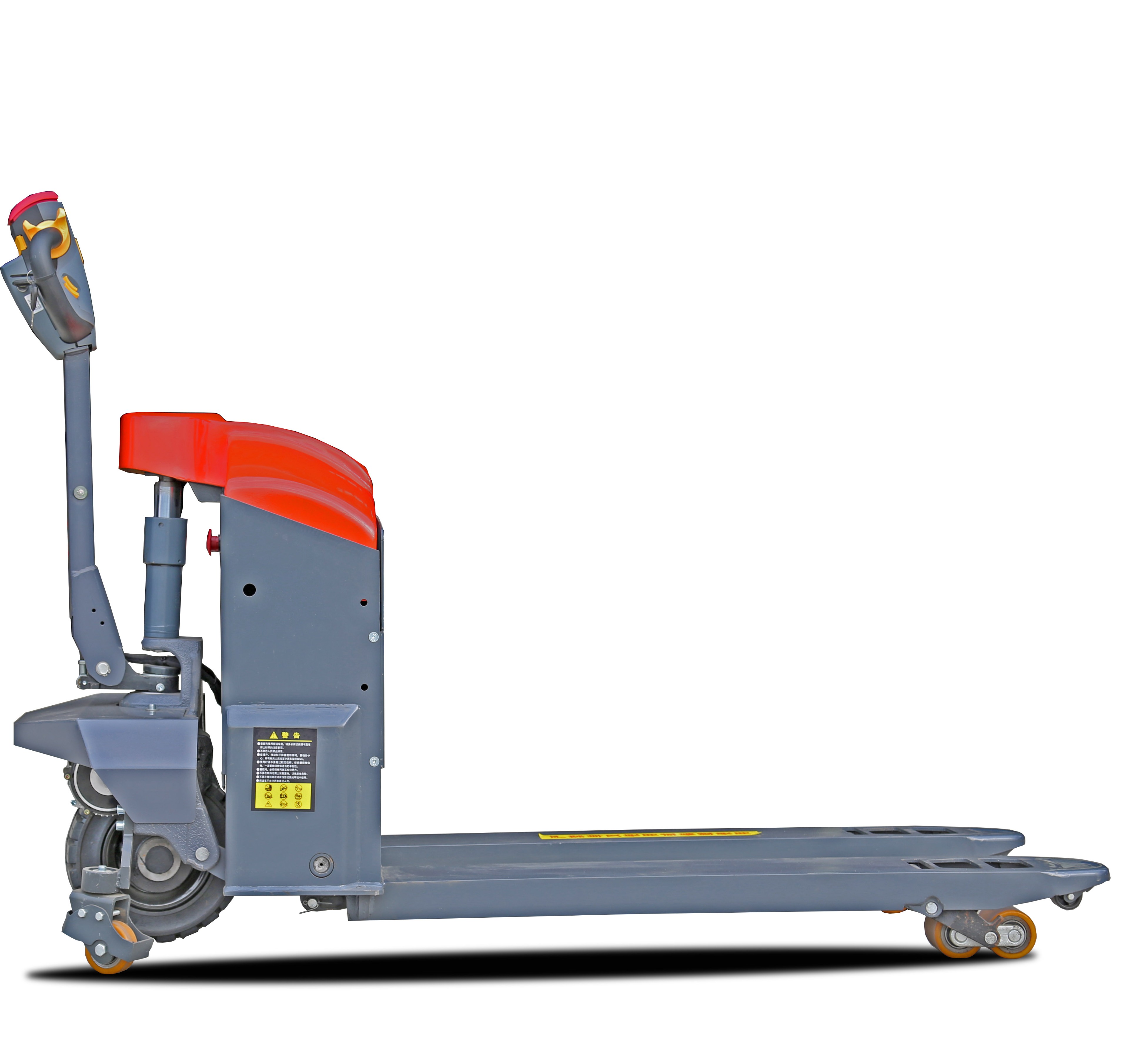

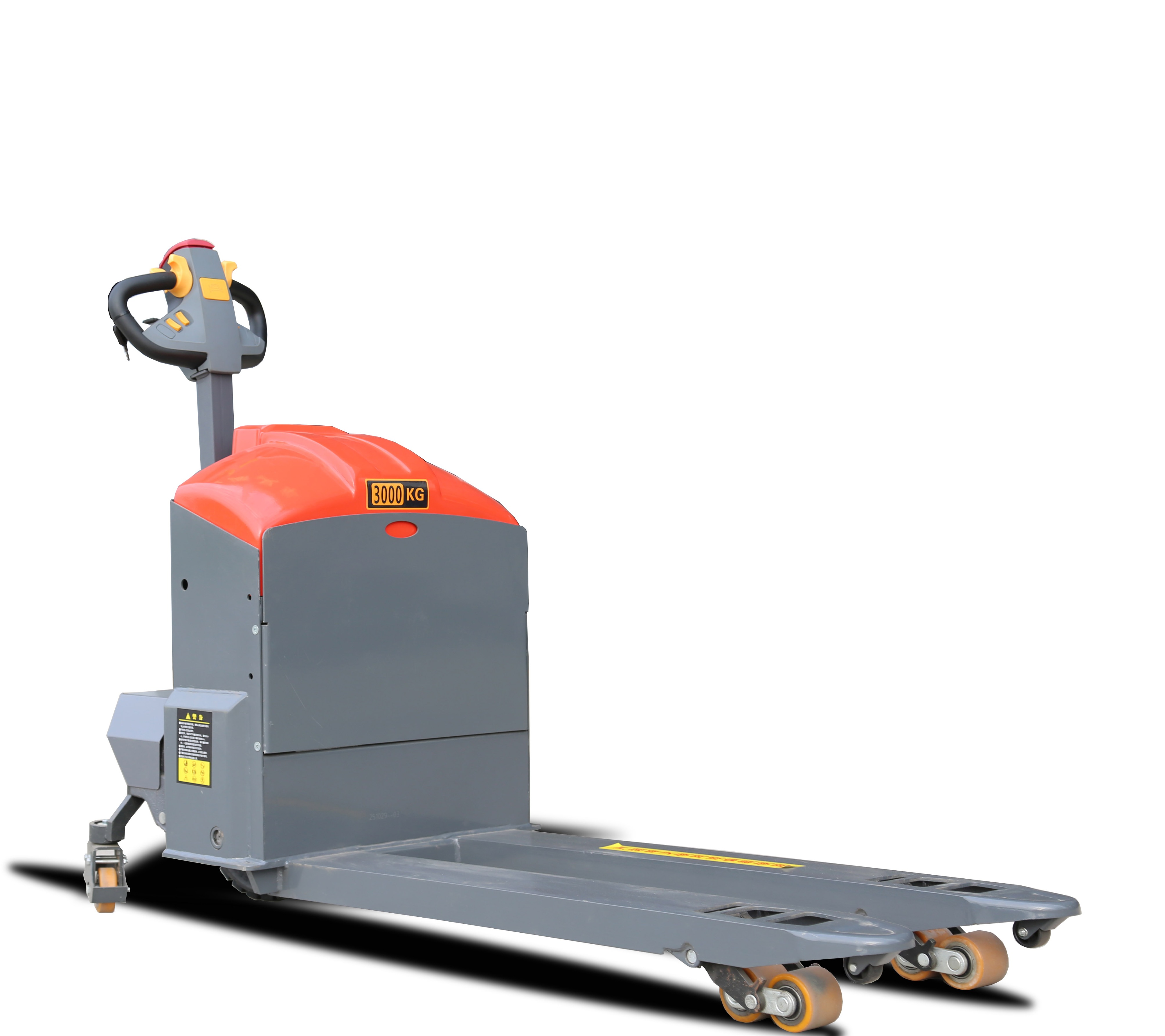

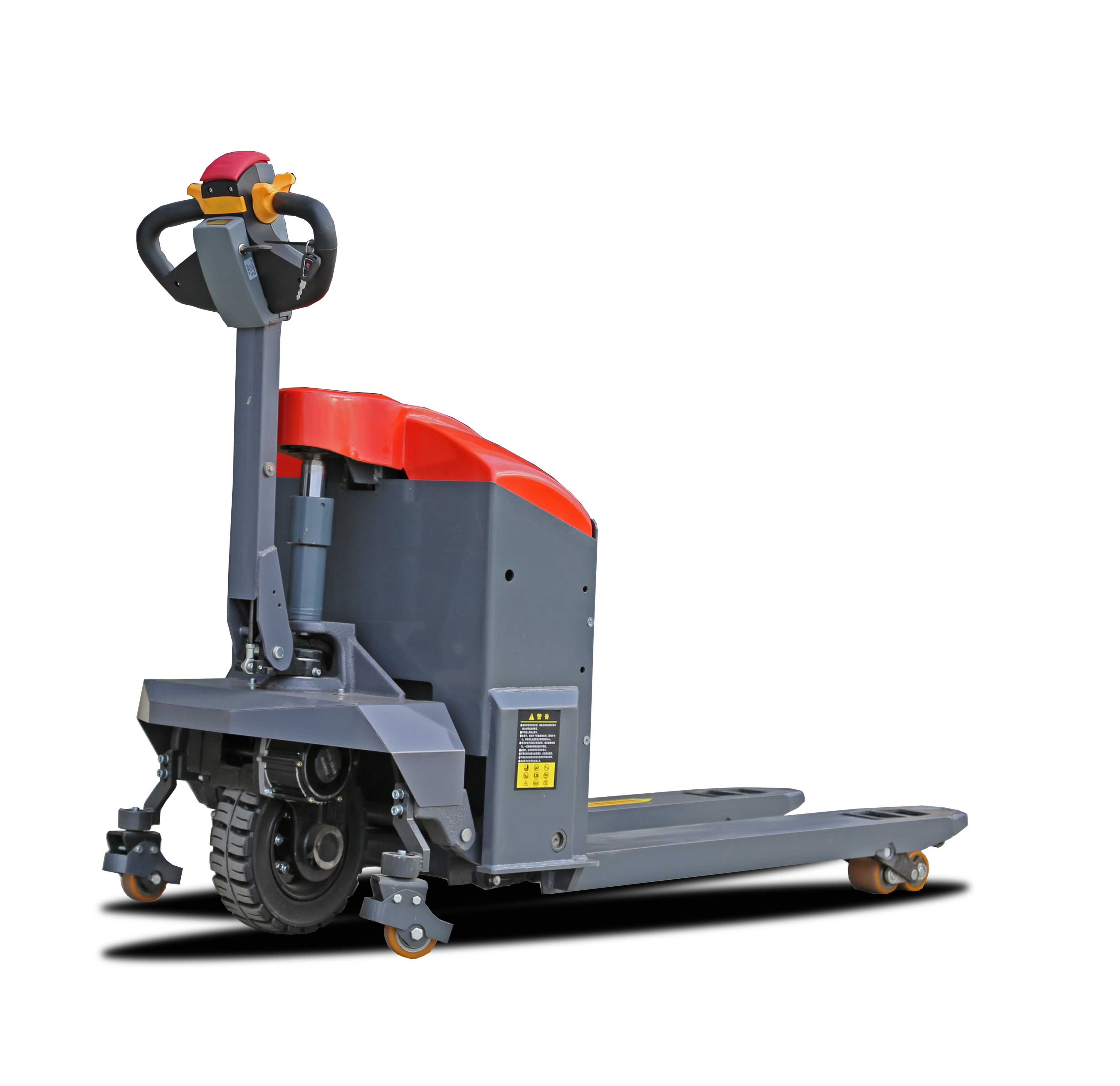

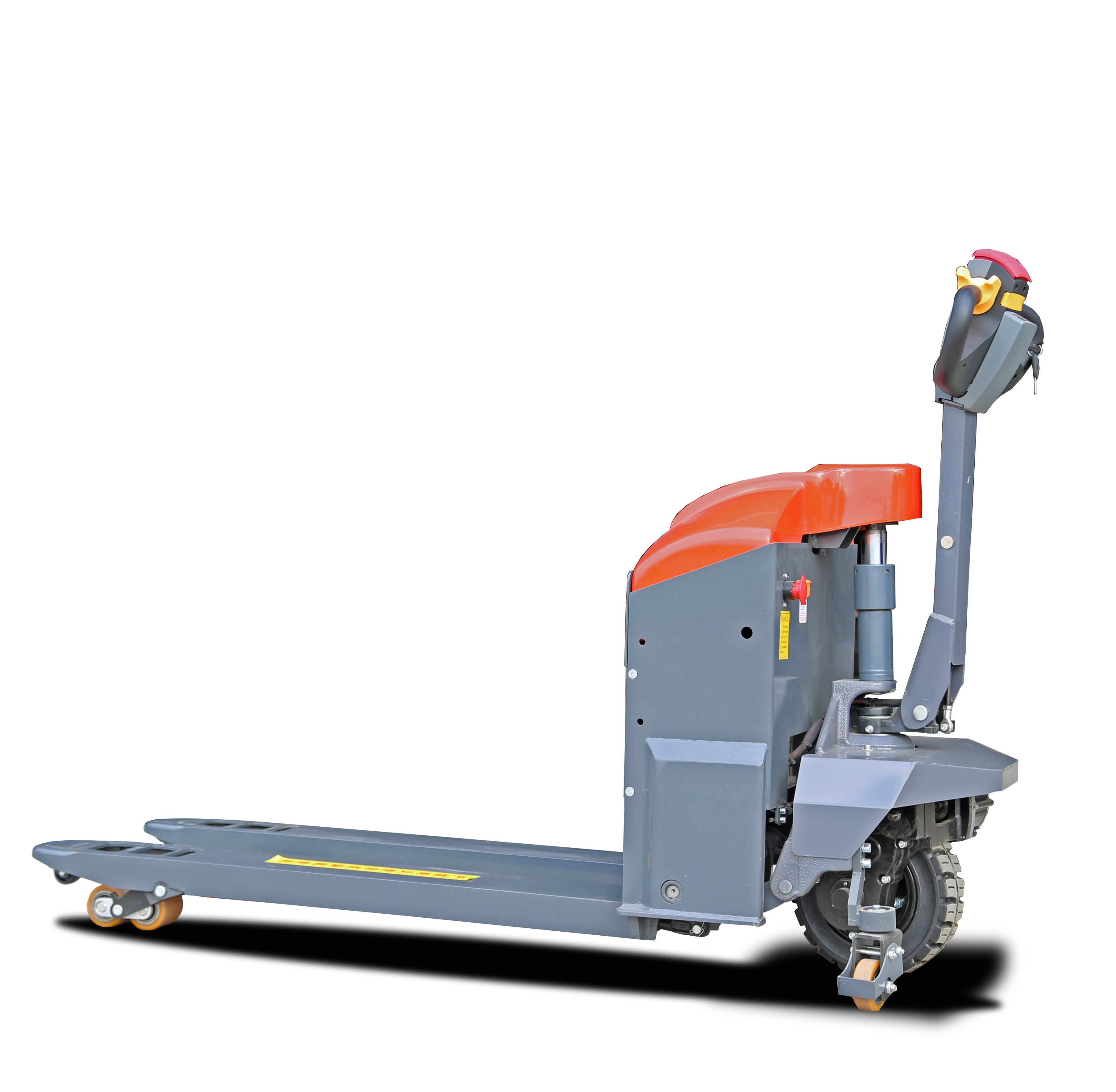

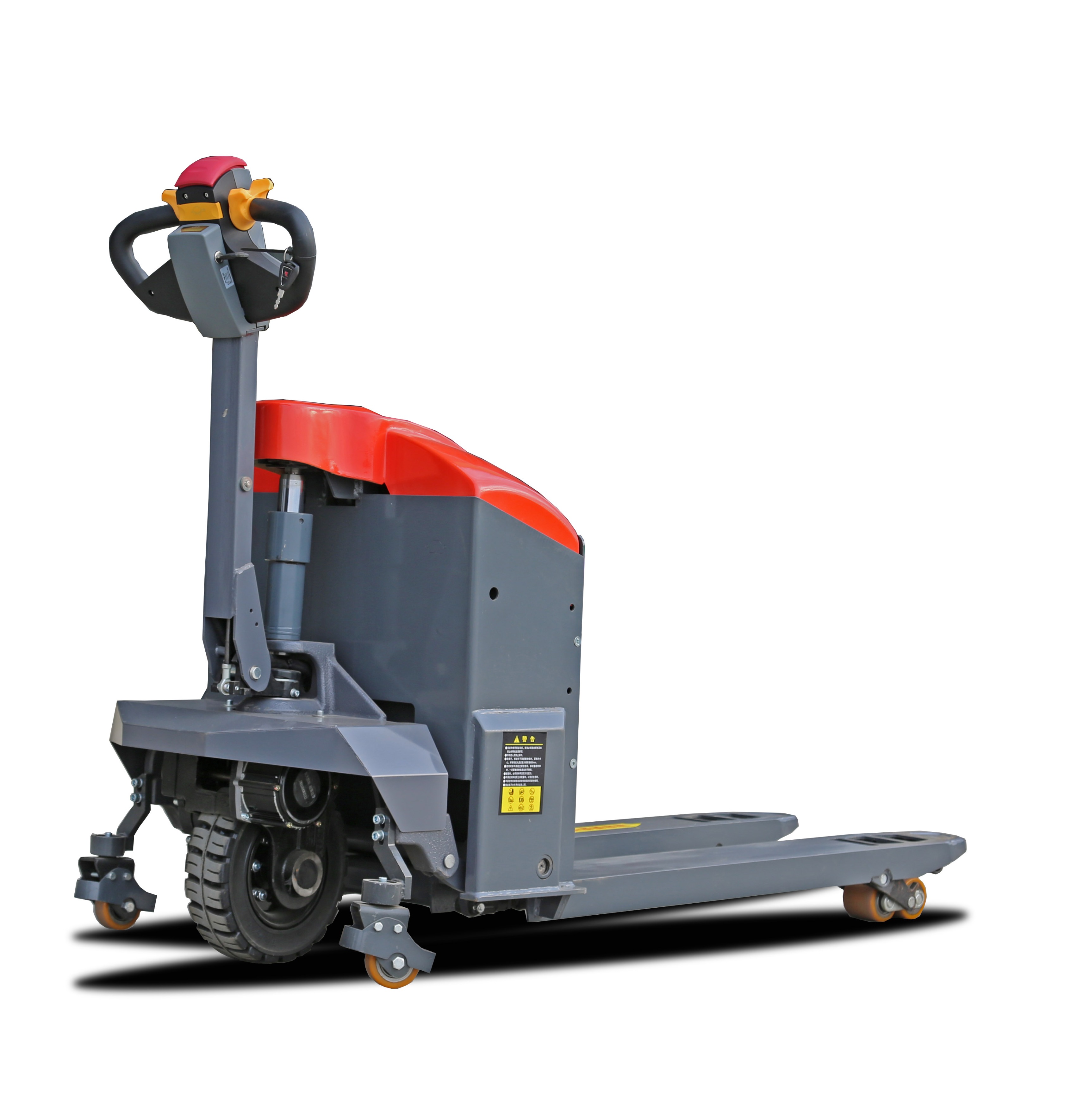

All Electric Pallet Truck EPTY-30
All electric pallet truck with big wheel, equipped with a 1.8 kW brushless motor and a load capacity of 2,000–3,000 kg.
All Electric Pallet Truck EPTY-30
In workplaces such as warehouses, ports, supermarkets, and factories, a battery-powered pallet truck is an indispensable tool.
HAGLIFT pallet trucks are designed to reduce physical strain on workers and boost operational efficiency through effortless handling and an exceptionally low failure rate.
As a classic piece of material handling equipment, the PTE-30 pallet jack features a modular design that allows for the easy replacement of any individual component. Compact in form yet robust in construction, this reliable HAGLIFT electric pallet truck is suitable for use in virtually any work environment.
- Five Year warranty on truck body.
- Maximum Gradeability: 15% (with a 2,000 kg load)
- Integrated Control Handle (allows for lifting, lowering, and forward/reverse movement)
- The pallet truck is capable of operating on ramps, tailgates, and various platform surfaces.
- Brushless Motor:1.5Kw
- Lithium and Lead Acid battery optional
- Overcharge Alert
- Low voltage warning
- Error Code Display
- Powerful brushless motor delivers exceptional climbing capability,
- While an electromagnetic braking system prevents rolling back down slopes.
All-Electric Pallet Truck Forklift Specification | | ||||
FEATURE | 1.1 | Origin | | China | China |
1.2 | Brand | | HAGLIFT | HAGLIFT | |
1.3 | Model | | EPT-20 | EPT-30 | |
1.4 | Power Type | | Lithium/Lead Acid | Lithium/Lead Acid | |
1.5 | Operation Type | | Walking | Walking | |
1.6 | Rated Capacity | kg | 2000 | 3000 | |
1.7 | Load Center | mm | 500 | 500 | |
1.8 | Lifting Height | mm | 200 | 200 | |
DIMENSION | 2.1 | Overall Dimension(L/W/H) | mm | 1730×(550/685)×1325 | 1730×(550/685)×1325 |
2.2 | Fork Sizes | mm | 1150×155×55 | 1150×155×55 | |
2.3 | Fork Width Min./Max. | mm | 550/685 | 550/685 | |
2.4 | Min. Ground Clearance | mm | 85 | 85 | |
2.5 | Turning Radius | mm | 1200 | 1200 | |
2.6 | Min.Right Angle Channel Width | mm | 1560 | 1560 | |
WEIGHT | 3.1 | Self-weight(with battery) | kg | 175 | 185 |
3.2 | Battery Weight | kg | 10 | 15 | |
WHEEL | 4.1 | Wheel Type (driving/turning) | | Solid PU | Solid PU |
4.2 | Driving Wheel Sizes | mm | 170X53 | 170X53 | |
4.3 | Loading Wheel Sizes | mm | 80X70 | 80X70 | |
DRIVING ＆ CONTROL | 5.1 | Driving Motor | kw(60min) | 1.5 | 1.5 |
5.2 | Lifting Motor | kw(60min) | 0.8 | 0.8 | |
5.3 | Battery Dimension | mm | 159×188×104 | 159×188×104 | |
5.4 | Battery Voltage/Capacity | V/ah | 48V/20 | 48V/20 | |
5.5 | Controller | | DC | DC | |
PERFORMANCE | 6.1 | Travel speed(laden/unladen) | km/h | 3.5/4 | 3.5/4 |
6.2 | Lifting speed(laden/unladen) | mm/s | 4 | 4 | |
6.5 | Max Climbing Ability | % | 15 | 15 | |
6.6 | Braking | | electromagnetic induction | electromagnetic induction | |
OTHER | 7.1 | Driving Type | | Electric | Electric |
7.2 | Steering System | | Manual | Manual | |
7.3 | Noise Level | | 63 | 63 | |
7.4 | Waterproof Grade | | IP54 | IP54 | |
